Z purlin roll forming machine with Full automatic Hydraulic cutting and punching
- Category: >>>
- Supplier: Jiangyin Dingbo Technology Co. Ltd.Jiangyin Ltd.
Share on (1600380772236):
Product Overview
Description
Product Description
technological process

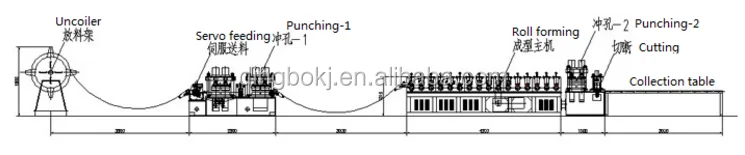

Uncoiler -- Servo feeding -- Punching -- Roll forming -- Cutting -- Output table

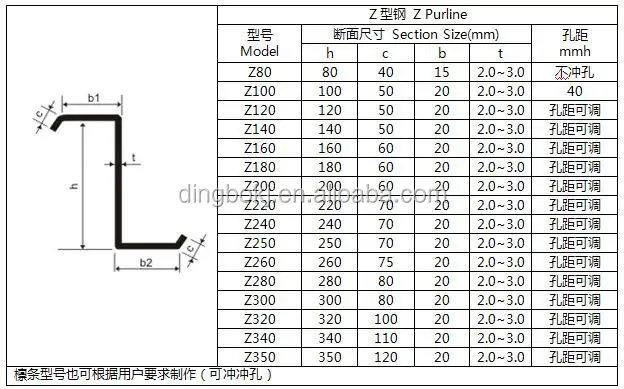

Version to design
Products Description

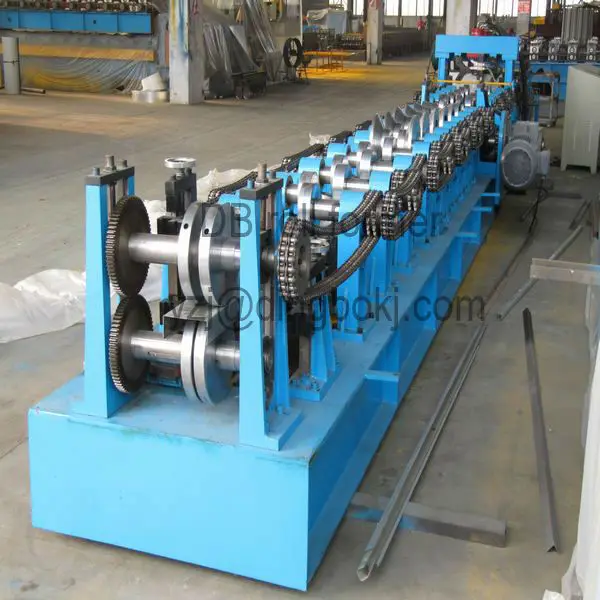

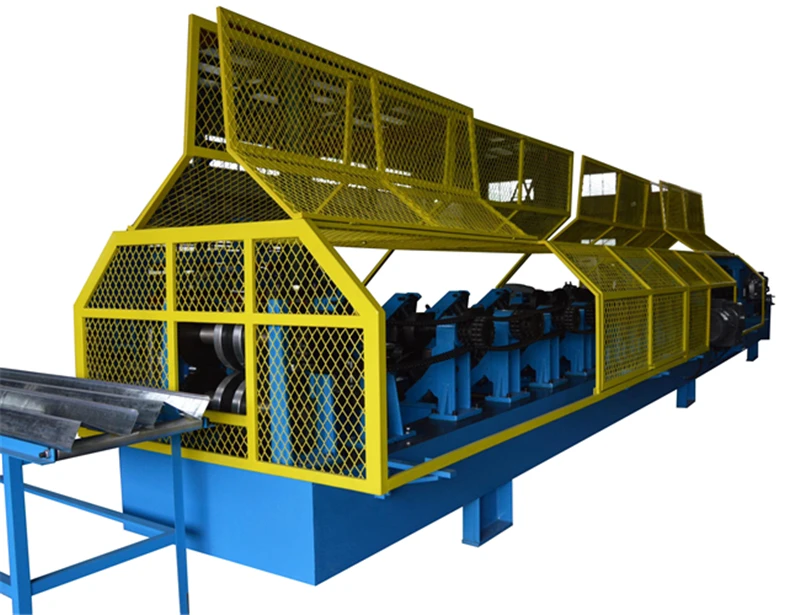

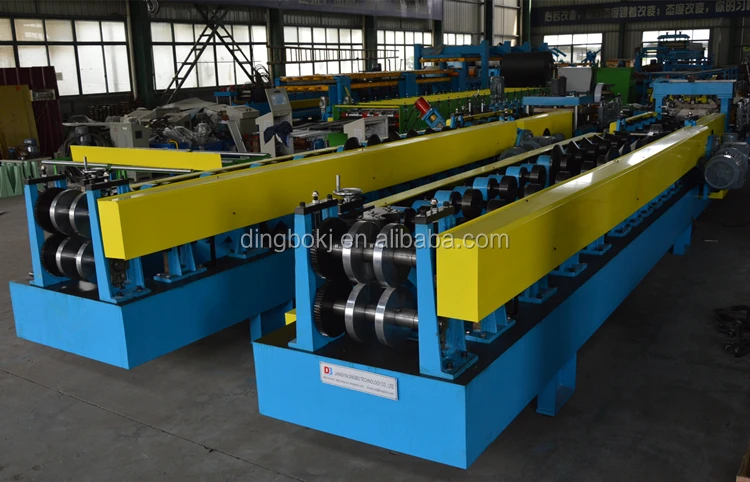

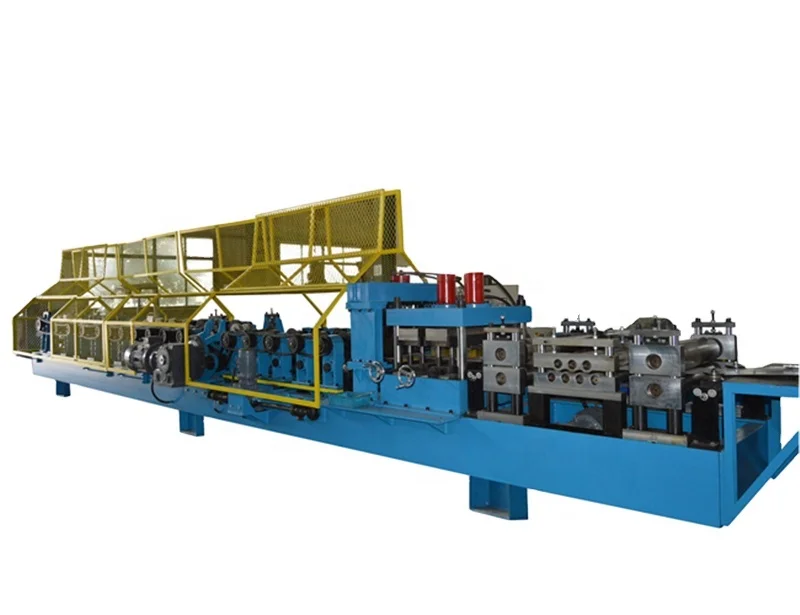

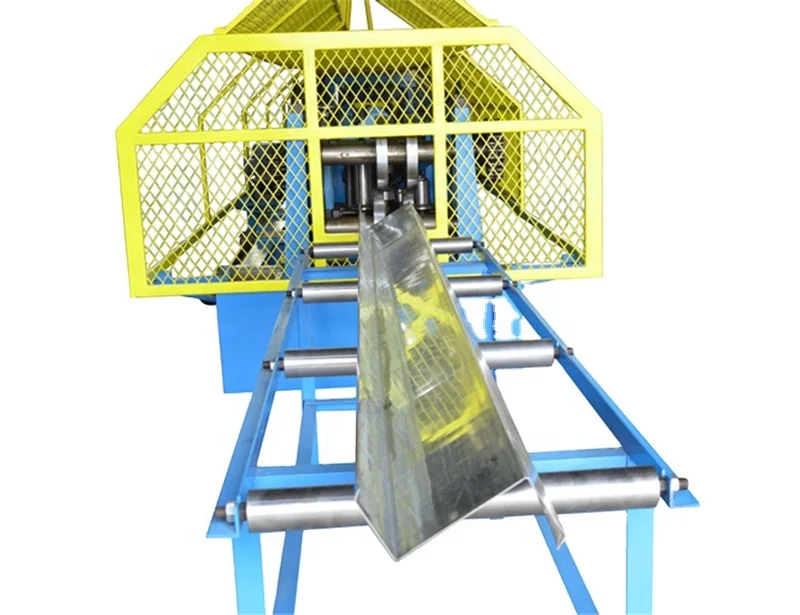

z purlin roll forming machine
The steel purlin is formed by roll forming thin-walled steel in the indoor temperature, and the material will produce the cold bending effect.
It is suitable for steel structure engineering roof and wall beam etc.
Z section steel features: in addition to high strength, steel and other excellent properties, it is convenient, quick and material for q195-345.It is suitable for steel structure engineering roof and wall beam etc.
Scope of application: Z section steel is mainly used for the purlin of steel structure building, especially for purlin of large slope roof
Product Paramenters
Raw material type: Steel coil/Galvanized coil(optional)
Thickness: 1.5-3.0mm
Roller material: GCr15/Cr12
Shaft material:High Grade No.45 Forged
Forming Stations: 16stations
Control type: PLC(customer's requirement)
Driven type: By chain
Main power: 18.5kw
Cutting Blade Material: Cr12 Mov
Thickness: 1.5-3.0mm
Roller material: GCr15/Cr12
Shaft material:High Grade No.45 Forged
Forming Stations: 16stations
Control type: PLC(customer's requirement)
Driven type: By chain
Main power: 18.5kw
Cutting Blade Material: Cr12 Mov
Main Components
Decoiler | 1 |
Punching device | 1 |
Main roll forming machine | 1 |
PLC Control box | 1 |

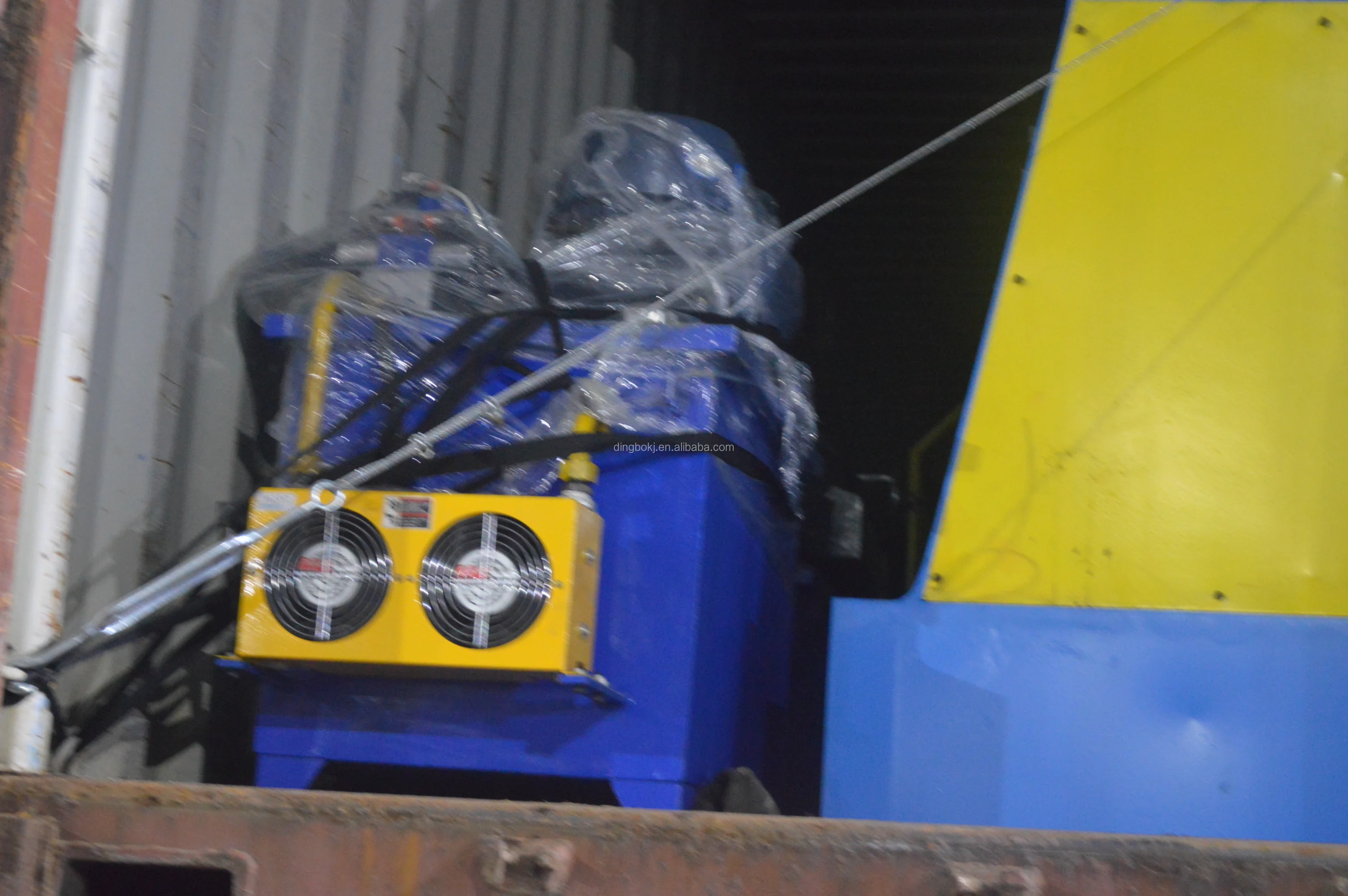

Hydraulic station | 1 |
Output table | 2 |

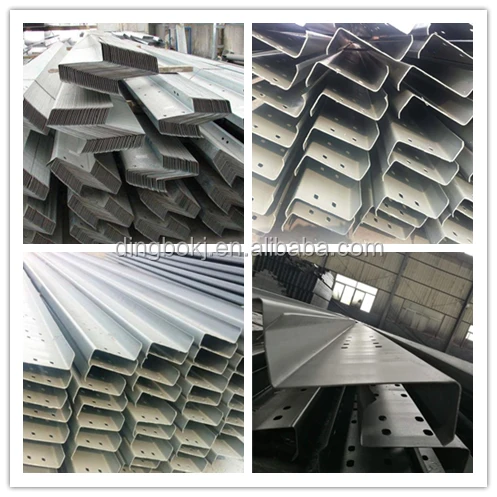

Finished producted

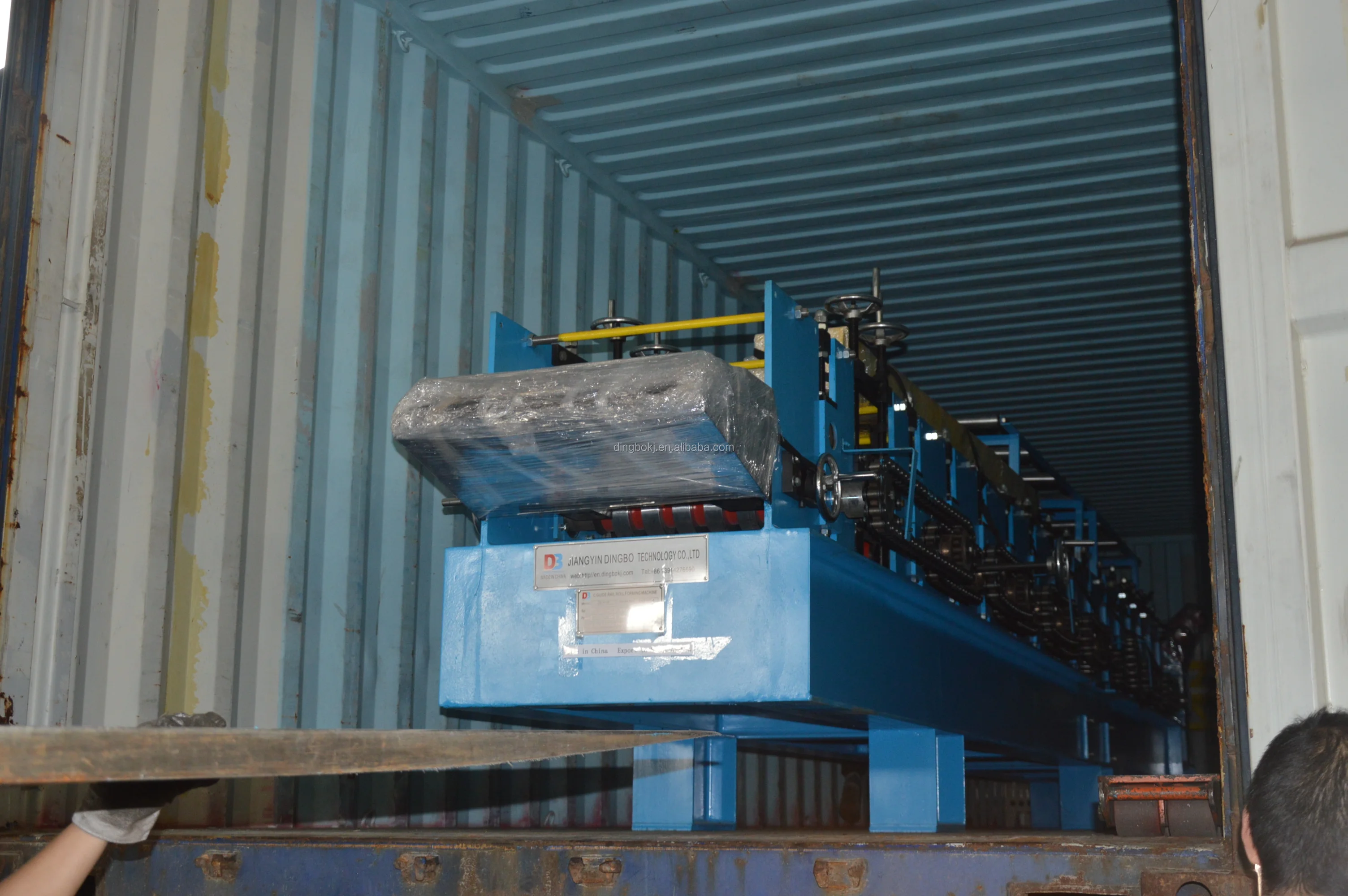

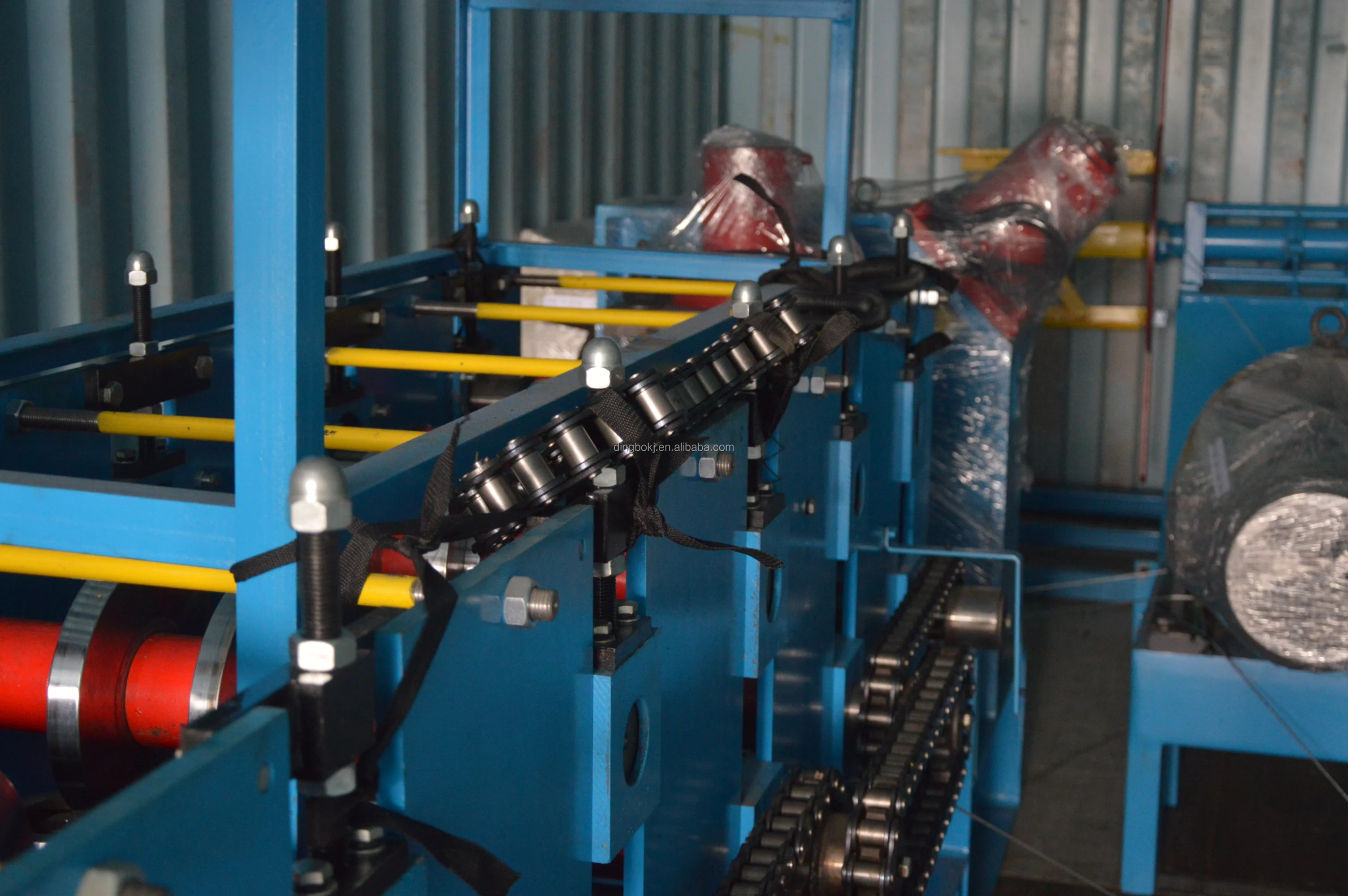

Product packaging

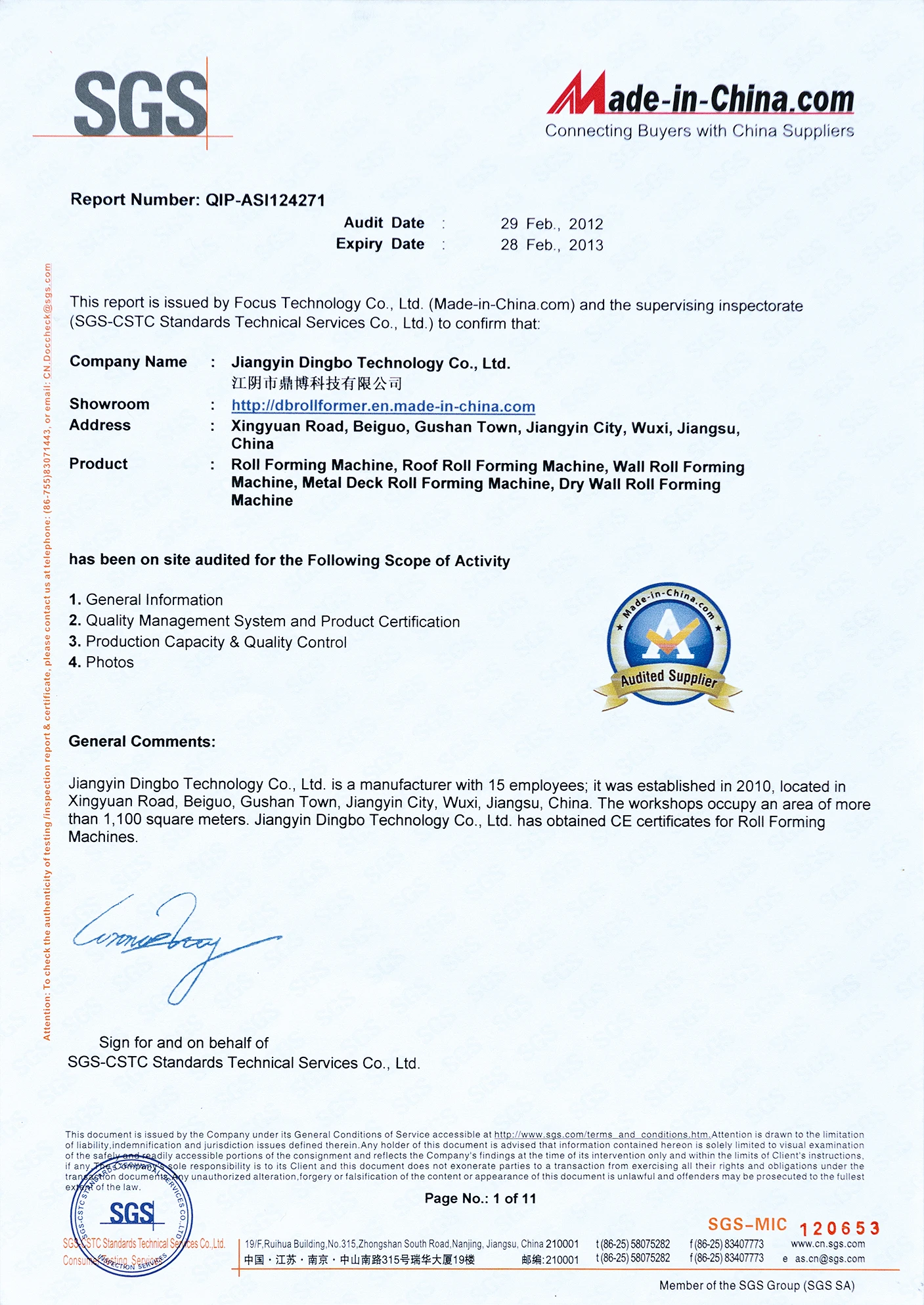

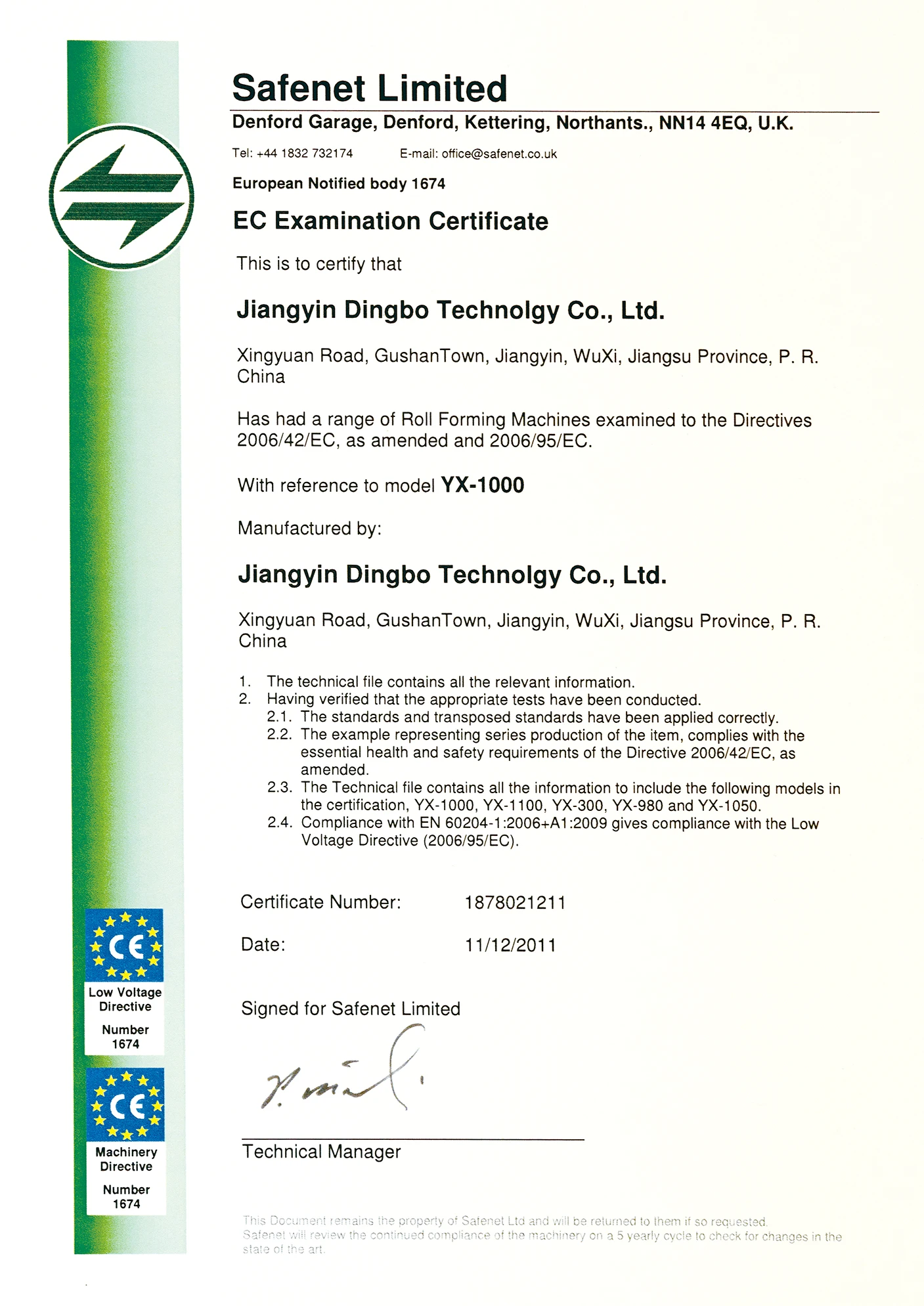

Company Profile
Jiangyin Dingbo Technology Co., Ltd. is professional manufacturer and exporter specializing in designing, manufacturing,technology developing, sales and services in building materials machinery whcih mainly include all kinds of roll forming machine, tube making machine, slitting line and cut to length line,and discontinuous PU sandwich panel production line and embossing machine.
The main products of our factory is color steel roofing and wall roll forming machine, pre-painted steel forming machine, floor deck forming machine, automatical C/Z Purlin forming machine, Guardrail forming machine, Racking roll forming machine, cable tray roll forming machine, Glazed Tile forming machine, DownPipe forming machine, Roller shutter door machine,tube mill, steell and aluminum embossing machine,steel slitting and cut to length line, PU sandwich panel line and so on.
The products are widely used in such as building structure, steel structure warehouse, factory buildings, supermarket, Nursing homes, villas and other construction projects, Our factory can meet the construction enterprises, automobile industry, Iron and steel production enterprises' growing demands.
Dingbo Technology is located in Wuxi city, Jiangsu province which is very close to Shanghai, It's about half an hour's journey. We enojoy the convenient transportation and advantageous location which supply good business opportunities for the buyers home and abroad.
FAQ
1. Does one machine can only produce one size?
Not exactly, it depends on which profile the customer want to produce.
2.Do you have after-sales technical support?
Yes,we are happy to give advice and also have skilled technicians available to maintain the machine overseas to customers’ workshop if needed.
3. You are trading company or factory?
We are Manufacturer, and we export our machine by ourselves.
4.How long the machine could be made?
Normally speaking, high precision roll forming machine could be made out with 40 working days.If you need machines in hurry, we can make it for you less than a month.
5. Do you provide customized?
Sure, we can design the machine according to the requirement and profile drawing you provide. Our engineers can offer the best professional solution to our worldwide clients.
6. May we visit your factory?
Sure,Warmly welcome to our factory at any time.
7.How to visit your factory?
By high speed train from Shanghai to East Wuxi (Wuxi Dong station), half an hour.
8.What's the warranty period?
12 months warranty period, starting from the date of the successful installation and commissioning of the equipments at the Buyer’s Installation site.
