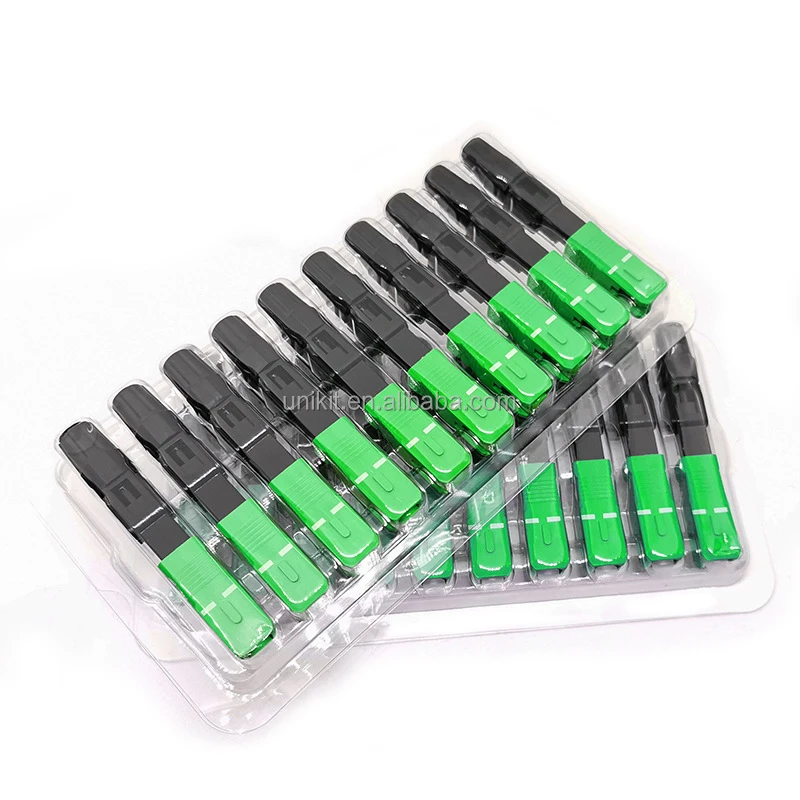

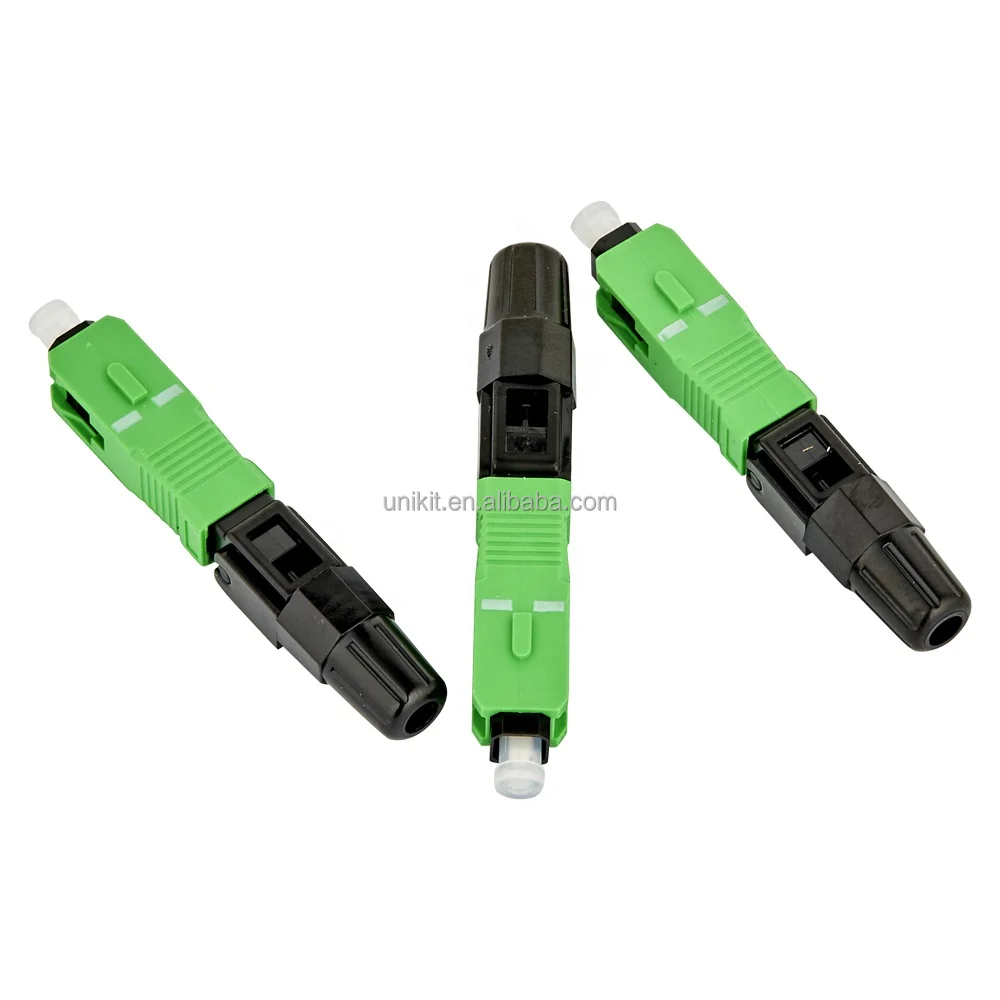

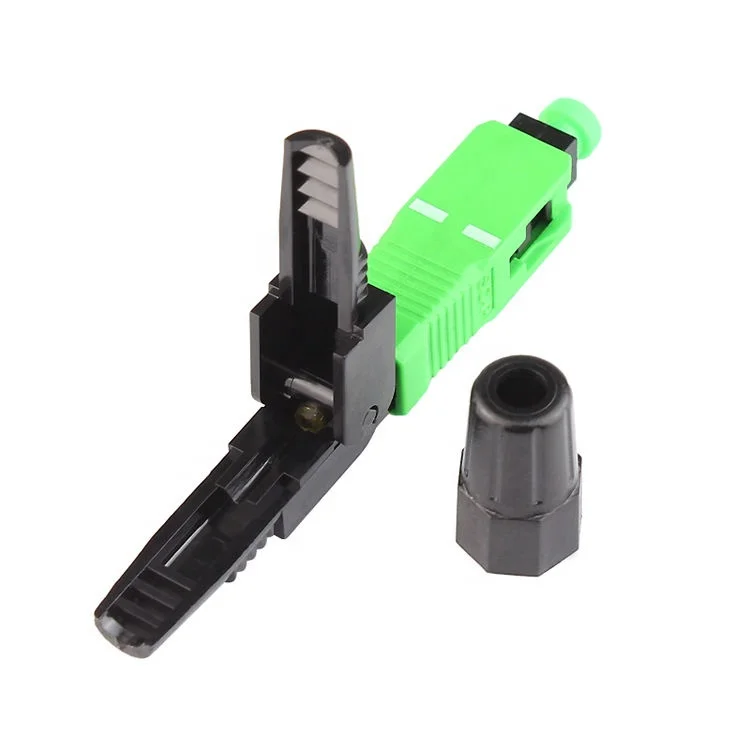

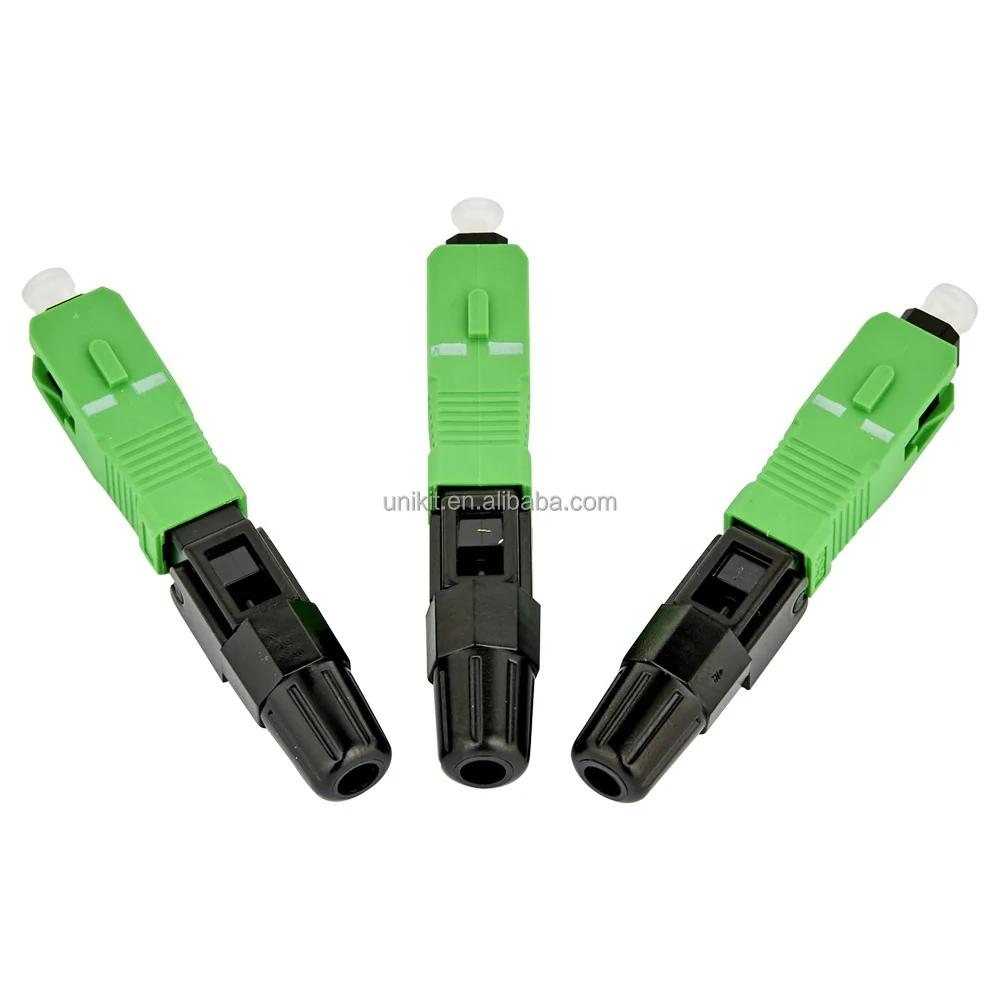

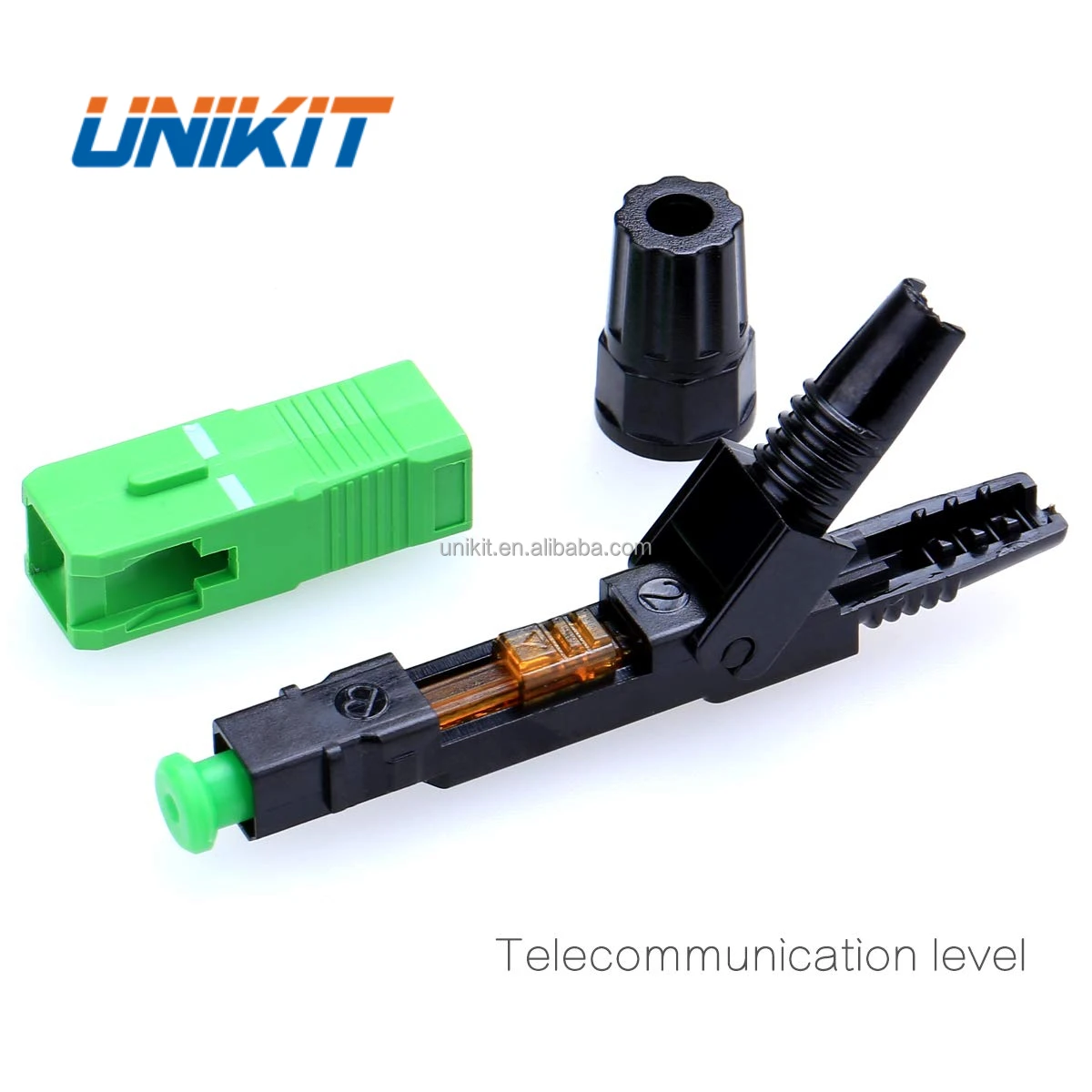

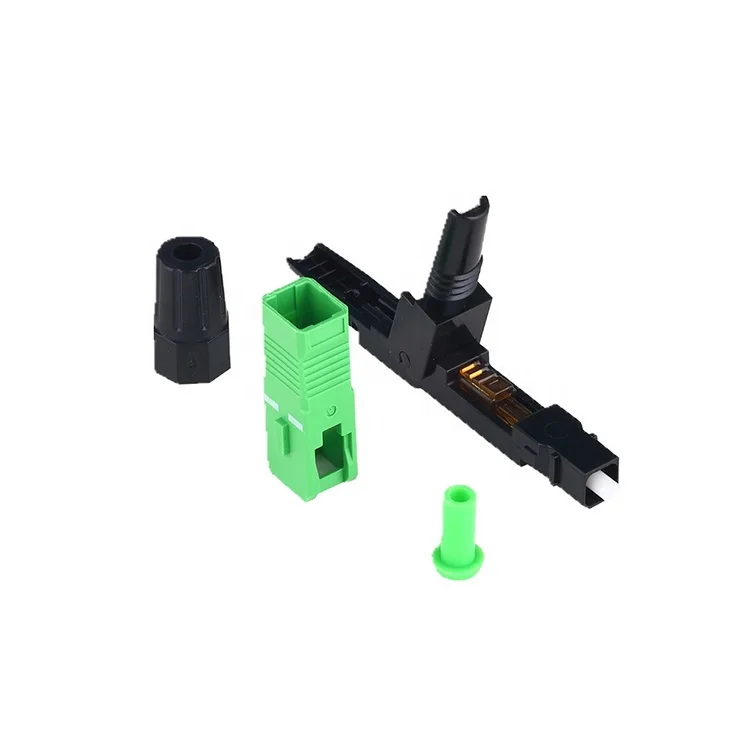

Китайский производитель UNIKIT FTTH, быстрый коннектор SCAPC, сборка на месте, проверка высоких и низких температур, волоконно оптический Быстрый коннектор
- Category: >>>
- Supplier: Jiangsu Unikit Optical Technologies Co. Ltd.
Share on (1600380818399):
Product Overview
Description
Product Description
Specification
Item | Parameter |

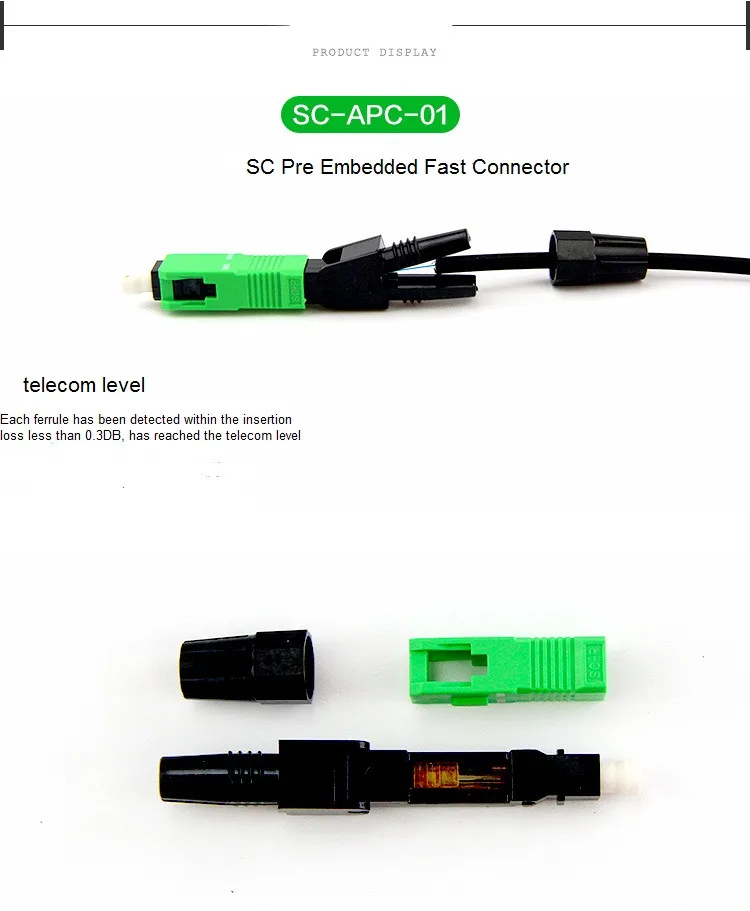

Model Number | SCAPC-01-01 |
Brand | UNIKIT/OEM |
Applicable for | 3.0mm*2.0mm Drop Cable, 2.0*1.6mm Drop Cable |
Insert loss | ≤ 0.2 dB(1310nm & 1550nm) |
Return Loss | ≥50dB for UPC, ≥55 dB for APC |
Size | 59*8.7*8.3mm with dust cap |
Fiber Diameter | 125μm ( 652 & 657 ) |
Coating Diameter | 250μm/900 um |
Operation Time | about 15s（exclude fiber presetting) |
Mode | SM |
Success Rate | >98% |
Reusable Times | >10 times |
Tensile Strength | >50 N |
Packing & Delivery
Company Profile
COMPANY PROFILE
Jiangsu UNIKIT Optical Technologies Co., Ltd founded in 2006, as a state-level high-tech manufacturer, we focus on supplying the whole solution of fiber connection, R&D components, provide production service for telecom operator, system integrator, optoelectronic device company and internet company. As leading manufacturer of field assembly fiber connector, we have obtained more than 100 patents, participated in drafting Domestic Standard of Telecommunications Industry, developed the whole set of
ground-breaking theory and design solution for Single Optical Fiber Mechanical Splice.
ground-breaking theory and design solution for Single Optical Fiber Mechanical Splice.
