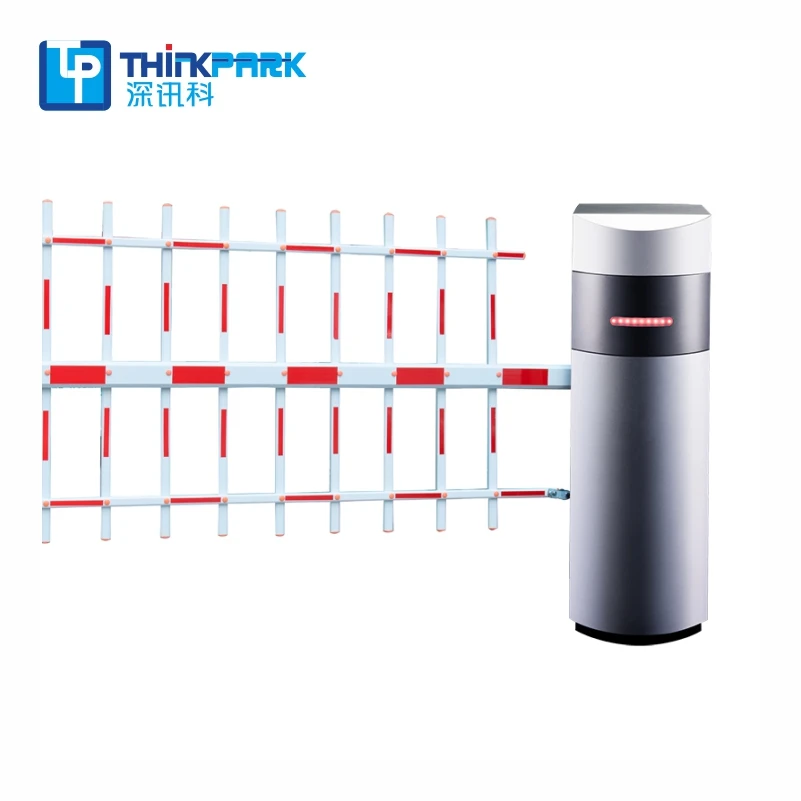

Thinkpark Most Durable 24V DC Brushless Road Boom Barrier Gate for Commercial Use
- Category: >>>
- Supplier: Shenzhen Thinkpark Technology Co. Ltd.
Share on (1600380864828):
Product Overview
Description

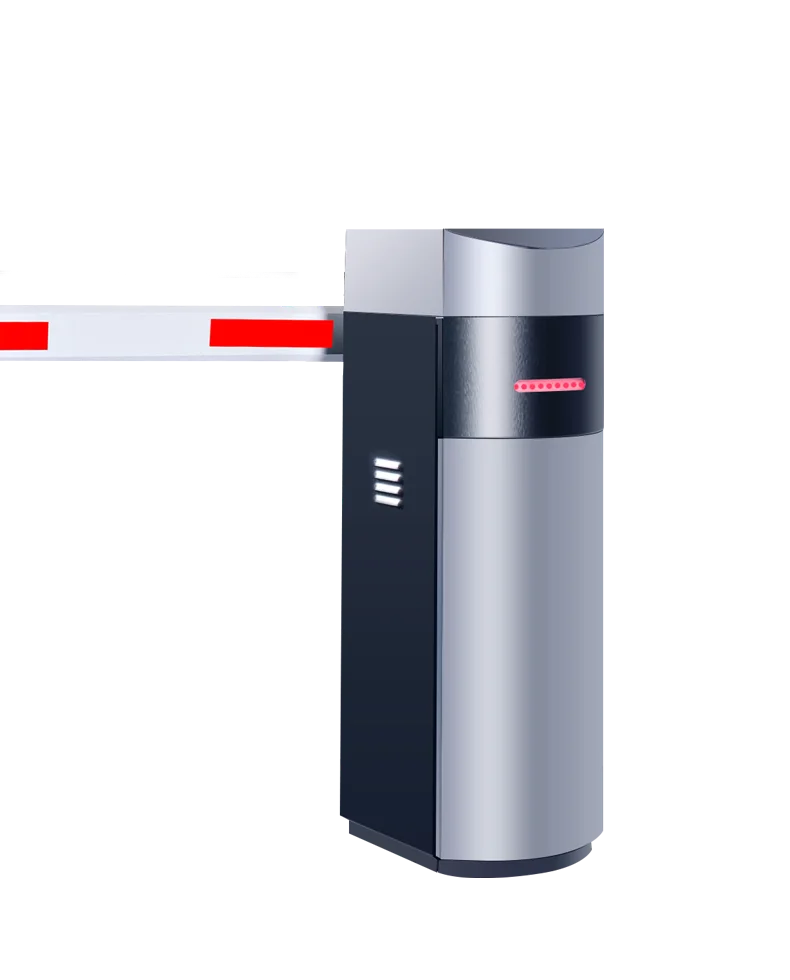

24V DC BRUSHLESS BARRIER GATE
Our most advanced DC Motor Barrier Gate Ever.
Our most advanced DC Motor Barrier Gate Ever.
SXK-D01B DC brushless barrier gate is carefully designed and manufactured by Thinkpark.
The product is driven by a brushless DC motor, which runs stable in operation, low noise, adjustable lift/drop speed, diversified control system interfaces, simple and fast parameter setting. The equipment adopts 24V safety voltage, safe and reliable, the movement is made of aluminum alloy die-casting, with reliable mechanical strength and beautiful appearance. It is widely used in various parking lots for 24/7 use.
FEATURES
* Inbuilt red/green LED signal and streamlines design, the overall appearance is dignified and atmospheric.
* Brushless DC motor, adjustable lift/drop speed, gate-in-position buffer design, smoother operation and quieter motor.
* 24V safety voltage, more guarantee for personal safety.
* Worm gear transmission mechanism, low noise, long operating lifetime.
* The main body of the movement is made of aluminum alloy, manufactured by die-casting,with reliable mechanical strength, beautiful-looking appearance, precise size and good heat dissipation.
* Using gear reduction transmission, high transmission efficiency, low power output loss.
* 1.5-6 seconds speed control
* When the barrier falls, it will automatically return when it encounters obstacles. The anti-smashing force can be adjusted
* With extra backup power supply, automatic gate open can be realized when power is off.
* Low temperature antifreeze design to ensure normal operation of the equipment in an environment of -40℃.
* 24V backup power supply optional
* Brushless DC motor, adjustable lift/drop speed, gate-in-position buffer design, smoother operation and quieter motor.
* 24V safety voltage, more guarantee for personal safety.
* Worm gear transmission mechanism, low noise, long operating lifetime.
* The main body of the movement is made of aluminum alloy, manufactured by die-casting,with reliable mechanical strength, beautiful-looking appearance, precise size and good heat dissipation.
* Using gear reduction transmission, high transmission efficiency, low power output loss.
* 1.5-6 seconds speed control
* When the barrier falls, it will automatically return when it encounters obstacles. The anti-smashing force can be adjusted
* With extra backup power supply, automatic gate open can be realized when power is off.
* Low temperature antifreeze design to ensure normal operation of the equipment in an environment of -40℃.
* 24V backup power supply optional
Product Description
Specification
Model No.: | SXK-D01B |
Working Temperature: | -40~75℃ |
Input Voltage: | AC200~240V |
Working Voltage (Control Panel): | DC24V, 7.5A |
Output Power: | 180W |
Surface treatment: | Agate Black+Silver Gray |
Arm Length: | 2~6m |
Motor speed: | 780r/Min no-load, 600r/Min rated |
Insulation Grade: | F |
Remote Control Distance: | ≥30m |
Dimensions: | 340*345*1030mm |
Highlights | ||
Gate open/close time Adjustment | YES | |
Gate open/close Speed Adjustment | YES | |
Gate-in-position Sensitivity Adjustment | YES | |
Anti-Smashing Sensitivity Adjustment | YES | |
Anti-Smashing Strength Adjustment | YES | |
Motor Strength Adjustment | YES | |
Gate Position Adjustment | YES | |
Test Mode Adjustment | YES | |
Intelligent Obstacle Return | YES | |
Red/Green Light | YES | |
Power off and gate opening | Power off and gate opening | |
Speed Arm Type | Arm Length | ||||||||
Boom Arm Type | ≤3m | ≤4m | ≤4.5m | ≤5m | ≤6m | ||||
Straight Arm | 1.5S | 3S | 4S | 5S | 6S | ||||
Folding Arm | 3S | 4S | 5S | 6S | |||||
Two Fencing Arm | 4S | 5S | 6S | ||||||
Three Fencing Arm | 5S | 6S | |||||||

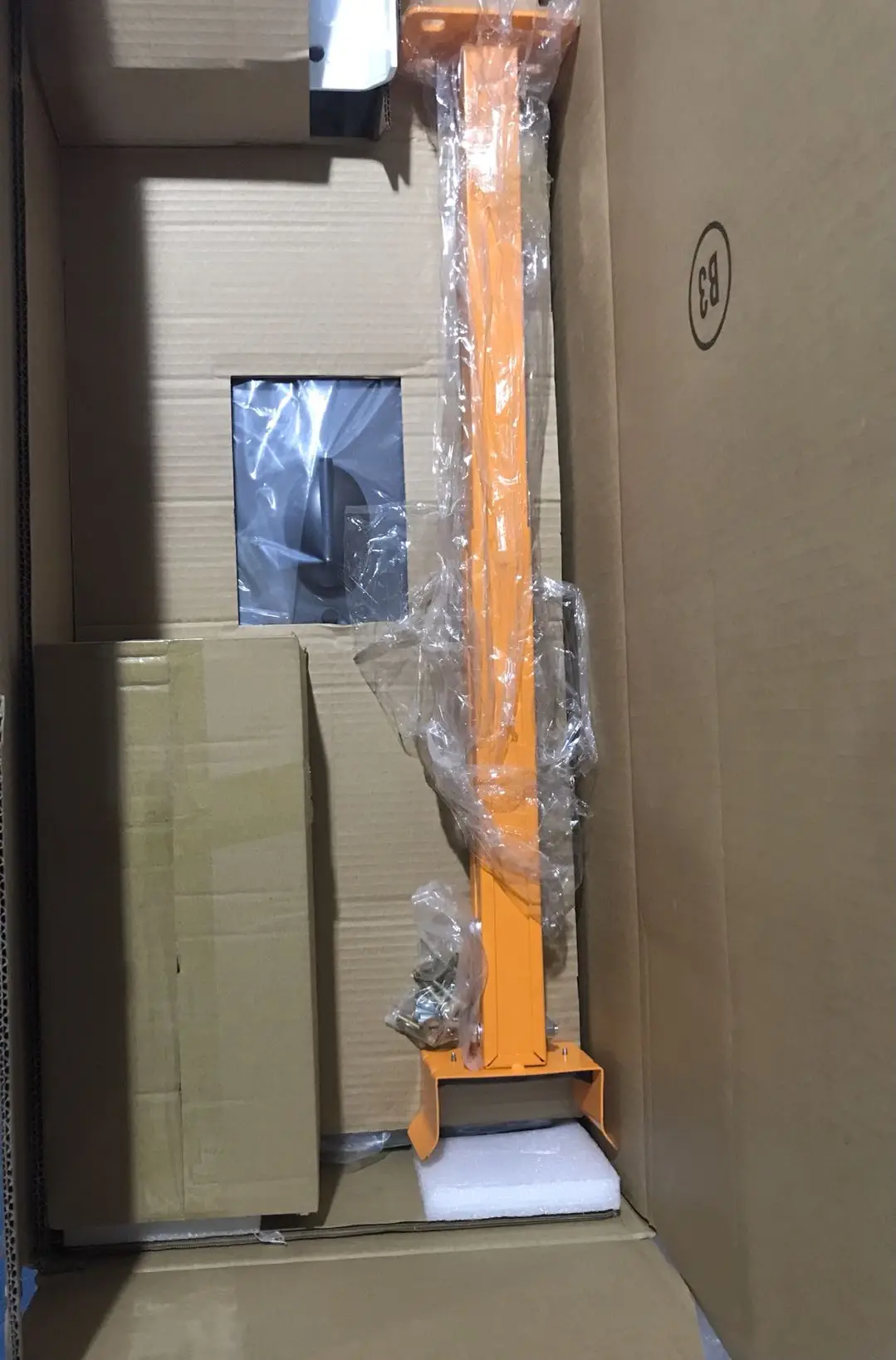

Packing & Delivery
To better ensure the safety of your goods, professional, environmentally friendly, convenient and efficient packaging services will be provided.
Packing Accessories
Item | Spec. | Quantity | Unit | Application |
Screws, Nuts, Flat Pad | M12*70 | 2 | sets | Fixing the boom |
Boom Fixing Bar | 1 | pcs | Fixing the boom | |
Boom Holder Plastic Cover | 1 | sets | Optional | |
Cabinet Fixing Bar | 2 | pcs | Fixing the cabinet | |
Expansion Screws | M16*150 | 4 | sets | Fixing the cabinet |
Support Post | 1 | pcs | Optional | |
Radio Emitter | 1 | pcs | Optional | |
Keys | 2 | pcs | For Cabinet door | |
Remote Control Unit | 2 | pcs | ||
Manual | 1 | pcs | Electronic manual |
FAQ
24V DC Road Barrier Gate Controller Interface Explanation
Item | Description |
Wire Control Interface | This interface is available for parking system, also available for external controller to control barrier gate. UP: Short circulate "UP" and "GND" Down:Short circulate "Down" and "GND" Stop: Short circulate “Stop” and “GND” |
Anti-smashing Interface | Infrared Photocell: boom will lift up when short circulate “Infrared photocell interface" and “GND” during boom falling down. Loop Detector: boom will lift up when short circulate “loop detector interface” and “GND” during boom falling down; when boom moves to up limit position, boom will fall down after these two interfaces disconnected. |
Relay Output Interface | The relay output can be set to meet different application requirements by setting the output mode. For details, please refer to item H-16 of advanced settings. |
DC12VPower Output | Provide lA current output, available for radar or small light strips. |
Indicator | Indicating barrier boom and motor running situation |
"Regular Menu" Command List
Menu | Function | Default | Range | Remark |
F-00 | Boom Up Speed | 40 | 10-100 | The larger the value, the faster the boom up speed |
F-01 | Boom Down Speed | 40 | 10-100 | The smaller the value, the faster the boom down speed |
F-02 | Boom Up deceleration position | 60 | 45-80 | The angle at which也e boom up starts to decelerate, unit: degree |
F-03 | Boom Down deceleration position | 40 | 10-60 | The angle at which the boom down starts to decelerate, unit: degree |
F-04 | Low-speed working angle of boom up | 90 | 45-100 | The angle of the last section of low-speed zone during boom up |
F-05 | Low-speed working angle of boom down | 30 | 0-45 | The angle of the last section of low-speed zone during boom down |
F-06 | Boom up limit position speed | 5 | 1-100 | Boom up limit position speed |
F-07 | Boom down limit position speed | 3 | 1-100 | Boom down limit position speed |
F-08 | Horizontal position adjustment | 15 | 1-255 | Adjustment horizontal position of the barrier gate |
F-09 | Vertical position adjustment | 6 | 1-255 | Adjustment the vertical position of the barrier gate |
F-10 | Delay auto-close time | 0 | 0-255 | Auto drop off time when no car passes, unit: second |
F-11 | Open in place Lock time | 0 | 0-255 | Lock the gate for a period of time after opening in place, unit: second |
F-12 | Close in place Lock time | 0 | 0-255 | Lock也e gate for a period of time after closing in place, unit: second |
F-13 | Power-on self-learning speed | 20 | 8-80 | Find up and down limit at this speed |
F-14 | Remote control Learning | 0 | 0-60 | Learning remote control |
F-15 | Auto-reversing on obstruction | 10 | 1-40 | Obstruction response time, unit: 0.05 second |
Warranty and Service
* Free service is offered for component parts in one year warranty time. (not includes the barrier boom and remote control units)
* Lifetime service with charge accordingly.
* Technical questions are supported.
* The below items and situations are not included in the range of free service:
* Lifetime service with charge accordingly.
* Technical questions are supported.
* The below items and situations are not included in the range of free service:
- The user does not follow the instruction and cause any damage of the product.
- The power supply is not stable, over the range of permitted voltage or not according to safety electric using standard.
- The user installs or uses the product in wrong methods，cause damage to the appearance of product.
- Natural disaster causes damage to the product.
- Warranty time is over
- The user installs or uses the product in wrong methods，cause damage to the appearance of product.
- Natural disaster causes damage to the product.
- Warranty time is over
- Service items are out of our promises.
Maintenance
* Keep the barrier gate clean.
* Keep the barrier gate clean.
* Check the joints every month in case of any loose parts.
* Check the balance status of spring after the barrier gate running 300,000 times, and readjust the balance. change new springs after running 500,000 times( or 12 months), to avoid spring breaking due to excessive fatigue.
* Check the easily worn-out parts every half year and renew it.
* Remote control distance will be shortened or not work in case like big object screening, battery exhausting, extreme weathers.
