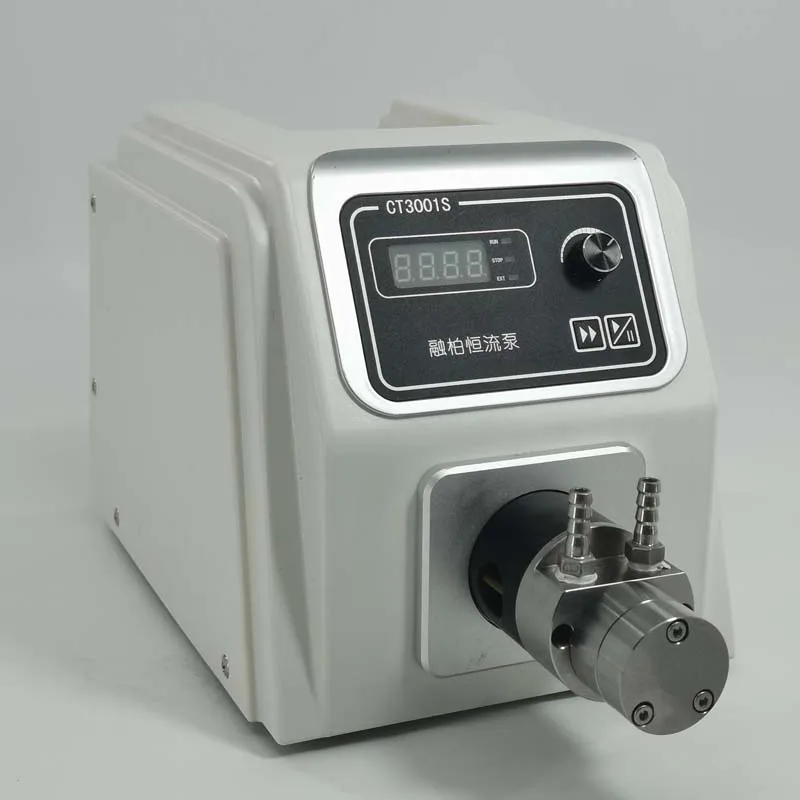

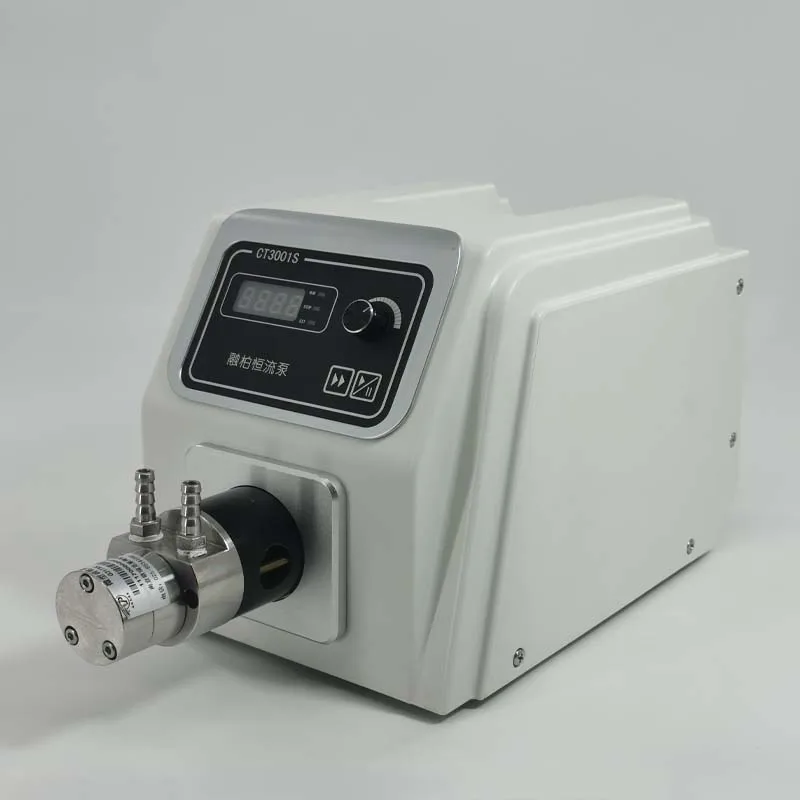

CT3001S Lab Gear Pump,Gear Metering Pump,Pulseless,Miniature Gear Pumps for Laboratory Applications,Precision Gear Metering Pump
- Category: >>>
- Supplier: Baoding Rongbai Constant Flow Pump Manufacturing Co. Ltd.
Share on (1600380866841):
Product Overview
Description
Speed range: 300~3000rpm
Speed resolution: 1rpm
Transmissible fluid viscosity: ≤2000CPs
Transmission medium: ≤50% gas-liquid mixture; ≤10μm soft particles

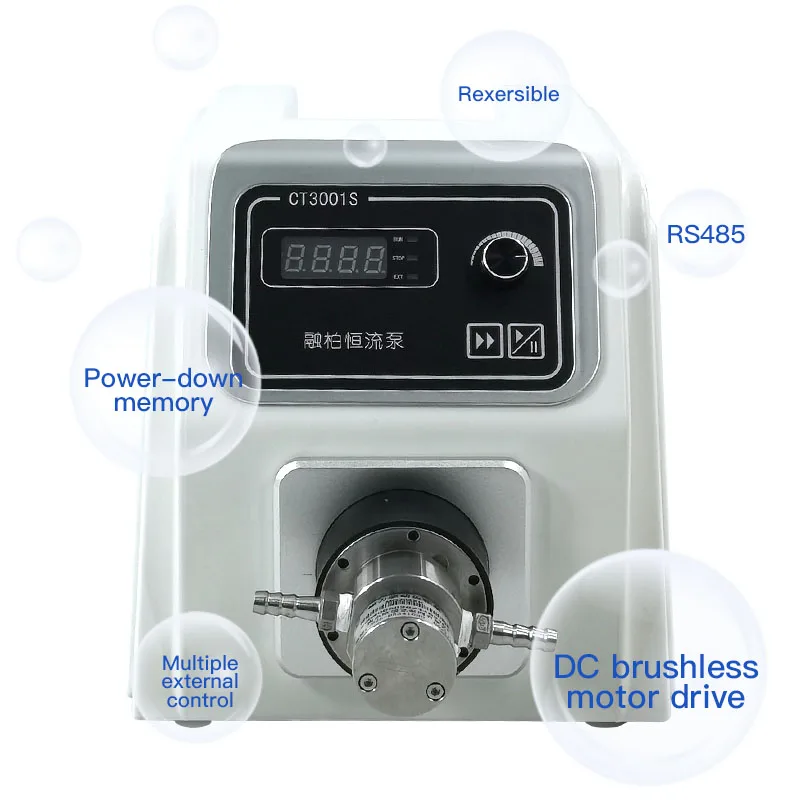

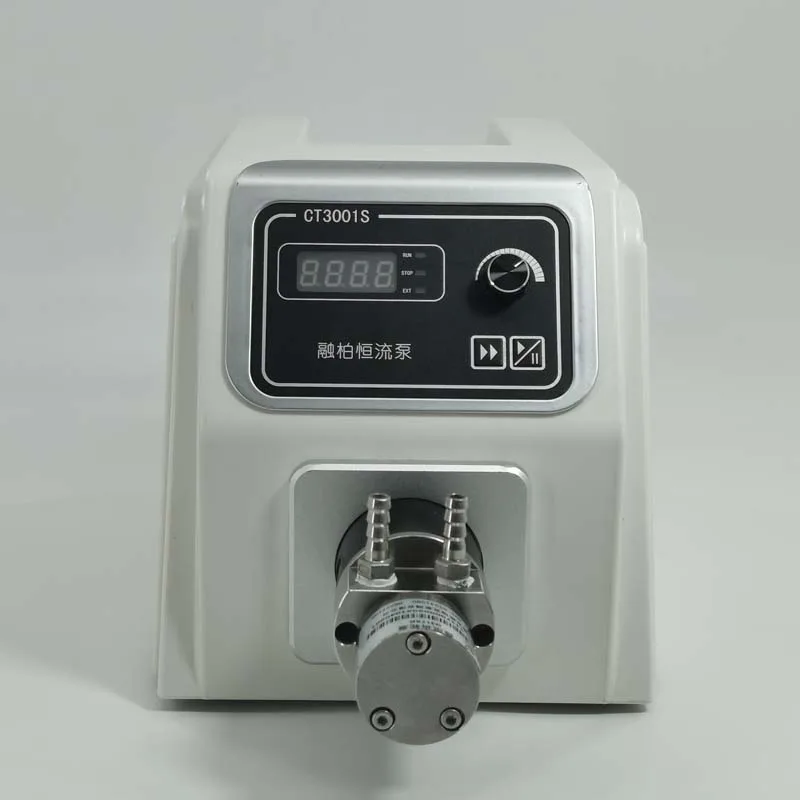

Display mode: 4-digit LED digital tube displays the current speed
Adjustment method: rotary encoder adjustment or external control adjustment
Applicable power supply: wide AC90-26550/60Hz
Working environment: ambient temperature 0~40℃, relative humidity <80%
Drive weight: 5.35kg (including pump head)
External control function: start and stop (switch signal)
Speed (0-5V, 0-10V, 4-20mA, 0-10KHz optional)
Communication function: RS485 communication (MODBUS protocol)
Rated power: <300W

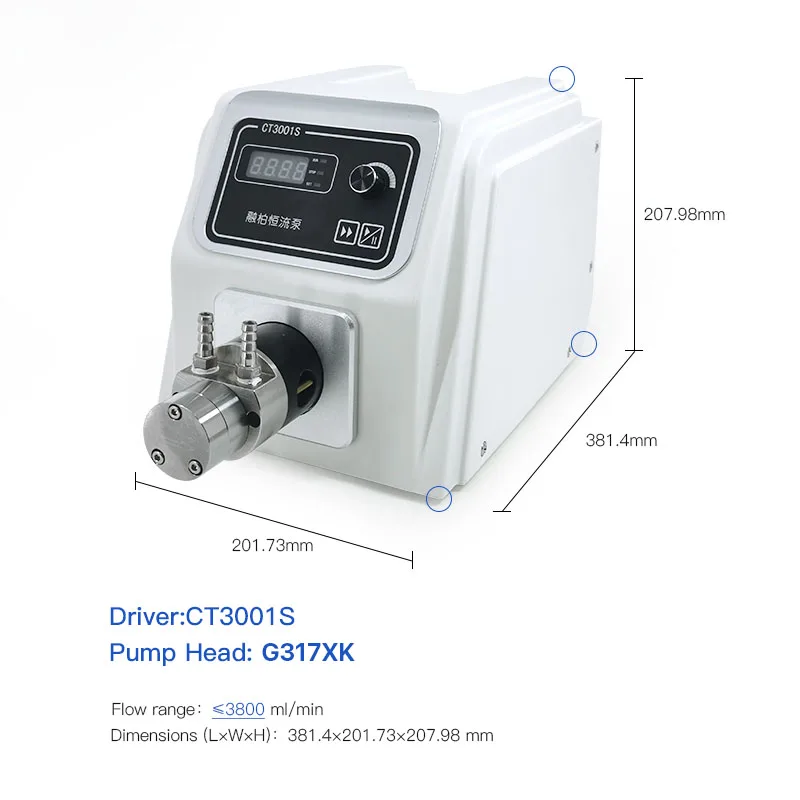

Dimensions (length × width × height): 290 × 200 × 206 (mm)
Protection level: IP31
CT3001S flow parameters
G317XK pump head (Gear material PEEK): outlet pressure 0.3MPa, reference flow range 380-3800 (ml/min), applicable liquid temperature 0~200℃;
G312XK pump head (Gear material: PEEK): outlet pressure 0.3MPa, reference flow range 252-2520 (ml/min), applicable liquid temperature 0~200℃;
G306XK pump head (Gear material: PEEK): outlet pressure 0.3MPa, reference flow range 122-1260 (ml/min), applicable liquid temperature 0~200℃;
MG213XK pump head (Gear material PEEK): outlet pressure 0.5MPa, reference flow range 220-2200 (ml/min), applicable liquid temperature -35℃~100℃;
MG209XK pump head (Gear material PEEK): outlet pressure 0.5MPa, reference flow range 160-1600 (ml/min), applicable liquid temperature -35℃~100℃;
MG204XK pump head (Gear material PEEK): outlet pressure 0.5MPa, reference flow range 78-780 (ml/min), applicable liquid temperature -35℃~100℃.
Baoding Rongbai Peristaltic Pump Manufacturing Co., Ltd. |
4-C-622, Electric Valley Technology Center, No. 3088, Lekai North Street, National High-tech Industrial Development Zone, Baoding City, Hebei Province, China |
FAQ
(1)Usually we send the goods by EMS/DHL/SEA, if you want ship by any ways please feel free to contact us.
(2) A tracking number will send to you after your order has been shipped
(3) Delivery: Small orders will be shipped within 24 hours if the payment is made before 3 pm on the same day. For large
orders,please contact customer service. If you encounter shop activities, generally control the delivery within 48 hours, if there is anextension Please understand.
(4) Return/Exchange: If the product is not in use, it can be returned for 7 days without reason.
(5) Size: The product size is marked, if there is any error, please contact the customer service staff to solve it.
(6) Color: Store products are all actual shots.
(7) Customization: The company accepts orders of various sizes, and can be customized and developed according to customer requirements to ensure quality and low prices. New and old customers are welcome to negotiate business.
Product Maintenance：
(1) When the pump is not working for a long time, loosen the pressure block to avoid squeezing the hose for a long time to cause deformation.
(2) The roller of the pump head should be kept clean and dry, otherwise it will accelerate the wear of the hose, shorten the
service life of the hose and cause premature damage to the roller.
(3) The surface of the drive and the pump head are not resistant to organic solvents and strong corrosive liquids, so special attention should be paid when using them.
Warranty：
(1) The product is guaranteed for one year.
(2) Contact the seller or manufacturer before returning to the factory for repair.
(3) The original packaging or other reliable packaging methods should be used as far as possible for the return to the factory for maintenance and transportation.
(4) When returning to the factory for maintenance, the fault phenomenon and contact information should be found in detail.
(5) During the warranty period, if it is improperly used or damaged by the user, it will not be included in the free warranty.
