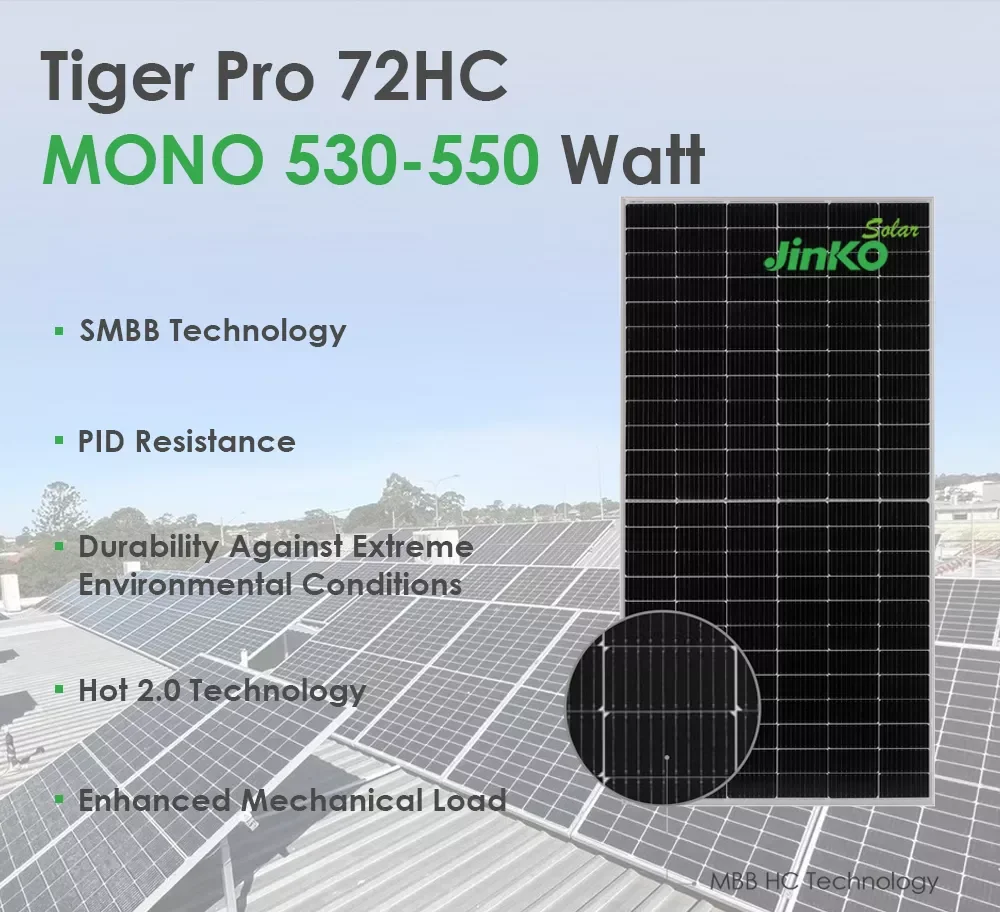

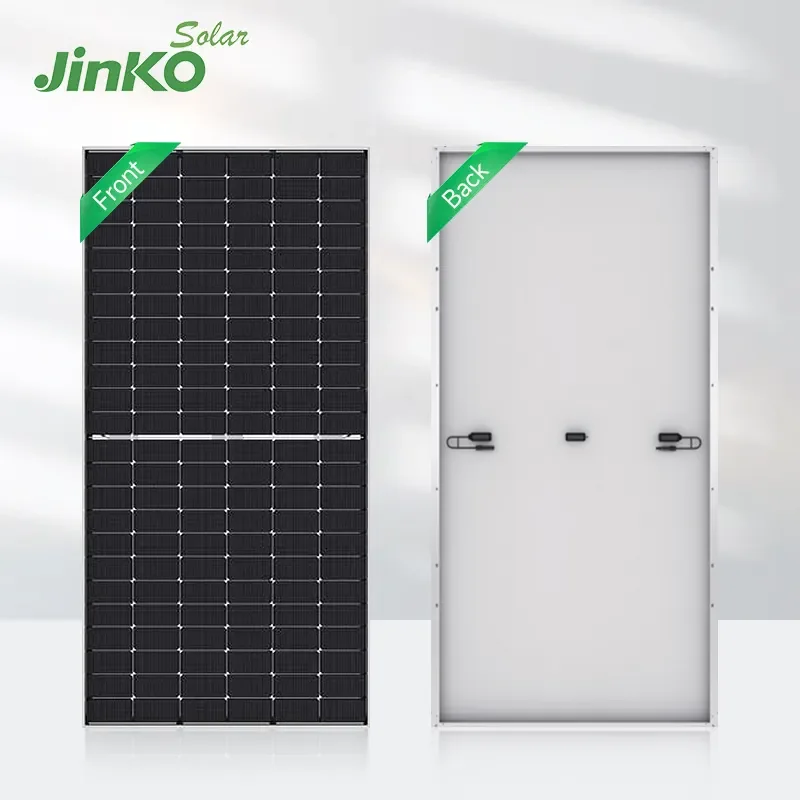

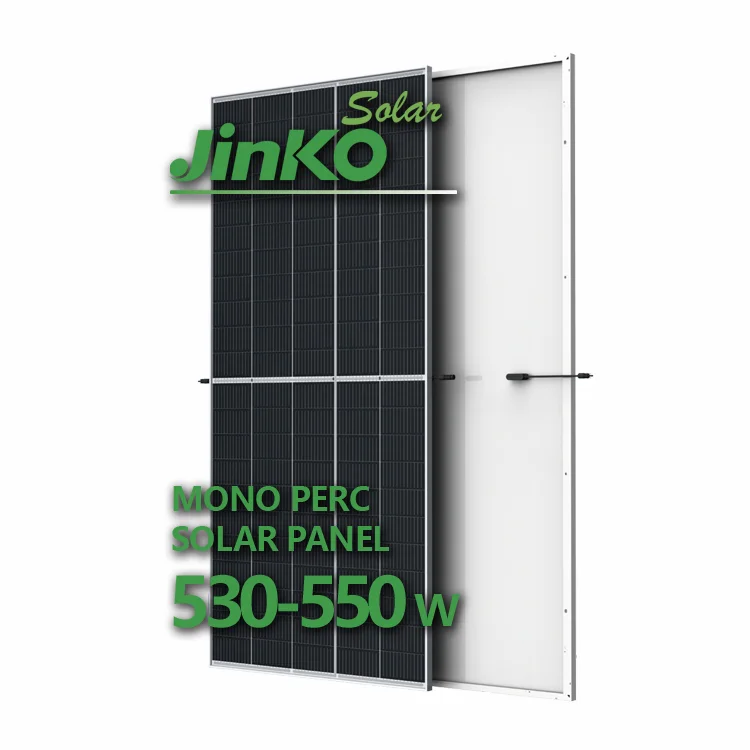

Solar panels Jinko 530w 550w Half Cell 535w 540w 545w with 25 Years Warranty Mono facial
- Category: >>>
- Supplier: Hefei Pinergy Solar Technology Co. Ltd.
Share on (1600380868027):
Product Overview
Description

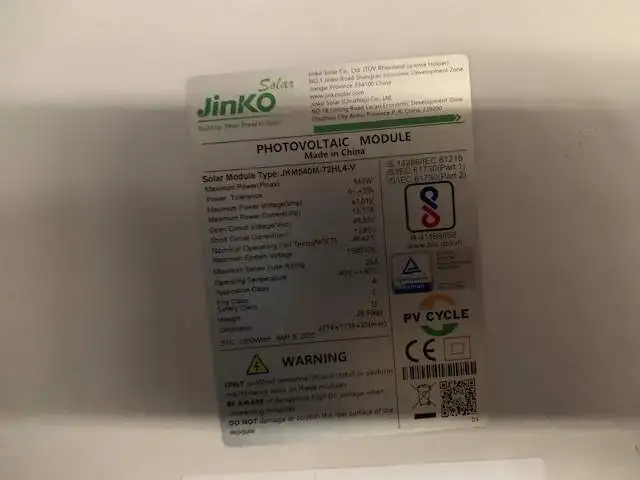

Nameplate

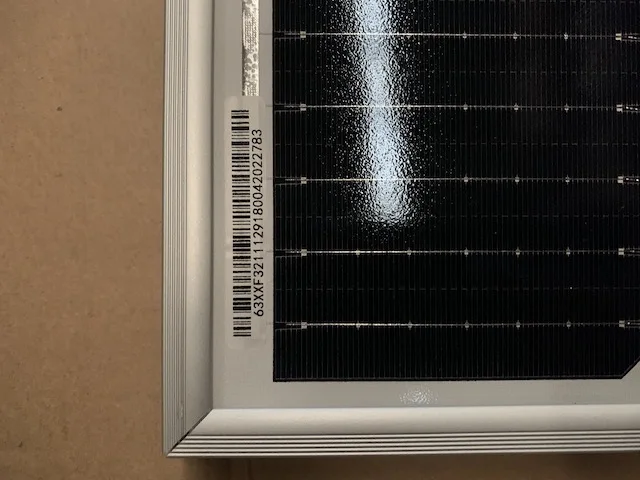

Barcode
Product Description
ELECTRICAL DATA(STC)
Module Type | JKM530M-72HL4 | JKM535M-72HL4 | JKM540M-72HL4 | JKM545M-72HL4 | JKM550M-72HL4 | |||||||||||||
Rated output(Pmp/Wp) | 530 | 535 | 540 | 545 | 550 | |||||||||||||
Maximum power voltage(Vmp/V) | 40.56 | 40.63 | 40.70 | 40.80 | 40.90 | |||||||||||||
Maximum power current(Imp/A) | 13.07 | 13.17 | 13.27 | 13.36 | 13.45 | |||||||||||||
Open circuit voltage(Voc/V) | 49.26 | 49.34 | 49.42 | 49.52 | 49.62 | |||||||||||||
Short circuit current (Isc/A) | 13.71 | 13.79 | 13.85 | 13.94 | 14.03 | |||||||||||||
Module efficiency (%) | 20.55% | 20.75% | 20.94% | 21.13% | 21.33 | |||||||||||||
Power tolerance (W) | 0~+5 | 0~+5 | 0~+5 | 0~+5 | 0~+5 | |||||||||||||
Standard Test Condition（STC）: Irradiance 1000W/m², Cell Tempera ture 25℃, AM1.5 | ||||||||||||||||||
Module Type | JKM530-72HL4 | JKM535M-72HL4 | JKM540M-72HL4 | JKM545M-72HL4 | JKM550M-72HL4 | |||||
Rated output(Pmp/Wp) | 394 | 398 | 402 | 405 | 409 | |||||
Maximum power voltage(Vmp/V) | 37.84 | 37.91 | 38.08 | 38.25 | 38.42 | |||||
Maximum power current(Imp/A) | 10.42 | 10.50 | 10.55 | 10.60 | 10.65 | |||||
Open circuit voltage(Voc/V) | 46.50 | 46.57 | 46.65 | 46.74 | 46.84 | |||||
Short circuit current (Isc/A) | 11.07 | 11.14 | 11.19 | 11.26 | 11.33 | |||||
Nominal Module Operating Temperature（NMOT): Irradiance 800W/m²,Ambient Temperature 20℃, AM1.5, Wind Speed 1m/s | ||||||||||
Material
PV CELL.
>Low hot spot effect
>No light-induced degradation
>High conversion efficiency with high reliability
>Uniform cell performance with stable process control>Excellent power generation performance under low irradiation
BACKSHEET.
>Good electrical insulation and breakdown.
>Excellent UV resistance and aging resistance.
>Made-to-order backsheet with width up to 1300mm.
>Double-side fluorocarbon strcture(PVF//PET//PVF) with the integration of Tedlar(DuPont).
JUNCTION BOX.
>IP68 protection level.
>Unique split junction box design to minimize the loss caused by occlusion.
>Combination of series circuit and parallel circuit, reduced internal power loss.
EVA.
>Excellent light transmittance and transparency.
>Excellent long term adhesion to glass,mental and polymer backsheet.
>Excellent durability ,such as weather resistance ,high-temperature,high-humidity and UV light resistance.
GLASS.
>Precise edge processing and cutting.
>Minimal optical distortion and non-existent roller marks.
>Physically tempered ultrathin glass presents the ideal combination of durability and flexibility.
>Higher light transmittance ensures higher module power output.

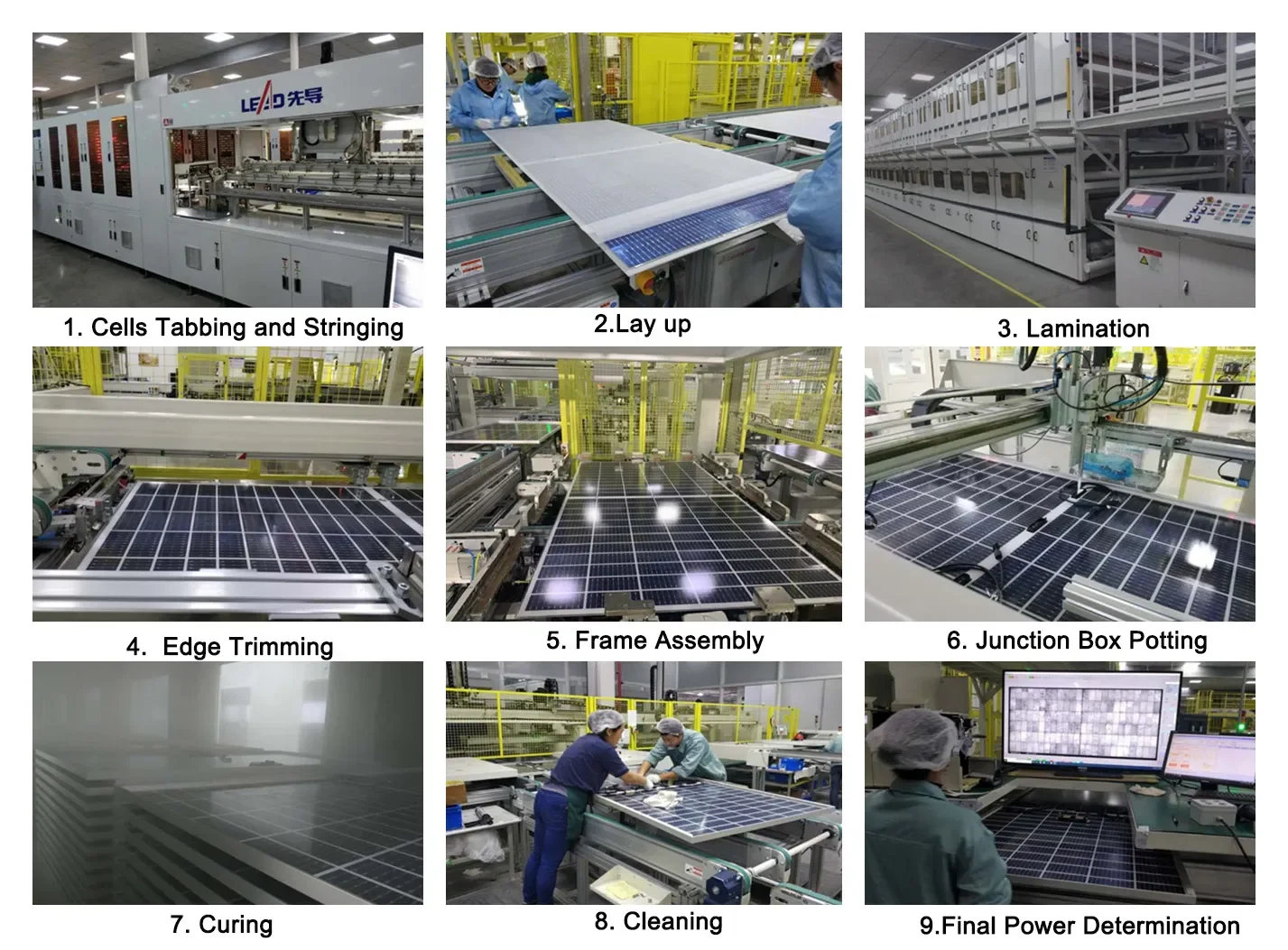

Production Procedure

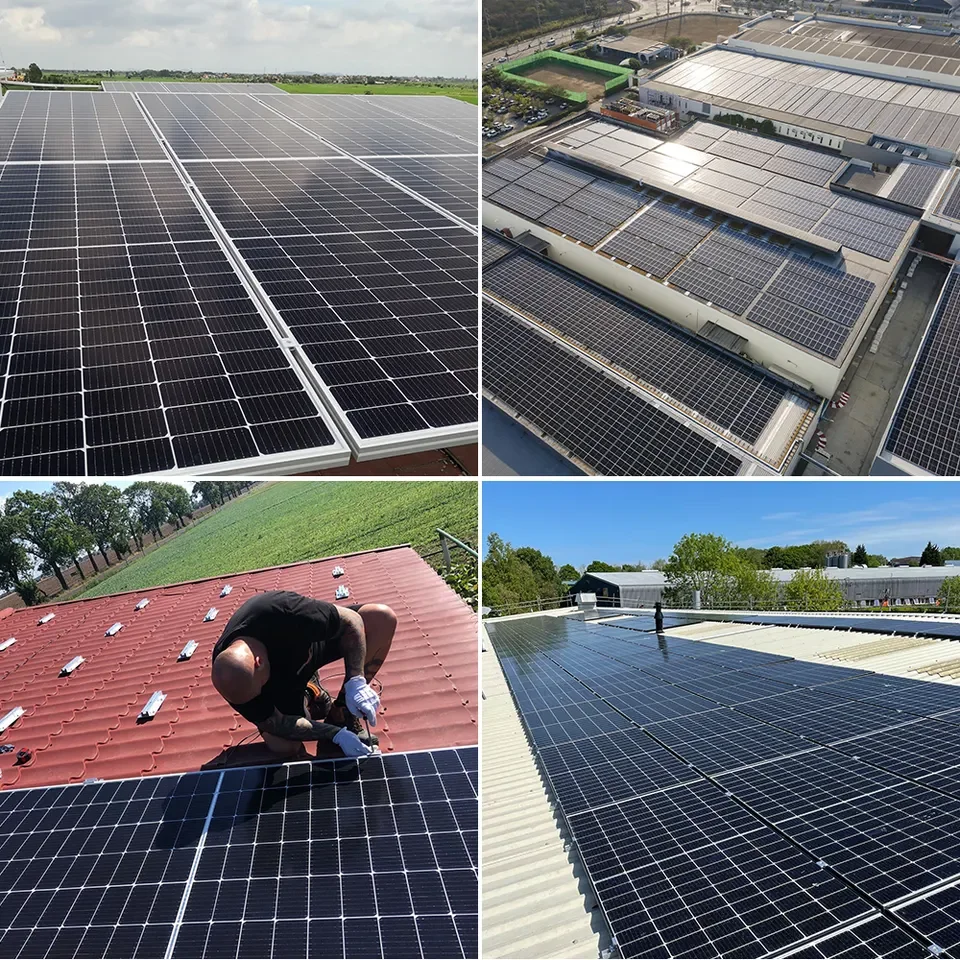

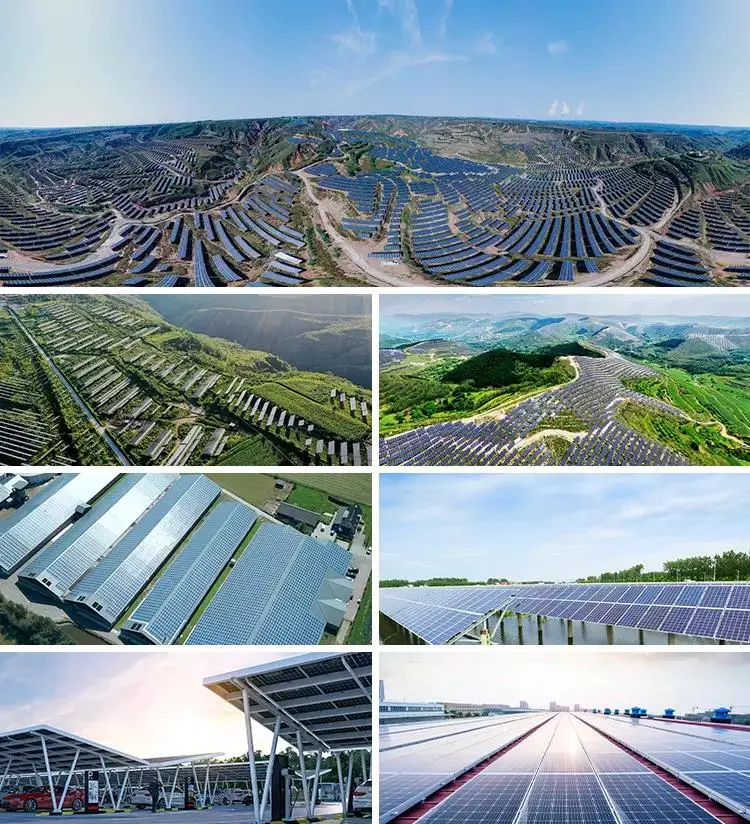

Project Cases

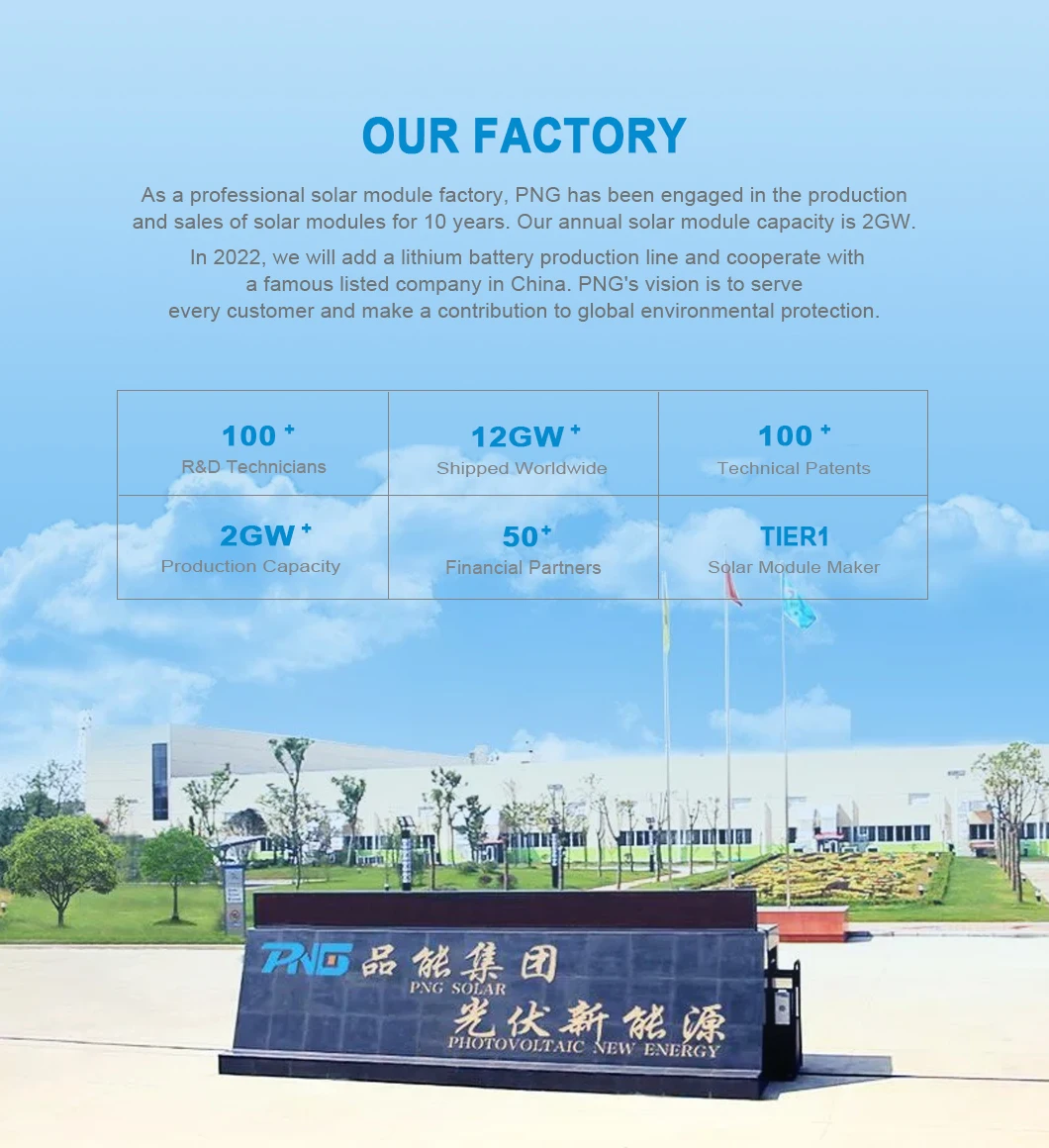

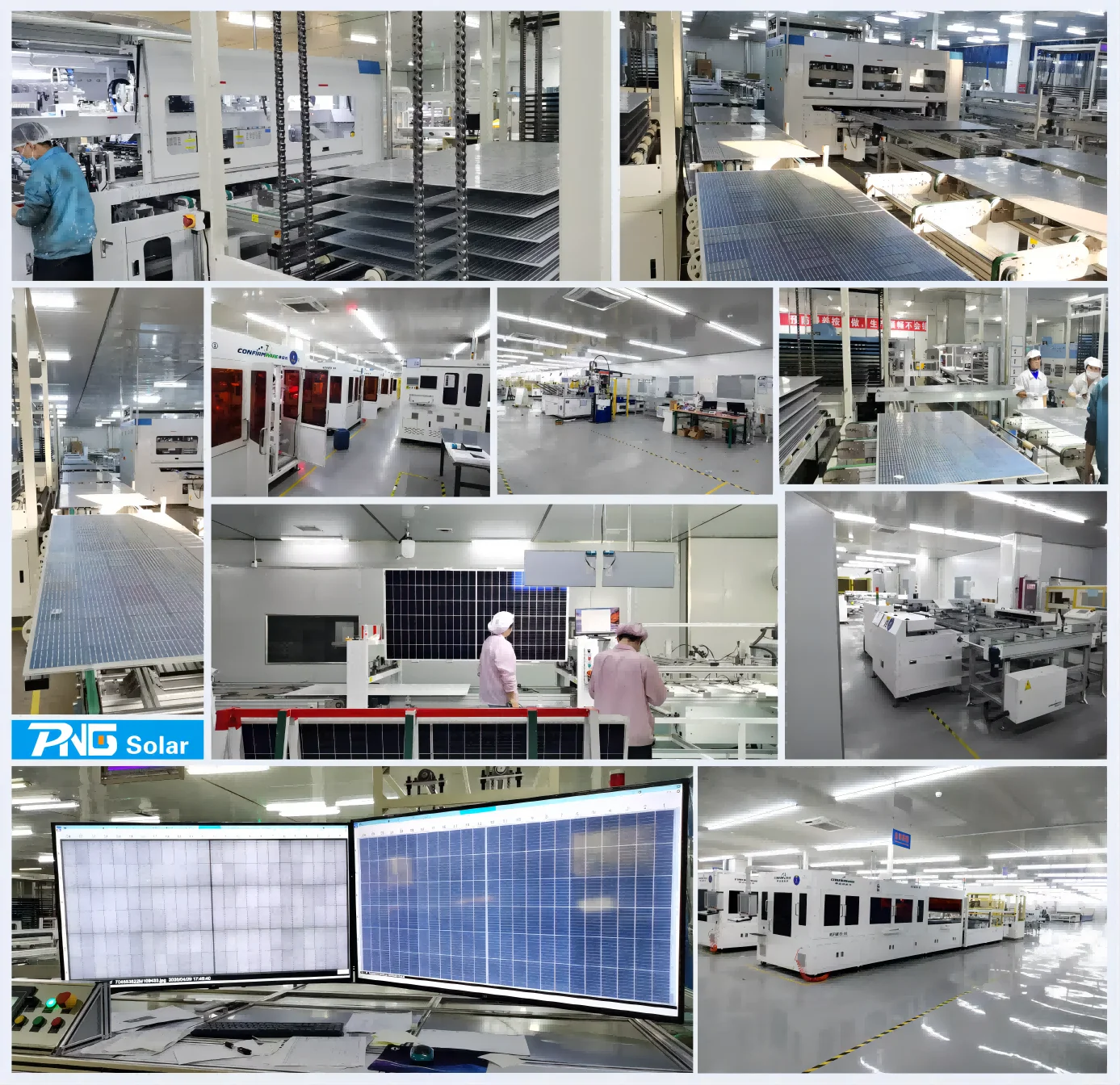

Factory

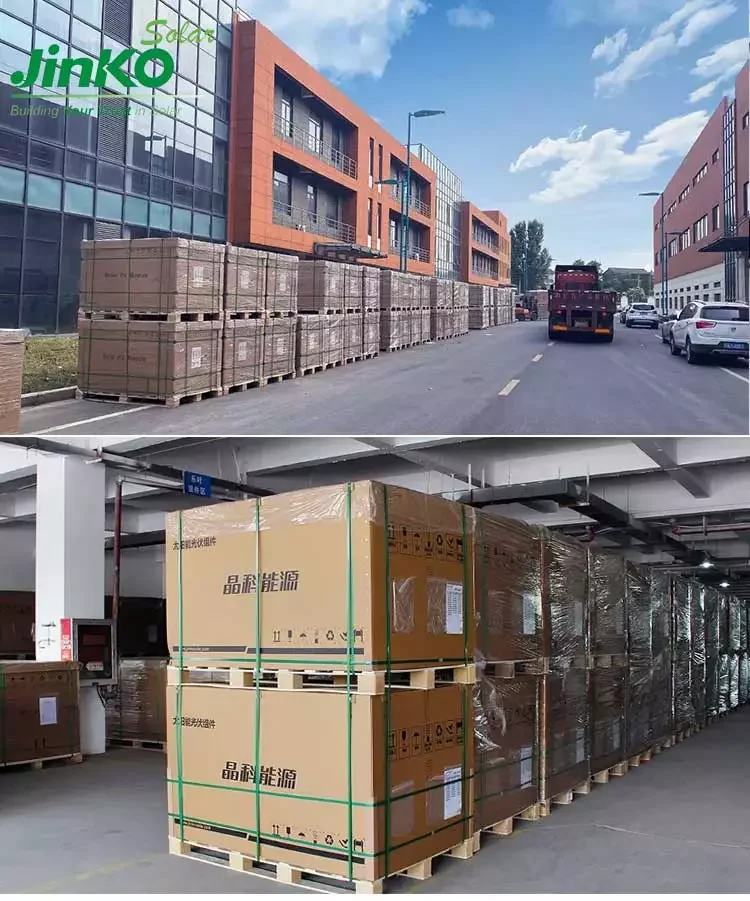

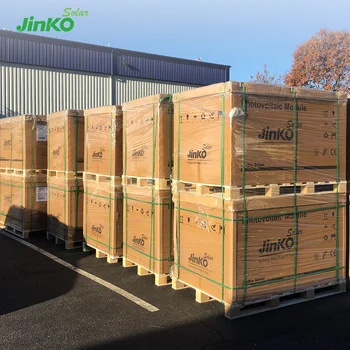

Delivery Methods
Certification
Company Profile
FAQ.
1. What's your payment terms and conditions?
T/T, Letter of Credit, Paypal, Western Union etc. on FOB, CIF , CFR , DDU , DDP etc.
2. Can we print our own sticker ?
Yes, OEM and ODM is our key advantage !
3. What are the advantages of your company ?
In the past years, we mostly do OEM for Tier 1 . From 2017, we are launching our own brands , with good quality and competitive
offer .
T/T, Letter of Credit, Paypal, Western Union etc. on FOB, CIF , CFR , DDU , DDP etc.
2. Can we print our own sticker ?
Yes, OEM and ODM is our key advantage !
3. What are the advantages of your company ?
In the past years, we mostly do OEM for Tier 1 . From 2017, we are launching our own brands , with good quality and competitive
offer .
FAQ.
1.What can you buy from us?
Solar Panel,Solar System,Battery,Inverter,Wi Fi RTU.
2. Why should you buy from us not from other suppliers?
Hefei Pinergy Solar Technology Co.,Ltd is a professional and fast growing company.The business covers the R&D, production and sales of PV modules.Power station and PV system products, power generation and operation and maintenance services,etc.
3. What services can we provide?
Accepted Delivery Terms: FOB,CFR,CIF,EXW,DDP；
Accepted Payment Currency:USD,EUR,CNY;
Accepted Payment Type: T/T,L/C,PayPal;
Language Spoken:English,Chinese,Spanish,Japanese,German,Russian.
Solar Panel,Solar System,Battery,Inverter,Wi Fi RTU.
2. Why should you buy from us not from other suppliers?
Hefei Pinergy Solar Technology Co.,Ltd is a professional and fast growing company.The business covers the R&D, production and sales of PV modules.Power station and PV system products, power generation and operation and maintenance services,etc.
3. What services can we provide?
Accepted Delivery Terms: FOB,CFR,CIF,EXW,DDP；
Accepted Payment Currency:USD,EUR,CNY;
Accepted Payment Type: T/T,L/C,PayPal;
Language Spoken:English,Chinese,Spanish,Japanese,German,Russian.
