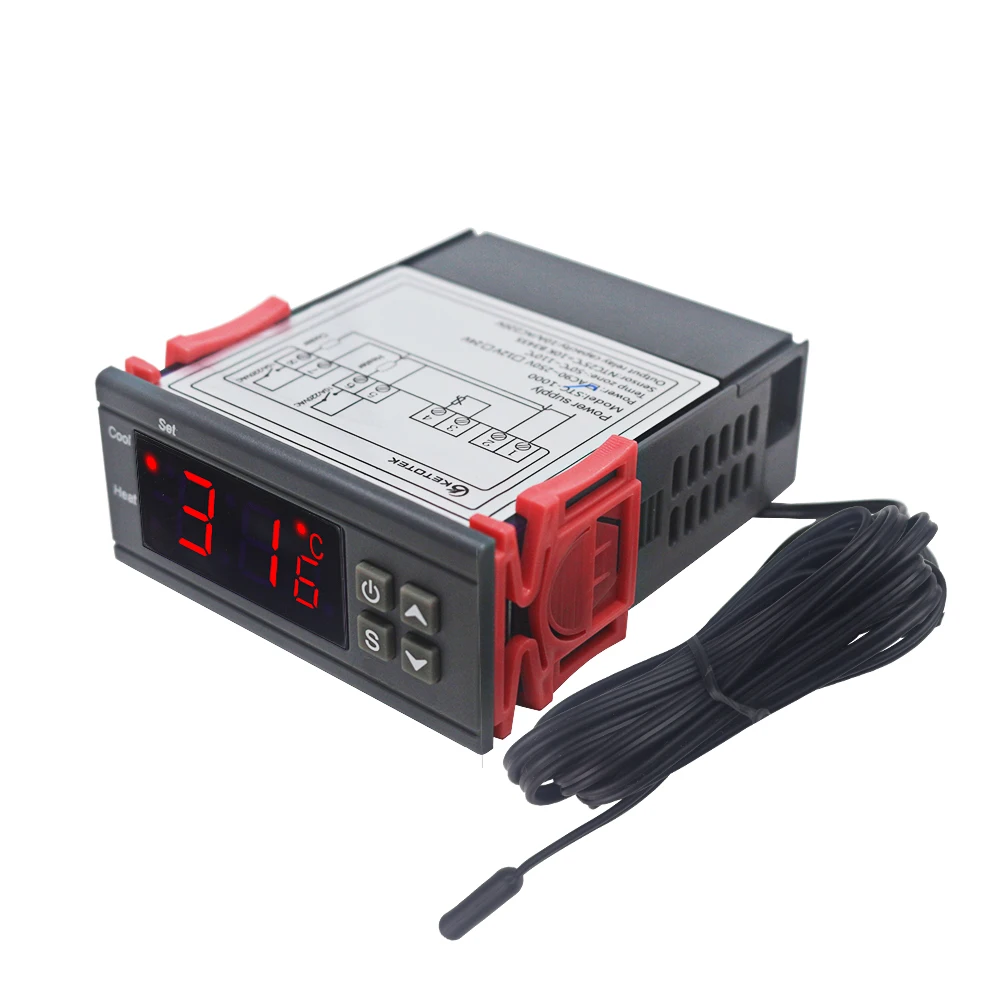

STC 1000 12V 24V 220V Digital Temperature Controller Thermostat Thermoregulator incubator Relay LED 10A Heating Cooling

STC-1000 Digital Temperature Controller Thermostat Thermoregulator for incubator Relay LED 10A 2 Stages Heating Cooling  110V 220V 12V 24V power supply

Description:

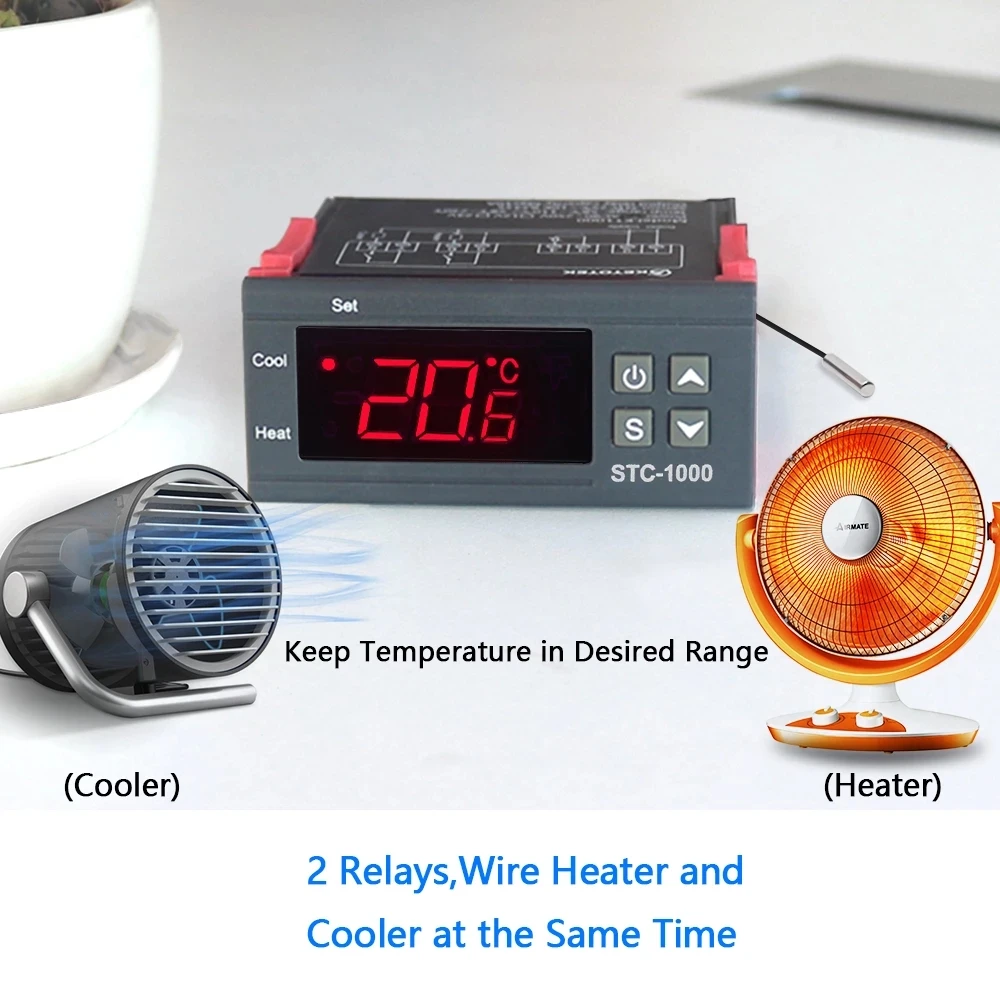

Switch the modes between cool and heat;
Control temperature by setting the temperature setting value and the difference value;
Temperature calibration;
Refrigerating control output delay protection;
Alarm when temperature exceeds temperature limit or when sensor error.
All parameters setting can be saved when power off.

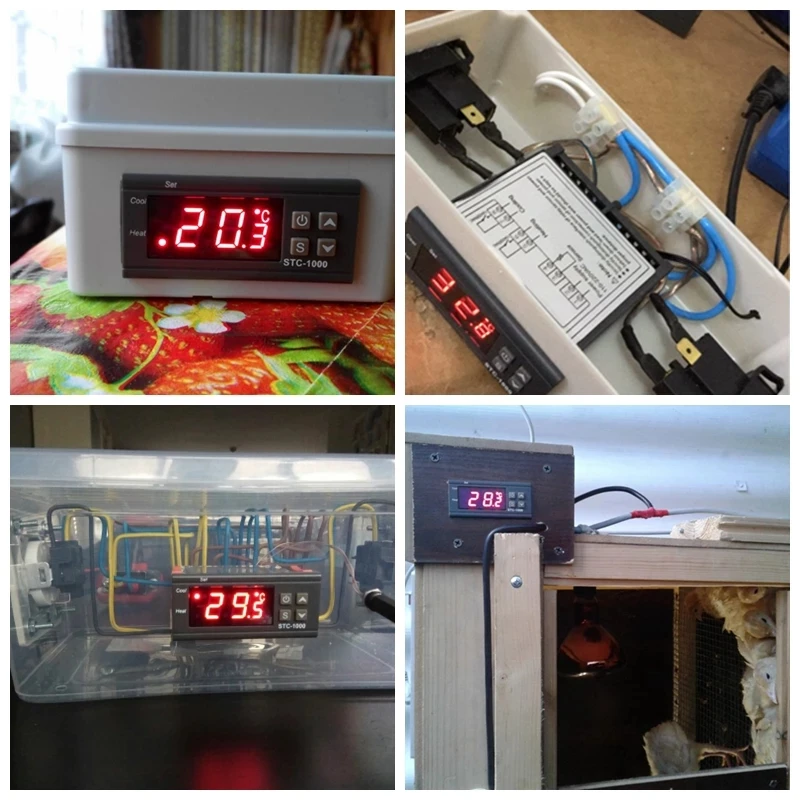

Can be used for domestic freezer, water tanks, refrigerator,industrial chiller, steamer, industrial equipment and other temperature control applications.

Features:

1.Temperature measuring range: -50 ° C ~ 99 ° C
2.Resolution: 0.1 ° C;
3.Accuracy:+- 1° C (-50 ° C ~ 70 ° C);
4.Sensor error delay: 1 minute
5.Power supply: 110-220VAC 50/60Hz, 12V , 24V( Choose power supply when you place order ) ;
6.Power consumption: <3W;
7.Sensor: NTC sensor (1PC);
8.Relay contact capacity: Two Relay Cool 10A/220VAC; Heat 10A/220VAC;
9.Ambient temperature: 0 ° C ~ 60 ° C;
10.Storage temperature: -30 ° C ~ 75 ° C;
11.Relative humidity: 20% ~ 85% (No condensate)
12.Sensor length: 1.0m

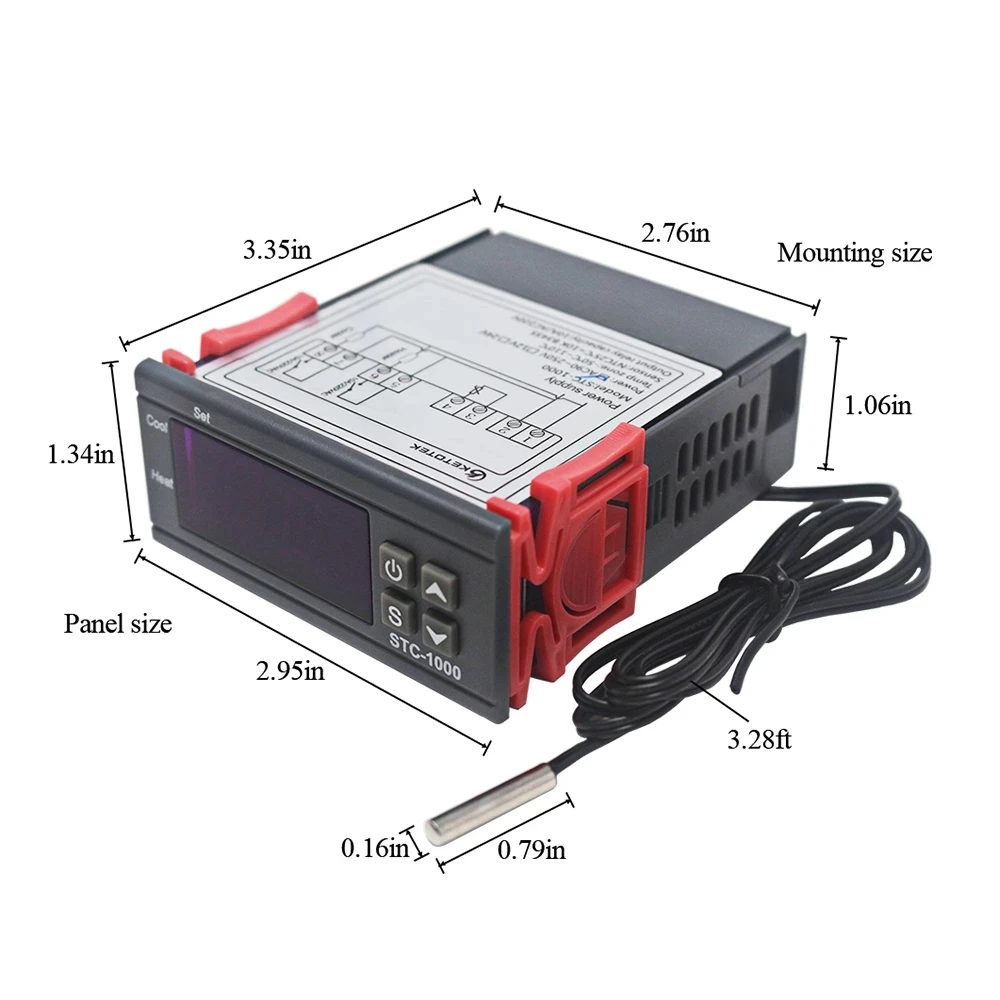

13. Front Panel Size: 75x34.5mm ;

      Product Size: 75x34.5x85 mm ;

      Mounting Size: 71x29mm
