Baopack gummy bear hazelnut dates packing machine fully automatic

Product Overview

Description

 Baopack gummy bear hazelnut dates packing machine fully automatic

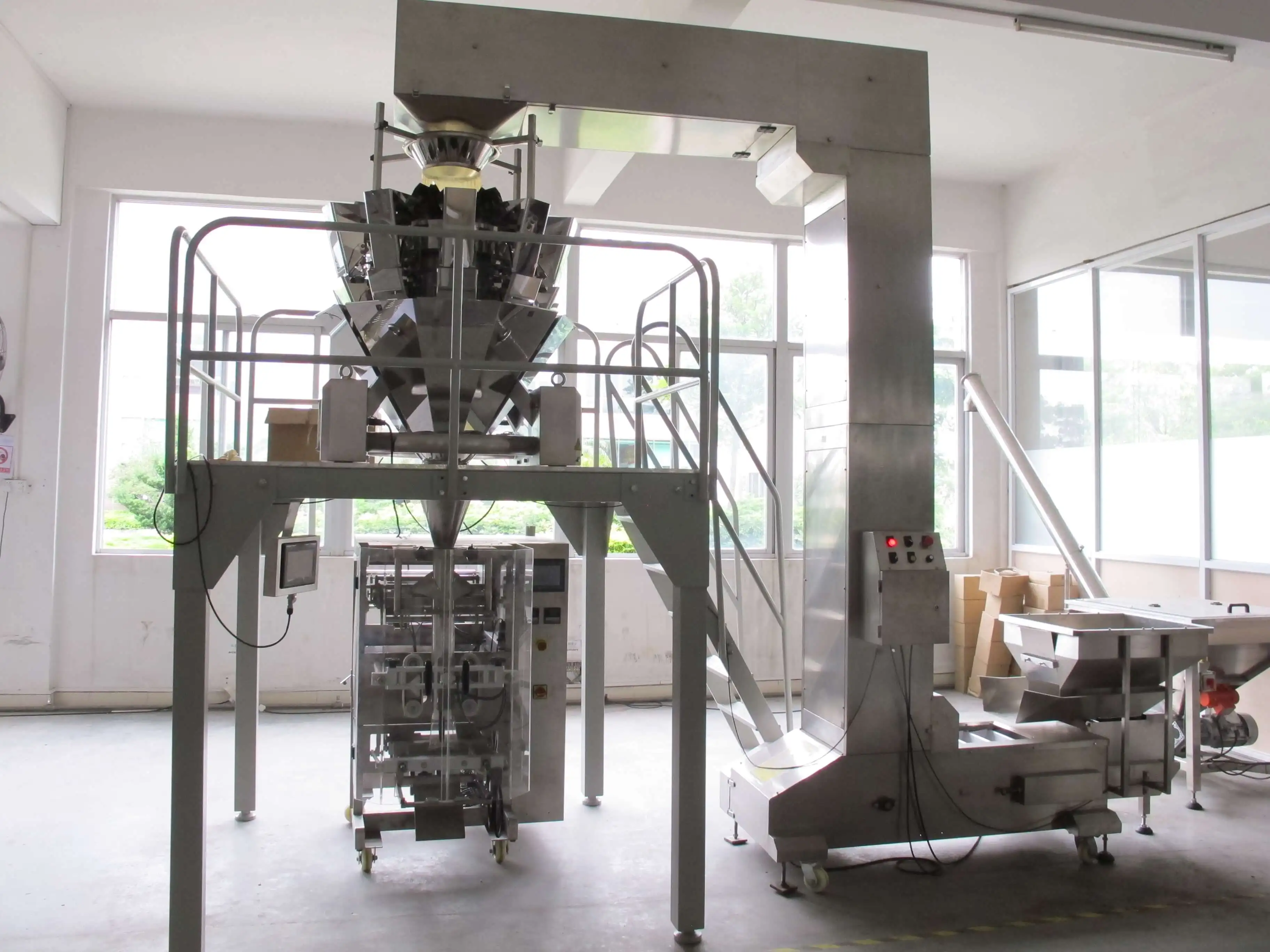

Product display



Product Information

NAME	VP42II vertical packaging machine
Capacity	Max. 80 bags/min (green tea or black tea 80g/bag.) 60-70bags/min suggested for running stable long time
Accuracy	≤±1.5%
Bag size	(L)60-300 mm (W)90-200 mm
Max packaging film width	420mm
Bag type	Pillow-type bag,  (Or optional Gusset bags)
Pulling belt type	Double-belts pulling film
Filling range	≤  2.4L
Film thickness	0.04-0.09mm
Air consumption	0.8 Mpa 0.5 cmb/min
Voltage	Single phase220V, three phase380V, 50HZ or customized
Main power	Main machine 3.5kw+ weigher 1.5kw+ Ztype elevator 0.75kw+output conveyor 0.045kw= 5.795kw
Dimension	L1480*W960*H1400 mm
Weight	400 kg

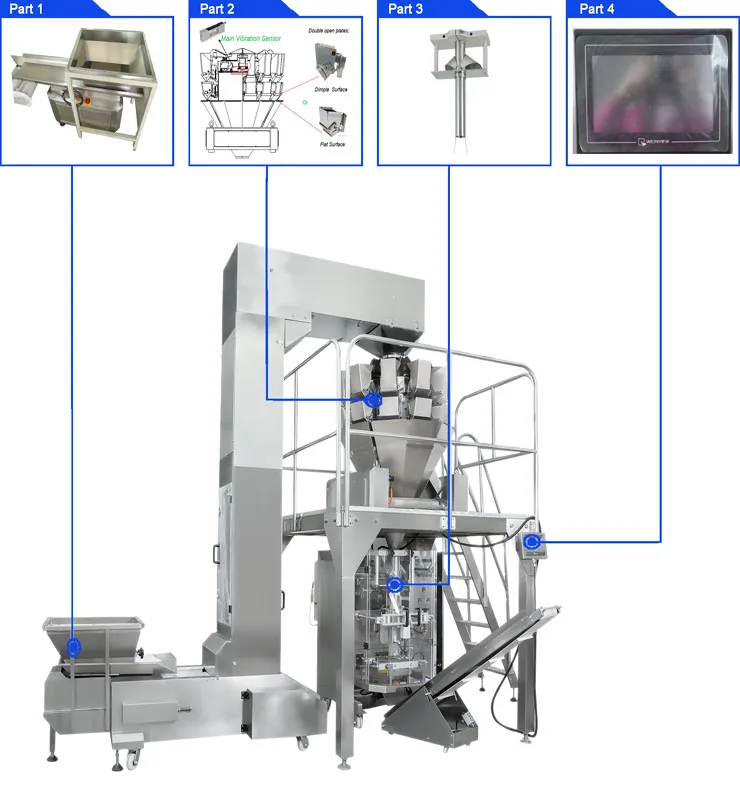

VP42 Packing Machine



FEATURES:

* Low cost high gain, high speed and efficiency.

* Famous brand PLC control system, large touch screen, convenient to operate;

* Film drawing down system and horizontal sealing controlled by servos;

* It can complete feeding, measuring, filling, sealing, date printing, charging (exhausting),

counting, finished product delivery when it equips with feeding and measuring equipment.

* The way of bag making: the machine can make pillow-type bag and standing bag

according to customer's requirements.



Detailed Description





	It is adopted the air shaft instead of the normal mechanical shaft. It makes the time and way of film roll replacement easier. It only needs a little compressed air for its charging. When you take out the used out film roll, you only need to press the button in the end of the shaft and take out the empty film roll.

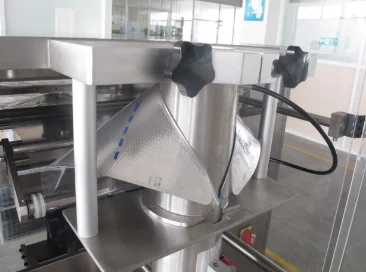

Once we adjust the former well, you only need to take out the handles and don't need to adjust the former again. It is very easy and convenient for changing it when you have a few sets of formers for different bag sizes.
	Big color touch screen and can save 8 groups of parameters for different packing specification. We can input two languages into the touch screen for your operating. There are 11 langues used in our packing machines before. You can choose two of them in your order. They are English, Turkish, Spanish, French, Romanian, Polish, Finnish, Portuguese, Russian, Arabic and Chinese.



Application:



The  machines mainly for packing small bags of snacks like puffed food, kinds of chips as potato chips, banana chips, popcorn,nuts, small dry fruits, etc.

The same main machine can apply to pack powder too, if matched with auger filler.
