Product Overview
Description
Product Description

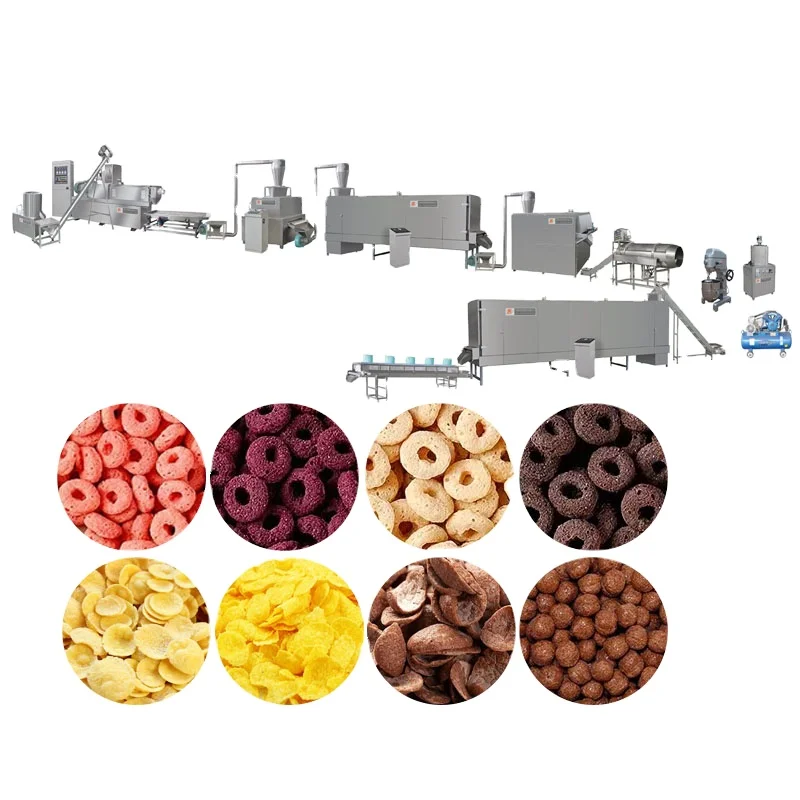

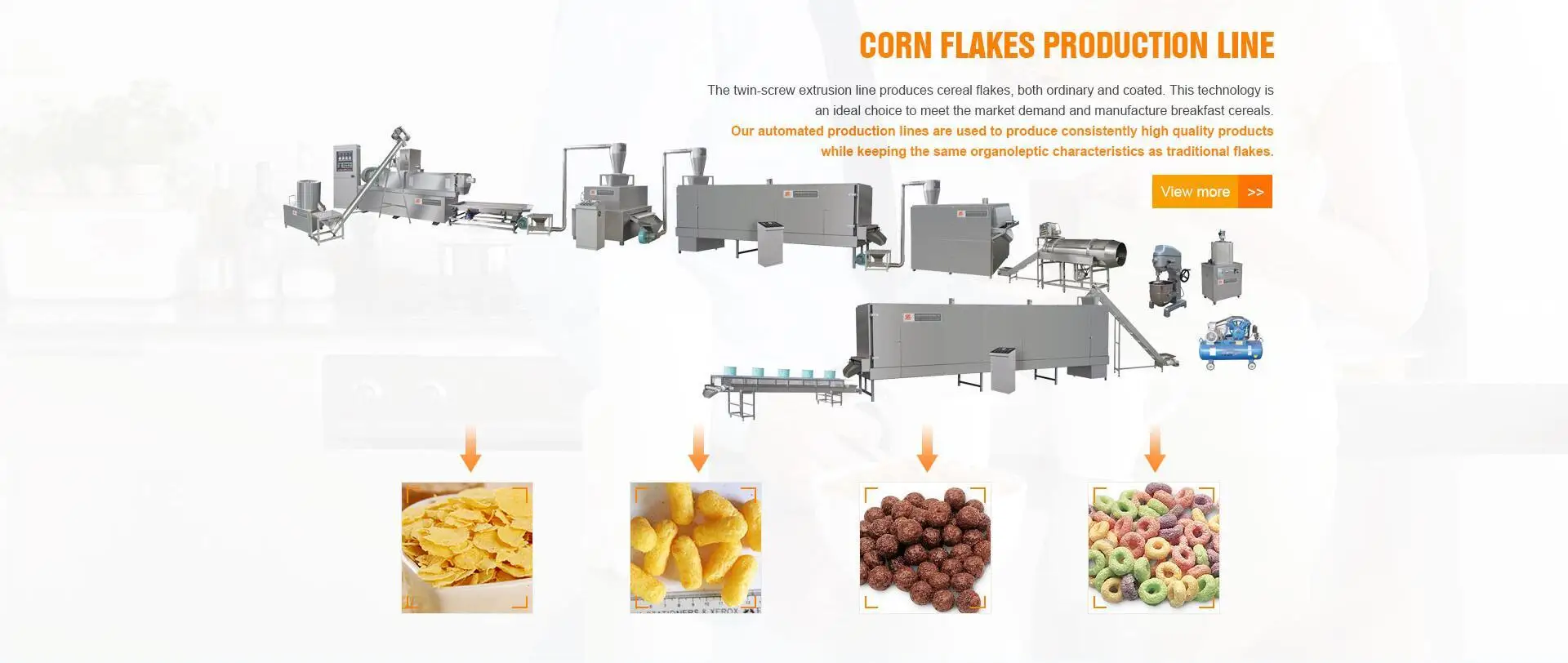

Mixer---Screw conveyor---Extruder---Vibrate cooler---Air conveyor---Flaking machine---Air conveyor---Dryer---Air convey---Roller dryer---Hoister---Flavor roller---Hoister---Dryer---Cooling machine---Melting machine---Sugar sprayer--Air compressor
Corn Flakes/Breakfast Cereals are a kind of breakfast with high nutritional value.They usually use corn powder and other cereals as main raw material,through mixing,extruding,flaking,drying,baking,coating and cooling,to get crispy flakes.It always service as breakfast cereal mixed with milk or coffee.But it can also be a kind of leisure snacks.This process line can also make other shapes of cereals suah as rings,balls,chocos,curls etc.
1) Raw materials:Corn flour, rice flour, wheat flour, soya flour, millet flour, corn grits, and other different grain flours.2) Final food : Different shapes and sizes of Corn flakes,Breakfast cereals
3) Capacity: 120-150kg/h, 180-200kg/h, 300kg/h...
4) Consumption: Low electricity and labor consumption
5) Design: With flexible design based on the client's demands, we provide turn key project.
Specification
Model | Installed power | Power consumption | Output | Size |
SLG65 | 140kw | 90kw | 120-150kg/h | 39000x1200x2200mm |
SLG70 | 160kw | 120kw | 180-200kg/h | 41000x1500x2200mm |
SLG85 | 190kw | 140kw | 300kg/h | 43000x3500x4300mm |
Details Images

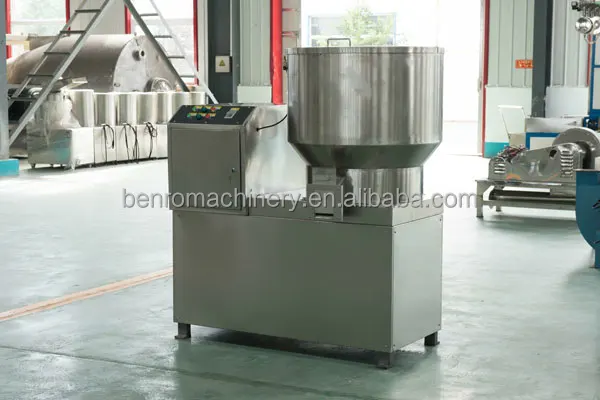

Mixer
This machine can mix raw material(Corn flour, rice flour, wheat flour, soya flour, millet flour, corn grits.....),water and other additives.
It,s the first step of Breakfast cereals/Corn Flakes production line

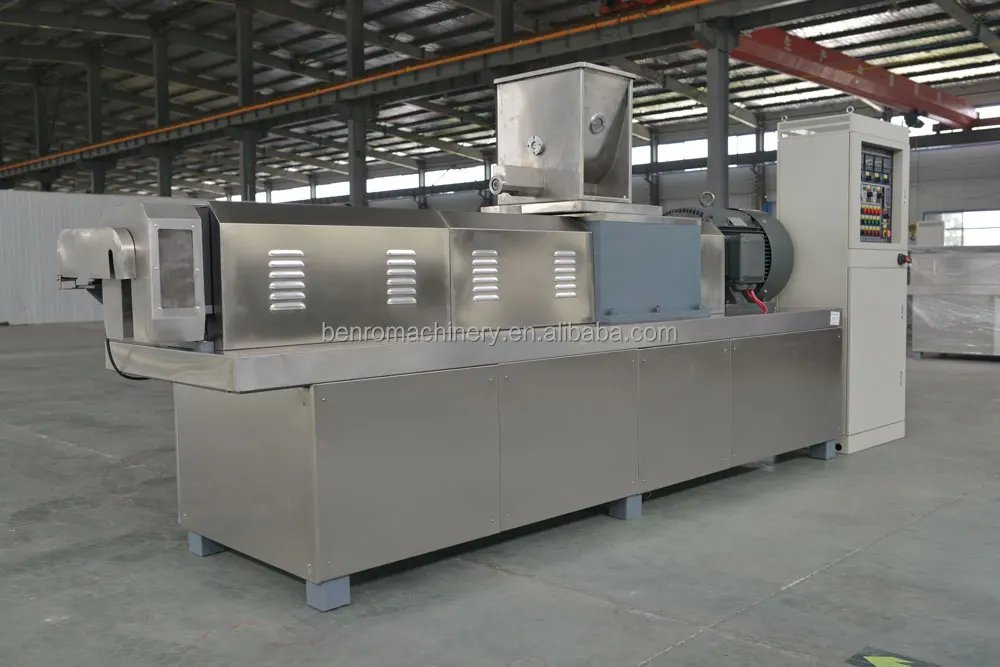

Twin screw extruder
1.Specially decide twin-screw system extruder and form the raw material into different sizes and shapes of Bugle chips, Breakfast cereals.
2.Controlling system,feeding system,extruding system,heating system, water cooling system, cutting system,lubricating system.
2.Controlling system,feeding system,extruding system,heating system, water cooling system, cutting system,lubricating system.
Flaking Machine
In addition to breakfast cereals, you need to add this machine to produce cornflakes.The Corn Flaking machine is composed of a pair of alloy steel roller srotating in opposite directions,a high strength frame,a manual roll gap adjusting system,a roll cooling constant temperature system,a transmission system and a control system.(With Cooling system,new designed)

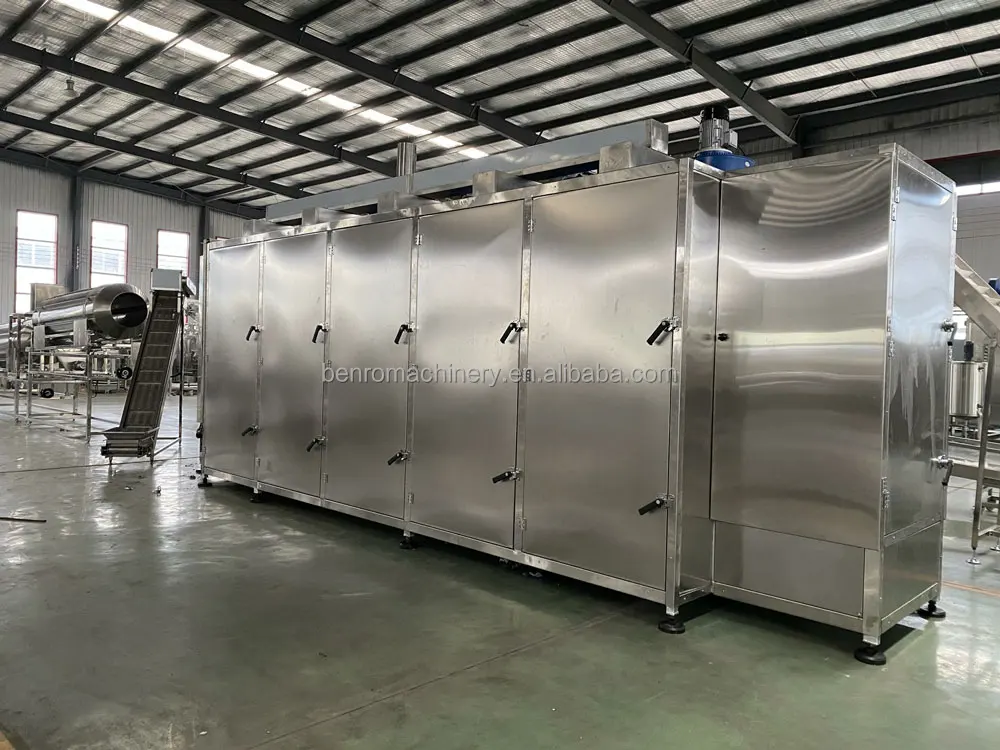

Oven/Dryer
The mode of running of this machine internal is back and forth movement of the stainless steel mesh wire. It not only improves intake capacity of material, reduces floor area, but also equally arranges material,improve the material drying rate. This dryer has the hot air circuiting device, the food is dried evenly, and save the gas energy. The moisture inside of breakfast cereals is about 20% after extruder. It needs suitable drying temperature and time to reduce moisture below 10%.
There are stainless steel baffles at both side of belt to prevent material fall down from belt.
There are stainless steel baffles at both side of belt to prevent material fall down from belt.

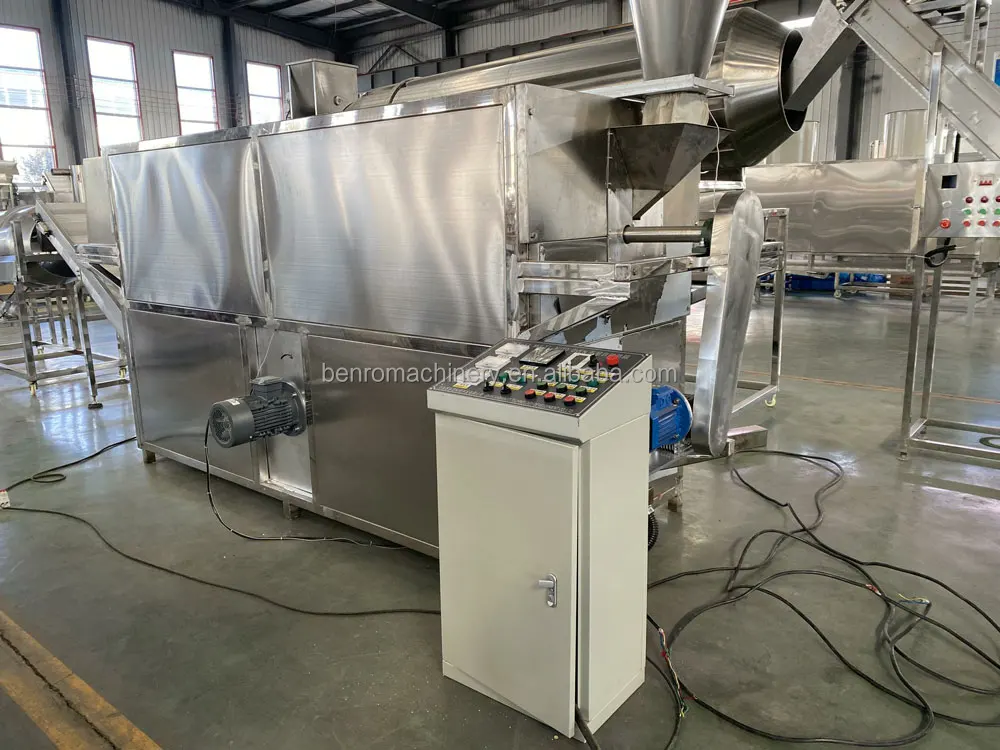

High-temperature Roller dryer
1. Machine material is stainless steel food grade
2. There are Rotary drum inside.
3. The heating way are electric type.
4. The temperature is very high,more than 200 degree.
5. It can help the corn flakes expand very well.
2. There are Rotary drum inside.
3. The heating way are electric type.
4. The temperature is very high,more than 200 degree.
5. It can help the corn flakes expand very well.

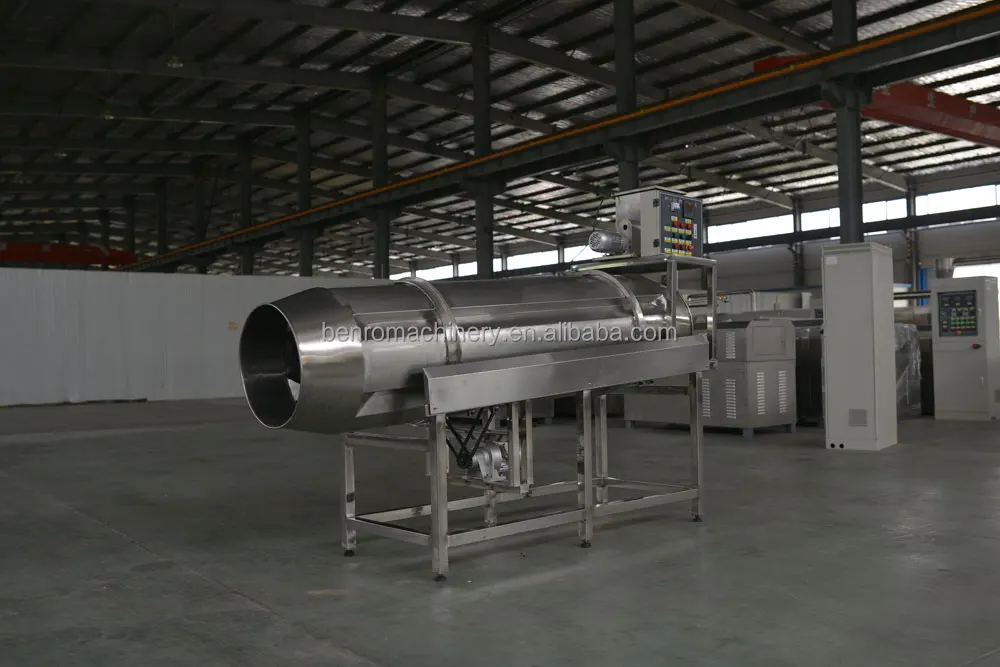

Flavoring roller
1.It includes flavor tank, flavor sprayer and rotary roller.
2.Slope of the roller with folded wing can be adjusted to ensure flavor onto the surface evenly,thus can increase flavorful taste.
3.All the rotary roller adopts stainless steel, and the rolling speed can be adjusted.
2.Slope of the roller with folded wing can be adjusted to ensure flavor onto the surface evenly,thus can increase flavorful taste.
3.All the rotary roller adopts stainless steel, and the rolling speed can be adjusted.
Packing & Delivery

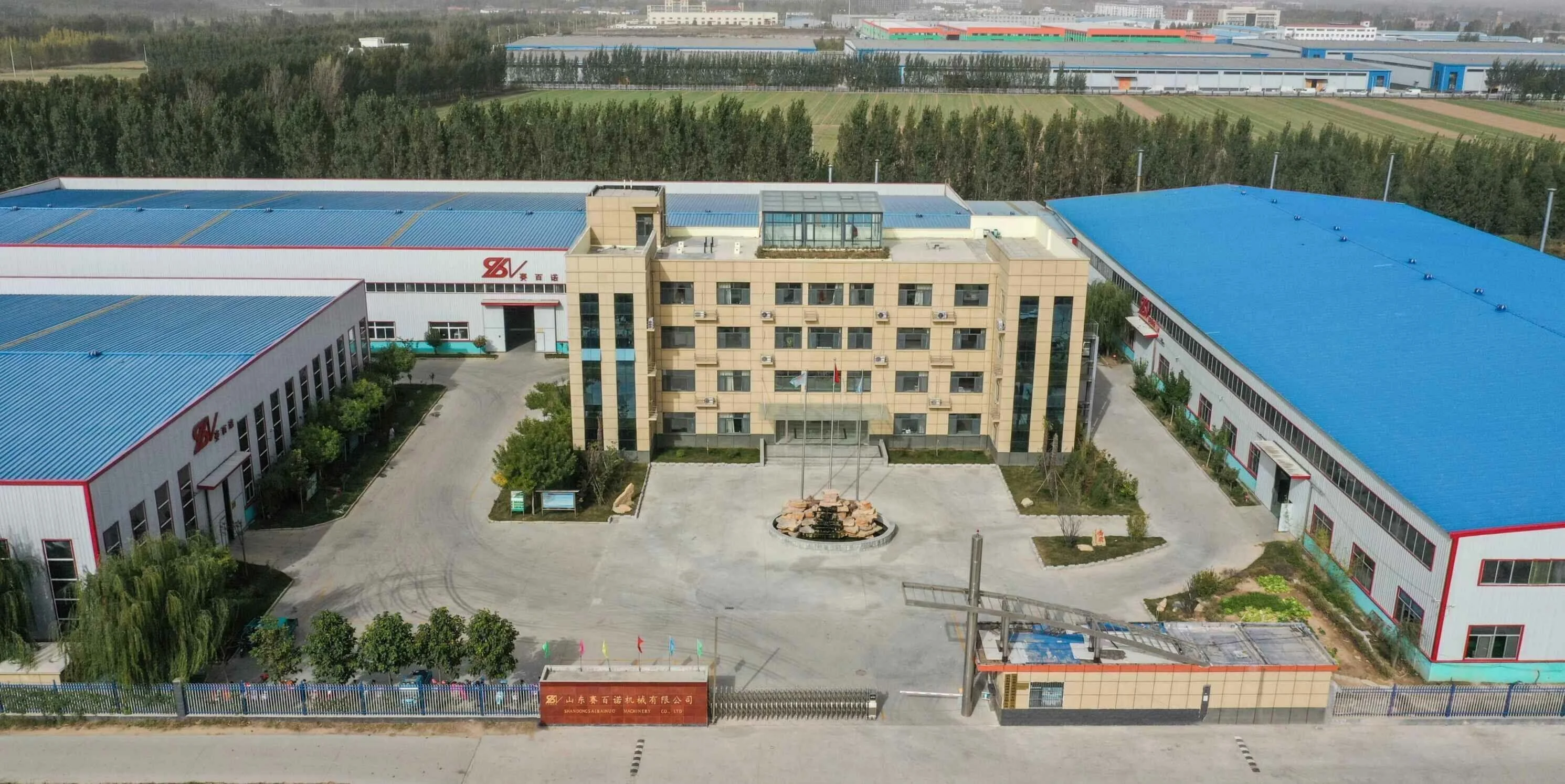

Company Profile
Shandong Benro Machinery Co., Ltd. is located in Jinan, the provincial capital of Shandong Province.The company specializes in the design and manufacture of fish feed extruder machine, pet food extruder machine, textured soya protein(soya nuggets/soya chunks) processing machineryand other food equipment. There are a group of experts and professionals who devote themselves to the food processing equipment industry and equipment installation.
With close cooperation with many science and research institutes and universities and working together with well-known food processing machinery manufacturers around the world, we have established a complete technical support system to ensures the quality of our products.
The machine is using in United States, Canada, Argentina, Chile, Peru, Salvador, Spain, Italy, Germany, Russia, Australia, Japan,Malaysia, the Philippines, Korea, Thailand, Pakistan, India, Jordan, Kuwait, Nigeria, South Africa, Algeria, Uzbekistan, and so on
Certifications
Customer Photos
Service for Pre-sale:
1.Related machines’s technical parameter will be supplied to customer.
2.According to customer’s factory size, factory layout can be provided in advance.
3.According to customer’s material cost, general formulation can be prepared well.
4.Special machine can be supplied as customer’s request.
5.Professional Advice about Market, machines, processing , materials, packing can be supplied.
6. Suggesting professional ship agent or helping book ship as customer request.
Service for After-sale:
1.Allocation chart as the buyer’s request will be supplied.
2.Operation manual will be supplied after shipment.
3.One year warrantee, life time maintenance with cost price.
4.Free easy broken spare parts will be sent with container .
5.First installation can be done by engineer.
6.Training workers in customer’s factory.
1.Related machines’s technical parameter will be supplied to customer.
2.According to customer’s factory size, factory layout can be provided in advance.
3.According to customer’s material cost, general formulation can be prepared well.
4.Special machine can be supplied as customer’s request.
5.Professional Advice about Market, machines, processing , materials, packing can be supplied.
6. Suggesting professional ship agent or helping book ship as customer request.
Service for After-sale:
1.Allocation chart as the buyer’s request will be supplied.
2.Operation manual will be supplied after shipment.
3.One year warrantee, life time maintenance with cost price.
4.Free easy broken spare parts will be sent with container .
5.First installation can be done by engineer.
6.Training workers in customer’s factory.
