Huawei S5735 L32ST4X A1 24 port GE SFP optical fiber switch with 8GE Ethernet ports and 10GE uplink
Huawei S5735-L32ST4X-A1 24 port GE SFP optical fiber switch with 8GE Ethernet ports and 10GE uplink
Huawei S5735-L32ST4X-A1 24 port GE SFP optical fiber switch with 8GE Ethernet ports and 10GE uplink
Huawei S5735-L32ST4X-A1 24 port GE SFP optical fiber switch with 8GE Ethernet ports and 10GE uplink
Huawei S5735-L32ST4X-A1 24 port GE SFP optical fiber switch with 8GE Ethernet ports and 10GE uplink
Huawei S5735-L32ST4X-A1 24 port GE SFP optical fiber switch with 8GE Ethernet ports and 10GE uplink
Huawei S5735-L32ST4X-A1 24 port GE SFP optical fiber switch with 8GE Ethernet ports and 10GE uplink

Huawei S5735 L32ST4X A1 24 port GE SFP optical fiber switch with 8GE Ethernet ports and 10GE uplink

Share on (1600380969571):


Price:

Quantity:


Product Overview

Description



Product Description

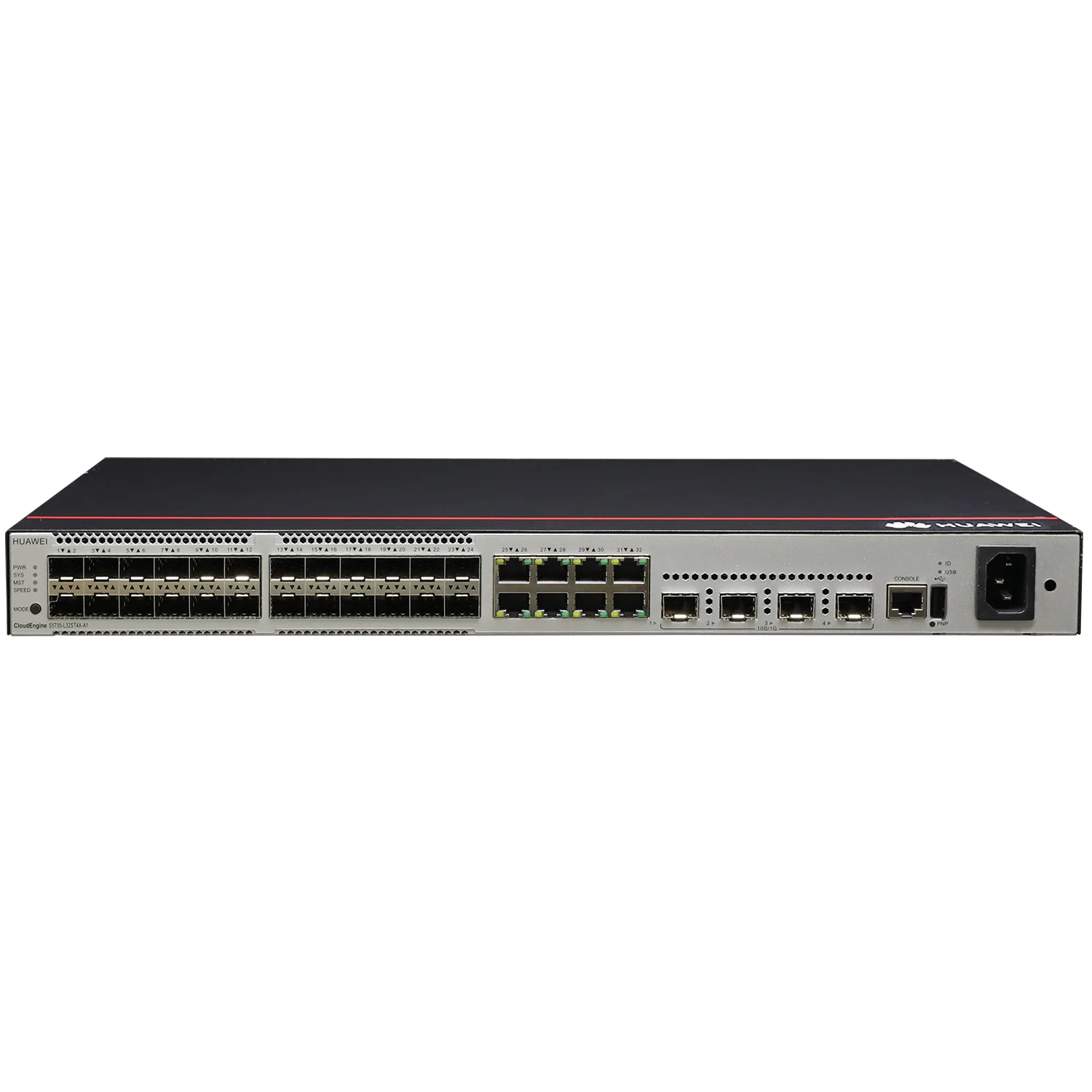

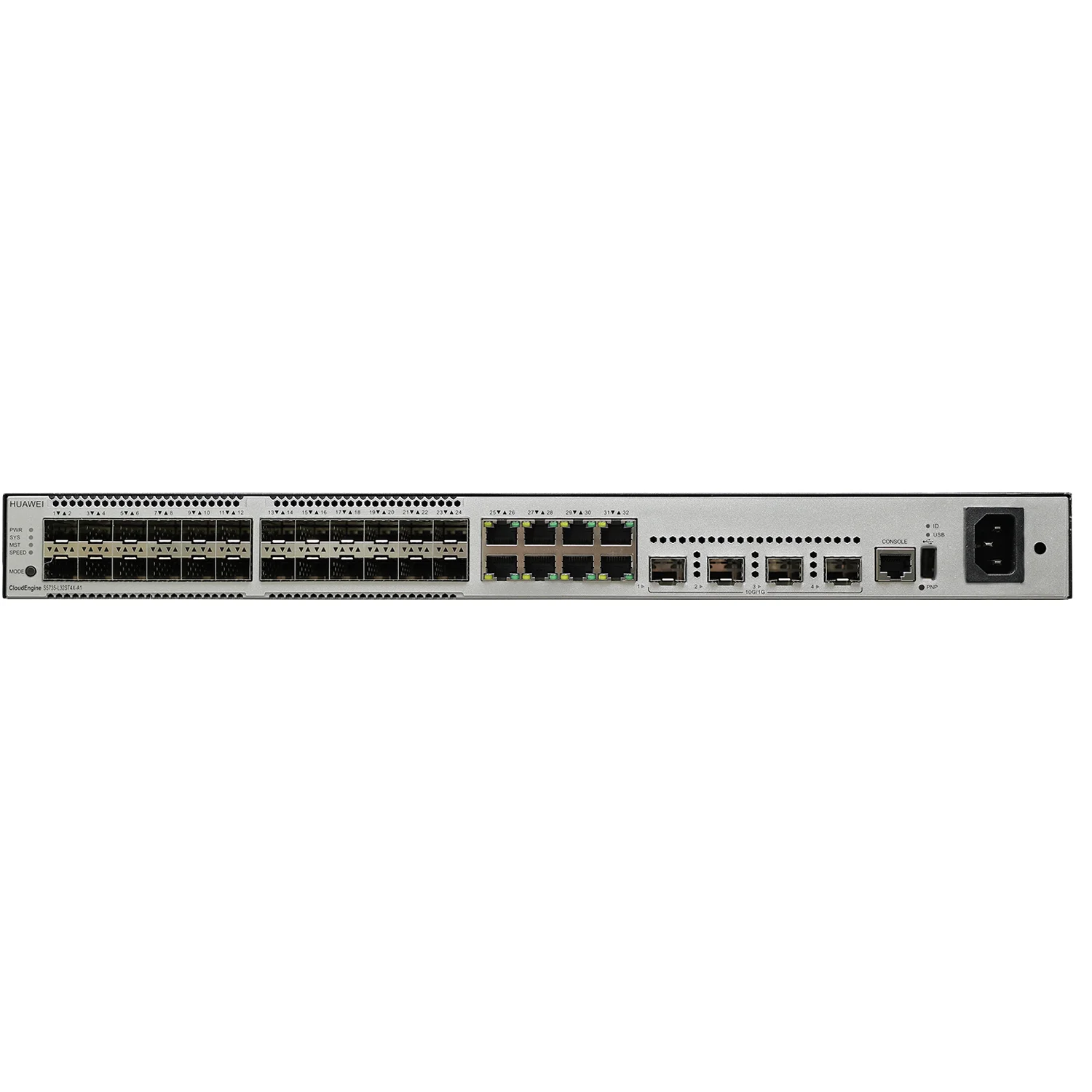

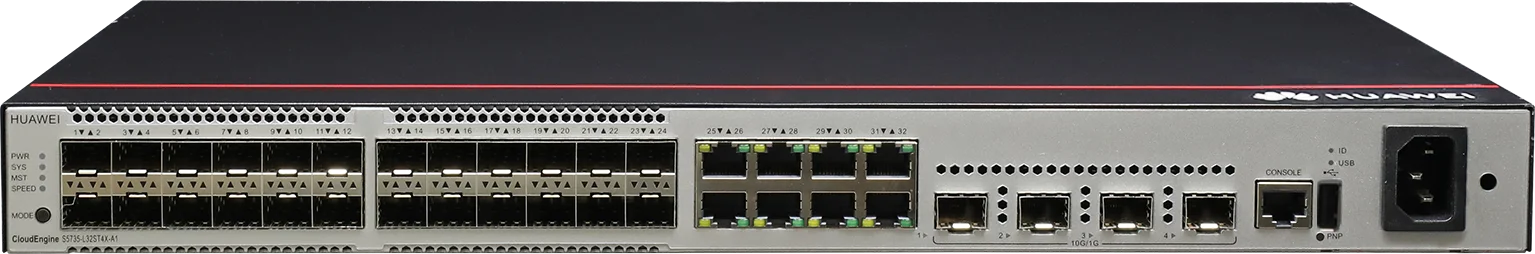

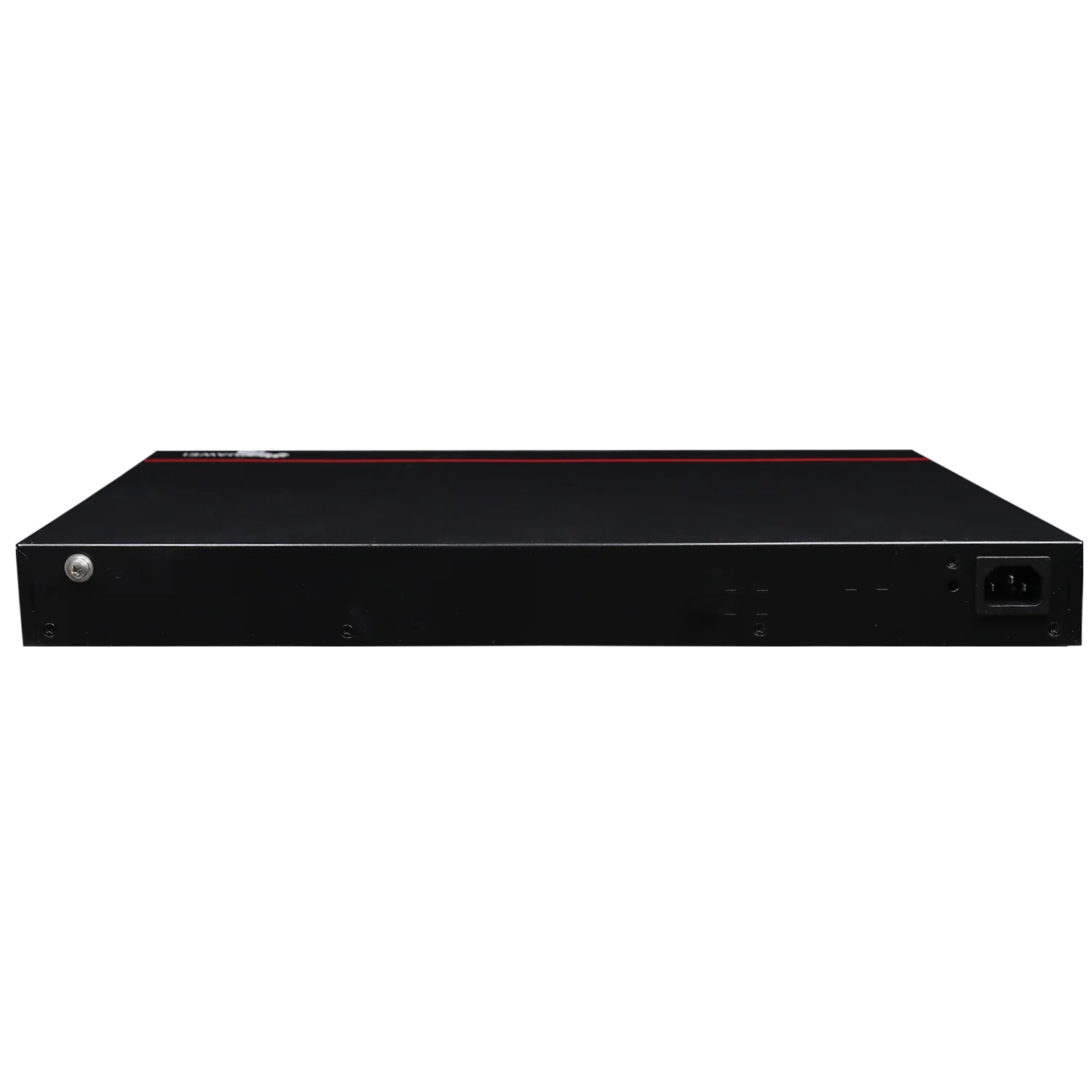

Huawei S5735-L32ST4X-A1 (24*GE SFP ports, 8*10/100/1000BASE-T ports, 4*10GE SFP+ ports, AC power, front access)
CloudEngine S5735-L series switches are ideal for scenarios such as enterprise campus network access and gigabit to the desktop. Built on next-generation, high-performance hardware and the Huawei Versatile Routing Platform (VRP),
S5735-L switches stand out with compelling features such as intelligent stack (iStack), flexible Ethernet networking, and
diversified security control. They support multiple Layer 3 routing protocols and provide high performance and service
processing capabilities.


Details Images




Product Paramenters


Item
Specification
Dimensions without packaging (H x W x D) [mm(in.)]
Basic dimensions (excluding the parts protruding from the body): 43.6 mm x 442.0 mm x 220.0 mm (1.72 in. x 17.4 in. x 8.7 in.)
Maximum dimensions (the depth is the distance from ports on the front panel to the parts protruding from the rear panel): 43.6 mm
x 442.0 mm x 227.0 mm (1.72 in. x 17.4 in. x 8.94 in.)
Dimensions with packaging (H x W x D) [mm(in.)]
90.0 mm x 550.0 mm x 360.0 mm (3.54 in. x 21.65 in. x 14.17 in.)
Chassis height [U]
1 U
Weight without packaging [kg(lb)]
2.88 kg (6.35 lb)
Weight with packaging [kg(lb)]
4.03 kg (8.89 lb)
Typical power consumption [W]
53.2 W
Typical heat dissipation [BTU/hour]
181.52 BTU/hour
Maximum power consumption [W]
66.8 W
Maximum heat dissipation [BTU/hour]
227.93 BTU/hour
MTBF [year]
58.44 year
MTTR [hour]
2 hour
Availability
>0.99999
Noise at normal temperature (acoustic power) [dB(A)]
46.8 dB(A)
Number of card slots
0
Number of power slots
0
Number of fans modules
2
Redundant power supply
Not supported
Long-term operating temperature [°C(°F)]
-5°C to +50°C (23°F to 122°F) at an altitude of 0-1800 m (0-5906 ft.)
Short-term operating temperature [°C(°F)]
-5°C to +55°C (23°F to 131°F) at an altitude of 0-1800 m (0-5906 ft.)
Restriction on the operating temperature variation rate [°C(°F)]
When the altitude is 1800-5000 m (5906-16404 ft.), the highest operating temperature reduces by 1°C (1.8°F) every time the
altitude increases by 220 m (722 ft.).
The equipment can operate beyond the normal operating temperature range for a short-term period, but the following conditions must
be met:
The equipment operates at a temperature of over 50°C (122°F) consecutively for at most 96 hours in one year.
The equipment operates at a temperature of over 50°C (122°F) for a total of no more than 360 hours in one year.
The equipment operates at a temperature of over 50°C (122°F) for no more in 15 times in one year.
The equipment may be damaged or experience unexpected exceptions if any of the preceding limits is exceeded.
The equipment cannot start when the temperature is lower than 0°C (32°F). The maximum distance of optical modules used in these
conditions cannot exceed 10 km.
Storage temperature [°C(°F)]
-40°C to +70°C (-40°F to +158°F)
Long-term operating relative humidity [RH]
5% to 95%, noncondensing
Long-term operating altitude [m(ft.)]
0-5000 m (0-16404 ft.)
Storage altitude [m(ft.)]
0-5000 m (0-16404 ft.)
Power supply mode
AC built-in
Rated input voltage [V]
AC input: 100 V AC to 240 V AC, 50/60 Hz
High-Voltage DC input: 240 V DC
Input voltage range [V]
AC input: 90 V AC to 264 V AC, 47 Hz to 63 Hz
High-Voltage DC input: 190 V DC to 290 V DC
Maximum input current [A]
2 A
Memory
512 MB
Flash memory
512 MB
Console port
RJ45
Eth Management port
Not supported
USB
Supported
RTC
Not supported
RPS input
Not supported
Service port surge protection [kV]
Common mode: ±7 kV
Power supply surge protection [kV]
±6 kV in differential mode, ±6 kV in common mode
Types of fans
Built-in
Heat dissipation mode
Heat dissipation with fan, intelligent fan speed adjustment
Airflow direction
Air intake from left and front, air exhaustion from right
PoE
Not supported
Certification
EMC certification
Safety certification
Manufacturing certification
