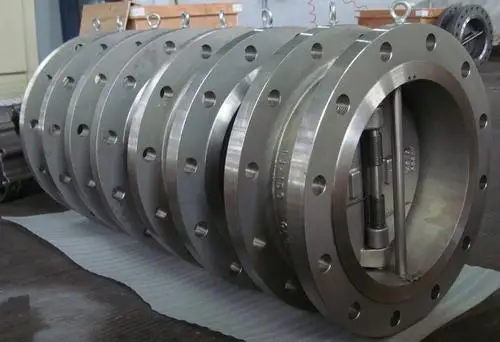

SS WCB DN1000 PN40 double leaf flanged dual plate check valve
- Category: >>>
- Supplier: Laizhou Dongsheng Valve Co. Ltd.
Share on (1600380977679):
Product Overview
Description
SS WCB DN1000 PN40 double-leaf flanged dual plate check valve
Product Description
DESCRIPTION
ANSI STANDARD: Class150/300/600/900/1500/2500
DIN STANDARD: PN40/63/100/160
JIS STANDARD: JIS 10K/20K
2. Seat material: EPDM/BUNA-N/NBR/VITON
3. End Connection: Raised face, Plain face, Ring joint, Weld end, Hub end
4. Sizes: 1 1/2”-60” (DN40-DN1500) kindly contact us for details information.
BODY | Disc | Body Seat |
A216 WCB/A105 | A351 CF8 | 410SS/Stellite |
A216 WCB/A105 | A351 CF8 | VITON/BUNA/EPDM |
A216 WCB/A105 | A351 CF8 | 316SS/Stellite |
A216 WCB/A105 | A351 CF8 | VITON/BUNA/EPDM |
352LCC/A350LF2 | A351 CF8 | 316SS/Stellite |
352LCC/A350LF2 | A351 CF8 | VITON/BUNA/EPDM |
A351 CF8M/A182 F316 | A351 CF8 | Same as body |
A351 CF8M/A182 F316 | A351 CF8 | VITON/BUNA/EPDM |
A890 GR 4A/A182 F51 | A890 GR 4A | Same as body |
A890 GR 4A/A182 F53 | A890 GR 4A | Same as body |
UNS S31254 | UNS S31251 | Same as body |
UNS N26625 | UNS S31251 | Same as body |
Class 300 PN50 | ||||||||||||

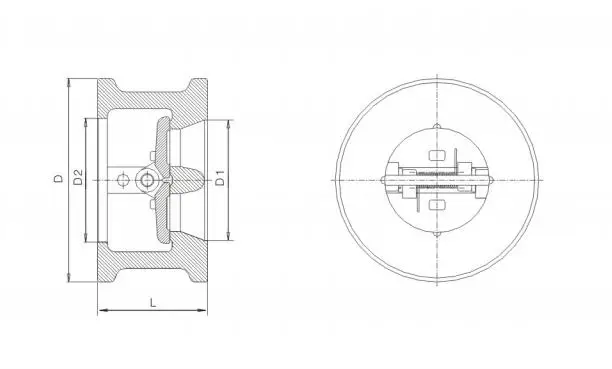

NPS | DN | End Connection Facing | L | D | D1 | D2 | ||||||
1 1/2 | 40 | RF | 60 | 94 | 40 | 42 | ||||||
2 | 50 | RF | 60 | 110 | 51 | 55 | ||||||
2 1/2 | 65 | RF | 67 | 128 | 65 | 68 | ||||||
3 | 80 | RF | 73 | 147 | 80 | 82 | ||||||
4 | 100 | RF | 73 | 179 | 102 | 108 | ||||||
5 | 125 | RF | 86 | 214 | 127 | 130 | ||||||
3 | 150 | RF | 98 | 249 | 152 | 165 | ||||||
8 | 200 | RF | 127 | 305 | 203 | 219 | ||||||
10 | 250 | RF | 146 | 359 | 254 | 270 | ||||||
12 | 300 | RF | 181 | 420 | 305 | 320 | ||||||
14 | 350 | RF | 222 | 483 | 337 | 350 | ||||||
16 | 400 | RF | 232 | 537 | 387 | 400 | ||||||
18 | 450 | RF | 264 | 594 | 438 | 438 | ||||||
20 | 500 | RF | 292 | 652 | 495 | 495 | ||||||
24 | 600 | RF | 318 | 772 | 595 | 595 | ||||||
28 | 700 | RF | 368 | 896 | 685 | 685 | ||||||
30 | 750 | RF | 368 | 950 | 735 | 735 | ||||||
32 | 800 | RF | 368 | 1004 | 780 | 780 | ||||||
36 | 900 | RF | 483 | 1114 | 875 | 875 | ||||||
40 | 1000 | RF | 568 | 1110 | 975 | 975 | ||||||
42 | 1050 | RF | 568 | 1160 | 1020 | 1020 | ||||||
48 | 1200 | RF | 629 | 1320 | 1165 | 1165 | ||||||
54 | 1350 | RF | 635 | 1488 | 1320 | 1320 | ||||||
60 | 1500 | RF | 701 | 1640 | 1460 | 1460 | ||||||
Class 600 PN110 | ||||||||||||
NPS | DN | End Connection Facing | L | D | D1 | D2 | ||||||
2 | 50 | RF/RJ-23 | 60 | 110 | 51 | 55 | ||||||
2 1/2 | 65 | RF/RJ-26 | 67 | 128 | 65 | 68 | ||||||
3 | 80 | RF/RJ-31 | 73 | 147 | 80 | 82 | ||||||
4 | 100 | RF/RJ-37 | 79 | 191 | 102 | 108 | ||||||
5 | 125 | RF/RJ-41 | 105 | 240 | 127 | 130 | ||||||
3 | 150 | RF/RJ-45 | 136 | 264 | 152 | 165 | ||||||
8 | 200 | RF/RJ-49 | 165 | 318 | 200 | 210 | ||||||
10 | 250 | RF/RJ-53 | 213 | 398 | 255 | 255 | ||||||
12 | 300 | RF/RJ-57 | 229 | 455 | 300 | 300 | ||||||
14 | 350 | RF/RJ-61 | 273 | 490 | 335 | 335 | ||||||
16 | 400 | RF/RJ-65 | 305 | 562 | 385 | 385 | ||||||
18 | 450 | RF/RJ-69 | 362 | 610 | 435 | 435 | ||||||
20 | 500 | RF/RJ-73 | 368 | 680 | 487 | 487 | ||||||
24 | 600 | RF/RJ-77 | 438 | 786 | 589 | 589 | ||||||
28 | 700 | RF/RJ-94 | 505 | 912 | 685 | 685 | ||||||
30 | 750 | RF/RJ-95 | 505 | 968 | 735 | 735 | ||||||
32 | 800 | RF/RJ-96 | 505 | 1020 | 780 | 780 | ||||||
36 | 900 | RF/RJ-98 | 635 | 1128 | 875 | 875 | ||||||
40 | 1000 | RF | 701 | 1152 | 975 | 975 | ||||||
42 | 1050 | RF | 701 | 1215 | 1020 | 1020 | ||||||
48 | 1200 | RF | 787 | 1386 | 1165 | 1165 | ||||||

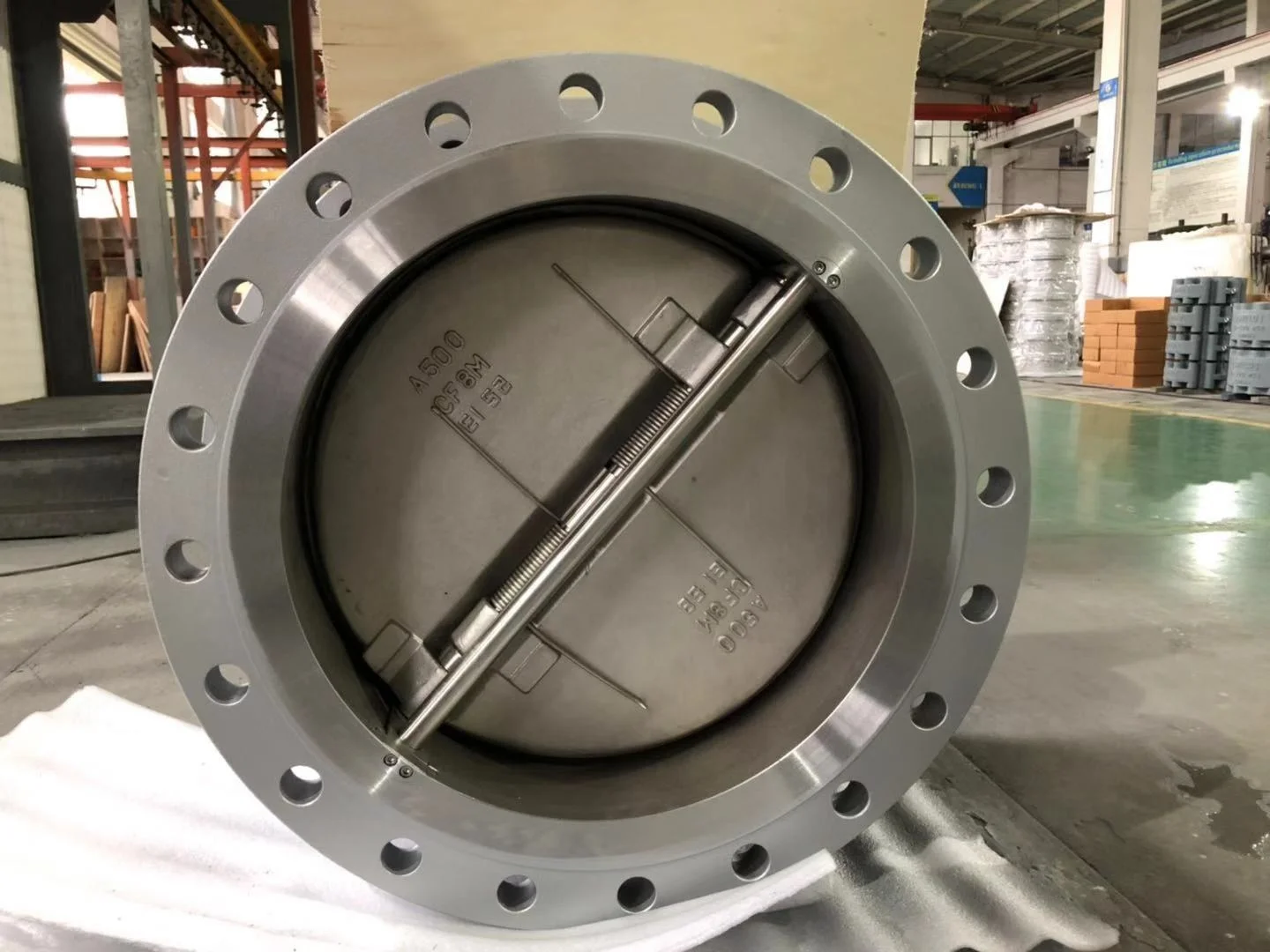

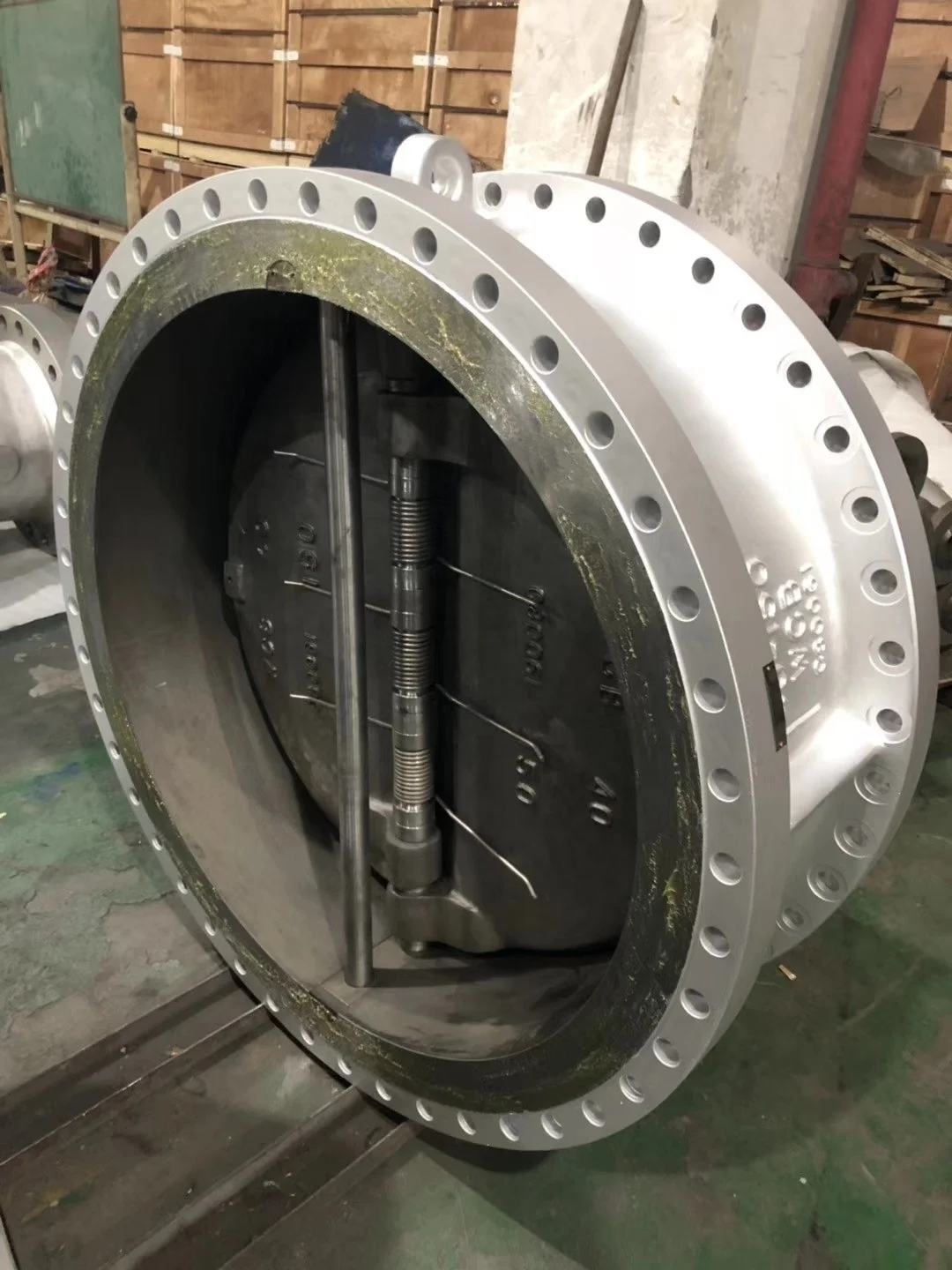

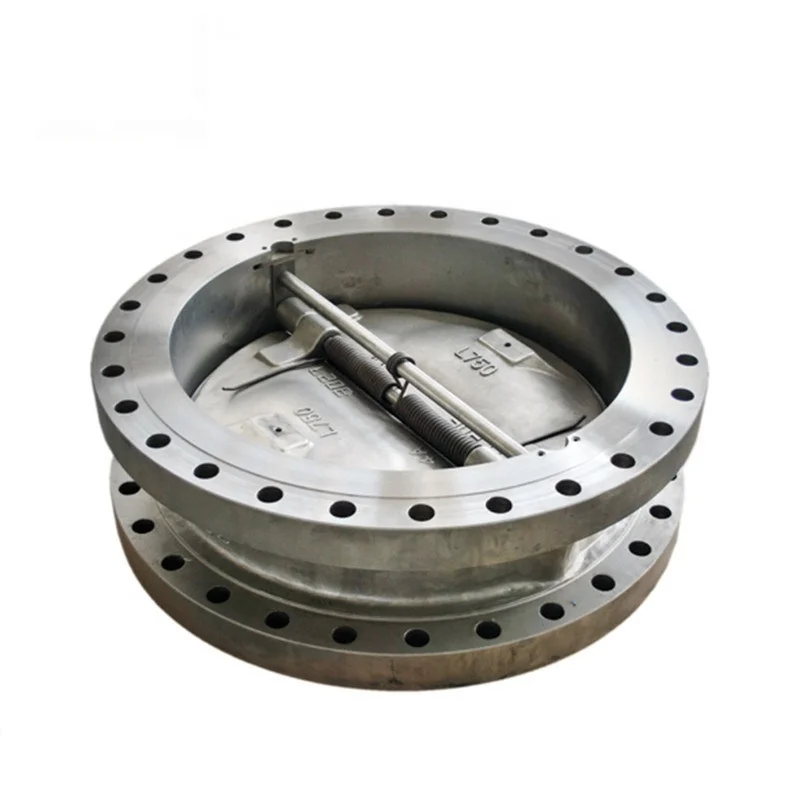

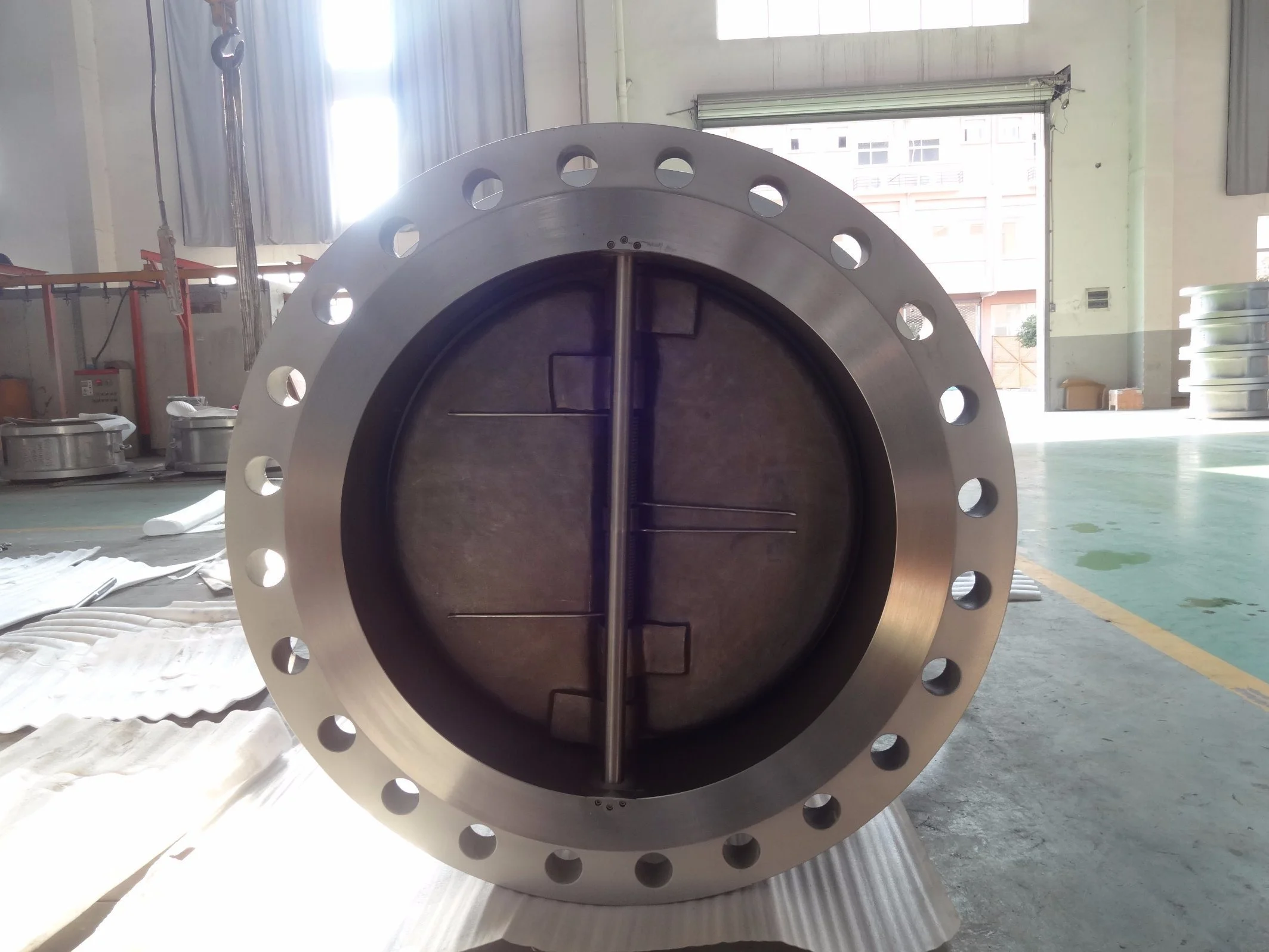

Product Show
Processing Equipment
①Casting ②Machine work ③Shot blasting ④Hot spray
⑤Accessories producing ⑥Assemble ⑦Testing one by one ⑧Package
*Laizhou Dongsheng Valve are the factory focused on valves since 2002.
*All production processes are finished in our own factory to guarantee the quality.
*All these producing based on ISO9001 standard.
*All production processes are finished in our own factory to guarantee the quality.
*All these producing based on ISO9001 standard.
Testing Equipment
CHEMICAL ANALYSIS
SPECTROMETER TEST
PRESSURE TEST ONE BY ONE
ZINC THICKNESS TEST
TENSILE FORCE TEST
DIMENTION TEST
*PRESSURE TESTING BASED ON API598 ONE BY ONE
*NO LEAKAGE GUARANTEED BASED ON ZERO PRESSURE
*NO LEAKAGE GUARANTEED BASED ON ZERO PRESSURE
