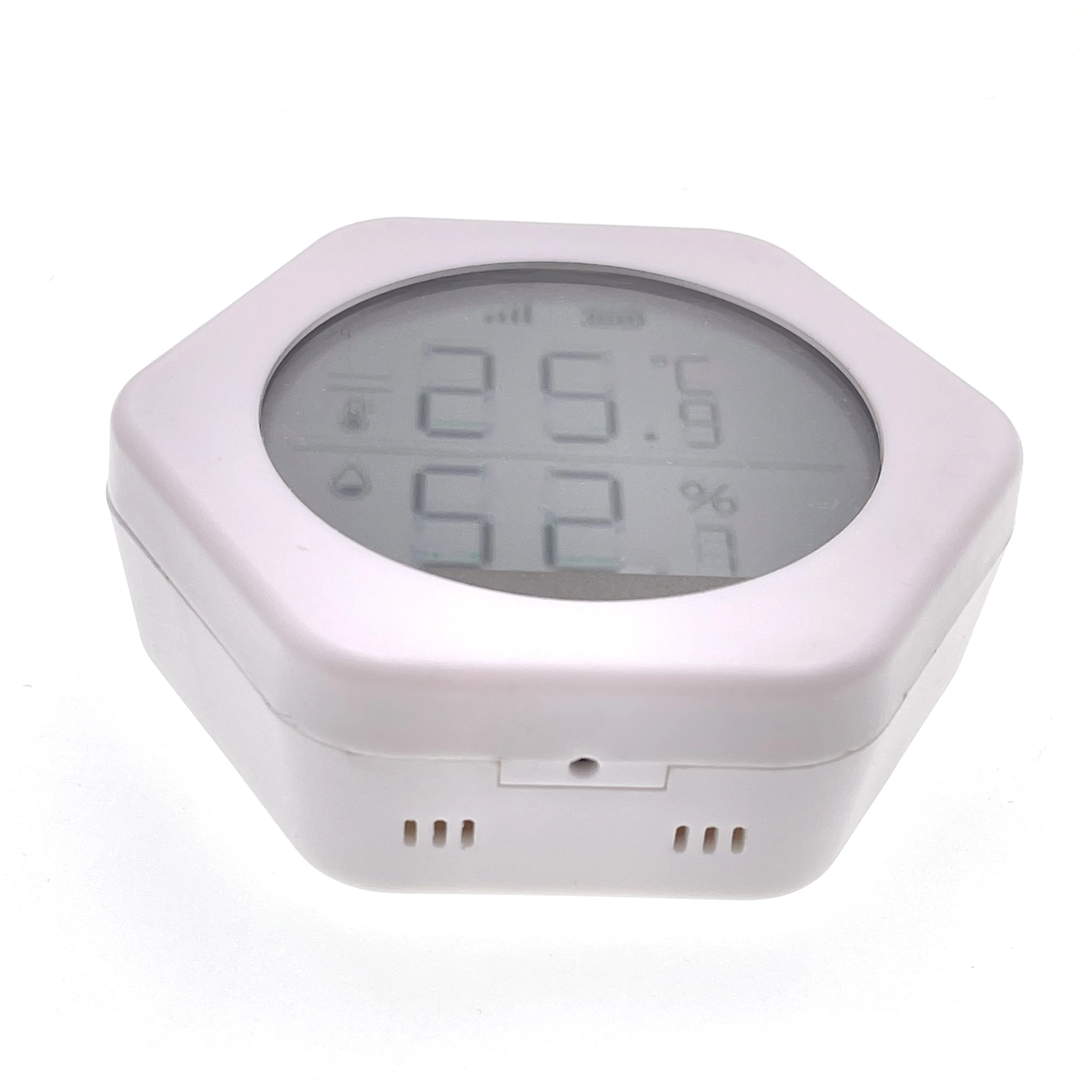

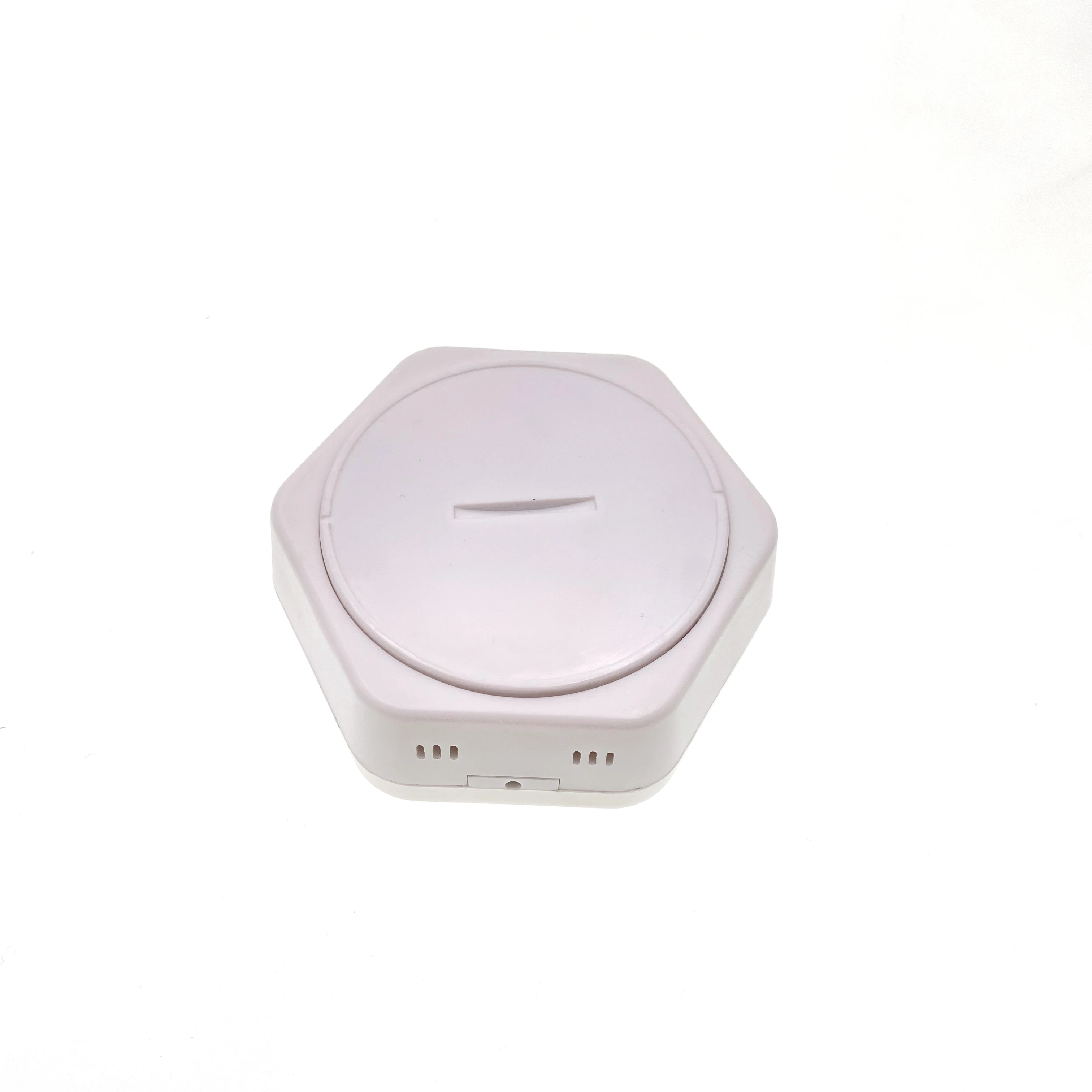

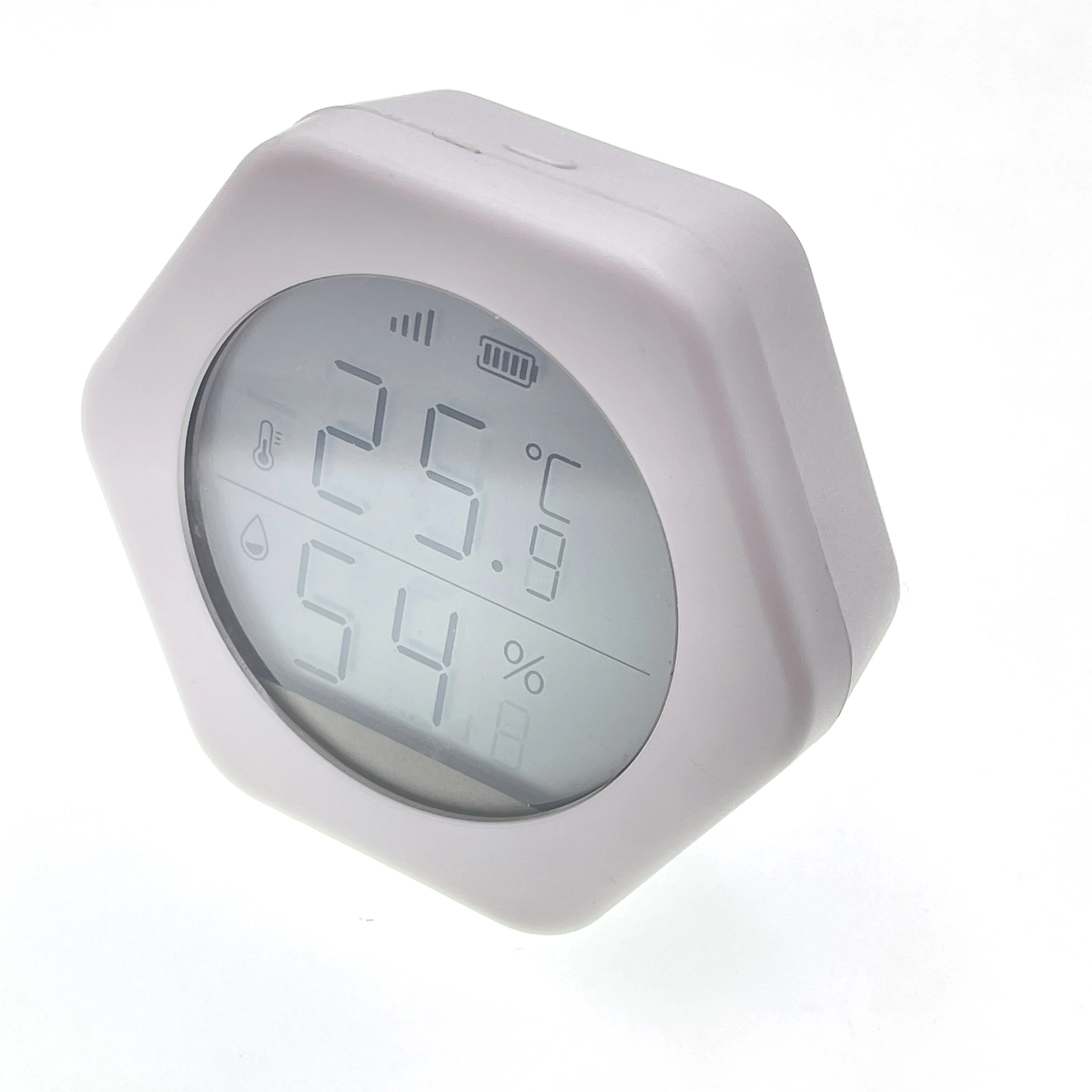

Digital Thermometer Bluetooth 5.0 Temperature and Humidity Sensor for Room Wireless Monitor
- Category: >>>
- Supplier: Chongqing Jinou Science And Technology Development Co. Ltd.
Share on (1600380993178):
Product Overview
Description
Product Description
Digital Display BLE5.0 Temp and Humid Meter is a new generation sensor product developed by Chongqing JINOU Science and Technology Development Co., Ltd. based on BLE and LCD technology. The product can display the collected temperature and humidity data on the LCD screen, and can also send the information to the mobile phone or gateway through BLE broadcast or BLE connection.
Our sensor can send broadcasting, such as its name, Mac address, RSSI, temperature and humidity data. We will provide client with testing App and UUID file for free after sale. Testing App can set parameters, such as name, broadcast interval. UUID file is helpful to develop software.
Features:
Temperature and humidity display
Battery power display
BLE status indication
Low power consumption
The mobile phone can obtain temperature and humidity data through Bluetooth
The phone can set the temperature and humidity update frequency via BLE connection
Bluetooth specification | BLE 5.0 |
Spread spectrum method | FHSS |
Working frequency | ISM frequency 2.400~2.483GHz |
Transmitting power | 0dBm |
Transmitting distance | 20m |
Receiving sensitivity | ＜－96dBm at ＜ 0.1% BER |
Store temperature | －55゜C ~ 125゜C |
Connecting standby power | about 40uA |
Antenna standard | 2.4G, 50ohm |
Safety standard | AES 128bit |
Battery | 2pcs AAA batteries (last about 5 years) |
Temperature measure range | －40゜C ~ +85゜C |
Working temperature range | －40゜C ~ +85゜C |
Temperature measure accuracy | 0゜C ~ 65゜C, error is ±0.4゜C -40゜C ~ 0゜C, error is ±1゜C 65゜C ~ 85゜C, error is ±0.7゜C |
Relative humidity measure range | 0 ~ 100% |
Humidity measure accuracy | 10% ~ 90% RH, error is±4.5% RH 10% ~0 RH, error is ±7.5% RH 90% ~100% RH, error is ±7.5% |
Applications:
Temperature and humidity label
Cold chain transportation
Smart agriculture
Baby's room
Related Products
Company Profile
Chongqing Jinou Science & Technology Development CO., Ltd is established in September 2000. We focus on Bluetooth Technology as a leader in China for 15 years. Jinou Bluetooth Technology Research Institute shoulders R & D task for our customers and help them keep top position in their field needless to mention some of them even went IPO.
Our engineers has published more than 10 works in Bluetooth technology , such as Bluetooth Technology, Bluetooth Protocol and Source Code Analysis, Wireless Local Area Network, Wireless Network Security, IPTV and Its Solution, Zigbee Technology and Cases Analyses, ULP Bluetooth Technology Specification Analyses, etc.. In addition, they also present more than 80 Disquisitions and more than 60 patents.
In recent years, Jinou has partnerships with Mediacom, Gamestop, Microsoft, ARM, Invengo, HUAWEI,POTEVIO, Southsurvey, Chongqing CHANGAN, Hanwei, SNBC, Newland Group, Hi Target, CMCC, China UNICOM, CQTV, IT University of Copenhagen, Peking University, Tsinghua University, Chongqing University, Chongqing University of Posts and Telecommunication etc..
Some of our products like Smart Socket[Bluetooth/ WiFi/ infrared], Bluetooth headphones, Bluetooth Smart Controller, Fly Mouse,Bluetooth Locks, Bluetooth Medical Module, Wearable Bluetooth Module, Beacon etc., are welcomed by all people around the world except the residents from North pole and South pole.
Our engineers has published more than 10 works in Bluetooth technology , such as Bluetooth Technology, Bluetooth Protocol and Source Code Analysis, Wireless Local Area Network, Wireless Network Security, IPTV and Its Solution, Zigbee Technology and Cases Analyses, ULP Bluetooth Technology Specification Analyses, etc.. In addition, they also present more than 80 Disquisitions and more than 60 patents.
In recent years, Jinou has partnerships with Mediacom, Gamestop, Microsoft, ARM, Invengo, HUAWEI,POTEVIO, Southsurvey, Chongqing CHANGAN, Hanwei, SNBC, Newland Group, Hi Target, CMCC, China UNICOM, CQTV, IT University of Copenhagen, Peking University, Tsinghua University, Chongqing University, Chongqing University of Posts and Telecommunication etc..
Some of our products like Smart Socket[Bluetooth/ WiFi/ infrared], Bluetooth headphones, Bluetooth Smart Controller, Fly Mouse,Bluetooth Locks, Bluetooth Medical Module, Wearable Bluetooth Module, Beacon etc., are welcomed by all people around the world except the residents from North pole and South pole.
