High speed linear actuator DC 150mm stroke linear actuator
- Category: >>>
- Supplier: Haotian Weiye(Tinajin) International Trade Co. Ltd.
Share on (1600381007148):
Product Overview
Description
Product Description

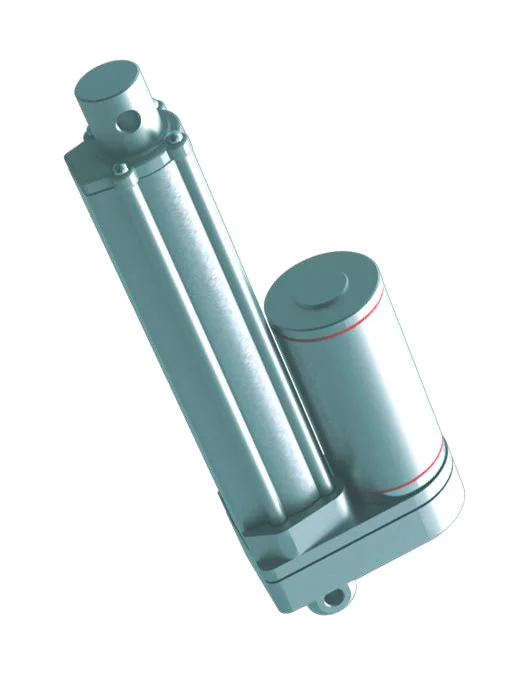

High speed linear actuator DC 150mm stroke linear actuator
Small motor actuator with ACME screws,built-in Micro switch and an internal diode,can automatically stop and enables the change of direction by simply reversing the applied voltage polarity.stroke length can been customized. switches are not made to be adjustable.Inversely proportional to the speed and power.MECHANICAL DATA
* Operating temperature -20°C~+65°C
* Aluminium outer tube and stroke rod
* Protection IP54 or IP65
* 12 or 24 or 36or48VDC •Aluminium alloy housing
* Presetlimitswitches •Low price
* Powdermetalgears •Robust
FORCE DATA
* Max load900N
* Duty cycle 20%(High-speed linear 10%)
* Max static force 2300N
* Life time 50 000 complete cycles
* Operating temperature -20°C~+65°C
* Aluminium outer tube and stroke rod
* Protection IP54 or IP65
* 12 or 24 or 36or48VDC •Aluminium alloy housing
* Presetlimitswitches •Low price
* Powdermetalgears •Robust
FORCE DATA
* Max load900N
* Duty cycle 20%(High-speed linear 10%)
* Max static force 2300N
* Life time 50 000 complete cycles
Stroke(±2 mm) | 50 | 100 | 150 | 200 | 250 | 300 | 500 | 1000 | 1500 |
Retracted length (L1)(±2 mm) | 155 | 205 | 255 | 305 | 355 | 405 | 605 | 1105 | 1605 |
Weight (kg) | 0.7 | 0.79 | 0.88 | 0.94 | 1.04 | 1.1 | 1.5 | 3 | 5.5 |
