2018 PP PE plastic recycle machine
US $20000-$40000
Waste Plastic Recycling Extruder Granulator PP LDPE Recycled Granules Machine
- Category: Rubber Recycling Machinery >>>
- Supplier: Zhangjiagang,Greenlandplast,Machinery,Co.,Ltd.
Share on:
Product Overview
Description
Product Overview

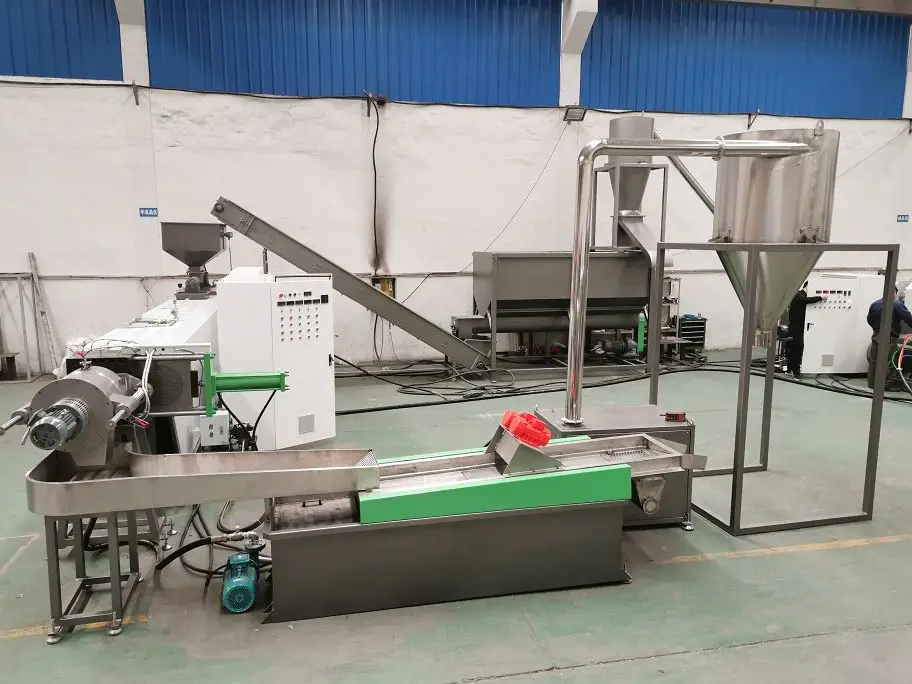

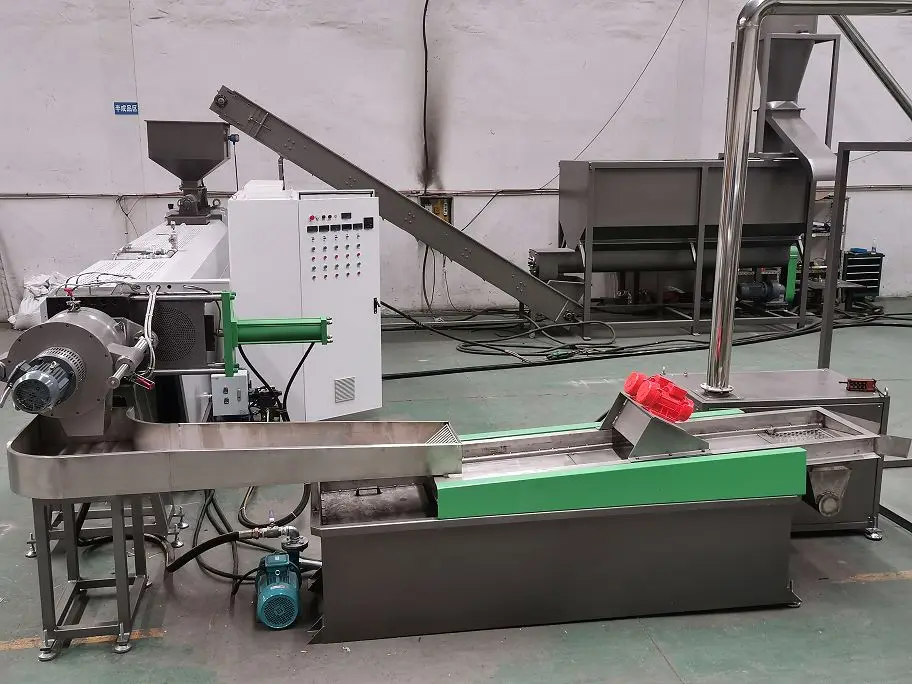

Greenlandplast Recycle Plastic Pelletizing Machine Manufacturers In China
This Recycle Plastic Pelletizing Machine Manufacturers In China is mainly used for crushing, cleaning and drying of plastic regrind flakes materials.
The material is fed by screw feeder or vacuum feeder, then the material is fed to the extruder screw through a quantitfy feeding device. The screw is specially designed for the recycled material recycling pelletizing , and has advantage of fast feeding and resistance. With natural venting and vacuum system; can effectively discharge the water inside the material; the extruder uses cast aluminum heaters, durable.
The material is fed by screw feeder or vacuum feeder, then the material is fed to the extruder screw through a quantitfy feeding device. The screw is specially designed for the recycled material recycling pelletizing , and has advantage of fast feeding and resistance. With natural venting and vacuum system; can effectively discharge the water inside the material; the extruder uses cast aluminum heaters, durable.
FEATURES AT A GLANCE
Right elevation
Left elevation
Front elevation
PRODUCT SPECIFICATIONS
Model | Scew diameter(mm) | L/D | Capacity |
GL85-85 | 85 | 33/10 | 100-200kgh |
GL100-100 | 100 | 33/10 | 200-300kgh |
GL130-130 | 130 | 33/10 | 300-450kgh |
GL160-160 | 160 | 33/10 | 450-600kgh |
GL180-180 | 180 | 33/10 | 650-750kgh |
GL200-200 | 200 | 33/10 | 750-1000kgh |
PRODUCT CONFIGURATION

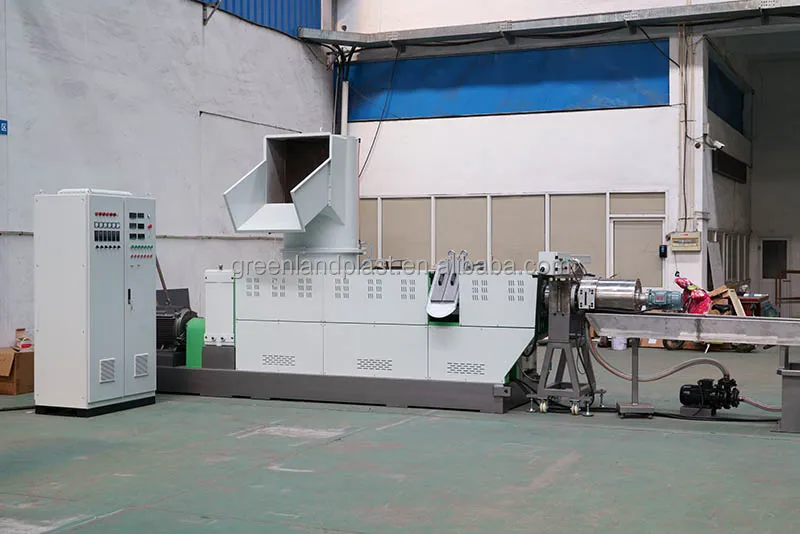

Plastic Pelletizing Extruder
38CrMoAl screw&barrel ,with Nitriding treatment ,with vacuum exhaust system
Quantificational feeder
to feed material into extruder smoohtly and evenly
Water -ring cutting system
Water-ring die-head cutting type, cutting speed frequency controlling ,SKD material blade,pellets size uniform and beautiful
Auto hydraulic screen changing system
Equip hydraulic automatic non-stop screen changing filter system,with automatic pressure alarm device
Vibrator dewatering system
Vibration dewatering method, saving power consumption and low noise，high performance of pellets dewatering drying !
Dewatering type blower&hopper storage
Vibration dewatering method, saving power consumption and low noise，high performance of pellets dewatering drying !
SIMILAR PRODUCTS
Why Choose Us
Technical innovation ,Quality first
Greenlandplast Machinery pays attention to technology research & development and product quality. Based on the company's mature R&D design team, we carry out technical reforms on traditional plastic recycling equipment. It insists on high-quality configuration for each component and detail of the equipment, compared with traditional recycling equipment ,more stable, high performance and efficiency, increase the economic benefits of recycling manufacturers!
Offer different customers customized solutions of plastic recycling
Greenlandplast Machinery provides customized and integrated crushing washing and pelletizing solutions according to different recycling materials and capacity requirements of customers, which can help customers recycle various of materials and different pollution levels.Includ PET bottles, PP/PE Films/plastic bags/bottle, waste plastic packages agricultural film greenhouse film, jumpo bag, home appliance plastic, etc.
One-stop turnkey project concept
Since the customer consider setting up recycling project, we will design the most suitable production line process and installation plan according to the customer's capacity demand, workshop condition, etc. Our design and engineering team will provide customers with one-stop turnkey plastic recycling project. With complete pre-sale and after-sales service
Installation ,training & Good after-sales service
We have professional technicians who can come to customer's factory provide installation and commissioning, train operators, so that ensure the correct operation and maintenance of the equipment! We have dedicated after-sales personnel and spare parts warehouse to ensure the timely supply of some conventional accessories parts!
