cnc lathe CNC210 benchtop other machine tool equipment for school education and hobby users
- Category: >>>
- Supplier: WMT CNC Industrial Co. Ltd.
Share on (1600381442406):
Product Overview
Description
Products Description

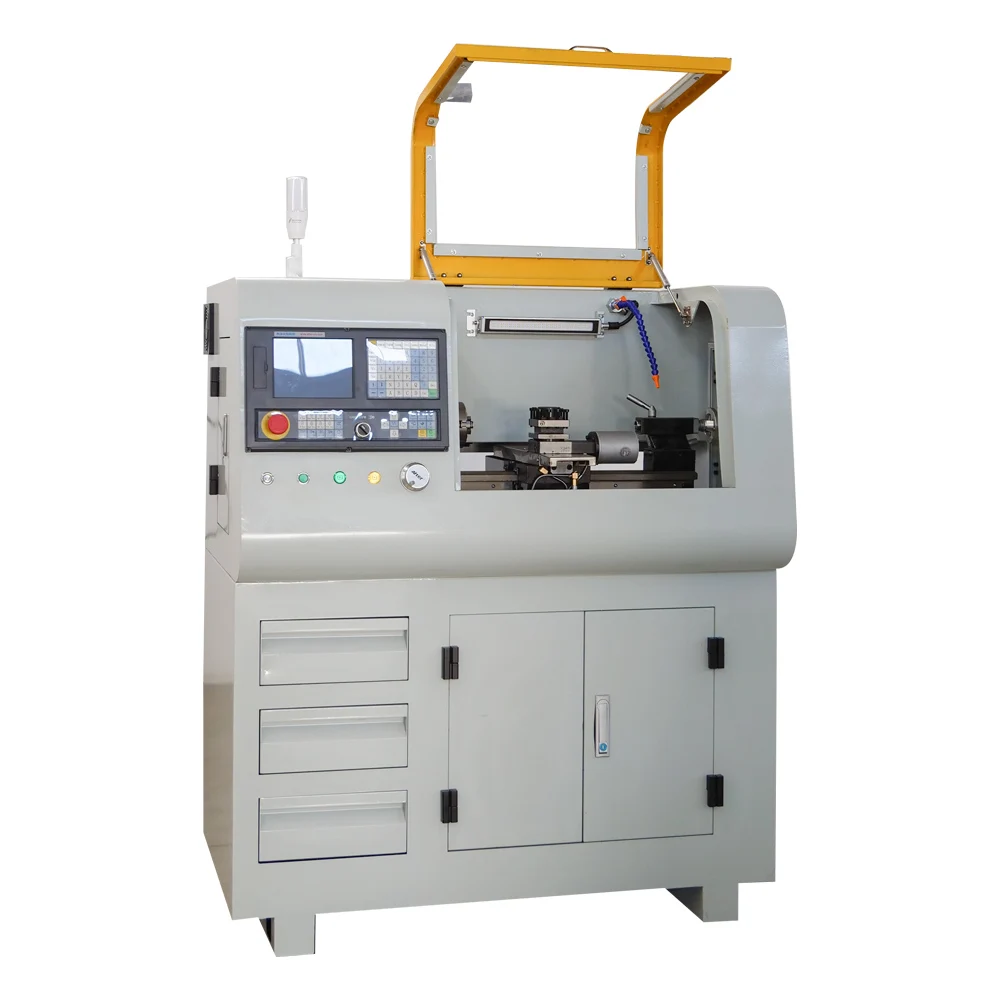

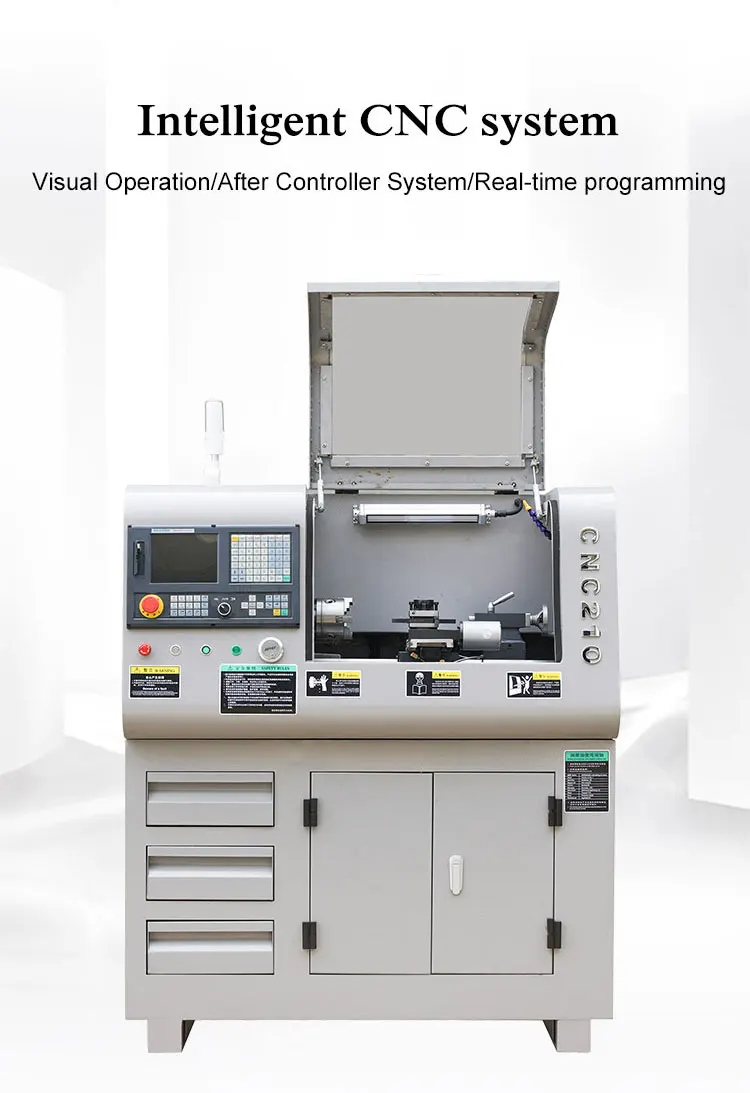

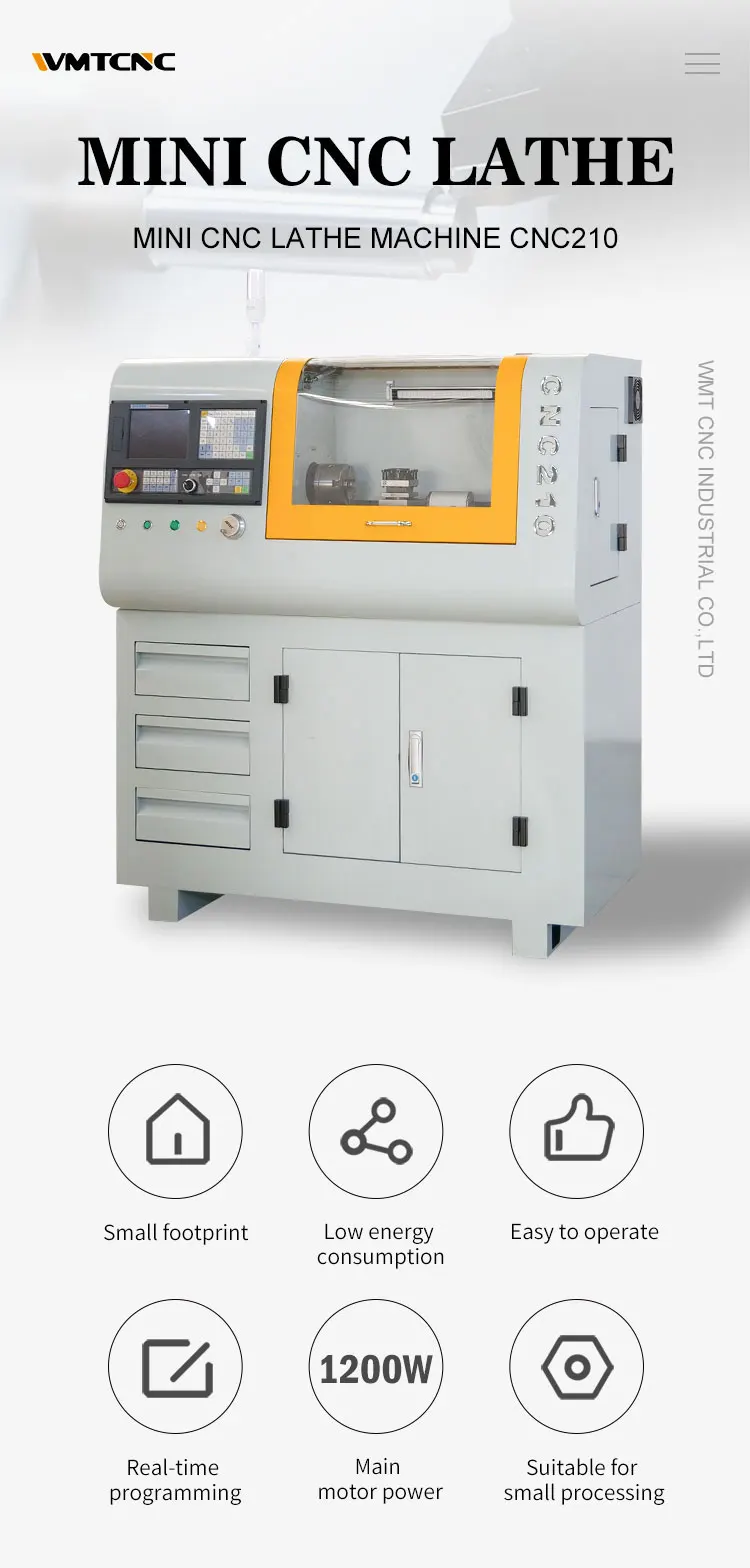

CNC210 Mini CNC Lathe Machine Features:
1. X/Z feeding motor and main motor: servo motor.;
2. Small size and cheap price;
3. Lower noise and high precision;

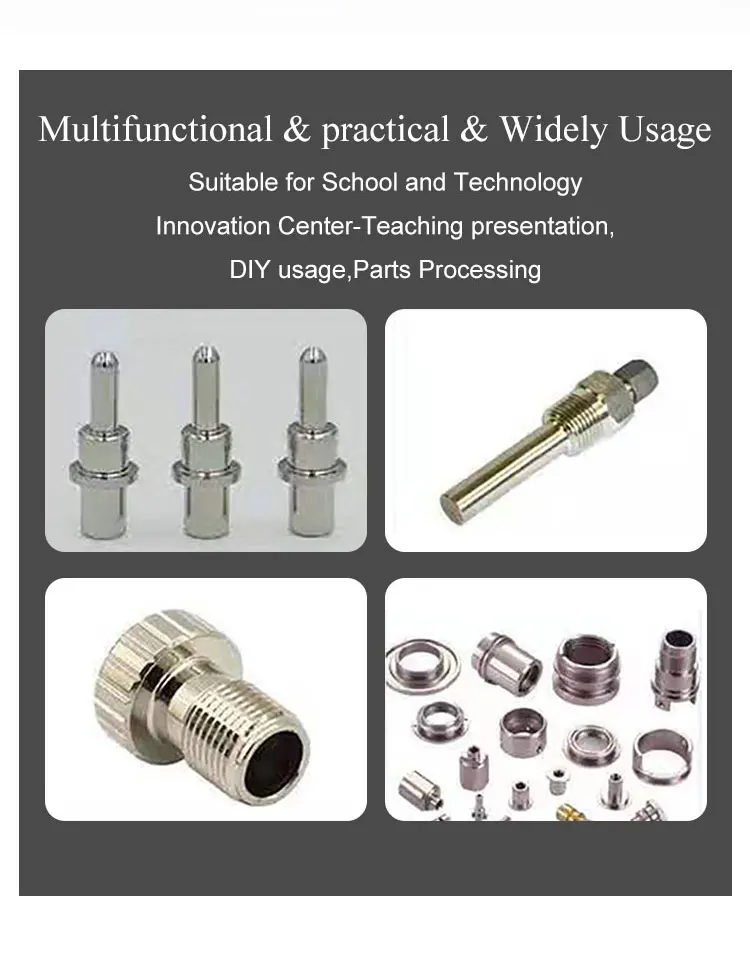

4. Suitable for educational training and mould machining.
2. Small size and cheap price;
3. Lower noise and high precision;
4. Suitable for educational training and mould machining.
Specification | CNC210 |
Max. swing over bed | 210mm |
Distance between centers | 400mm |
Spindle bore dia. | 26mm |
Spindle taper | MT4 |
Spindle speed | 3000rpm |

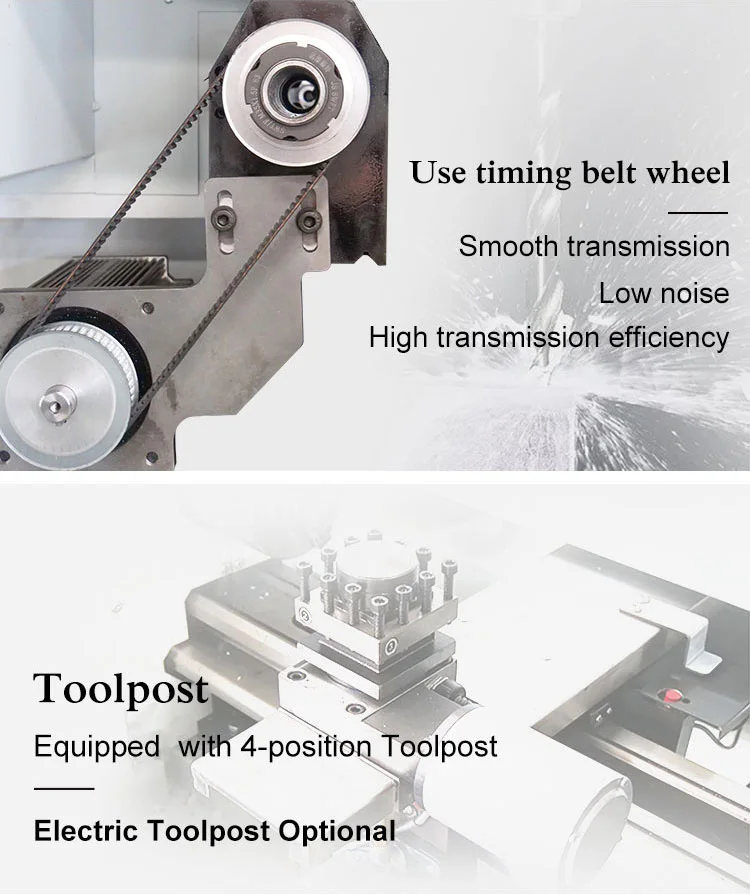

Tool post | 4-position |
Gangtool bar size | 12mm |
X-axis travel | 90mm |
Z -axis travel | 300mm |
X moving speed | 2000mm/min |
Z moving speed | 2000mm/min |
Spindle motor power | 1.2kw |
X motor torque | 3N.m |
Z motor torque | 3N.m |
Min. setting unit | 0.001mm |

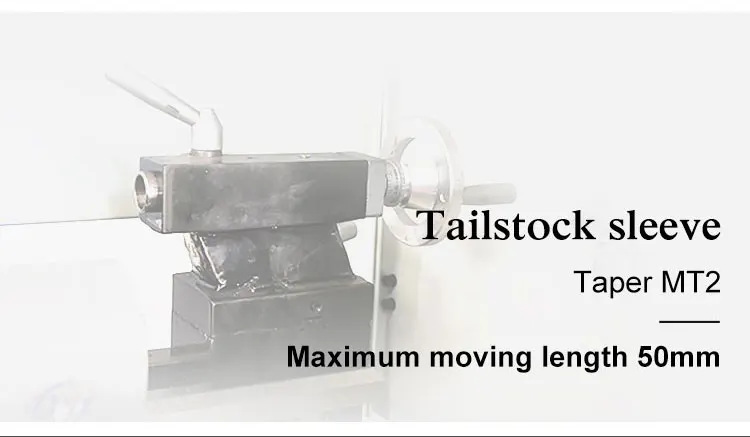

Tailstock dia. | 22m |
Tailstock tavel | 50mm |
Tailstock taper | MT2 |

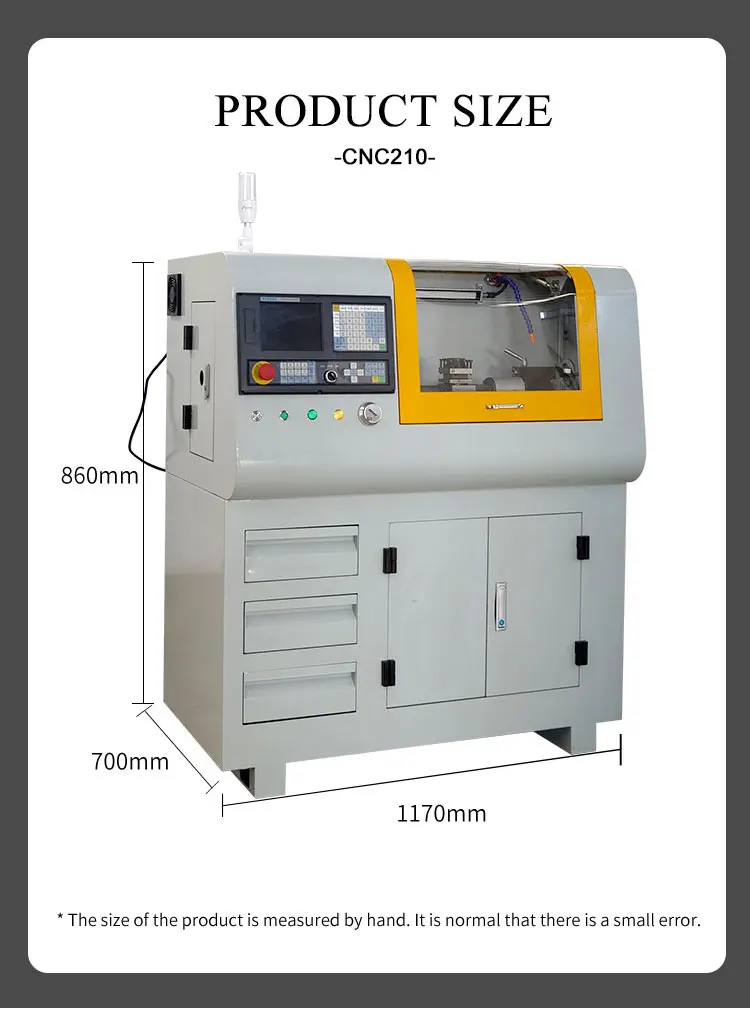

Machine size without Stand | 1170X700X860mm |
N.W | 200kgs |

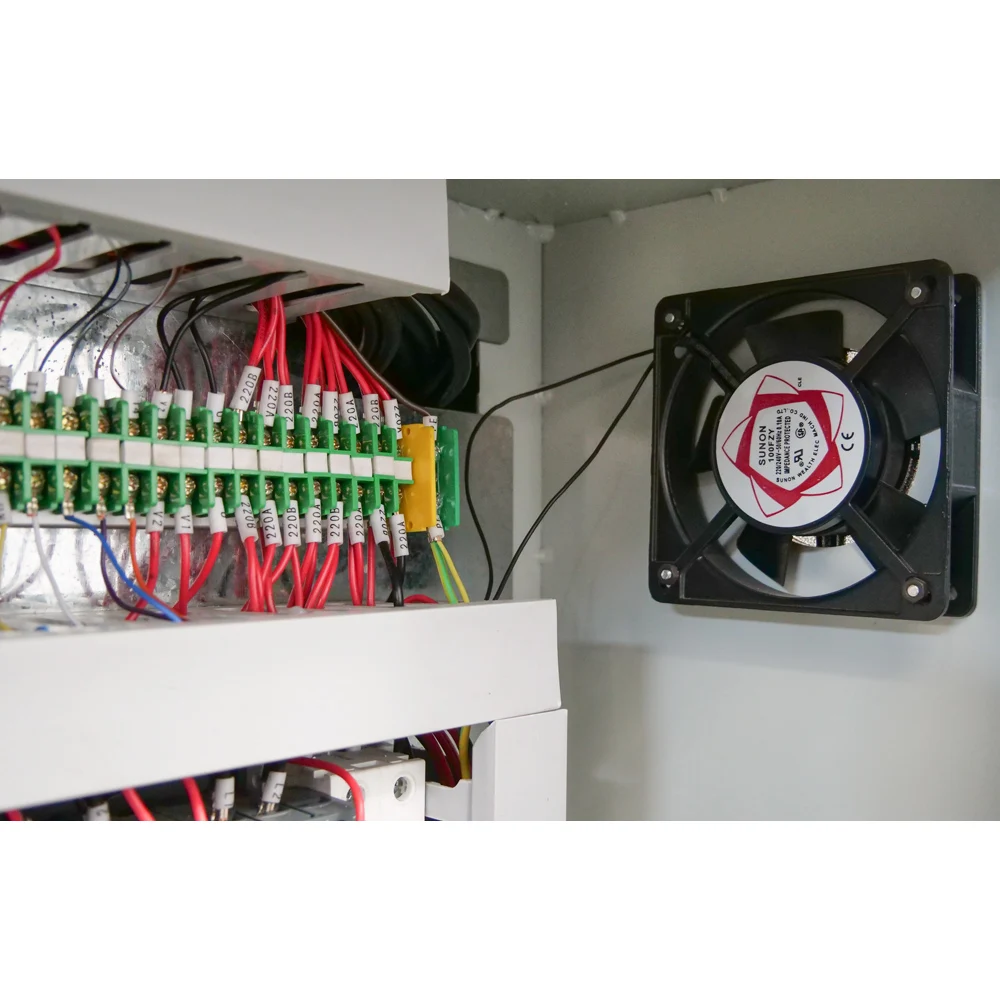

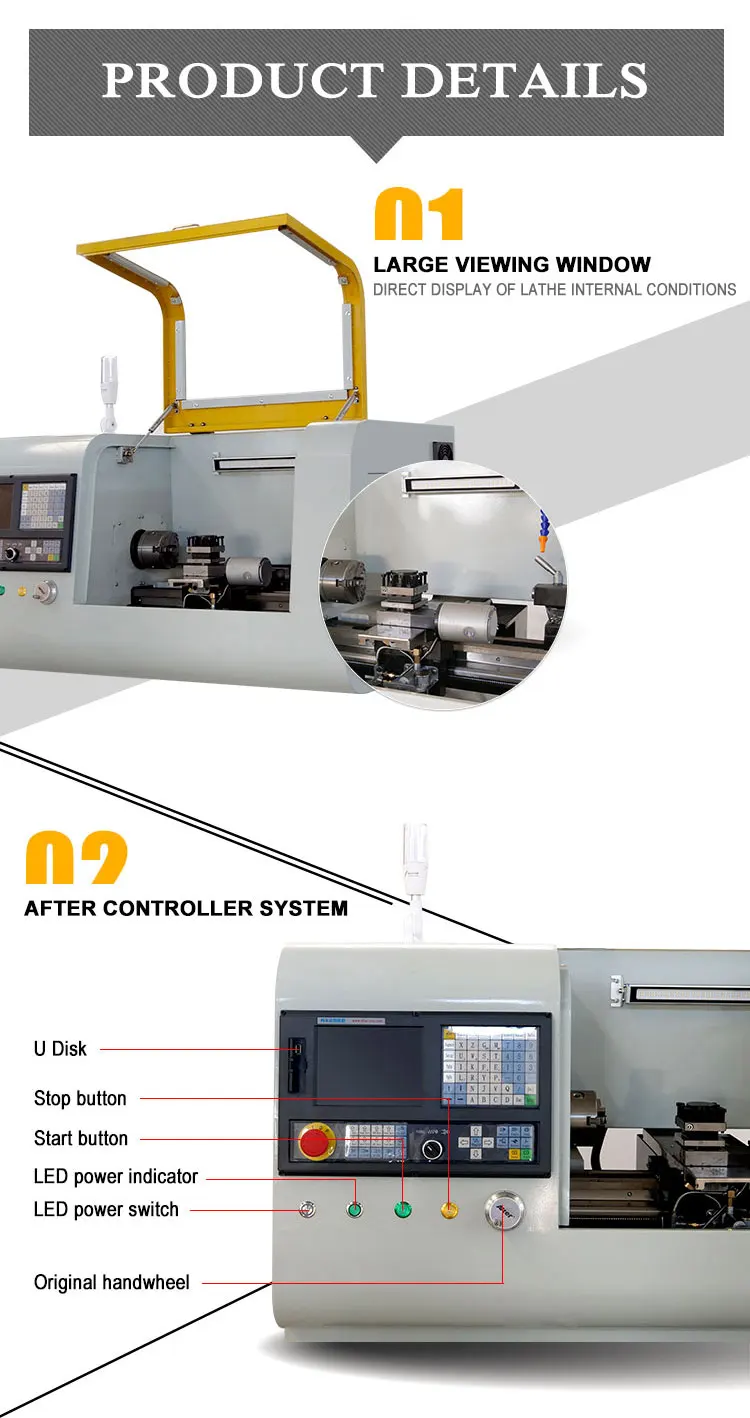

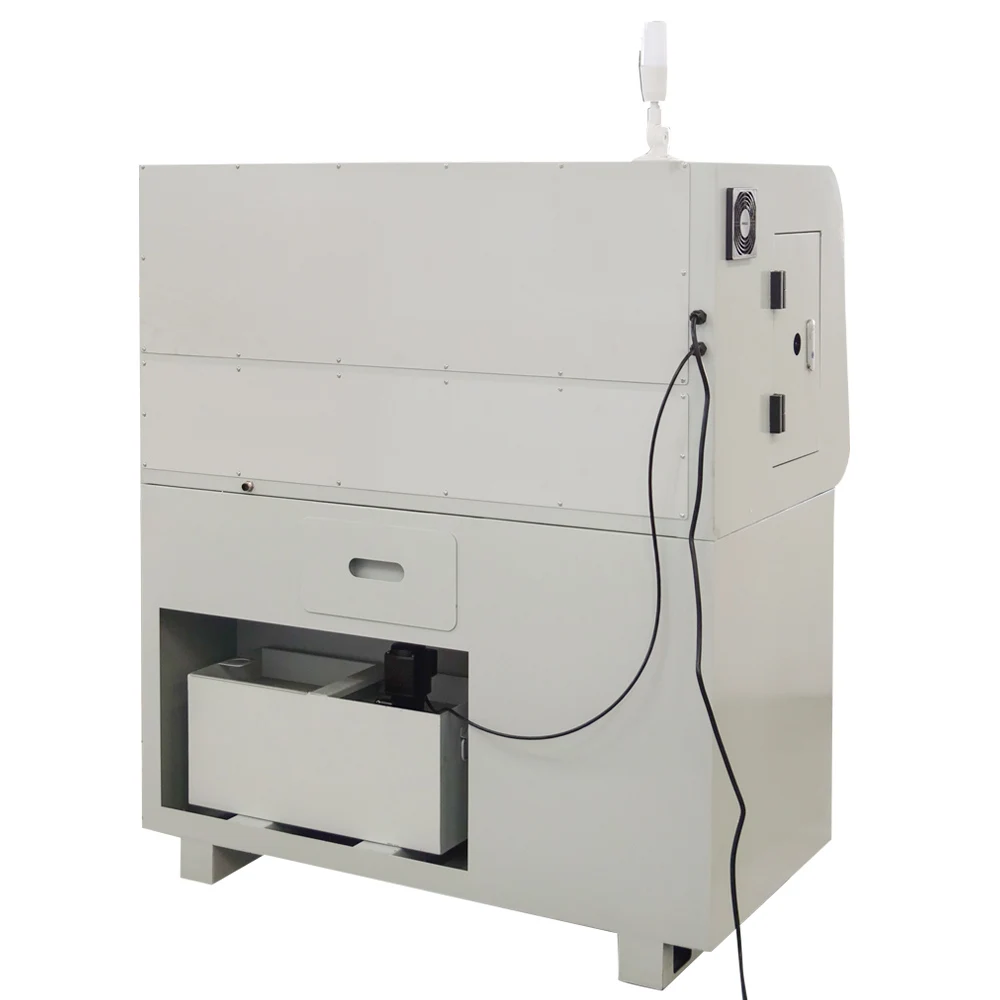

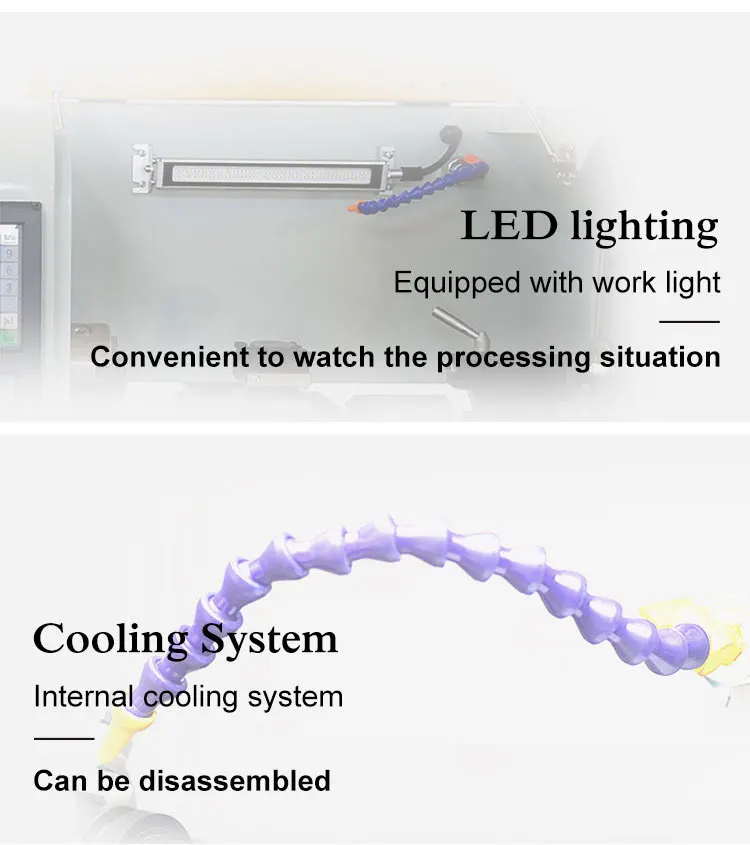

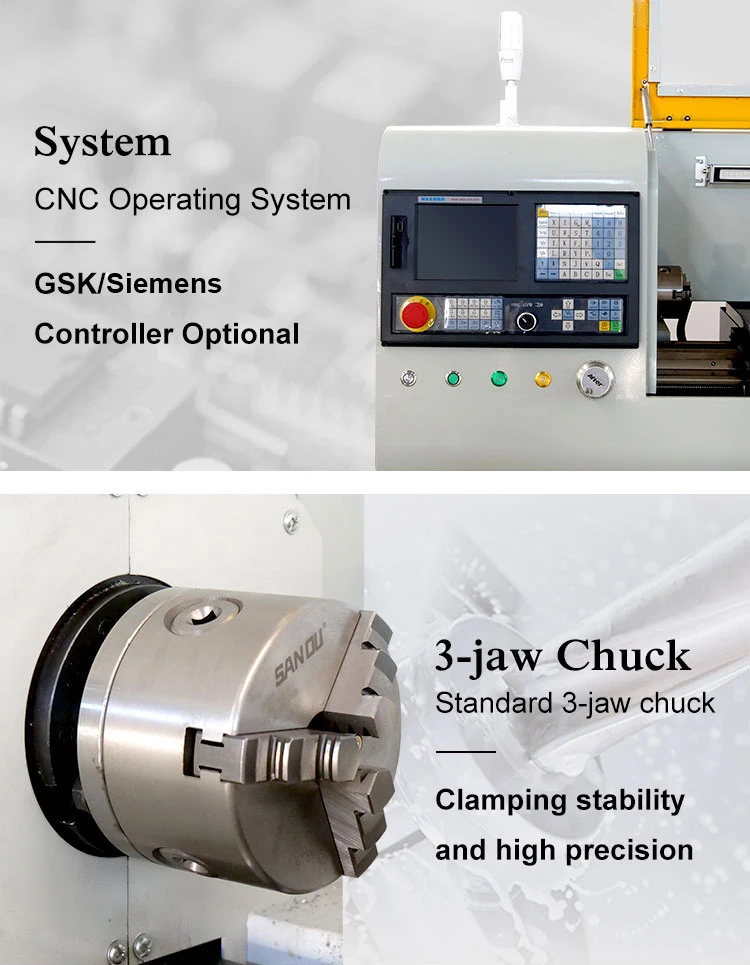

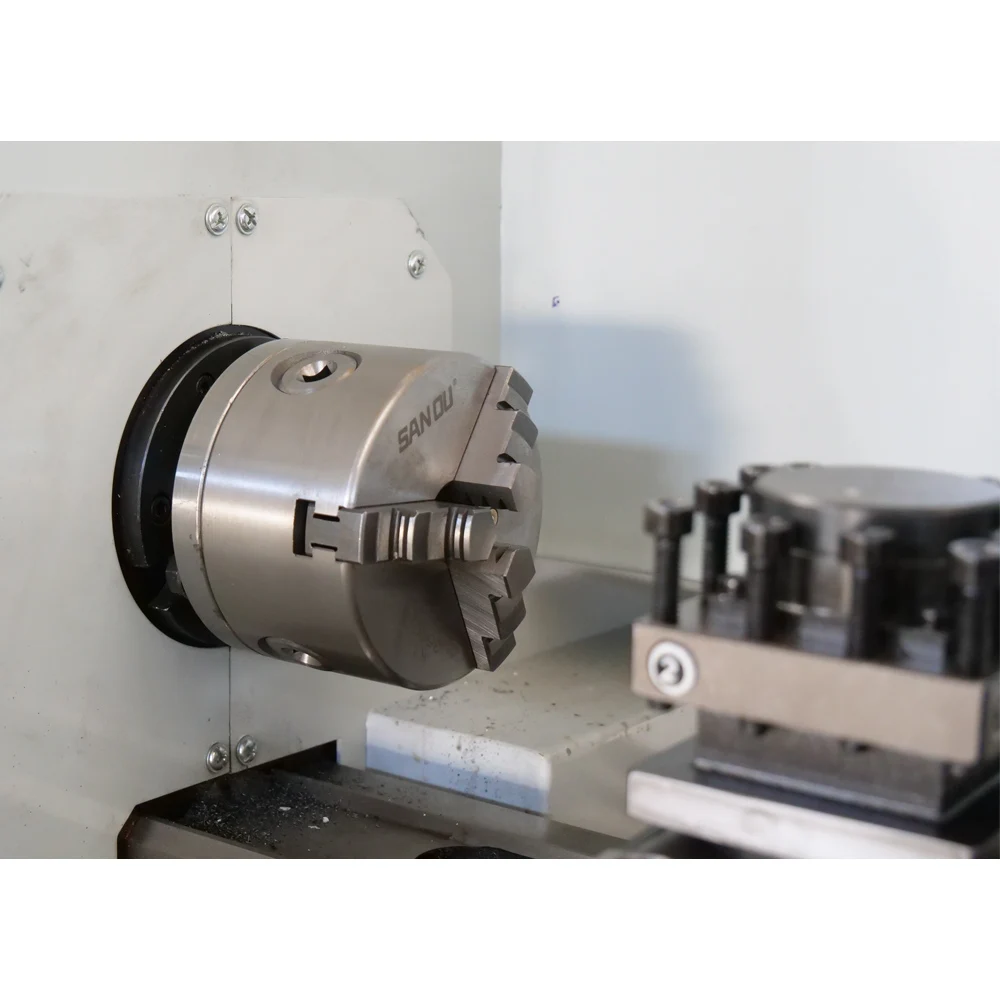

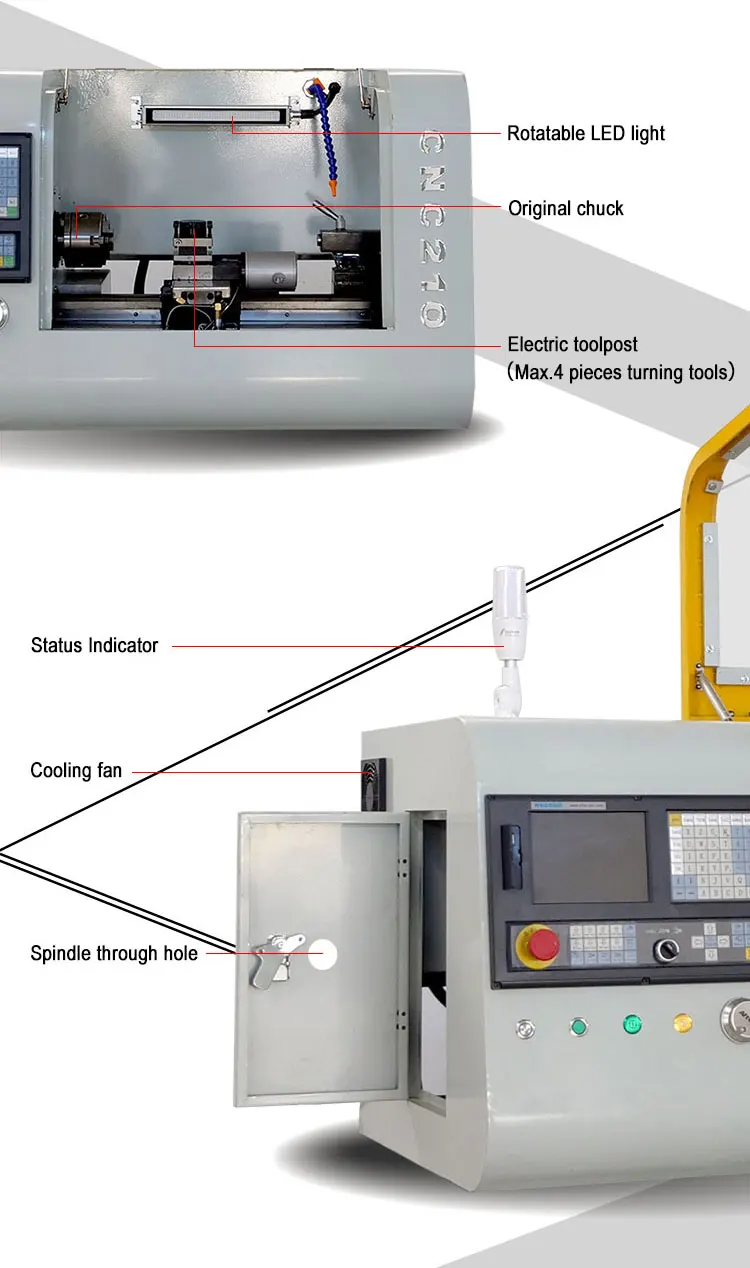

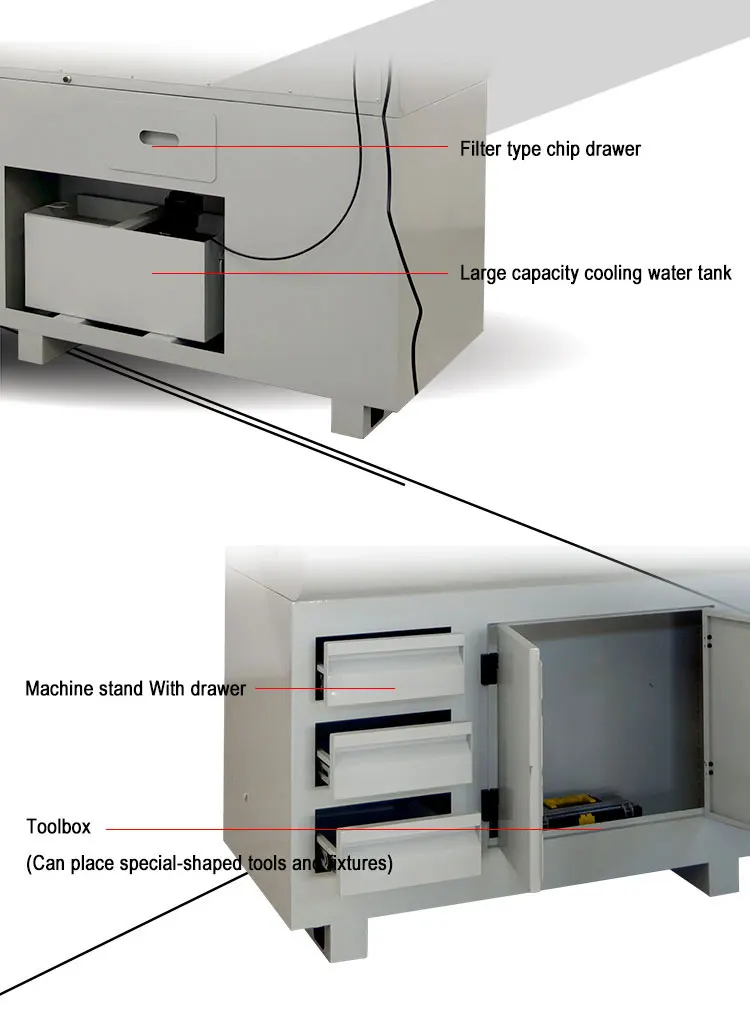

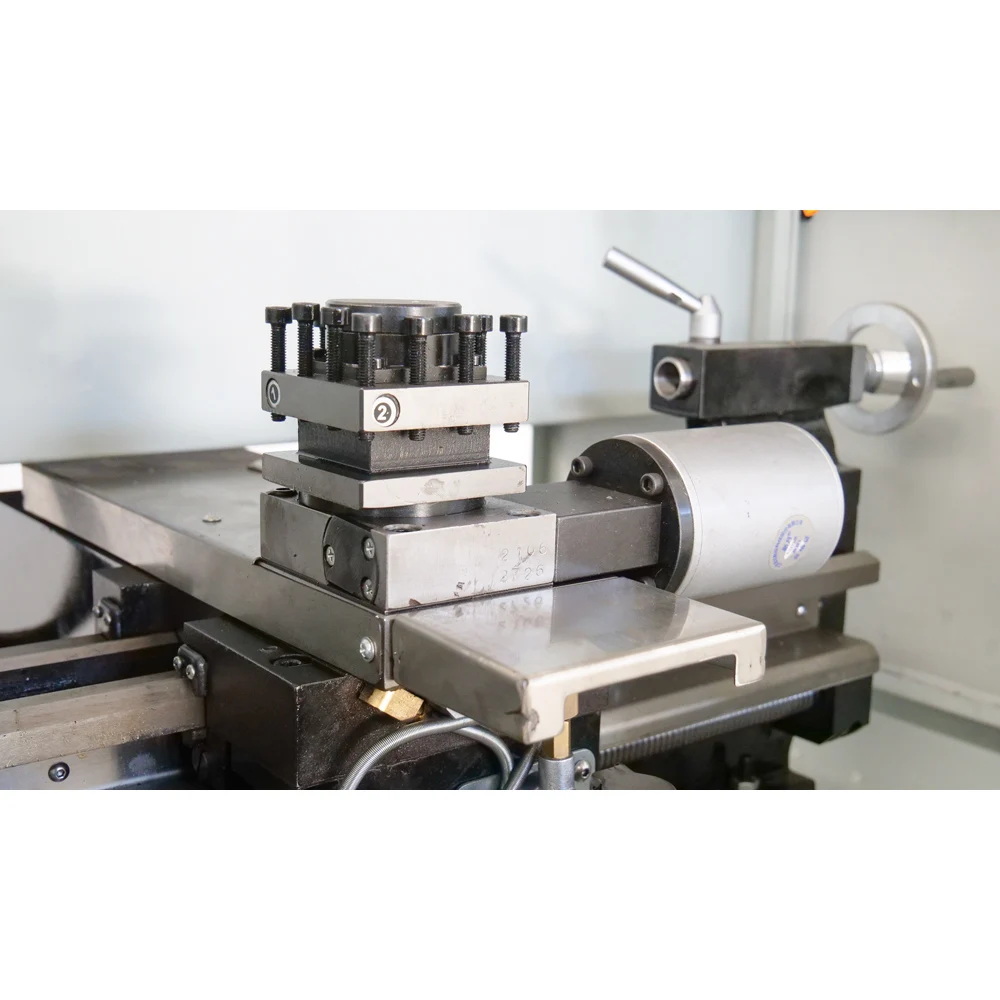

Details Images

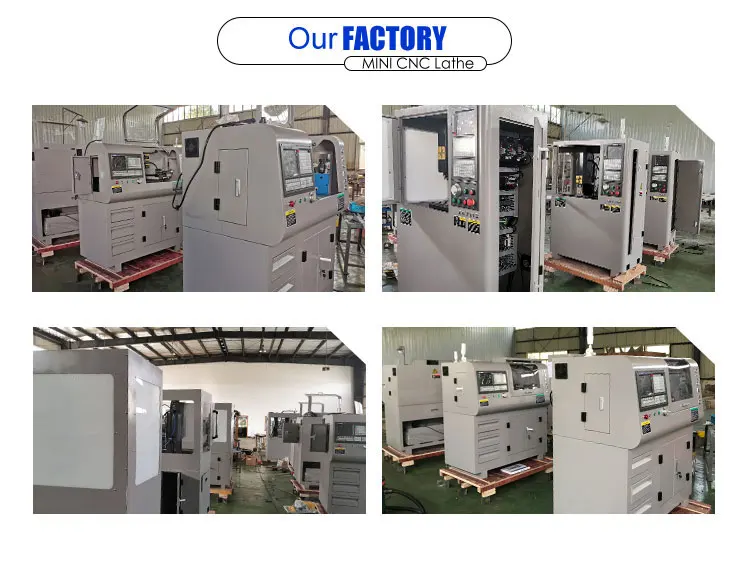

Company Profile
Customers' Feedback
FAQ
Q1: How is the warranty?
A1: Warranty time is 13 months after BL date.
Q2:Can we visit your factory before order?
A2:Sure.All new and old friends are welcomed to visit us at our factory. Besides,we can pick up you at the station or airport if needed. We will be very honored to help with tickets and accommodation booking.
Q3:Do you have a stock?
A3:Sorry, most of our machines don’t have stock, we always produce according to order. However, if during fairs months, maybe have few samples back from fairs.
Q4:What’s the MOQ?
A4:One set only.
Q5:How about your quality?
A5:We have approved the ISO9001:2008 Quality management system.ISO14001 Environmental management system, OHSAS18001 International occupational health and safety management system, and Social Accountability 8000(SA8000). Most products have been approved by the European and American safety standards, including CE, GS, EMS&UL,90% of our products are exported to more than 60 countries and regions around the world, especially to Europe and America market and always win high reputation. So you can rest assured of our quality products and our best services.
Q6:Do you have professional engineers?
A6:Yes.we have professional engineers and designers. We can provide OEM services.
Q7:Can you provide customized machines?
A7:Yes, we can design and manufacture according to your specific requirements.
