Product Overview

Description

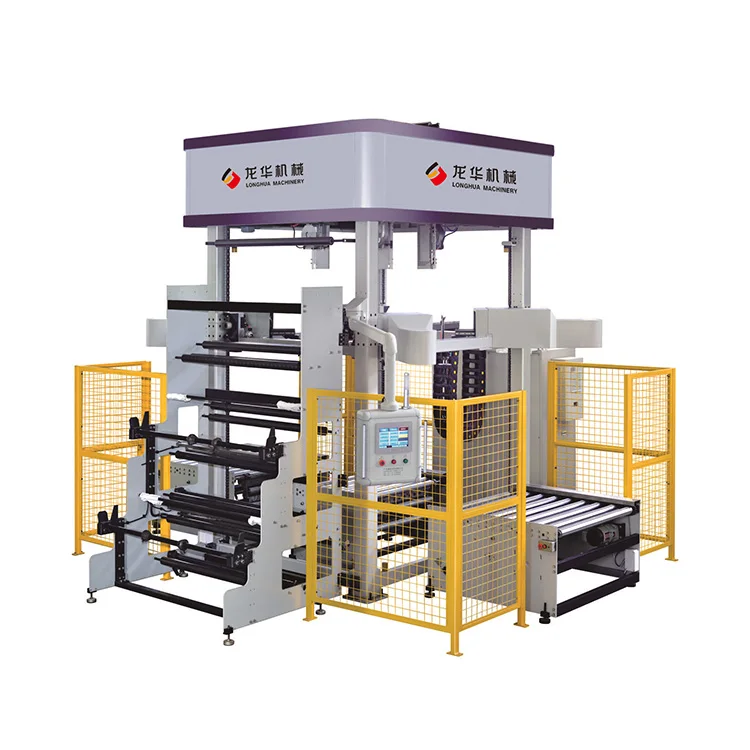

PCL-001 Stretch Hood Packing System

Introduction

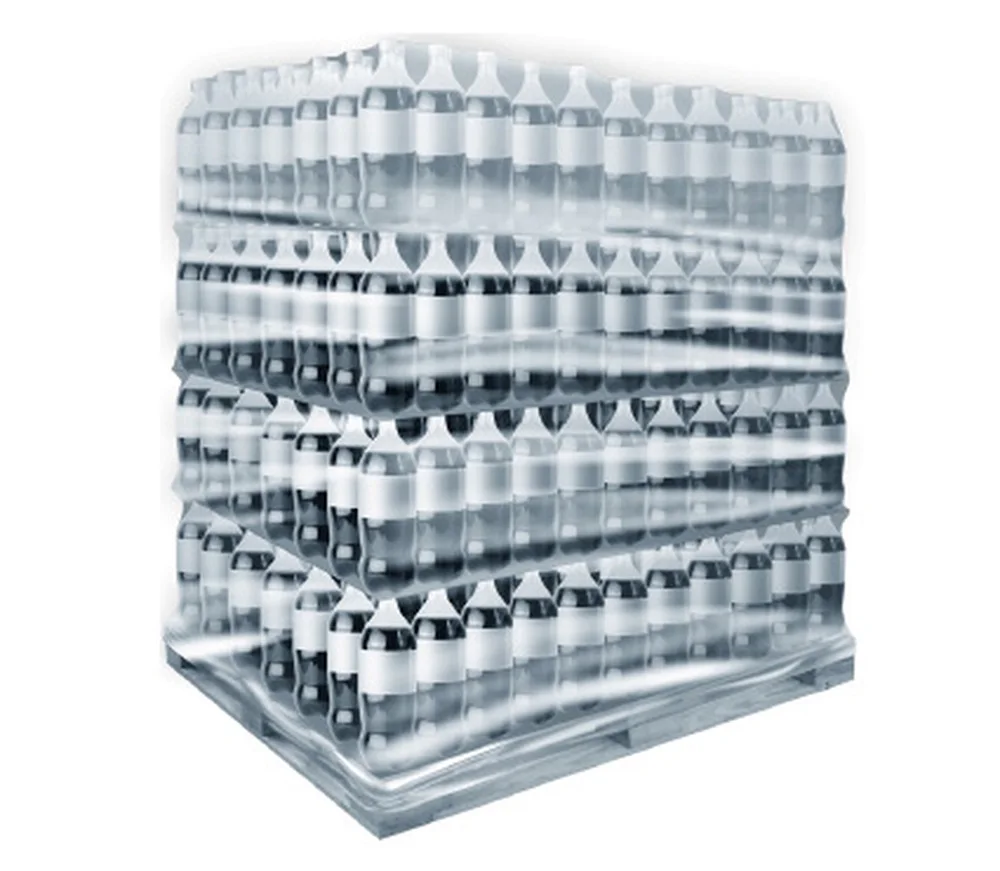

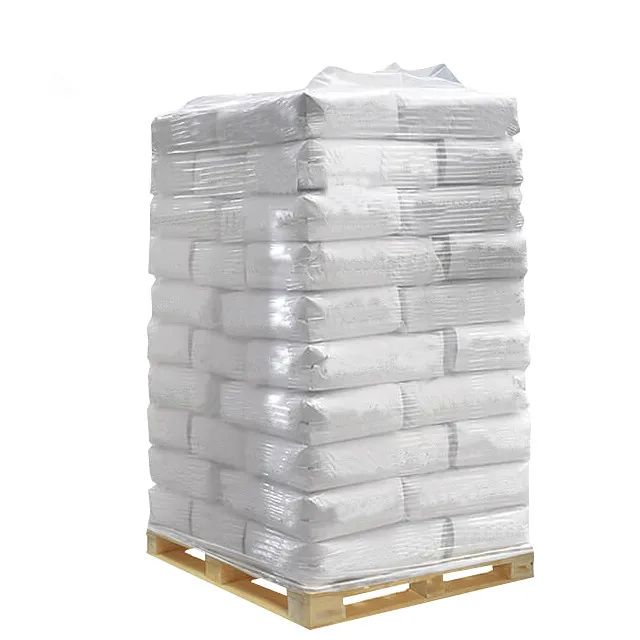

1.     This system is applicable for pallet packing and production line packing with different sizes. It can be used for heavy duty packing such as glass bottles, construction materials, white household appliance and etc.

2.     Sensors are used to detect the size of the incoming good. Different length of the stretch hood is produced according to the detected signal.

3.     The scale of stretching is controlled according to the size of the good.

4.     Programmable PLC and touch screen are used for clear display and easy operation.

5.     Gear reducers and inverters are used to control mechanical movements.

Option:

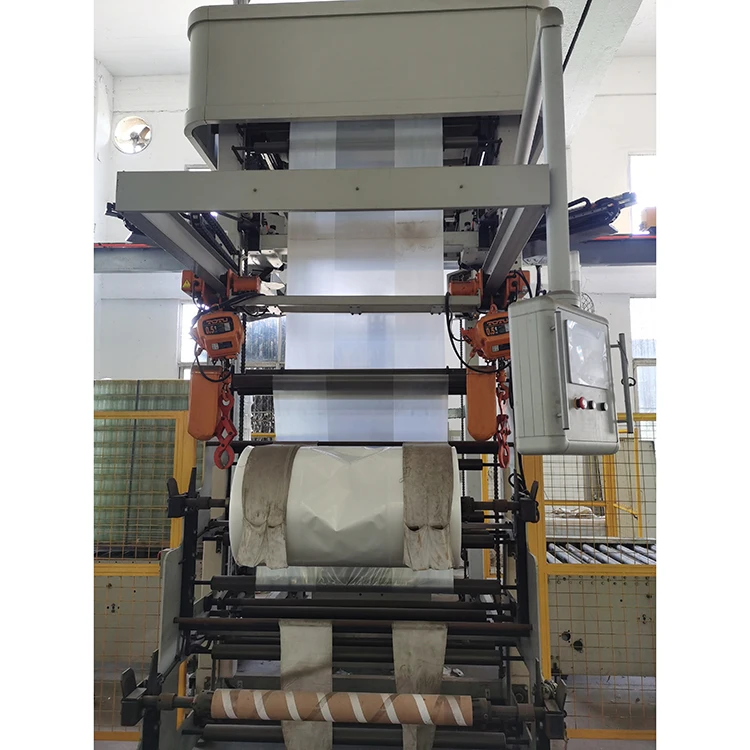

Auto film-roll switching system: A new film-roll will automatically be switched in when the original film-roll is used up. This prevents the stopping of production line for film loading.

Specification

Max. Packing Pallet size (L*W)(mm)	3200*1400
Packing Pallet size (H)(mm)	500-1500
Speed (pallets/h)	60
Machine Size (L*W*H)(m)	8.5*5.0*4.0
Weigh (t)	5.0
Power (KW)	22

Features

ITEM	BRAND	QUANTITY
Servo Motor	PANASONIC	6sets
Gear Reducer	SEW	11pcs
PLC	OMRON	1set
Touch Screen	PRO-FACE	1pc
SSR	CRYDOM	4pcs
Mark Sensor	DATALOGIC	2pcs
Inverter	FUJI	8pcs
Pneumatic Components	SMC/AIRTAC	--

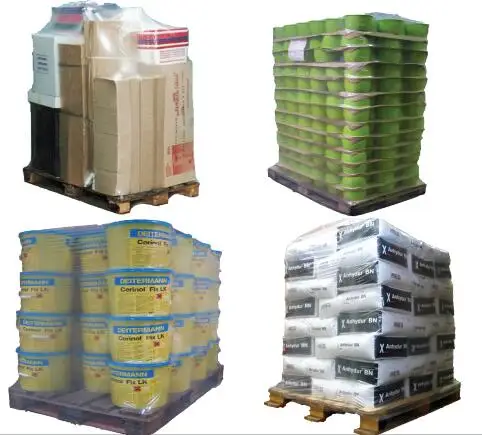

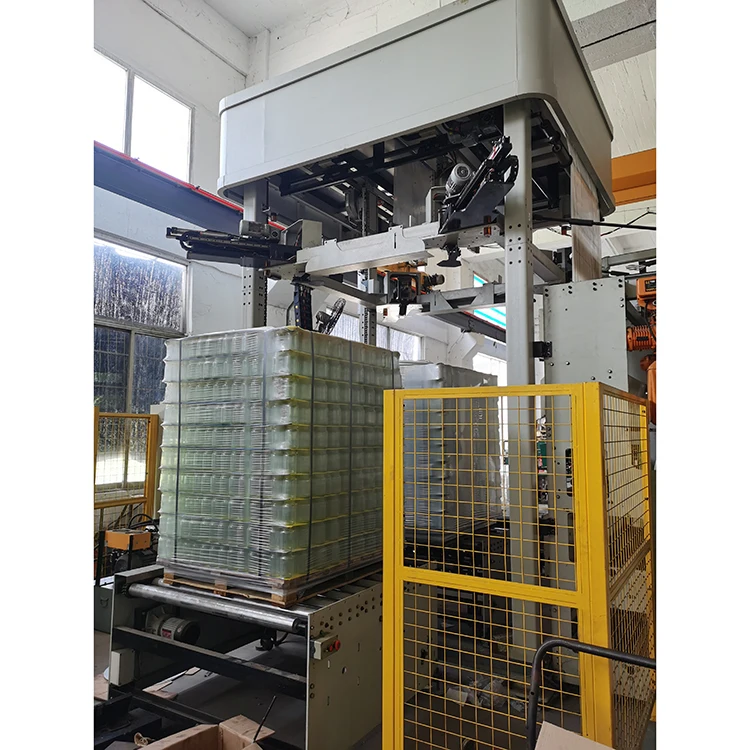

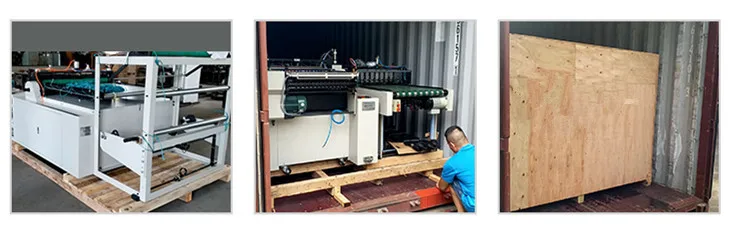

Packing Method
