Iron pipe tube end sealing machine Metal sealing equipment Tube shrinking tool Flat head round head sealing machine
- Category: Tube End Forming Machines >>>
- Supplier: Wuxi,Longterm,Machinery,Technologies,Co.,Ltd.
Share on:
Product Overview
Description
Automatic hydraulic copper/ steel tube and pipe closing machine with RF heating

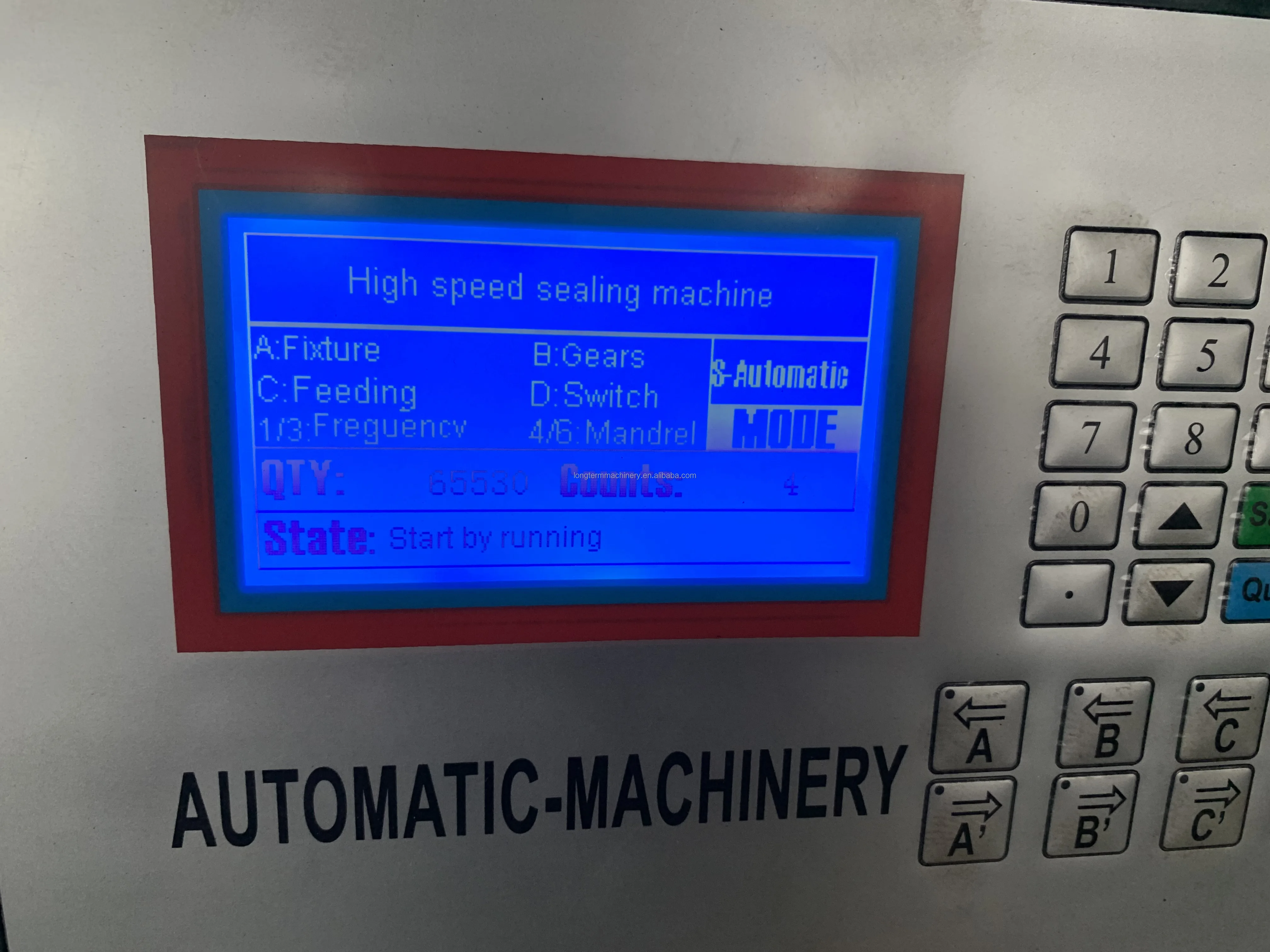

The automatic sealing machine is a self-developed product developed by our company on the basis of absorbing foreign advanced technology. It is controlled by PLC, hydraulically driven, and man-machine dialogue operation. It is easy to set up and input, manual and automatic arbitrary selection and automatic conversion. The mobile foot switch has two functions: start and emergency stop. High security, with counting function. The machine has stable performance and high sealing efficiency, making it an ideal equipment in the pipe processing industry.
Product Description
Specification
Main specification
1. It can seal pipe end with round head or flat head.
2. Suitable for different material pipe sealing, such as iron pipe, aluminum, copper and other materials.
3. Pressed to the processing dimension by mold , the processing range is wide, and the mold replacement is simple and convenient
4. Single-chip computer control, and it is easy to operate.
5. Hydraulic type, and with auto cooling.
1. It can seal pipe end with round head or flat head.
2. Suitable for different material pipe sealing, such as iron pipe, aluminum, copper and other materials.
3. Pressed to the processing dimension by mold , the processing range is wide, and the mold replacement is simple and convenient
4. Single-chip computer control, and it is easy to operate.
5. Hydraulic type, and with auto cooling.
No. | Item | Parameter | ||||
1 | Oil pressure motor Power | 4KW | ||||
2 | Rotating motor power | 3KW | ||||
3 | High frequency machine | 15KW | ||||
4 | Hydraulic chuck | 70pieces | ||||
5 | Maximum applicable pipe | ￠70(OD)*2(thickness)mm | ||||
6 | Minimum applicable pipe | ￠20(OD)*5(thickness)mm | ||||
7 | Maximum oil pressure | 12MPa | ||||
8 | Dimension | 2700*850*1100mm | ||||
9 | Single chip microcomputer | Changzhou(Sino-foreign joint venture) | ||||
10 | Contactor | LC1-D0910 Schneider | ||||
11 | Thermal Protection | LR2-D1322 Schneider | ||||
12 | Transformer | Domestic brand | ||||
13 | Breaker | OSMC32N2C40A Schneider | ||||
14 | Cylinder | Domestic brand | ||||
15 | Hydraulic motor | Domestic brand | ||||
16 | Hydraulic chuck | Taiwan Dynasty Power | ||||
17 | Electromagnetic valve | Japan Yuken | ||||
18 | Power switch | S-145-24 Taiwan Ming Wei | ||||
19 | Air switch | C65 3P D32A Schneider | ||||
20 | Limit switch | Chint Electric | ||||
21 | Proximity switch | Japan Omron | ||||
22 | Emergency stop | XB2-BS542C Schneider | ||||
23 | Adapter board | Taiwan Feng Wei | ||||
24 | High frequency machine (40KW) | Domestic brand | ||||
25 | Processing efficiency | 40s/pcs | ||||
26 | Remark | A chiller can be added to the equipment (the chiller cost is extra) | ||||
Finished product
Related Machine
Packing & Delivery
To better ensure the safety of your goods, professional, environmentally friendly, convenient and efficient packaging services will be provided.
Company Profile
We specialize in flexible metal hose machinery with many years' experience and develop our machine technology all the time. So far, we have exported our machinery to many countries, such as US, Canada, Turkey, Australia, UK, Russia, Ukraine, India etc.
With the progressive machine technology and the mature service system, we keep a pretty decent relationship with all our clients,
some of them has cooperated with us for over 10 years and consecutively buy the machines from us to expand their productivity.
With the progressive machine technology and the mature service system, we keep a pretty decent relationship with all our clients,
some of them has cooperated with us for over 10 years and consecutively buy the machines from us to expand their productivity.
FAQ
1.What kind of pipe materials can sealed ?
Carbon Steel ,Stainless steel ,Aluminum ,Copper pipes, tubes.
3.Do you provide training to operating pipe sealing machine?
1)Will provide operating video and manual with machine.
2)Also welcome to our factory for training, we will arrange everything at our factory.
4.What about your machine main component
1) PLC: Japan Mitsubishi
2) Servo motor: Japan Mitsubishi
3)Hydraulic system: Taiwan 7 Ocean
4)Main Motor: Siemens
5)Electric parts: Schneider
5.What about your machine warranty?
One year warranty after machine reached customer's workshop.
And use famous brand components for long working lifespan.
Carbon Steel ,Stainless steel ,Aluminum ,Copper pipes, tubes.
2. How to choose pipe/tube sealing machine
According following information to choose type:
1)Pipe/tube materials
2)Max. outside diameter of the pipe/tube
3)Wall thickness range of the pipe/tube
4)Max sealing radius (general 1.5*OD)
5)sealing drawing or samples
According following information to choose type:
1)Pipe/tube materials
2)Max. outside diameter of the pipe/tube
3)Wall thickness range of the pipe/tube
4)Max sealing radius (general 1.5*OD)
5)sealing drawing or samples
3.Do you provide training to operating pipe sealing machine?
1)Will provide operating video and manual with machine.
2)Also welcome to our factory for training, we will arrange everything at our factory.
4.What about your machine main component
1) PLC: Japan Mitsubishi
2) Servo motor: Japan Mitsubishi
3)Hydraulic system: Taiwan 7 Ocean
4)Main Motor: Siemens
5)Electric parts: Schneider
5.What about your machine warranty?
One year warranty after machine reached customer's workshop.
And use famous brand components for long working lifespan.
