BRZHIFI OEM TPA3250 BT5.0 Digital Power Amplificador 130W 130W LDAC Stereo Amplifier 2 Channel HIFI Amp Home Theater Audio
- Category: Amplifiers >>>
- Supplier: Foshan,Borui,Yuanda,Technology,Co.,Ltd.
Share on:
Product Overview
Description
BRZHIFI TPA3250 BT5.0 High Power Amplificador Board 130W*2 LDAC Home Theater Stereo Amplifier 2 Channel Digital HIFI Amp
Features

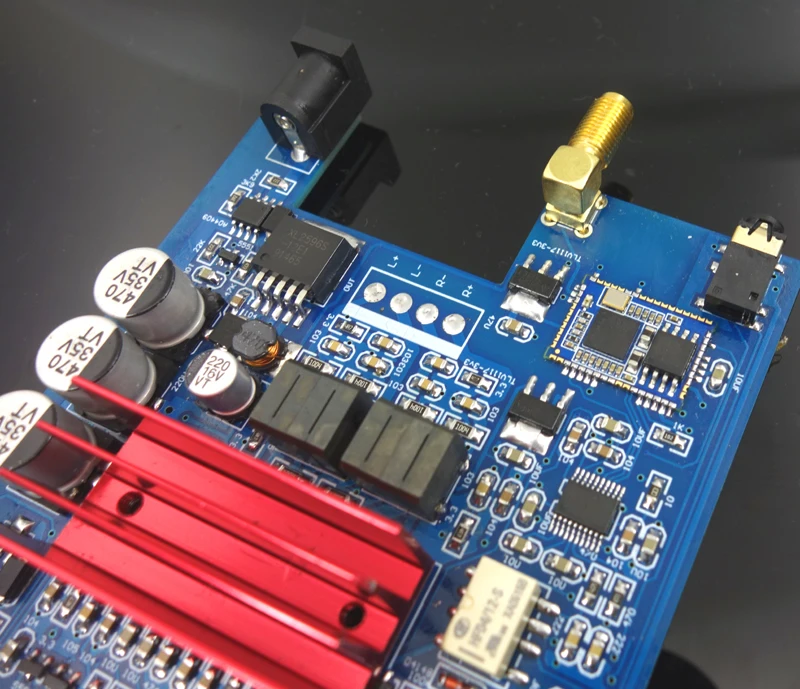

* This product is designed for the most discerning and enthusiast musicians. It integrates a very low distortion TPA3250 power module and a BT decoder module QCC5125 that supports LDAC and APTX, and integrates a PCM5102A high-end decoder chip. Other materials are not cost-effective. Therefore, the listening performance is strong in low frequency, warm in sound, and excellent in high frequency penetration. This product provides a choice of shell-less circuit boards for some modified users.
* TPA3250 is a high-performance class-D power amplifier chip, which has class-D efficiency and can bring real high-end sound quality circuits. The device features advanced integrated feedback design and proprietary high-speed gate driver error correction function (PurePath™ Ultra HD). This technology allows the device to maintain ultra-low distortion throughout the audio frequency band while exhibiting perfect sound quality. BT is very simple to use, turn on the mobile phone BT, find the BT device, and pair the link. After disconnecting the BT, you can connect to the 3.5MM stereo audio wired input.
* TPA3250 is a high-performance class-D power amplifier chip, which has class-D efficiency and can bring real high-end sound quality circuits. The device features advanced integrated feedback design and proprietary high-speed gate driver error correction function (PurePath™ Ultra HD). This technology allows the device to maintain ultra-low distortion throughout the audio frequency band while exhibiting perfect sound quality. BT is very simple to use, turn on the mobile phone BT, find the BT device, and pair the link. After disconnecting the BT, you can connect to the 3.5MM stereo audio wired input.
Specification
Brand Name | BRZHIFI |
Model | PAD-3250/2.0-RED |
Working method | Class D |
BT program | QCC5125 |
Power amplifier IC | TPA3250 |
Input mode | 3.5M stereo wired socket interface + BT |
Work efficiency | >90% |
Output power | 130W+130W (4 ohms) 70W+70w (8 ohms) |
Distortion THD +N | 0.005% |
Frequency response | 20Hz to 20KHz |
Dynamic range | >100 dB |
Signal to noise ratio | (SNR)> 111dB |
Power supply | DC19 to 32V (interface 5.5-2.5) |
Size | 92X38X108MM |
Weight | 0.3KG |
BT protoco | sbc, aac, aptx, aptx-LL, aptx-HD |
Output interface | speaker output interface 3.5 stereo |
Accessories | BT antenna |
Product packaging
Amplifier *1
BT antenna *1
BT antenna *1
Product Description
