Hot Selling Pipe Belling Machine
US $9000
Full Auto PVC Pipe Belling Machine PVC R or U or Rectangular Socket Pipe Making Machine
- Category: Pipe Belling Machines >>>
- Supplier: Zhangjiagang Huade Machinery Technology Co. Ltd.
Share on (1600382169933):
Product Overview
Description
Full Auto PVC Pipe Belling Machine PVC R or U or Rectangular Socket Pipe Making Machine
Full Auto PVC Pipe Belling Machine PVC R or U or Rectangular Socket Pipe Making Machine
Product Application
Equipment is made by pneumatic head frame structure and the tail rack, and all the mechanical parts adopt new quality steel manufacturing. Famous brand name is used in bearing. The head rack is made up with a feed device, heating furnace and expanding work spaces ,the furnace is formed from stainless steel for heating, furnace equipped with its own unique temperature control system and use special eddy structure, so that the tube can be heated about rotation, thus the surface of the tubes expanding can achieve heating equality. The tail rack is made from landing next to the electric bodies. Furnace control system consists of intelligent temperature control table control, pneumatic and hydraulic components used both domestic brand name products. Equipment operators and the expanding circle of all movements by PLC controller to achieve automatic control.
1. Pipe diameter (mm):16~75mm, 50~160mm, 50~250mm, 110~315mm, 315~630mm.
2.Belling type:R-type and U-type .

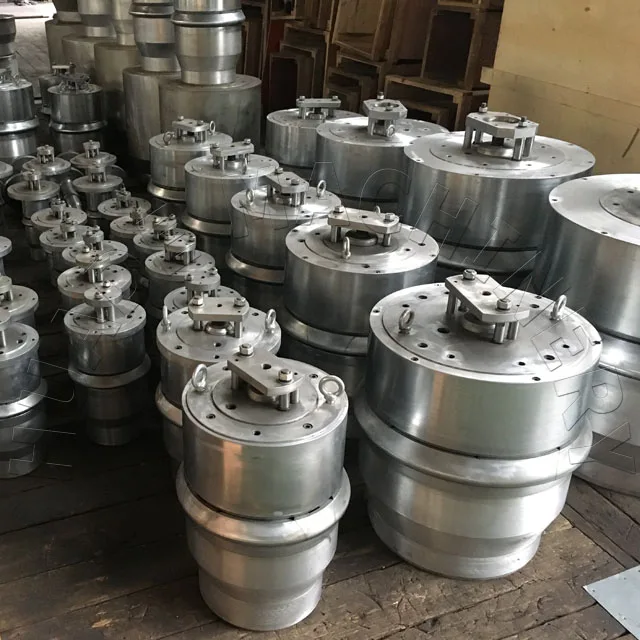

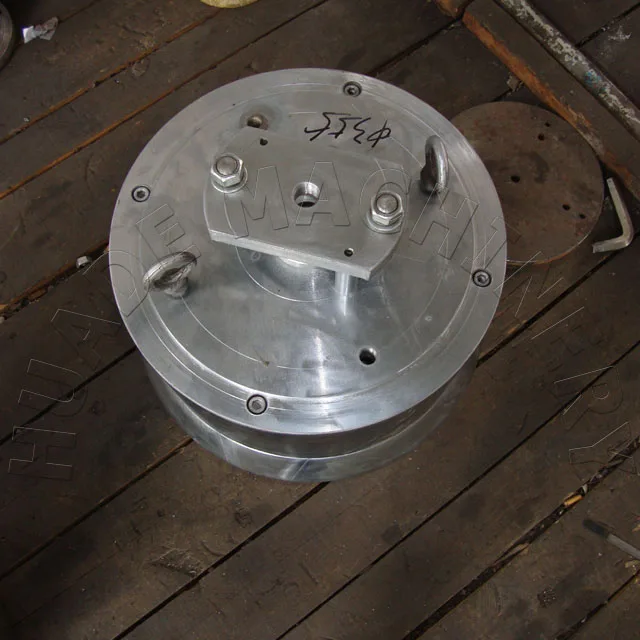

3.Shaping way adopts rising in the mould and rises and increasing the barometric pressure out of the mould to make it stereotypic.
4.Adopt PLC control.
5.Electrical components: Siemens, Delta.

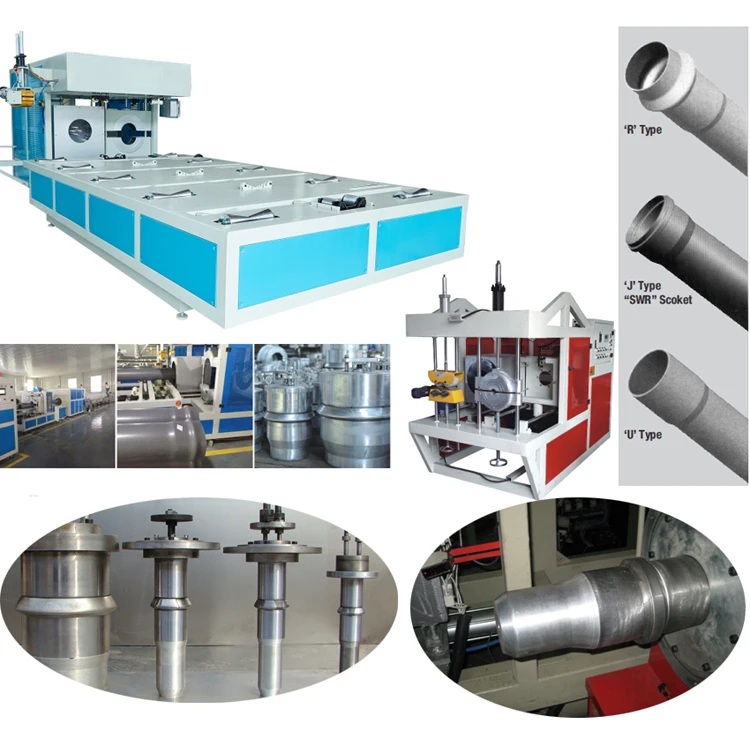

Suitable for the R type ,U type and Rectangle plastic pipe
Equipment is made by pneumatic head frame structure and the tail rack, and all the mechanical parts adopt new quality steel manufacturing. Famous brand name is used in bearing. The head rack is made up with a feed device, heating furnace and expanding work spaces ,the furnace is formed from stainless steel for heating, furnace equipped with its own unique temperature control system and use special eddy structure, so that the tube can be heated about rotation, thus the surface of the tubes expanding can achieve heating equality. The tail rack is made from landing next to the electric bodies. Furnace control system consists of intelligent temperature control table control, pneumatic and hydraulic components used both domestic brand name products. Equipment operators and the expanding circle of all movements by PLC controller to achieve automatic control.
1. Pipe diameter (mm):16~75mm, 50~160mm, 50~250mm, 110~315mm, 315~630mm.
2.Belling type:R-type and U-type .
3.Shaping way adopts rising in the mould and rises and increasing the barometric pressure out of the mould to make it stereotypic.
4.Adopt PLC control.
5.Electrical components: Siemens, Delta.
Suitable for the R type ,U type and Rectangle plastic pipe
Model | Pipe diameter(mm) | Heating method | Heating power(kw) |
SGK75 | 16-75 | Electric heating | 10.5 |
SGK160 | 50-160 | Electric heating | 12 |
SGK250 | 50-250 | Electric heating | 18 |
SGK315 | 110-315 | Electric heating | 22 |
SGK630 | 315-630 | Electric heating | 24 |

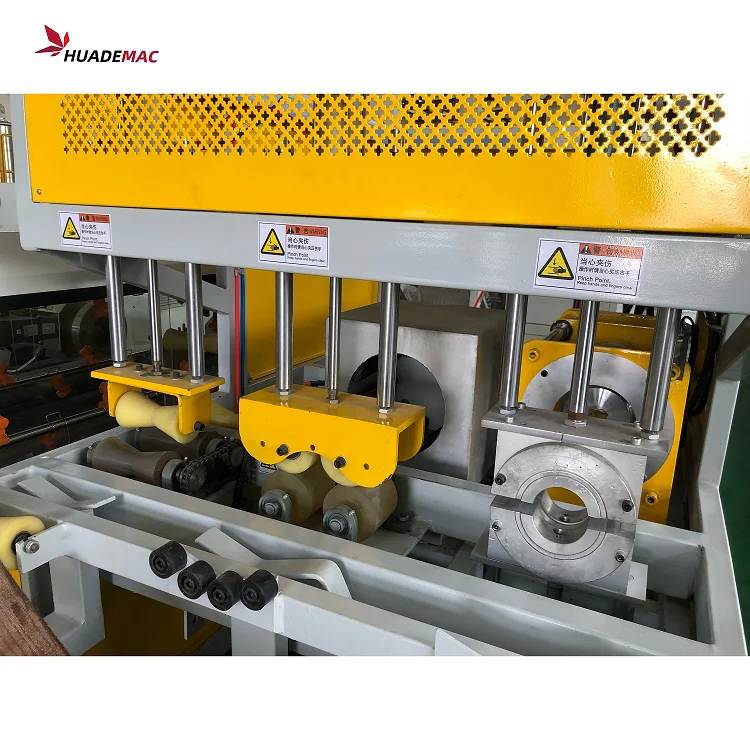

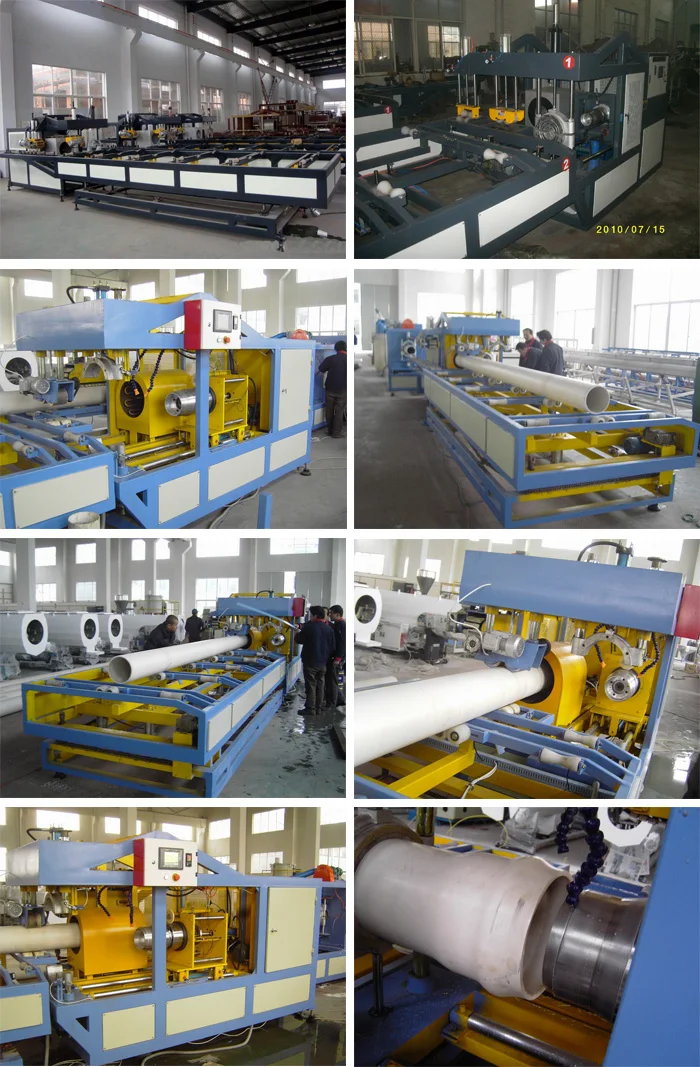

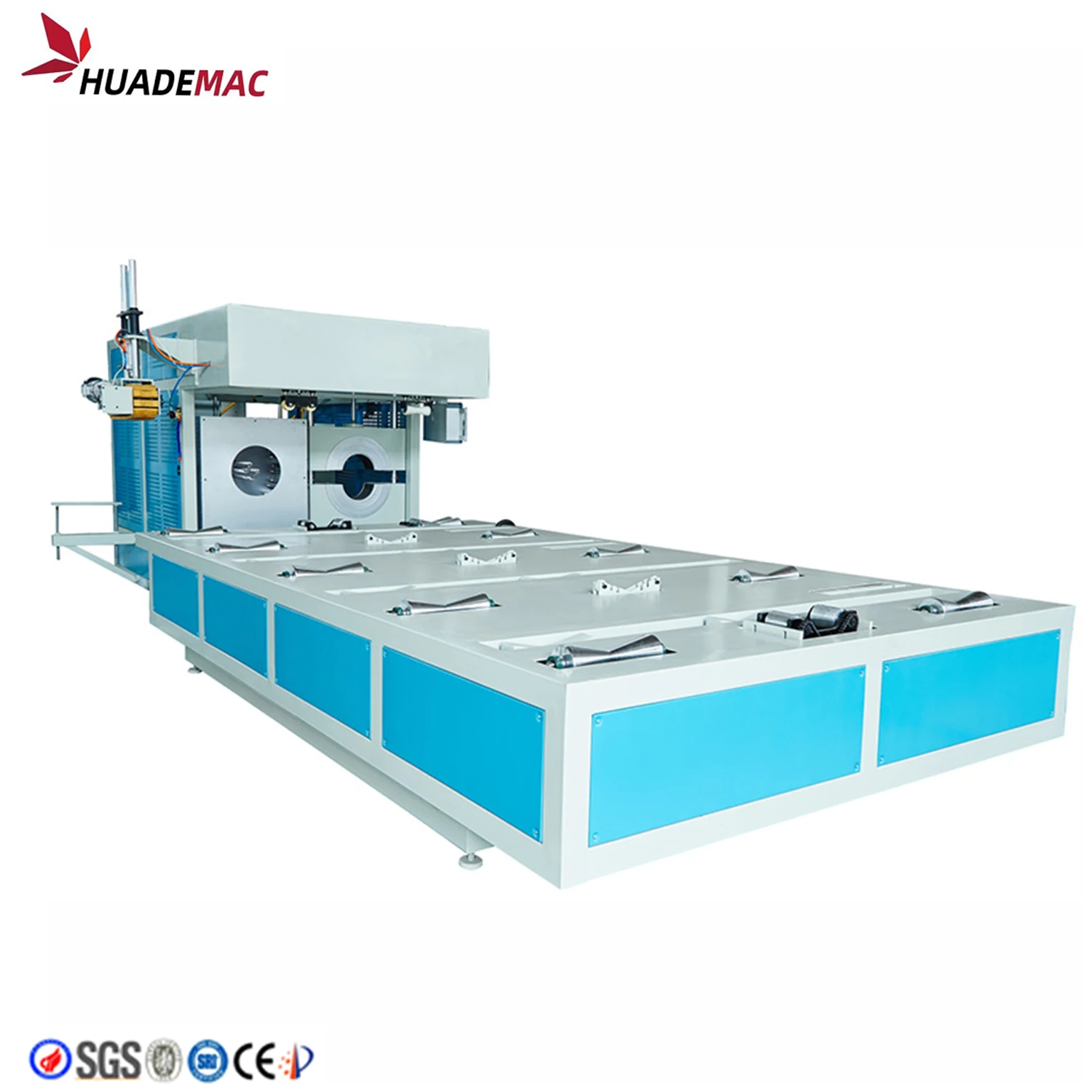

Full Auto PVC Pipe Belling Machine PVC R or U or Rectangular Socket Pipe Making Machine photos
