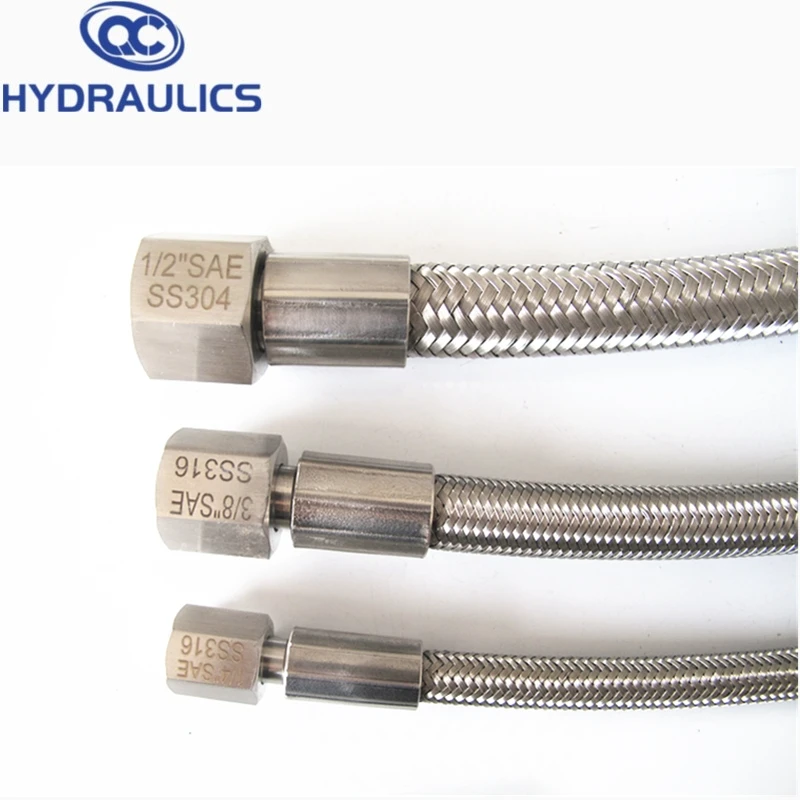

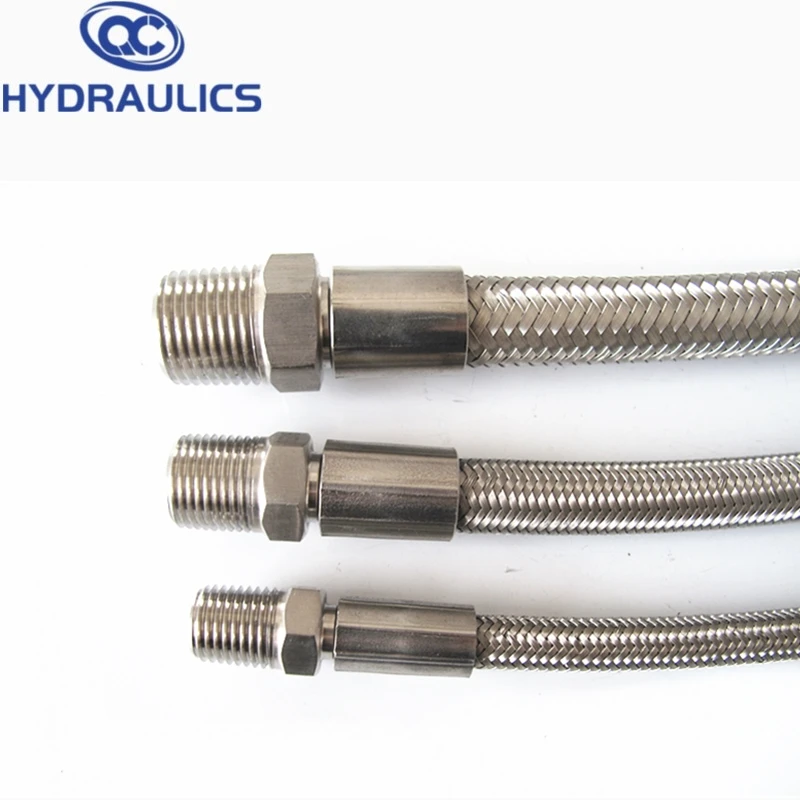

SS High Pressure Wire Braided Flexible PTFE Hose Pipe
- Category: >>>
- Supplier: Cangzhou QC Hydraulics Co. Ltd.
Share on (1600382326432):
Product Overview
Description
Product Description
Inner Hose: PTFE/FEP hose. The extrusion, heat treatment and quality control programmes are designed to produce the best quality PTFE/FEP tube possible, ensuring minimum porosity and maximum flexibility.
Hose Braid: Braided by AISI grade 304/316 stainless steel wire, bright hard drawn to a minimum 1700 N/mm 2 tensile strength. The braiding process is closely controlled to ensure even tensions and the correct braid angle, to give minimum expansion/contraction under pressure.
End fitting type: JIC Female, JIC Male, NPT Male, NPSM Female, SAE Female, SAE Male, Tube Stub, BSP Female, BSPT Male ... etc, or according to clients design.
Hose Braid: Braided by AISI grade 304/316 stainless steel wire, bright hard drawn to a minimum 1700 N/mm 2 tensile strength. The braiding process is closely controlled to ensure even tensions and the correct braid angle, to give minimum expansion/contraction under pressure.
End fitting type: JIC Female, JIC Male, NPT Male, NPSM Female, SAE Female, SAE Male, Tube Stub, BSP Female, BSPT Male ... etc, or according to clients design.
Product Name | SS Wire Braided Fuel Line Flexible High Pressure PTFE Hose Pipe |
Standard | SAE 100R14 |
Inner Hose | PTFE, FEP |
Length | 12", 24", 36" or Customized |
Hose ID | JIC Female Swivel Hose Fittings |
Reinforcement | Single or Double Wire Braid |
Thickness of PTFE Hose | 1mm -1.5mm |
Please check the pictures for 3/8"and 1/4" hoses with very small bending radius. Our flexible PTFE hose has no Kinking problem during Installation. The braiding technology is unique in China to make sure higher burst pressure and avoid kinking problem
Related Products
Packing & Delivery

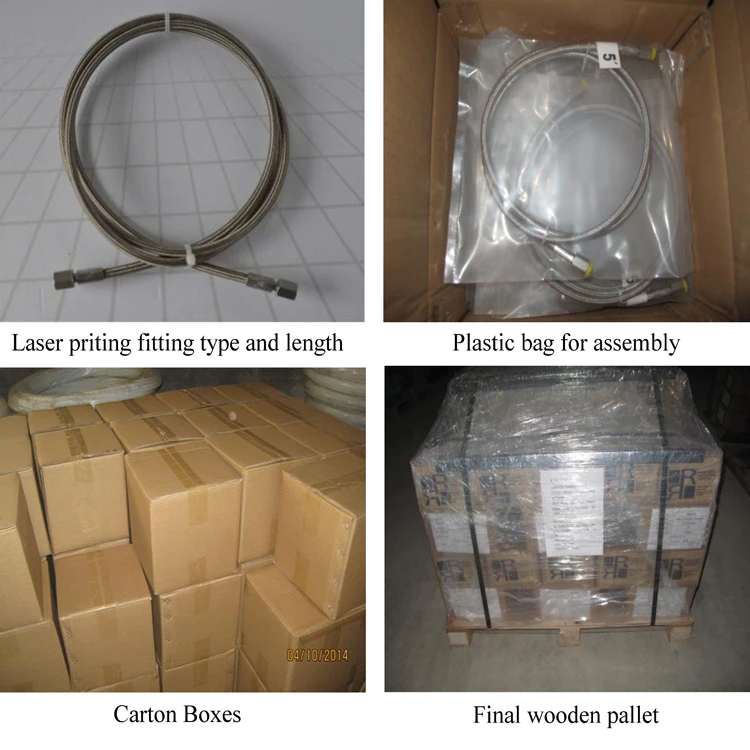

Stainless steel braided PTEF hose packaged in plastic bag, Plastic bags in carton boxes, Carbon boxes on wooden cases or exported plywood pallet with Iron belt.
Certificates
Why choose us
1. We choose the material of PTFE hose according to customer's requests. Some of material made in China, and some of material made in Japan & US.
2. Our technology for stainless steel wire braiding is unique in China. We can make the hoses to reach a higher pressure by adjusting the braiding strengths and numbers of wire during braiding process.
3. We use Techmaflex crimping machine which was imported from France and designed for Teflon hose crimping, with more accurate size.
4. We design, manufacture, crimp and pressure test the hose assemblies by ourselves. So we can control the quality from end to end to make sure every hose is qualified.
5. We can laser engrave length, sizes and logo on the hose fittings. It is more easier to identify the what size and length it is.
6. Each hose packed in a plastic bag and sealed. You can sell to your customers directly, and no need to spend times to repack.
2. Our technology for stainless steel wire braiding is unique in China. We can make the hoses to reach a higher pressure by adjusting the braiding strengths and numbers of wire during braiding process.
3. We use Techmaflex crimping machine which was imported from France and designed for Teflon hose crimping, with more accurate size.
4. We design, manufacture, crimp and pressure test the hose assemblies by ourselves. So we can control the quality from end to end to make sure every hose is qualified.
5. We can laser engrave length, sizes and logo on the hose fittings. It is more easier to identify the what size and length it is.
6. Each hose packed in a plastic bag and sealed. You can sell to your customers directly, and no need to spend times to repack.

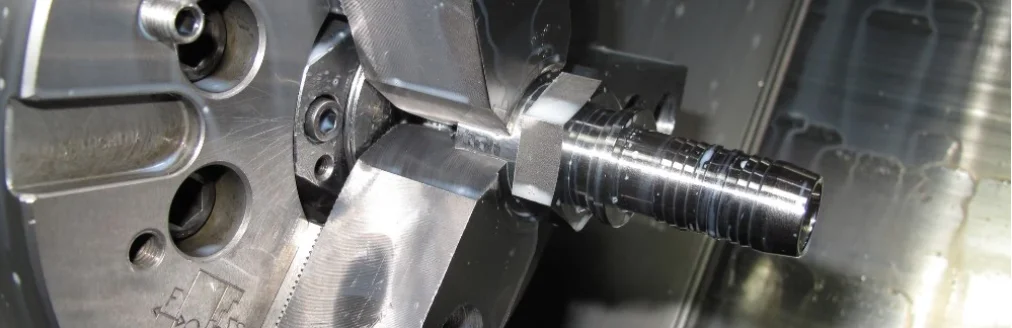

Precision Machining The End Fitting
PTFE Hose
PTFE Hose Briading
PTFE Hose Briading
Stainless Steel Wire Braided Hose
End Fitting Crimping

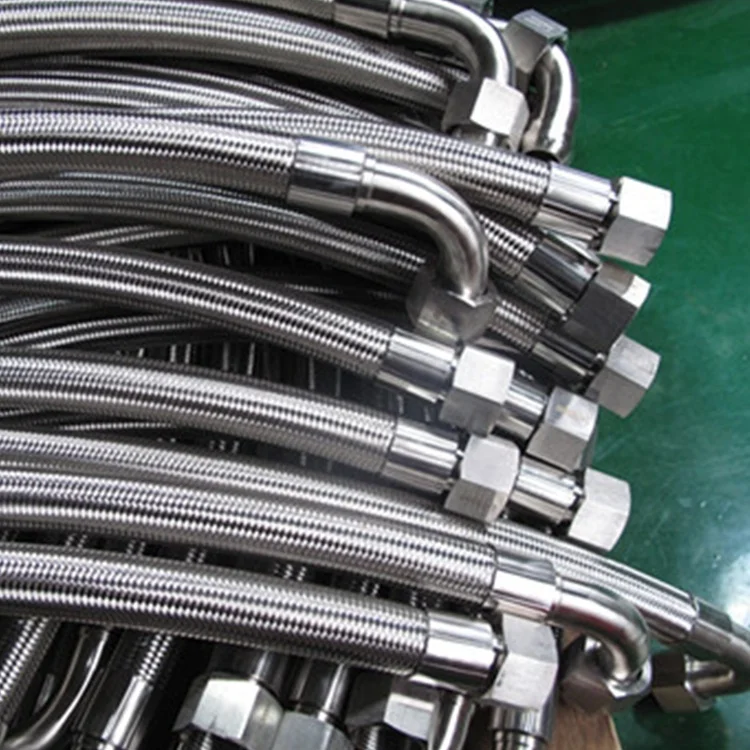

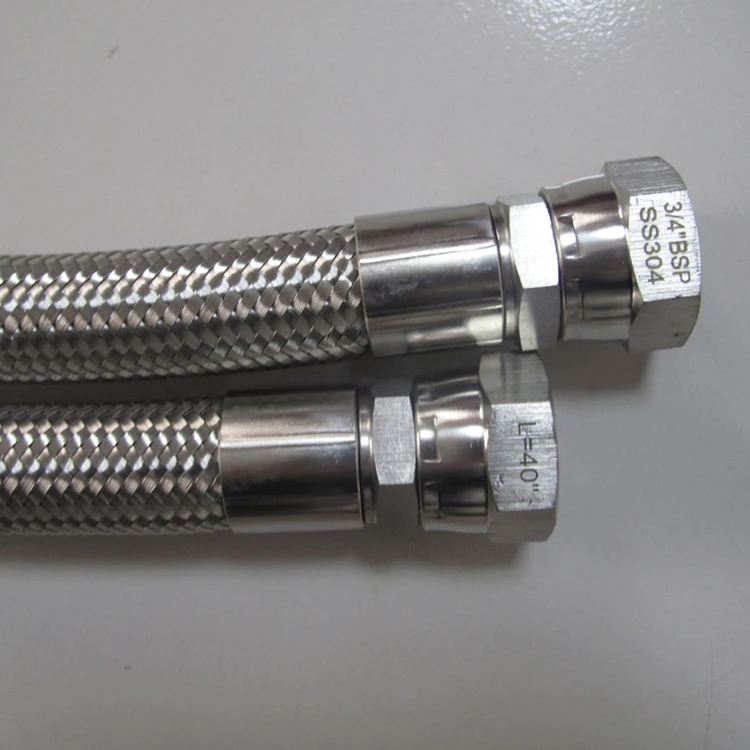

Finished Stainless Steel Wire Braided Flexible PTFE Hose assambly
FAQ
Q: Are you a trading company or manufacturer?
We are a professional manufacturer that integrate the production and marketing of stainless steel PTFE Hose Assembly and hydraulic hose fittings.
Q: What about your delivery time?
About 30-40 days for common orders. But it depends on the order volume. Of course, if you have an urgent order, we will try best to meet you.
Q: Can you make custom length hose assembly?
Yes it is acceptable. Such as 24", 36", 48", 72", 96" and so on.
Q: What's the material of the inside hose?
PTFE or FEP. The material from Dakin Japan and China local are both available.
Q: How about the working temperature of the hose?
We are a professional manufacturer that integrate the production and marketing of stainless steel PTFE Hose Assembly and hydraulic hose fittings.
Q: What about your delivery time?
About 30-40 days for common orders. But it depends on the order volume. Of course, if you have an urgent order, we will try best to meet you.
Q: Can you make custom length hose assembly?
Yes it is acceptable. Such as 24", 36", 48", 72", 96" and so on.
Q: What's the material of the inside hose?
PTFE or FEP. The material from Dakin Japan and China local are both available.
Q: How about the working temperature of the hose?
PTFE: From -70º C to +260º C,
FEP: From -70º C to +200º C
Q: What's the application for your hose assembly?
Q: What's the application for your hose assembly?
1. Aviation
2. Aerospace aircraft hydraulic
3. Servo control
4. Lubricating oil and fuel system
5. Transmission tube
2. Aerospace aircraft hydraulic
3. Servo control
4. Lubricating oil and fuel system
5. Transmission tube
Q: How to control the quality?
A: Raw material: 15 years partner, 10% inspection; Knife and gauge: designed for Stainless Steel only; First article: pass 2 people approval; Route inspection: team leader, quality manager, each two hours; Final inspection: 100% surface and burr, 10% ~15% randomly for all dimensions and threads.
Finally, we do appreciate your attention to our company and our product: high temperature high pressure hydraulic stainless steel braiding hose.
A: Raw material: 15 years partner, 10% inspection; Knife and gauge: designed for Stainless Steel only; First article: pass 2 people approval; Route inspection: team leader, quality manager, each two hours; Final inspection: 100% surface and burr, 10% ~15% randomly for all dimensions and threads.
Finally, we do appreciate your attention to our company and our product: high temperature high pressure hydraulic stainless steel braiding hose.
