Product Overview
Description
Product Description
the use and principle

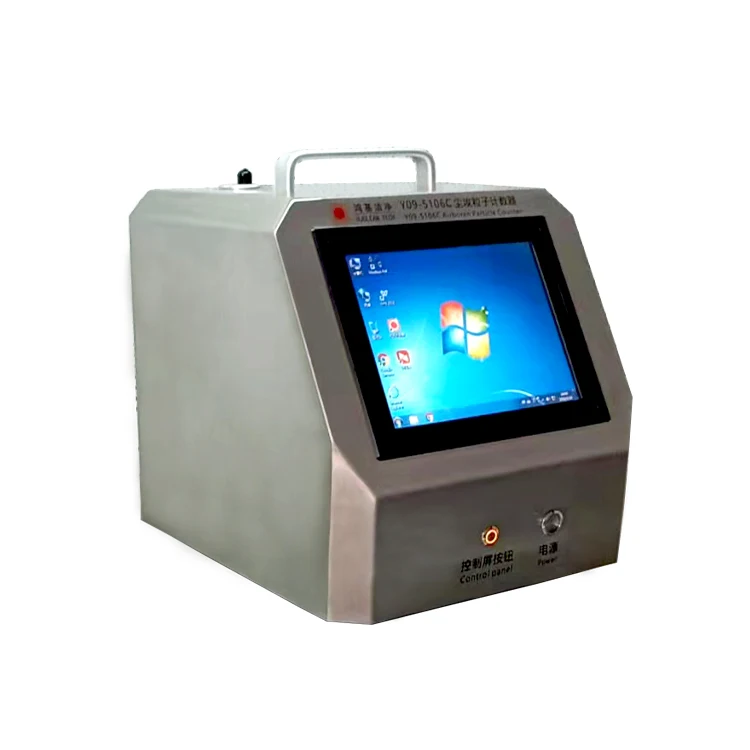

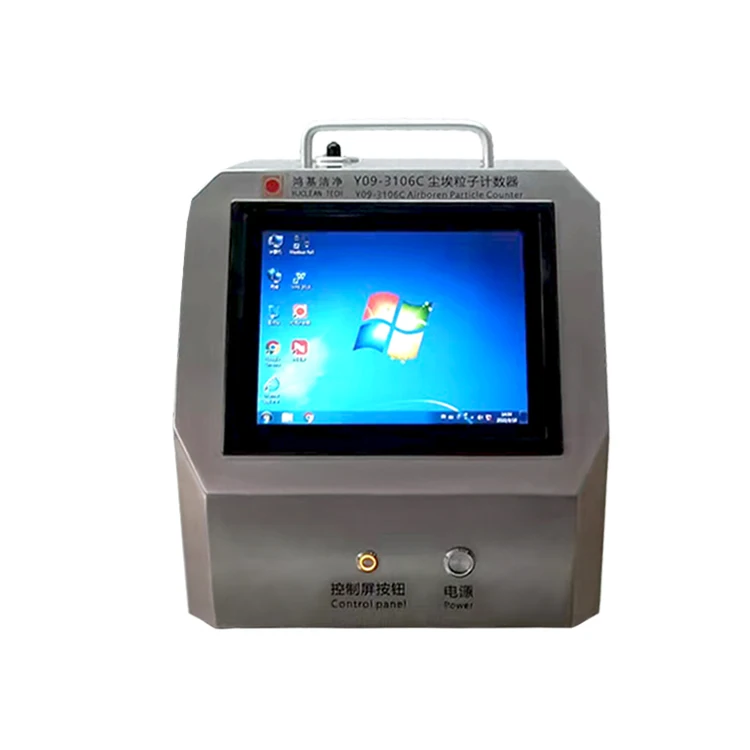

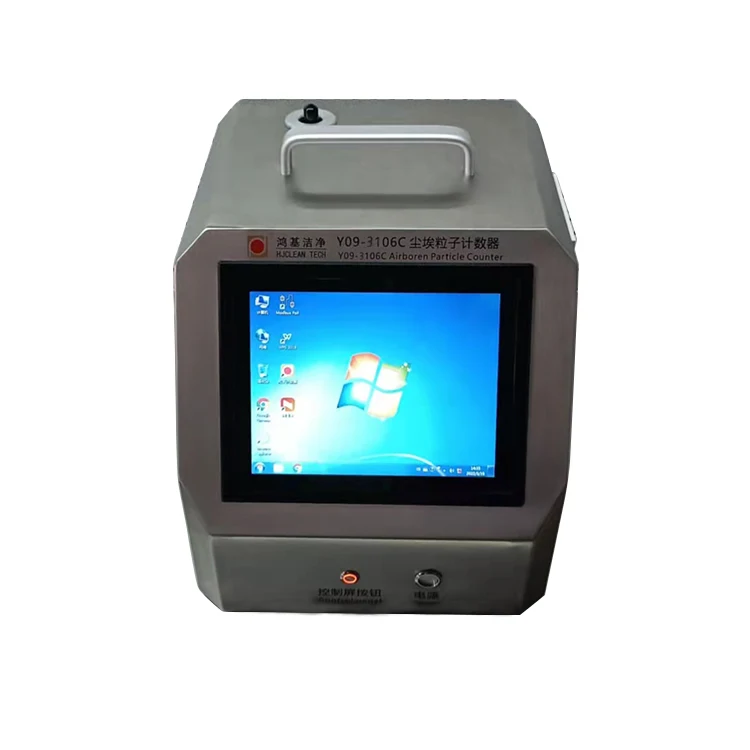

Y09-3106c laser dust particle counter (hereinafter referred to as the instrument) is used to measure the size and number of large
particle dust particles suspended in the air per unit volume.

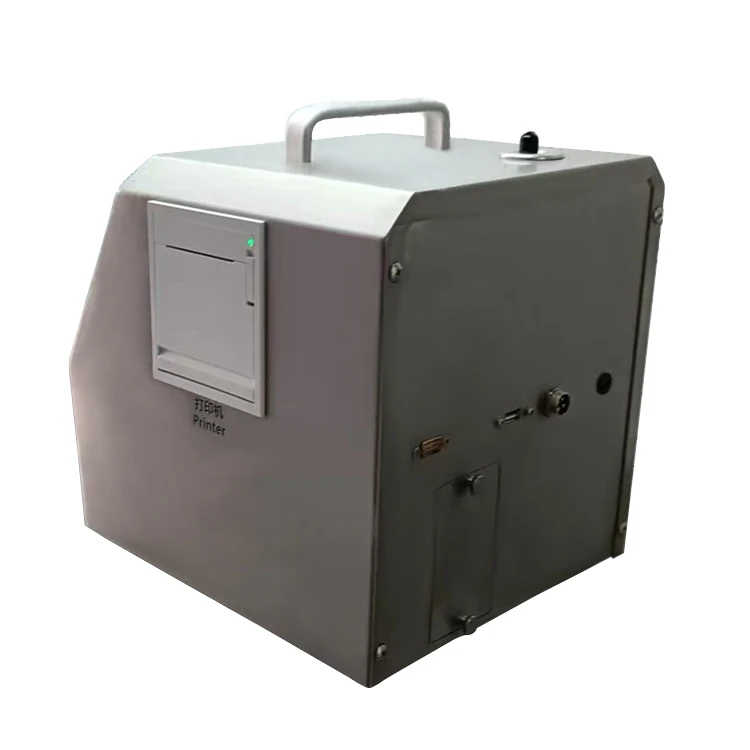

The instrument uses semiconductor laser light source, touch computer display, high detection accuracy, simple operation, computer control, storage, printing detection results, testing environment is very convenient. Widely used in electronics, optics,
chemistry, food, cosmetics, medicine and health, biological products, aerospace and other departments of environmental suspension of large particle concentration.
particle dust particles suspended in the air per unit volume.
The instrument uses semiconductor laser light source, touch computer display, high detection accuracy, simple operation, computer control, storage, printing detection results, testing environment is very convenient. Widely used in electronics, optics,
chemistry, food, cosmetics, medicine and health, biological products, aerospace and other departments of environmental suspension of large particle concentration.
Main technical parameters ：
1. Dimensions W260×D270×300mm3 (width × depth × height)
2. The quality of 14.5 kg
3. Maximum power consumption 160W
4. Power supply AC220V±10%, DC24V
5. Particle size distribution channel 6, 0.3, 0.5, 1.0, 3.0, 5.0, 10) (including m
6. Sampling period 1-- 99s
7. Sampling flow rate 100L/min
8. Ambient temperature: 10℃ -- 30℃
Humidity: 20% - 75%
The atmospheric pressure: 86 kpa - 106 kpa
9. Maximum sampling environment The sampled air shall not contain corrosive gases such as acid and alkali
10. Self-cleaning time ≤10min
2. The quality of 14.5 kg
3. Maximum power consumption 160W
4. Power supply AC220V±10%, DC24V
5. Particle size distribution channel 6, 0.3, 0.5, 1.0, 3.0, 5.0, 10) (including m
6. Sampling period 1-- 99s
7. Sampling flow rate 100L/min
8. Ambient temperature: 10℃ -- 30℃
Humidity: 20% - 75%
The atmospheric pressure: 86 kpa - 106 kpa
9. Maximum sampling environment The sampled air shall not contain corrosive gases such as acid and alkali
10. Self-cleaning time ≤10min
the main characteristics
1. Use touch computer interface, Windows operating system, with powerful data processing, data storage, user management, and other functions.
2. The operation interface is composed of: regional location, particle measurement, historical alarm, operation log, user
management, password modification, parameter setting and other functional modules.
3.user must log in to the system before using the system. The login password must meet the password complexity requirements.Different roles have different management rights.
4. With switching and calculation function between different units, can be converted between M3, CFM and L.
5. It can manage different detection areas, including the name, information and code of detection areas, edit, delete, view, alarm Settings, etc.
6. There are 4 detection modes: single measurement, continuous measurement, repeated measurement and confidence measurement.
7. Data export is available in EXCEL/PDF export mode.
8. Historical data query function: it can query the historical data of test addresses, points and batches.
9. With alarm function: can set the cleanliness level of the test environment, when the detection exceeds the cleanliness level of the alarm, and record the alarm events to form reports.
10. Meet 21CFR part11 requirements for electronic records, electronic signatures, audit trails, etc.
2. The operation interface is composed of: regional location, particle measurement, historical alarm, operation log, user
management, password modification, parameter setting and other functional modules.
3.user must log in to the system before using the system. The login password must meet the password complexity requirements.Different roles have different management rights.
4. With switching and calculation function between different units, can be converted between M3, CFM and L.
5. It can manage different detection areas, including the name, information and code of detection areas, edit, delete, view, alarm Settings, etc.
6. There are 4 detection modes: single measurement, continuous measurement, repeated measurement and confidence measurement.
7. Data export is available in EXCEL/PDF export mode.
8. Historical data query function: it can query the historical data of test addresses, points and batches.
9. With alarm function: can set the cleanliness level of the test environment, when the detection exceeds the cleanliness level of the alarm, and record the alarm events to form reports.
10. Meet 21CFR part11 requirements for electronic records, electronic signatures, audit trails, etc.
Product Paramenters

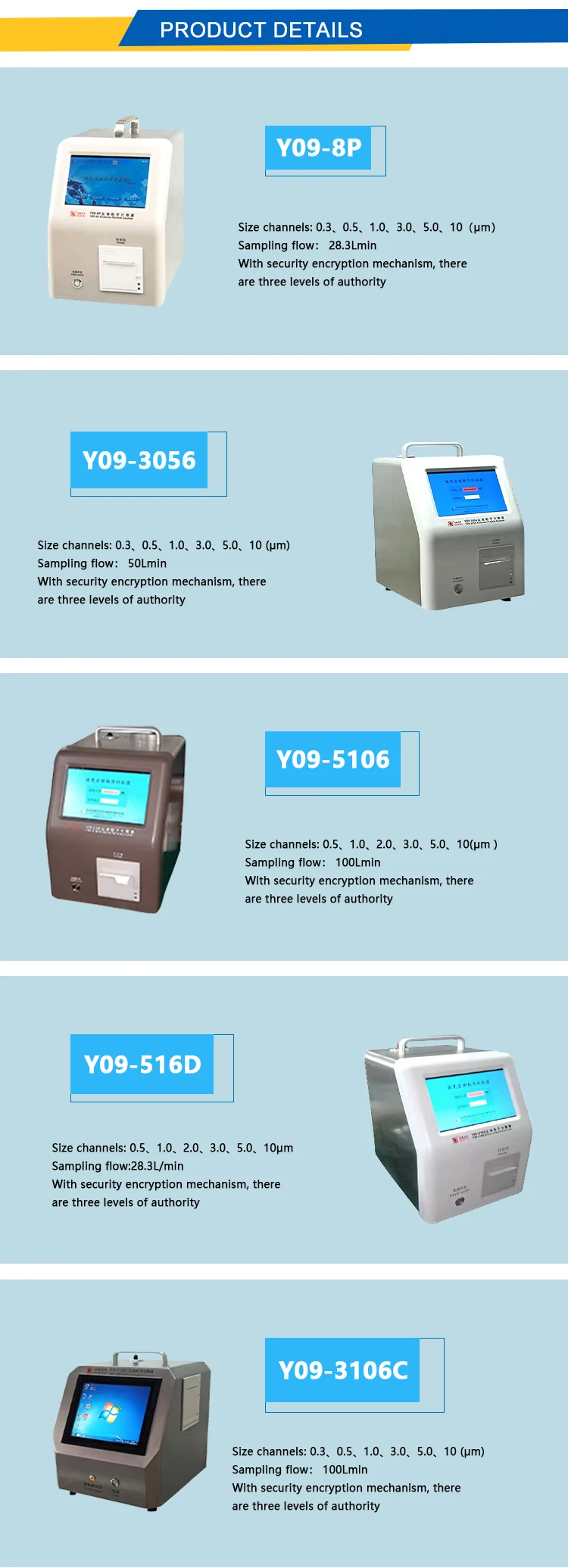

Model / Parameters | Y09-8P | Y09-516D | Y09-5106 | Y09-3056 | Y09-3106C | |||
Size channels | 0.3、0.5、1.0、3.0、5.0、10(μm ) | 0.5、1.0、2.0、3.0、5.0、10(μm ) | 0.5、1.0、2.0、3.0、5.0、10(μm ) | 0.3、0.5、1.0、3.0、5.0、10(μm ) | 0.3、0.5、1.0、3.0、5.0、10(μm ) | |||
Overall dimension | 210 * 270 * 280m (W * D * H) | 10ug/L：air flow 5400cfm（about 150m³/min） | 10ug / L: air flow 65000cfm (about 1800m ³ / min) | 260 * 270 * 300m (W * D * H) | ||||
Display | 800*480 resolution,65k color,Touch panel control system | 100ug/L：air flow 540cfm（about 15m³/min） | 100ug/L：air flow :6500cfm（about180m³/min） | touch computer interface | ||||
Weight | 5.5kg | DOP PAO , Polydisperse | 7.5kg | 14.5kg | ||||
Rated power consumption | 70W | 2-4 Laskin Nozzles | 90W | 70W | 160W | |||
Power supply | Lithium battery 14.8V | 3-12cfm(85-340L/min)20pis（0.14Mpa） | Lithium battery 22.2V | Lithium battery 14.8V | AC220V±10%, DC24V | |||
Sampling period | 1~99s | 6.5kg | 9.1kg | 1~99s | ||||
self-cleaning time | ≤10min | ≤10min | ||||||
Sampling flow | 28.3L/min | 100L/min | 50L/min | 100L/min | ||||
Operation envirenment | Temperature:10~35℃,Humidity:20%~75% | Temperature:10~35℃,Humidity:20%~75%,Atmospheric pressure: 86kPa106kPa | ||||||
Company Profile
About HJClean.
HJClean Tech Co.Ltd., has established in Suzhou where the city is famous of clean room line since 2003. We dedicate ourselves to consulting, researching and design, manufacture and supporting service on clean room technical. Our company owns advanced technology and stronger power on scientific research capabilities . The products what we do includes cleaning equipments,airborne particle monitor, clean room project design and construct etc.And our products are widely used in electron factory, pharmacy factory, precise machinery line and space flight line . Until now we have owned15 corprights in the airborne particle monitoring field and the copyrights have been used in respective projects over the world
