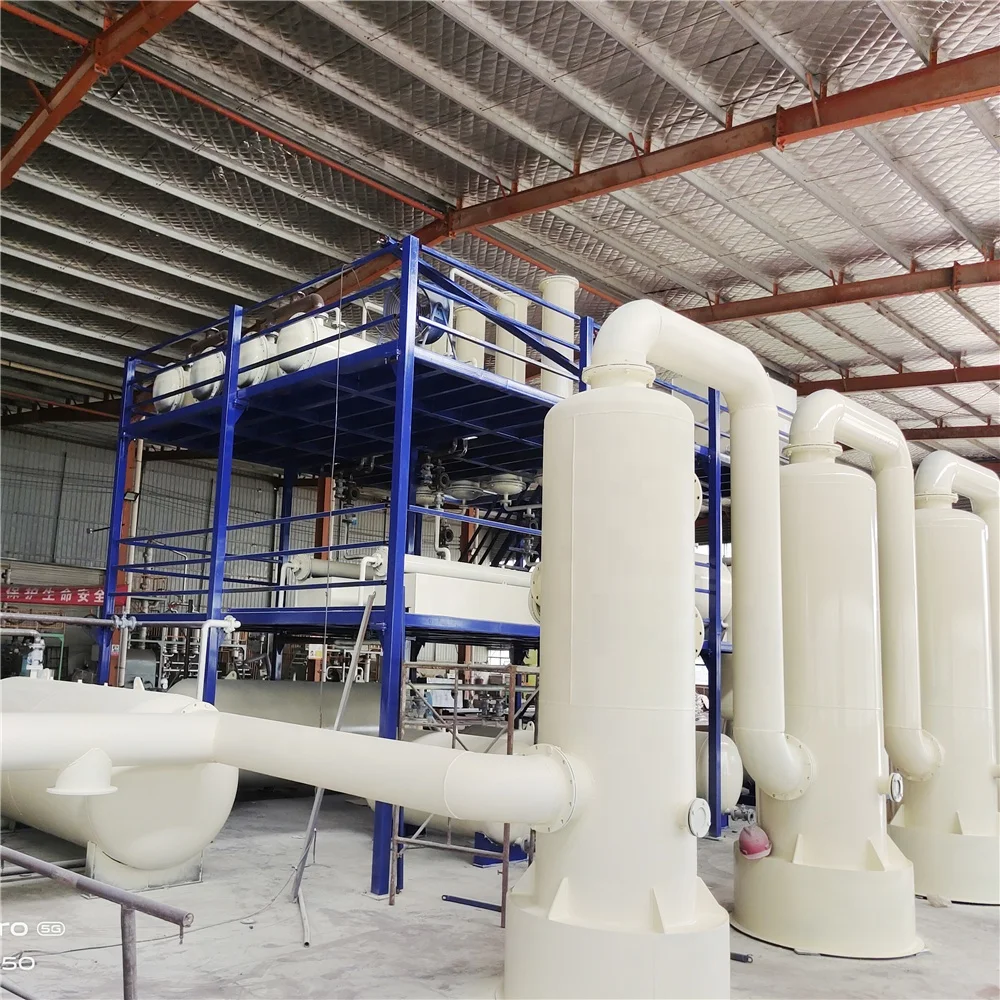

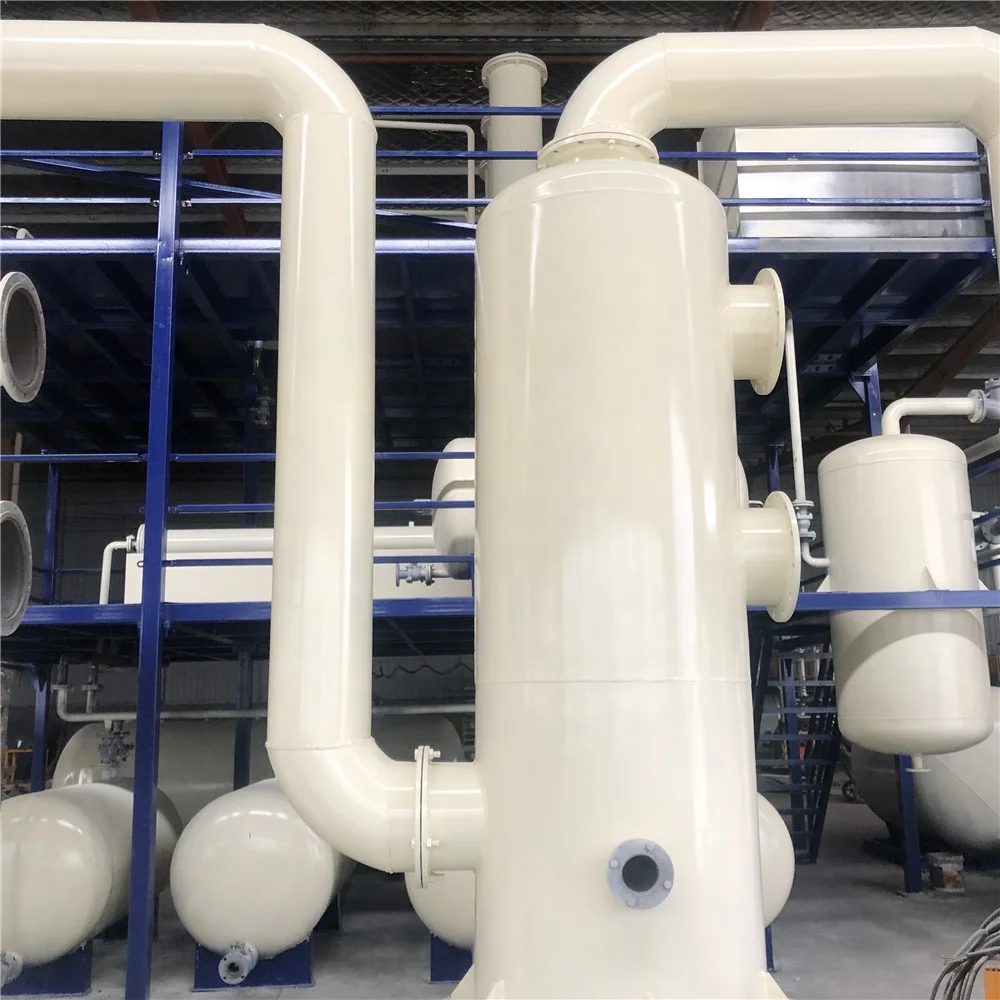

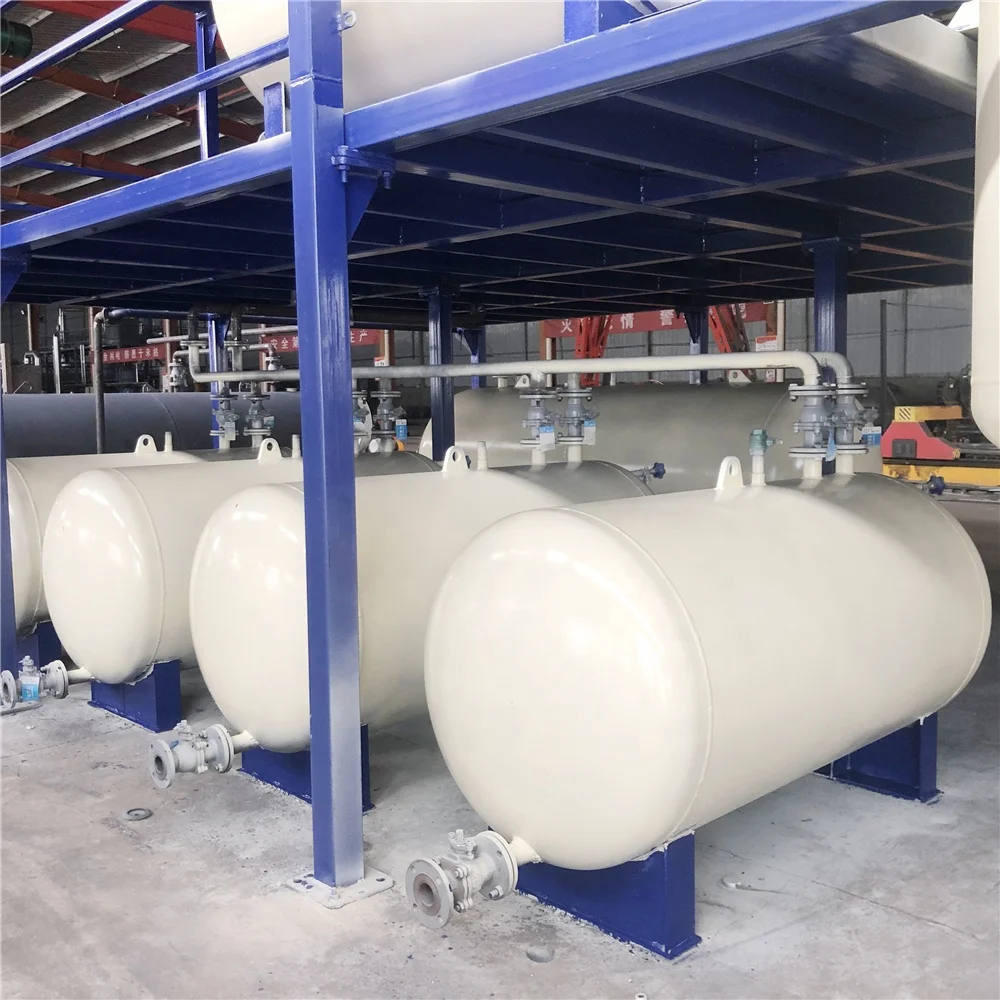

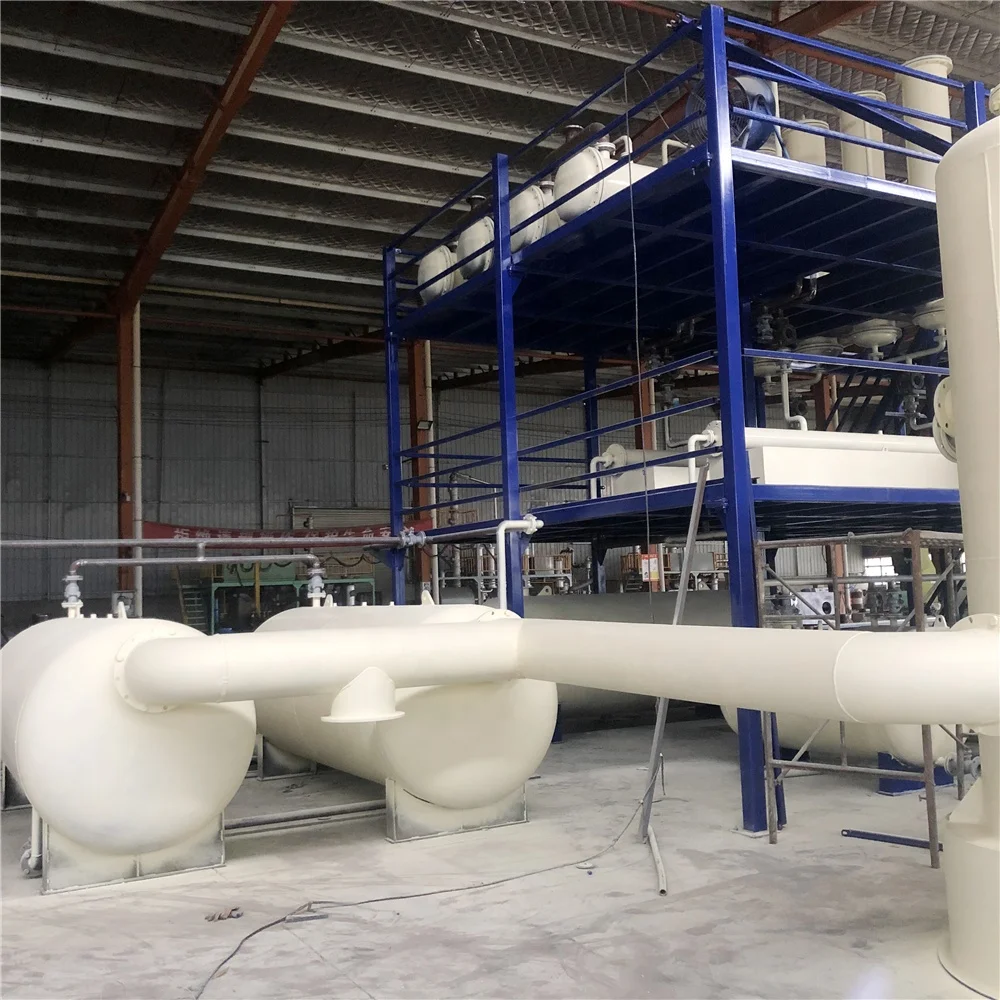

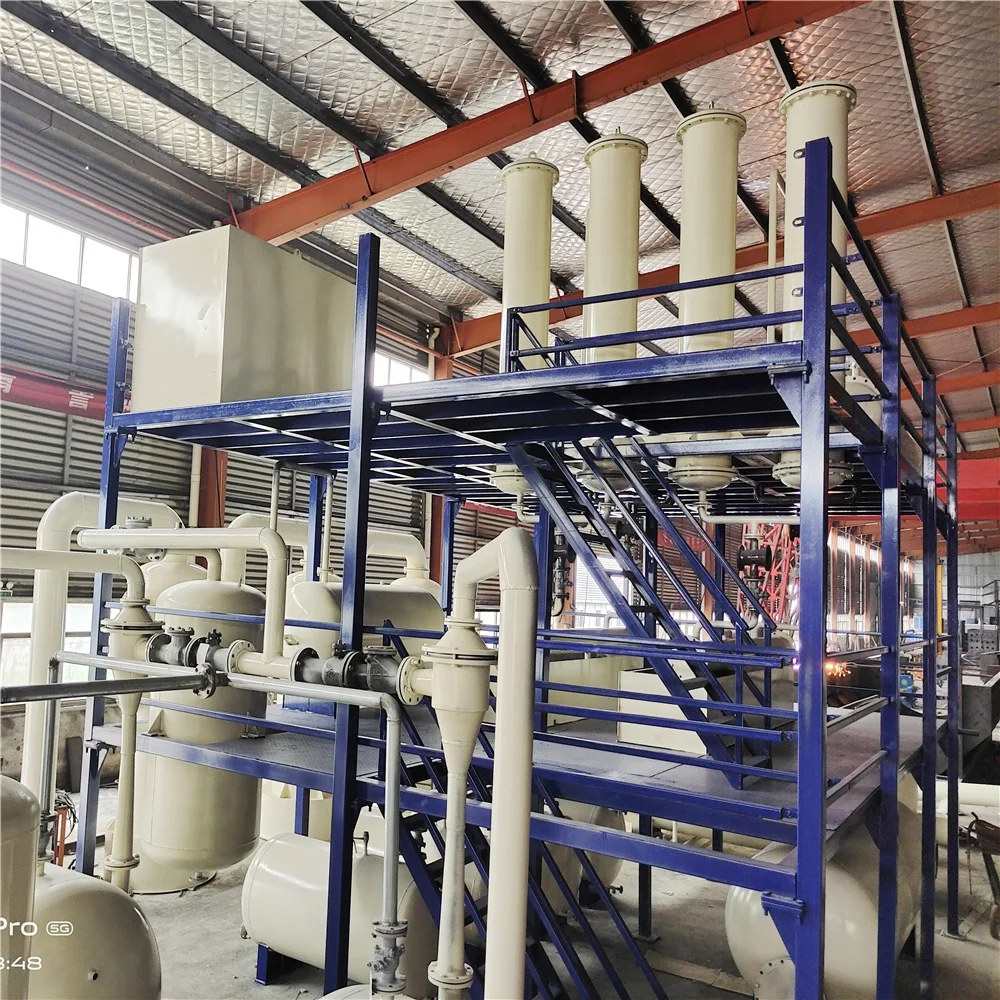

Plastic oil distillation diesel equipment

Technological process

Product application

1: The negative pressure distillation device for waste oil and tire oil is designed as a continuous production process, and the waste oil and tire oil are pumped into the preheating system through negative pressure vacuum. After heating, it will be automatically sent to the distillation kettle (at normal temperature 380 ℃). When the vacuum degree is adjusted to -0.03mpa, about 80% of fuel oil (diesel) base oil can be produced (the requirements for feed oil are the same as that for the production of fuel oil, and the vacuum degree should be controlled above -0.08mpa). The production mode of one-time feeding is adopted. With the change of temperature, the gas enters the condensation system of the equipment after purification in the gas tower. When the gas passes through primary condensation, 95% of the oil and gas is transformed, Then enter the secondary condenser, the remaining 3% - 5% of the gas is converted, and then enter the tertiary vertical condenser to prevent a small amount of gas from being unable to be converted. That is, the unconverted gas enters the oil-gas separation system. Finally, it enters the furnace for combustion support.

2. Negative pressure environmental protection type: smokeless, tasteless and no secondary pollution in the production process; In order to meet the environmental emission standard, the burned gas is further purified to meet the national emission standard. There is an atomization tower device, primary dust removal and secondary atomization.

3: The equipment can be operated by using fuel oil or natural gas as heat source (non condensable gas is used for heating in the production process to save fuel)

Raw material properties

Our services

Pre sales service

∗Inquiry and advisory services

∗Sample test support

∗View our factory

After-sale service

∗Training on how to install the machine and how to use the machine.

∗Engineers can serve overseas machinery.

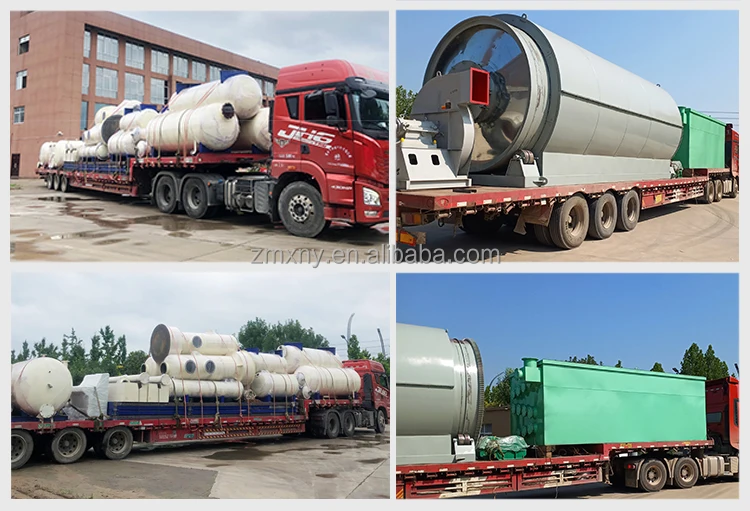

Mechanical delivery from our factory.
Delivery time: 28 working days after receiving the deposit.
Shipping: 40 'fr 40' HQ
