High efficiency quartz stone sand making machine vsi sand making machine supplier
- Category: Sand Making Machinery >>>
- Supplier: Shanghai,ZENITH,mineral,Co.,Ltd.
Share on:
Product Overview
Description
Product Description
quartz stone sand making machine vsi sand making machine supplier

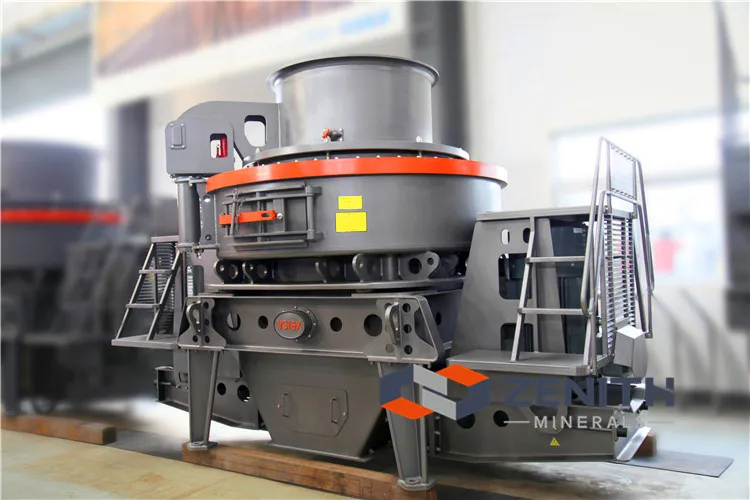

VSI6X
Lower maintenance costs, longer service life of wearing parts, bigger capacity
On account of the increasing demand for large-scale, intensification, energy saving and environment protection, and high-quality machine-made sand in the sand market, ZENITH further optimized the structure and function of the impact crusher, on the basis of thousands of impact crusher sand-shaping applications technology, and introduced a new generation of high-efficiency and low-cost sand-shaping equipment---VSI6X quartz stone sand making machine vsi sand making machine supplier .
Materials:Granite, quartz, basalt, pebble, limestone, dolomite, etc.
Product Advantages
To meet crushing demands of different users, VSI6X sand making machine was optimized on its structure of crushing cavity, and configured “rock on rock” and “rock on iron” crushing modes.
To ensure overall performances, VSI6X sand maker is optimized on some key parts. Besides, various national patent technologies ensure high efficiency yet low cost in crushing operation.
The service life of some key wearing parts is prolonged by 30%-200% compared with the traditional equipment in the same usage conditions.
VSI6X quartz stone sand making machine vsi sand making machine supplier fully considers the safety and reliability of the equipment, and adopts a more stable and reliable dual motor drive and automatic oil lubrication.
Working Principle of mobile sand making crushing plant
quartz stone sand making machine vsi sand making machine supplier has two feed modes – “feed at center” and “feed at center & sides”. As for “feed at center”, materials at the feed hopper firstly pass through the central hole into the high-speed spinning rotor. Next, materials hit the surrounding vortex material linerinside the vortex chamber together. Finally, finished products are discharged from the bottom discharge opening.
As for “feed at center & sides”, after materials pass through the circular hole, they are divided into two parts by the distributing tray. One part enter the high-speed rotating impeller while the other part fall from all sides of the tray.
Technical Specs
quartz stone sand making machine vsi sand making machine supplier
| Model | Sanding making | Reshaping | Sanding making | Reshaping | Speed (r/min) | Power (kW) | Overall dimension (mm) |
| Maximum feeding size (mm) | Throughput (t/h) | ||||||
| VSI6X1263 | 50 | 60 | 454-486 | 545-583 | 900-1200 | 315×2 | 5700×2980×4190 |
| VSI6X1150 | 45 | 55 | 344-368 | 413-442 | 1000-1300 | 250×2 | 5500×2750×3950 |
| VSI6X1040 | 40 | 50 | 264-283 | 317-342 | 1100-1400 | 200×2 | 4880×2560×3725 |
| VSI6X9026 | 35 | 45 | 167-179 | 200-215 | 1200-1500 | 132×2 | 4200×2400×3150 |
| VSI6X8015 | 30 | 40 | 109-117 | 131-140 | 1300-1700 | 90×2 | 4100×2300×2750 |
Customer Cases

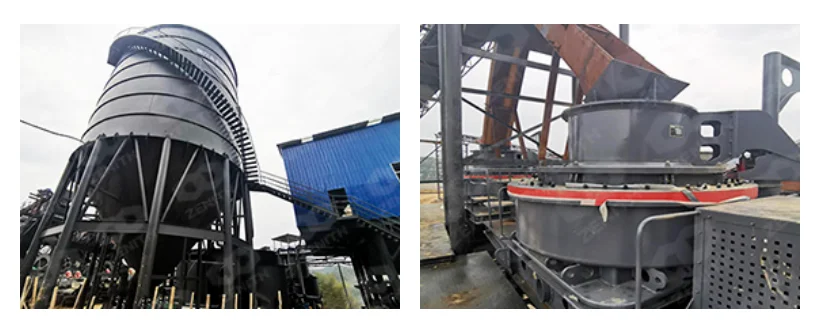

300TPH Potassium Sodium & Feldspar Sand Making Plant
Material: potassium sodium & feldspar
Application: for commercial concrete mixing plant
Equipment:
PEW860 European Hydraulic Jaw CrusherHST315 Single Cylinder Hydraulic Cone CrusherVSI6X1150 Sand Making MachineS5X3072-2 Vibrating Screen
Customer Evaluation
ZENITH's crusher was finally chosen after careful comparisons. Since operation, it has been high-yield and stable, attracting many customers nearby.
Project Introduction
The final sand of this project is supplied to the commercial mixing station. Due to the low price of raw materials for producing ceramics with potassium sodium feldspar, the demand is gradually reduced and the market is depressed, so the customer turns to the production of manufactured potassium sodium feldspar sand. Now it has been put into production, the quality of finished product got the highest profitability. Currently it produces fine product of 300t/h.
Company Information
ZENITH History
Founded in 1987, ZENITH has over 30 years’ developmental stories. Over the past 3 decades, we have been specialized in the research, development, and production of industrial crushing, powder grinding, mineral processing equipment and other related devices. Our products have been sold to 160 countries and areas of Southeast Asia, East Europe, South America, the Middle East and Africa, etc., and more foreign markets will be promoted in future…

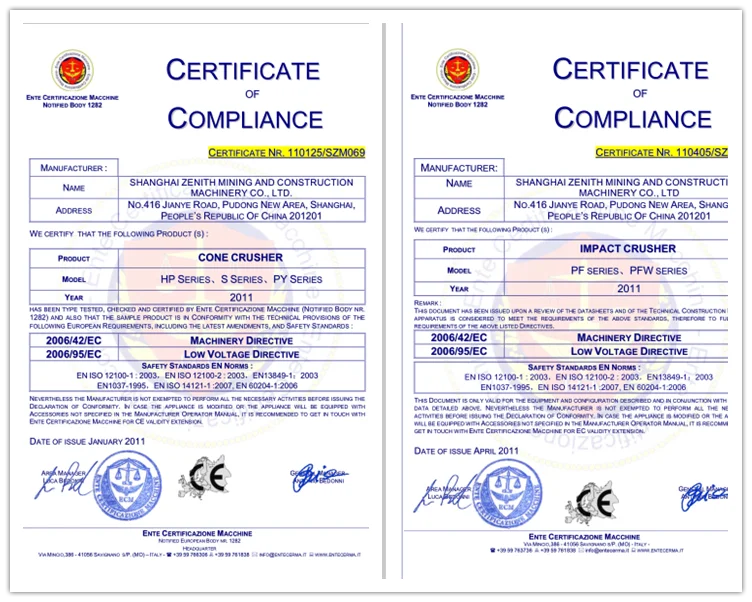

Certifications
Contact us
In order to recommend the suitable models and supply more complete quotation for you, Send your Requiry Details in the below!
quartz stone sand making machine vsi sand making machine supplier
Include:
1. Which machine do you need?
(such as crusher, grinder, vibrating screen, vibrating feeder, belt conveyor and others)
2. Which kind of material you are going to process?
Soft stone (dolomite, limestone and others) or hard stone (granite, basalt, river pebble and others) ?
3. What's the production capacity you want?
How many tons or cubic meters per hour?
And please tell me your email and phone, I will give you factory price with full specification and you will know all details about machine and discount.
