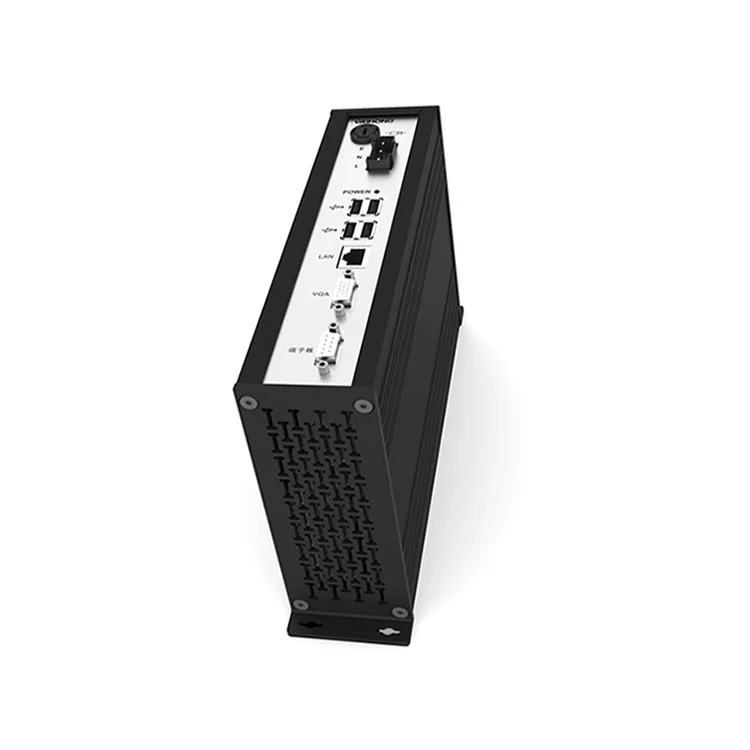

2021 Hot Sale Waterjet Propulsion Cnc Controller Set Cnc Controller Kit
- Category: >>>
- Supplier: Shanghai Weihong Electronic Technology Co. Ltd.
Share on (1600382575268):
Product Overview
Description
Product Description
Item | Specification |
Number of Axes Supported | 3-5 axes |
Pulse Frequency | 2.17GHz |
RAM | 2GB |
Control Mode | Position control |
Control Signal | Differential signals |
Position Signal Type | Pulse+Direction |
External | PCI-E express |
Interactive with Lambda | PHOENIX bus |
Analog Voltage Output | 0-10V |
Tool Measurement Mode | Fixed calibration, Mobile calibration, First calibration & Calibration after tool change |
Compensation | Screw error compensation, Backlash compensation, AQE compensation, Tool compensation |
Supported File Format | *.g；*.nc；*.ug;*.demo;*.iso;*.eng;*.cut;*.dxf;*.plt;*.txt |
WCS Setting | Supporting WCS G54-G59 and Work Zero saving |
Processing Technology | Array, Mirror&rotate,Cycle machining |
Convenient Operation | Handwheel guide, Breakpoint resume, Tool selection |
Interpolation Algorithms | T-type, S-type and LEP algorithms |
Software Language | Chinese, English |
Software Alarms | Alarms of program error, operation error, over-travel error, PLC error and IO communication error |

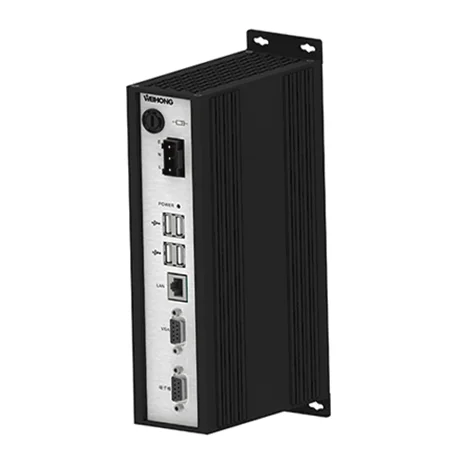

The Layout of NC65C
1.LNE(interface of live wire, neutral wire and earth wire) | Used to connect to 220V power supply |
2.Indicator light | For the power supply |
3.USB | Used to transmit data with a USB flash disk |
4.LAN | Transmission rate is 100Mbps |
5.Display screen | Used to connect to display screen |
6.Interface for a Lambda terminal board | Used to connect to Lambda terminal board |

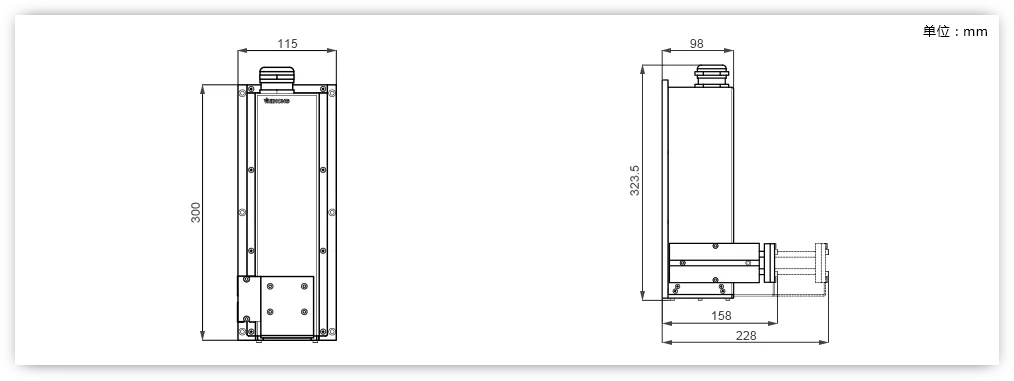

Mounting Dimension

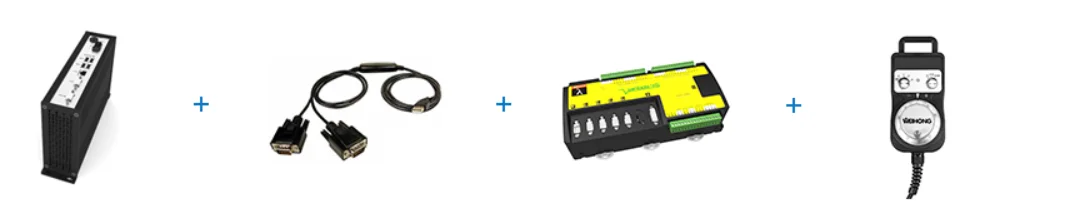

Product Configuration
Performance
Supporting upgrading FPGA program online via the upper control software.
Supporting backing up both firmware and program, amending FLASH data, and verifying and protecting DNA.
Supporting Phoenix communication.
Supporting PCIE communication.
Strong suitability
You can select the suitable Lambda terminal board according to the following:
Axis number
Whether to enable encoder feedback
Whether to enable bus communication
Operating temperature: -10℃ ~ 50℃.
Powerful operating system:
Operating system: Win8.1-32bit
CPU: Celeron dual-core N2830, 2.17GHz
Memory: 2GB
SSD: 60G
Supporting backing up both firmware and program, amending FLASH data, and verifying and protecting DNA.
Supporting Phoenix communication.
Supporting PCIE communication.
Strong suitability
You can select the suitable Lambda terminal board according to the following:
Axis number
Whether to enable encoder feedback
Whether to enable bus communication
Operating temperature: -10℃ ~ 50℃.
Powerful operating system:
Operating system: Win8.1-32bit
CPU: Celeron dual-core N2830, 2.17GHz
Memory: 2GB
SSD: 60G

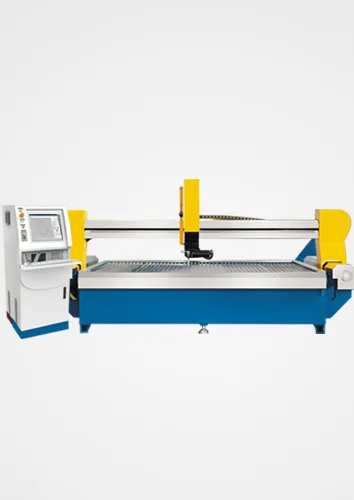

Application

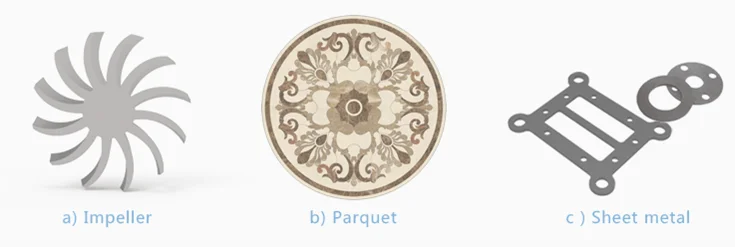

Samples

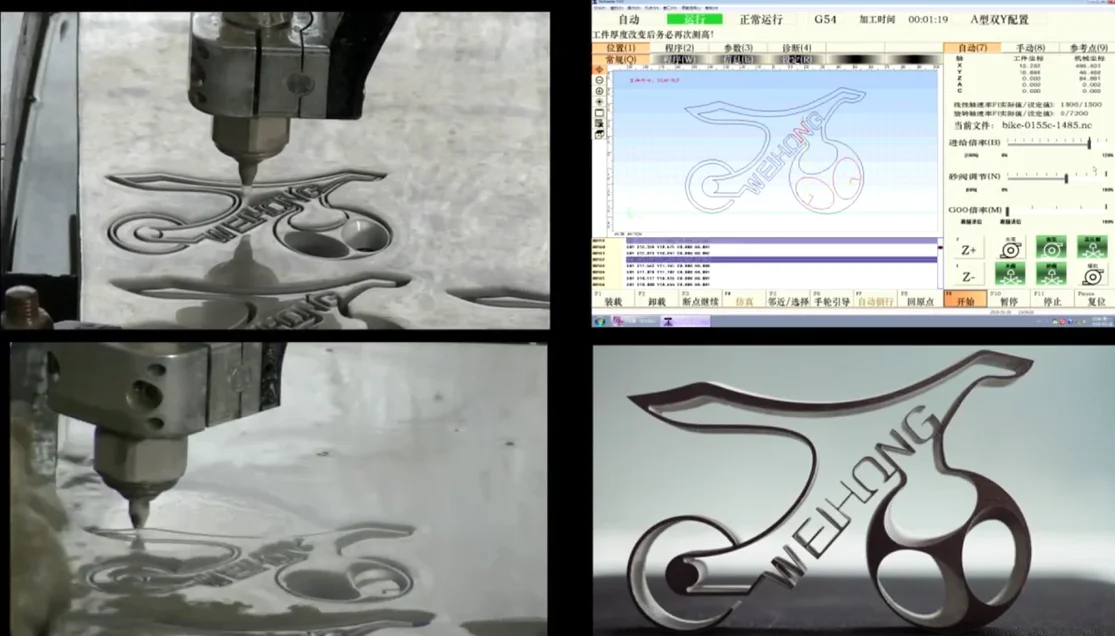

Successful Cases
