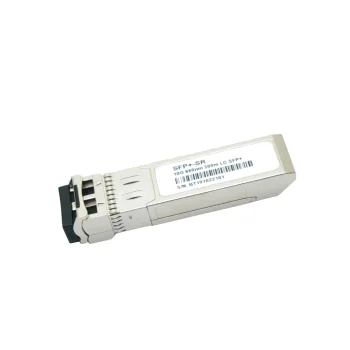

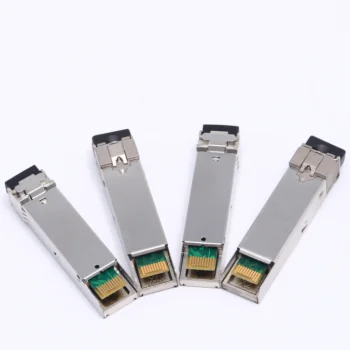

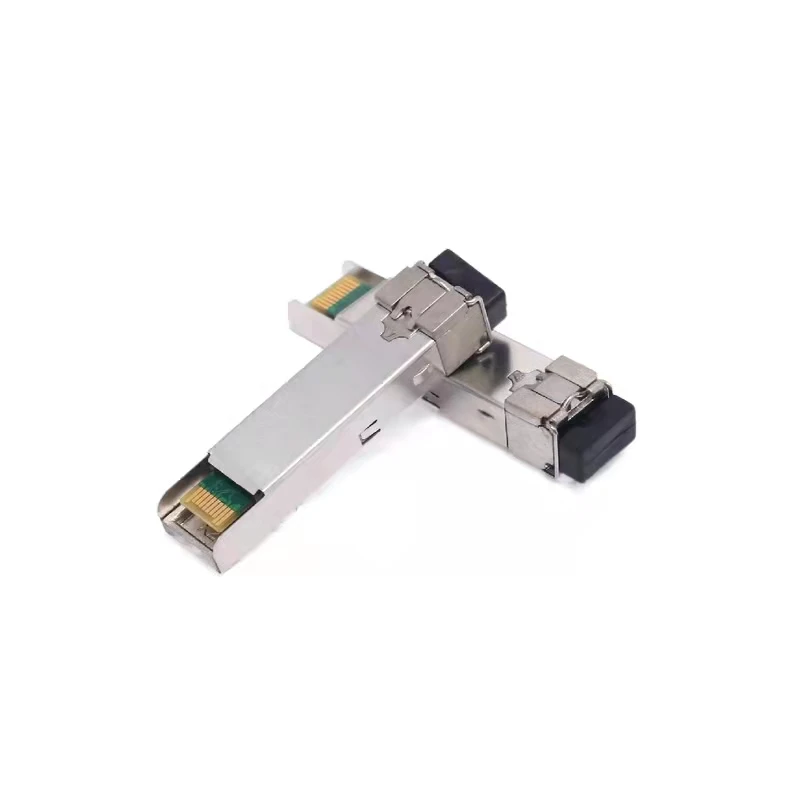

10g Sfp Module 10gbase sr Sfp Module Transceiver Optical Fiber Sfp Module
- Category: >>>
- Supplier: Guangxi Nanning Deepen Communication Equipment Co. Ltd.
Share on (1600382602002):
Product Overview
Description
Product Description
This 850nm VCSEL 10Gigabit SFP+ transceiver is designed to transmit and receive optical data over 50/125 μm or 62.5/125 μm multimode optical fiber.
The SFP+ SR module electrical interface is compliant to SFI electrical specifications. The transmitter input and receiver output impedance is 100 Ohms differential. Data lines are internally AC coupled. The module provides differential termination and reduce differential to common mode conversion for quality signal termination and low EMI. SFI typically operates over 200 mm of improved FR4 material or up to about 150mm of standard FR4 with one connector.
Features
*Optical interface compliant to IEEE 802.3ae 10GBASE-SR
*Electrical interface compliant to SFF-8431
*Hot Pluggable
*850nm VCSEL transmitter, PIN photo-detector
*Maximum link length of 300m on 2000MHz/km MMF
*Operating case temperature: 0 to 70℃
*Low power consumption
*All-metal housing for superior EMI performance
*Advanced firmware allow customer system encryption information to be stored in transceiver
*Cost effective SFP+ solution, enables higher port densities and greater bandwidth
*Electrical interface compliant to SFF-8431
*Hot Pluggable
*850nm VCSEL transmitter, PIN photo-detector
*Maximum link length of 300m on 2000MHz/km MMF
*Operating case temperature: 0 to 70℃
*Low power consumption
*All-metal housing for superior EMI performance
*Advanced firmware allow customer system encryption information to be stored in transceiver
*Cost effective SFP+ solution, enables higher port densities and greater bandwidth
SFP+ Module PIN Definition
Absolute Maximum Ratings
Parameter | Symbol | Min | Max | Unit |
Power Supply Voltage | Vcc | 0 | +3.6 | V |
Storage Temperature | Ts | -40 | +85 | °C |
Operating Case Temperature | Tc | 0 | +70 | °C |
Relative Humidity | RH | 5 | 95 | % |
RX Input Average Power | Pmax | - | 0 | dBm |
Recommended operating environment
Parameter | Symbol | Min | Typical | Max | Unit | ||
Power Supply Voltage | Vcc | 3.135 | 3.300 | 3.465 | V | ||
Operating Case Temperature | TC | 0 | 25 | 70 | °C | ||
Electrical Characteristics
Parameter | Symbol | Min | Typical | Max | Unit | Notes | ||||||||
Data Rate | - | 10.3125 | - | Gbps | ||||||||||
Power Consumption | - | 1200 | 1500 | mW | ||||||||||
Transmitter | ||||||||||||||
Single Ended Output Voltage Tolerance | -0.3 | - | 4.0 | V | ||||||||||
C common mode voltage tolerance | 15 | - | - | mV | ||||||||||
Tx Input Diff Voltage | VI | 400 | 1600 | mV | ||||||||||
Tx Fault | VoL | -0.3 | 0.4 | V | At 0.7mA | |||||||||
Data Dependent Input Jitter | DDJ | 0.10 | UI | |||||||||||
Data Input Total Jitter | TJ | 0.28 | UI | |||||||||||
Receiver | ||||||||||||||
Single Ended Output Voltage Tolerance | -0.3 | - | 4.0 | V | ||||||||||
Rx Output Diff Voltage | Vo | 300 | 850 | mV | ||||||||||
Rx Output Rise and Fall Time | Tr/Tf | 30 | ps | 20% to 80% | ||||||||||
Total Jitter | TJ | 0.70 | UI | |||||||||||
Deterministic Jitter | DJ | 0.42 | UI | |||||||||||
Optical characteristics
Parameter | Symbol | Min. | Typical | Max | Unit | Notes | ||||||
Transmitter | ||||||||||||
Center Wavelength | λt | 840 | 850 | 860 | nm | |||||||
RMS spectral width | Pm | - | - | Note 1 | nm | |||||||
Average Optical Power | Pavg | -6.5 | - | -1 | dBm | 2 | ||||||
Extinction Ratio | ER | 3.5 | - | - | dB | 3 | ||||||
Transmitter Dispersion Penalty | TDP | - | - | 3.9 | dB | |||||||
Relative Intensity Noise | Rin | - | - | -128 | dB/Hz | 12dB reflection | ||||||
Optical Return Loss Tolerance | - | - | 12 | dB | ||||||||
Receiver | ||||||||||||
Center Wavelength | λr | 840 | 850 | 860 | nm | |||||||
Receiver Sensitivity | Psens | - | - | -11.1 | dBm | 4 | ||||||
Stressed Sensitivity in OMA | - | - | -7.5 | dBm | 4 | |||||||
Los function | Los | -30 | - | -12 | dBm | |||||||
Overload | Pin | - | - | -1.0 | dBm | 4 | ||||||
Receiver Reflectance | - | - | -12 | dB | ||||||||
Note 1.Trade-offs are available between spectral width, center wavelength and minimum OMA, as shown in table 6. 2.The optical power is launched into MMF 3.Measured with a PRBS 231-1 test pattern @10.3125Gbps 4.Measured with a PRBS 231-1 test pattern @10.3125Gbps,BER≤10-12. | ||||||||||||
Timing Characteristics
Specification
item | value |
Model Number | SFP+-SR |
Place of Origin | China |
Use | FTTX |
Warranty Time | 1year |
Fiber Type | Dual fiber multimode |
Wavelength | 850nm |
Distance | 300m |
Certification | CE FCC ROHS |
Power Input | 3.3V |
Data Rate | 10Gbps |
Connector Type | SFP+ |
Compatibility | all brands |
SFP Connector | LC |
Selling Units | Single item |
Applications | *10GBASE-SR at 10.3125Gbps *10GBASE-SW at 9.953Gbps *Other optical links |
Ordering information | ||||||||
Part Number | Product Description | |||||||
SFP+-SR | 10Gbps 850nm 300m LC SFP+ Transceiver 0ºC ~ +70ºC | |||||||
