High Quality Architectural Balustrade Balcony Railing 6mm Stainless Steel Wire Rope Aisi 316

Share on (1600382848670):


Price:$1.88

Quantity:


Product Overview

Description



Products Description


High Quality Architectural Balustrade Balcony Railing 6mm Stainless Steel Wire Rope Aisi 316
Steel wire ropes are widely used in many applications such as crane, tower crane, surface and underground mining, excavation,logging of any type of terrain, tramway, elevator, oil and gas, drilling, marine and electrical constructions.. The selection of a rope must consider the strength, fatigue and abrasion resistance, crushing resistance, resistance to metal loss and deformation
Our Products are with high quality and competitive price,exported to many countries.
The product has the characteristics of compactness, verticality, looseness, bright and
smooth surface, not easy to rust.

Founder stock a range of stainless steel wire ropes with construction 1*7,1*19, 7*7, 7*19.Our stainless steel wire rope cable is suitable for use on wire balustrades, tension membrane and vinyl shade structures, shade umbrellas,architectural rigging, shop fittings, green-walls or cable trellis and marine applications.

1x19 stainless steel wire rope cable consists of a single strand with 19 wires. 1 x 19 stainless steel wire rope cable is very stiff and is suitable for fixed "straight line" rigging only such as mast stays, guy ropes and structural applications. It cannot be used with thimble eyes and is best utilised and looks very effective with machine swaged end fittings.

7x7 stainless steel wire rope cable consists of 7 strands each with 7 wires and is not as flexible as 7x19 stainless steel wire rope cable. 7x7 is stainless steel wire rope cablean excellent choice for fixed rigging applications such as balustrading and safety barrier rails. Although 7x7 stainless steel wire rope cable is stiffer than 7x19 stainless steel wire rope cable is still capable of limited angles and can be used with thimble eyes or swage fittings. 7x7 stainless steel wire rope cable has very limited applications as a running or working rope.

7x19 stainless steel wire rope cable is the most common and versatile construction of stainless steel wire rope. It consists of 7 strands each with 19 wires and is the most flexible and the easiest construction to work with particularly where the rope needs to turn corners, change directions or where ferrule secured thimble eyes and wire rope grips are used. 7x19 stainless steel wire rope
cable can be used in either fixed rigging or for limited working rope applications such as on a boat winch.






Product Name:
High Quality Architectural Balustrade Balcony Railing 6mm Stainless Steel Wire Rope Aisi 316
Diameter
1mm, 1.2mm,1.5mm,1.8mm, 2mm 2.5mm, 3mm,4mm,5mm,6mm etc
Construction
1*19   7*7   7*19 ,etc
Available Material:
Stainless Steel 316, Stainless Steel 304,Galvanize
Tensile strength
1570,1770,1960MPA
Surface treatment
Bright, Ungalvanized,Electro galvanized,PVC coated,etc.
Standard
ANSI, EN12385,DIN3060
Package:
Wrapped in plastic reel or wooden reel, then put on pallets or in wooden box,or as per customer's requirements


Product Specification


Construction of Stainless Steel Wire Rope




Steel wire rope 7X37(6x37+SE) DIN3066




Steel wire rope 1X37 DIN3054




Steel wire rope 7x19(6X19+SE) DIN3060




Steel wire rope 6x19+FE DIN3060




Steel wire rope 1X7DIN3052

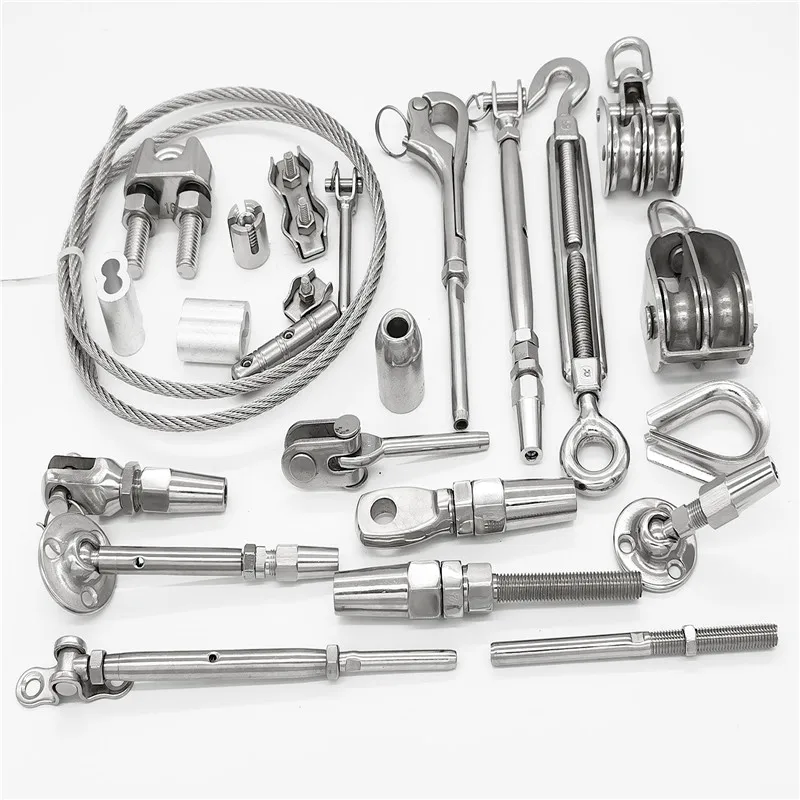

Reference Picture
