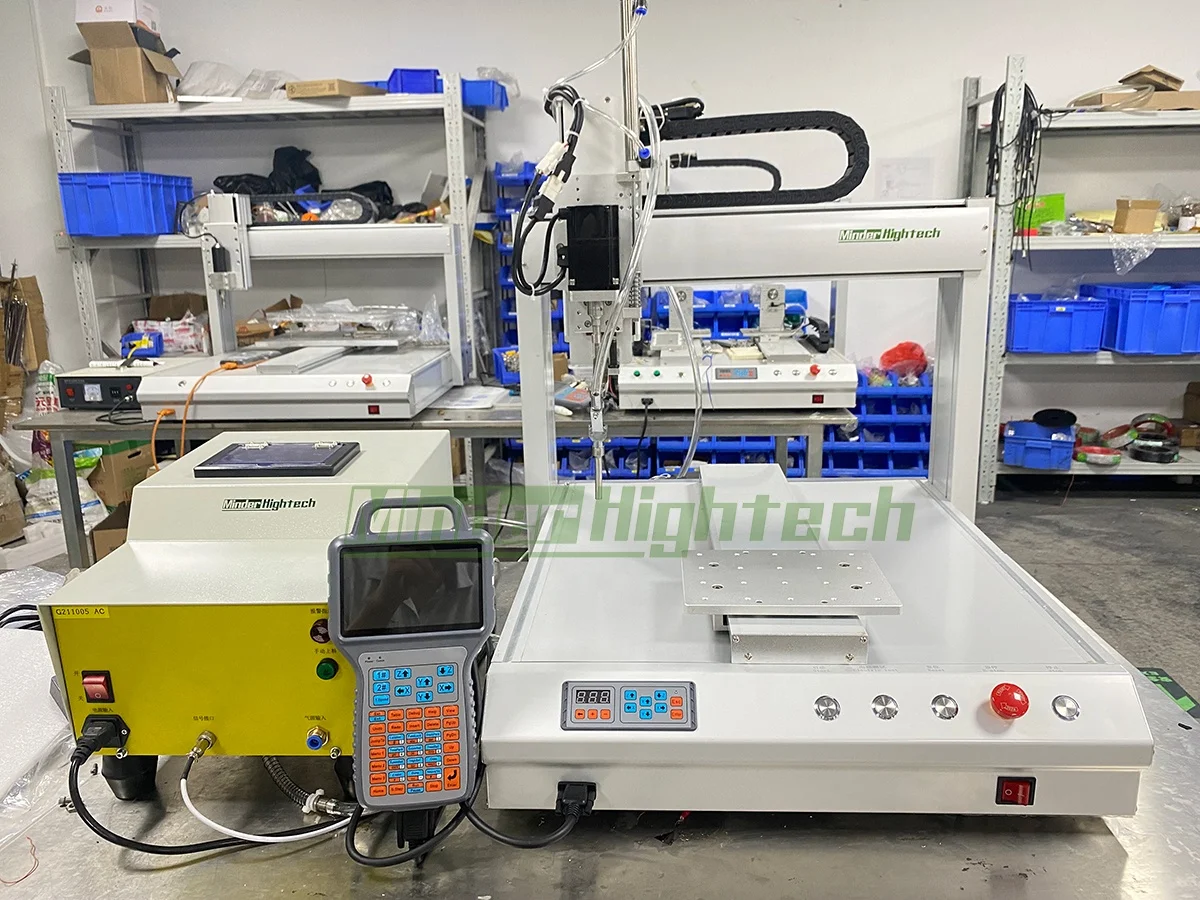

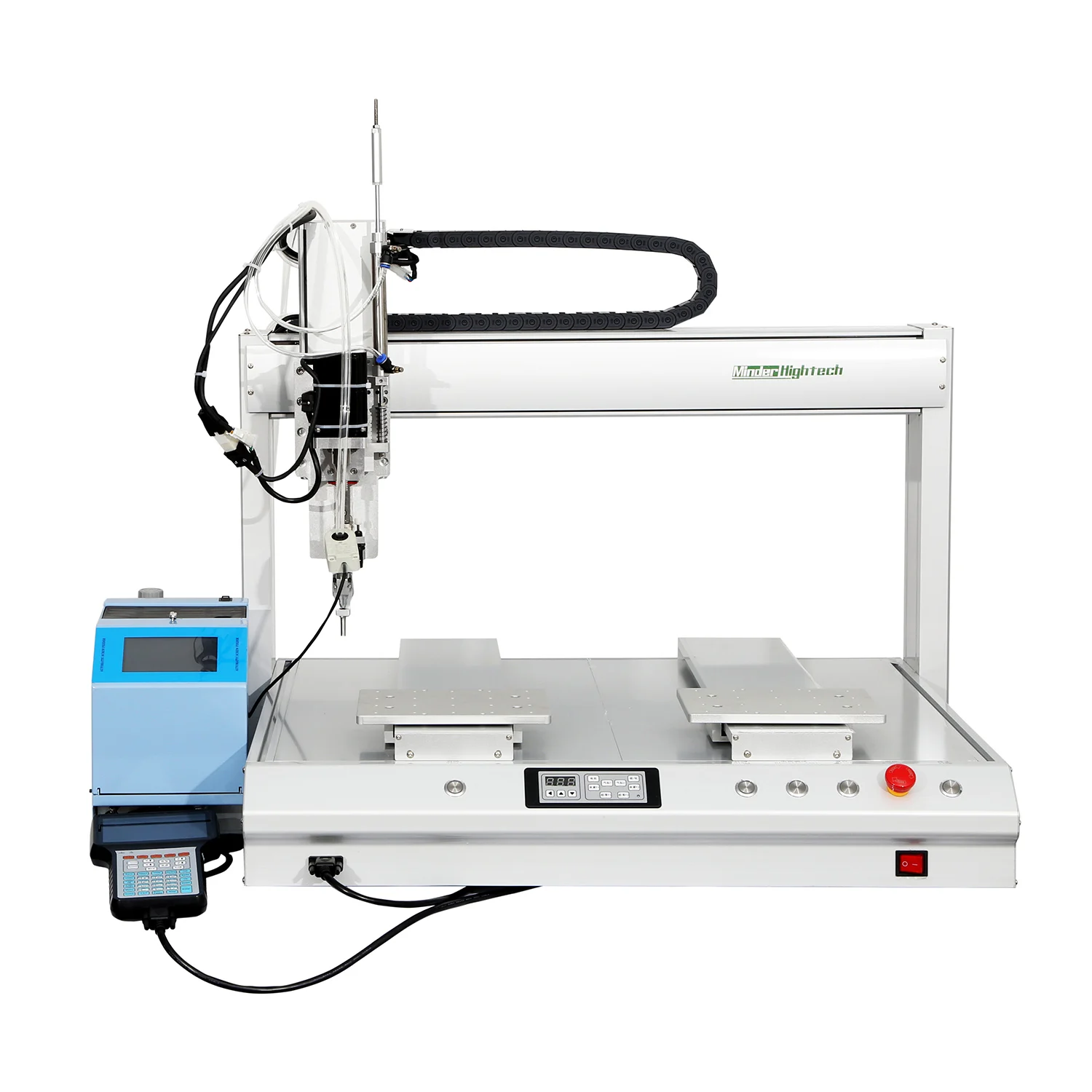

PCB Desktop Automatic Screw Fastener Screwdriver Robotic Machine Screw Tightening Robot
- Category: >>>
- Supplier: Guangzhou Minder-Hightech Co. Ltd.
Share on (1600382925367):
Product Overview
Description
Product Description
Product Description
The company's automatic screw machine can be customized non-standard. For more detailed parameters, please contact customer service. The automatic screw machine is an automated equipment that can replace manual screw locking.
As the production cost of enterprises is getting higher and higher, labor costs are rising, and automatic screw machines will replace most of the screw locking stations, which are simple to operate, convenient to use, and efficient.
As the production cost of enterprises is getting higher and higher, labor costs are rising, and automatic screw machines will replace most of the screw locking stations, which are simple to operate, convenient to use, and efficient.
Application
Widely used in assembly of household appliances industry (electric kettles, air purifiers, hair dryers, televisions, air conditioners, washing machines, etc.)
Suitable for machine watches, industrial power supplies, motors, circuit boards, PCB, automotive electronics, TV set-top boxes, toys, mobile phones and other products to lock.
Suitable for machine watches, industrial power supplies, motors, circuit boards, PCB, automotive electronics, TV set-top boxes, toys, mobile phones and other products to lock.
Specification
Model | MD-DL-T4411CQ | MD-DL-T5511CQ | MD-DL-T53311CQ | MD-DL-T54411CQ | MD-DL-T6441CQ | ||||
Stroke X | 400mm | 500mm | 500mm | 500mm | 600mm | ||||
Stroke Y1 | 400mm | 500mm | 300mm | 400mm | 400mm | ||||
Stroke Y2 | no | no | 300mm | 400mm | 400mm | ||||
Stroke Z | 100mm | 100mm | 100mm | 100mm | 100mm | ||||
Material size | 400*300 | 500*500 | 170*300 | 170*400 | 210*400 | ||||
Rated speed | 500mm/s (X-Y-Z) ,Max:1000mm/s | ||||||||
Screwer No. | Default 1 PC(optional 2 PCS) | ||||||||
Drive | Precision stepping motor/servo motor+synchronous belt/ball screw | ||||||||
Motion mode | Point to point; line; circle | ||||||||
Positioning accuracy | +- 0.02(mm) | ||||||||
Program | Control Teaching Box/PC | ||||||||

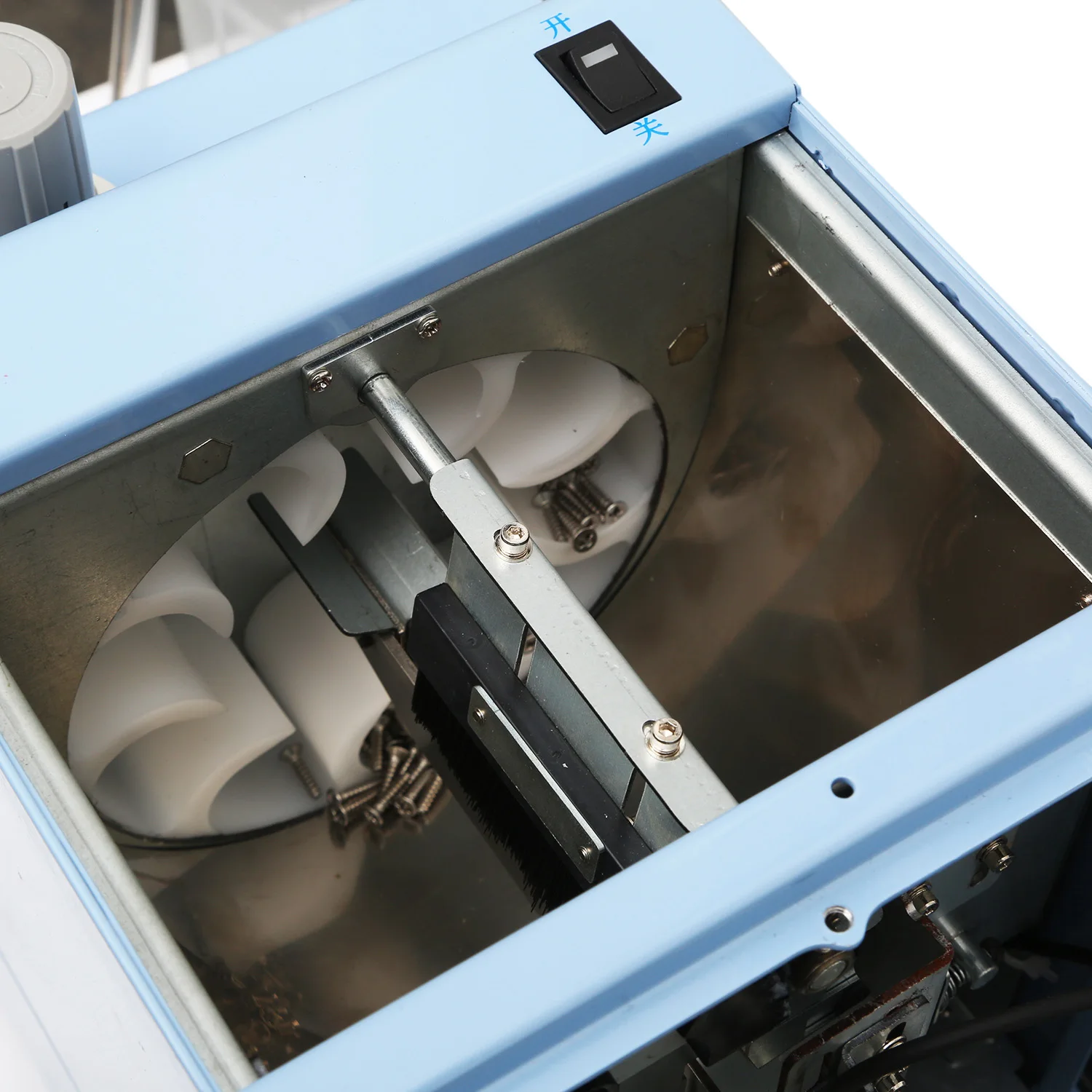

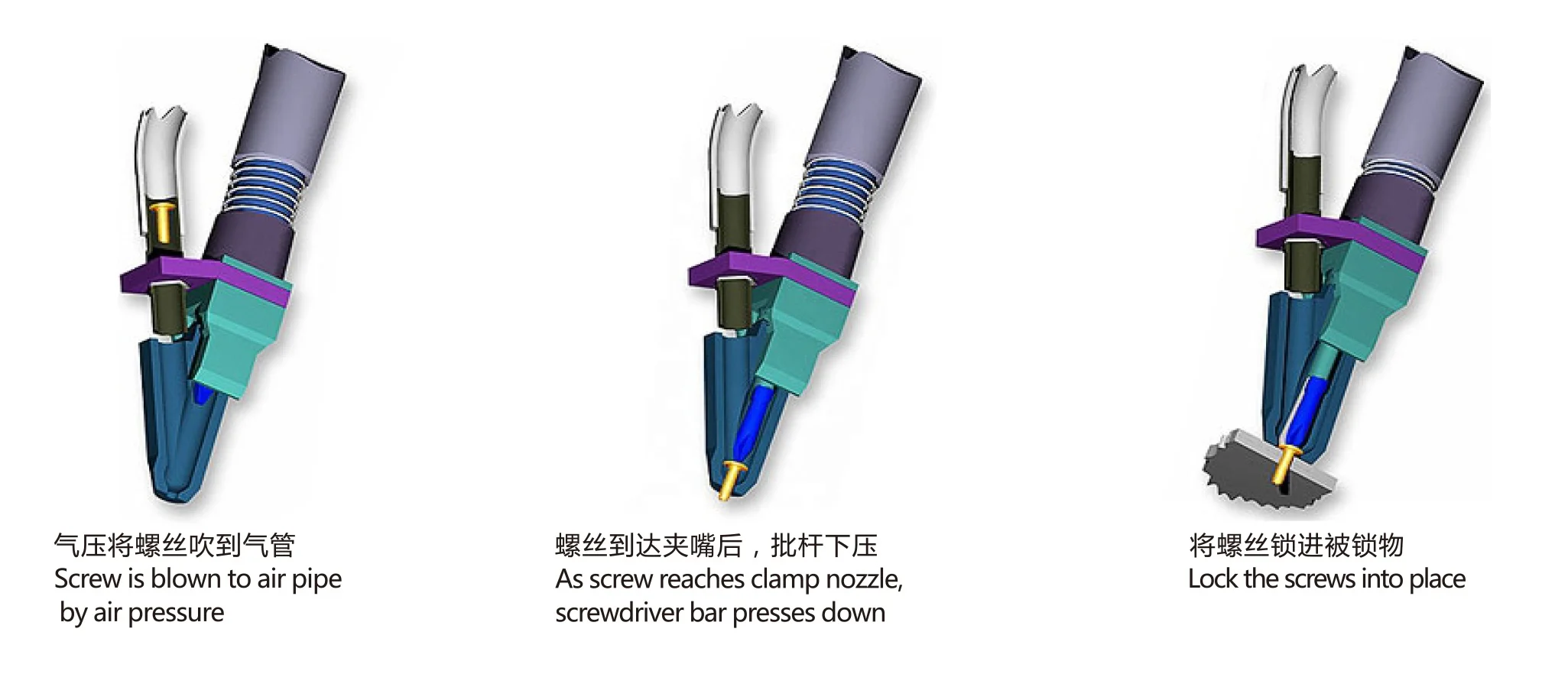

Screw feed mode | air blow | ||||||||
Screw feed speed | 60PCS/Min | ||||||||
Screw driver | SDL series Servo motor screw driver(optional others) | ||||||||
External | RS232 | ||||||||
Screw size | M1.0-M5.0 | ||||||||
Screw length | 4-16mm | ||||||||
Torque range | 0.03-45kgf.cm | ||||||||
Lock speed | 1.5s/ PCS | ||||||||
Program storage | 100groups/1000points per group | ||||||||
Power | 2*220V50Hz | ||||||||
Air | 0.5Mpa | ||||||||
Dimension L | 580mm | 780mm | 680mm | 680mm | 680mm | ||||
Dimension W | 620mm | 720mm | 620mm | 720mm | 830mm | ||||
Dimension H | 603mm | 603mm | 603mm | 603mm | 603mm | ||||
Weight | 70kg | 80kg | 75kg | 80kg | 95kg | ||||
Features
1. Contains BASIC interpreter, simple programming method, direct handle teaching, can directly input the position coordinate of the lock screw hole, can also teach the position of the lock screw hole, can reproduce the position coordinates.
2. Using the three-axis double-splitter manipulator and DSP motion control algorithm for linkage, the fastest speed can hit a silk screw. Individual operation can be efficiently produced, 1 person operation is equal to 2-5 person manual locking.
3. Program built-in sliding teeth, floating teeth, locks and other detection alarm function, all process parameters can be set by the user. It can work 20 hours a day.
4. Strong versatility, simple maintenance and learning, suitable for M 0.6 to M4 screw, When the diameter of the screw is as big as that of the head, the length and the short of the rod can be shared. It is most suitable for more product styles, less production, and the line is changed frequently.
5. Drive mode: X/Y/Z three-axis stepper motor
6. Resolution capability: X/Y/Z triaxial 0.02mm
7. Control mode: PTP point-to-point, CP continuous path teaching control, can teach repeatedly
8. Output/input: two, single 4 input, 4 output
9. Dimension: 580mm*520mm*603mm
10. 110kg
2. Using the three-axis double-splitter manipulator and DSP motion control algorithm for linkage, the fastest speed can hit a silk screw. Individual operation can be efficiently produced, 1 person operation is equal to 2-5 person manual locking.
3. Program built-in sliding teeth, floating teeth, locks and other detection alarm function, all process parameters can be set by the user. It can work 20 hours a day.
4. Strong versatility, simple maintenance and learning, suitable for M 0.6 to M4 screw, When the diameter of the screw is as big as that of the head, the length and the short of the rod can be shared. It is most suitable for more product styles, less production, and the line is changed frequently.
5. Drive mode: X/Y/Z three-axis stepper motor
6. Resolution capability: X/Y/Z triaxial 0.02mm
7. Control mode: PTP point-to-point, CP continuous path teaching control, can teach repeatedly
8. Output/input: two, single 4 input, 4 output
9. Dimension: 580mm*520mm*603mm
10. 110kg
FAQ
1. who are we?
We are based in Guangdong, China, start from 2014,sell to North America(20.00%),Western Europe(20.00%),South Asia(20.00%),Southeast Asia(15.00%),Mid East(10.00%),South America(5.00%),Eastern Asia(5.00%),Northern Europe(5.00%). There are total about 11-50 people in our office.
2. how can we guarantee quality?
Always a pre-production sample before mass production;
Always final Inspection before shipment;
3.what can you buy from us?
Soldering machine,Spot welding machine,Plasma cleaning machine,Glue dispenser,Screw machine
4. why should you buy from us not from other suppliers?
with ultra professional service and skill to provide high performance but competitive price goods, the customer's success is our own success.
5. what services can we provide?
Accepted Delivery Terms: FOB,CIF,EXW,FCA,CPT；
Accepted Payment Currency:USD,EUR,HKD,CNY;
Accepted Payment Type: T/T,PayPal,Cash;
Language Spoken:English,Chinese
We are based in Guangdong, China, start from 2014,sell to North America(20.00%),Western Europe(20.00%),South Asia(20.00%),Southeast Asia(15.00%),Mid East(10.00%),South America(5.00%),Eastern Asia(5.00%),Northern Europe(5.00%). There are total about 11-50 people in our office.
2. how can we guarantee quality?
Always a pre-production sample before mass production;
Always final Inspection before shipment;
3.what can you buy from us?
Soldering machine,Spot welding machine,Plasma cleaning machine,Glue dispenser,Screw machine
4. why should you buy from us not from other suppliers?
with ultra professional service and skill to provide high performance but competitive price goods, the customer's success is our own success.
5. what services can we provide?
Accepted Delivery Terms: FOB,CIF,EXW,FCA,CPT；
Accepted Payment Currency:USD,EUR,HKD,CNY;
Accepted Payment Type: T/T,PayPal,Cash;
Language Spoken:English,Chinese
