Generator automatic voltage regulator generator parts AVR SX460 universal voltage regulator
- Category: >>>
- Supplier: Fujian Top Industrial Co. Ltd.
Share on (1600383017300):
Product Overview
Description
Related AVR Models:
SX460 AS440 SX440 MX341 R230 R220 R250 R438 DER1 DSR SR7 SE350 DVR2000E VR6 GAVR8A GAVR12A GAVR15A SY-AVR-2058B M16FA655A M40FA640A M40FA610A AVC63-2.5 AVC63-4A AVC63-4 AVC63-7 314-7755 235-5725-03 6GA2490-0A 6GA2491-1A

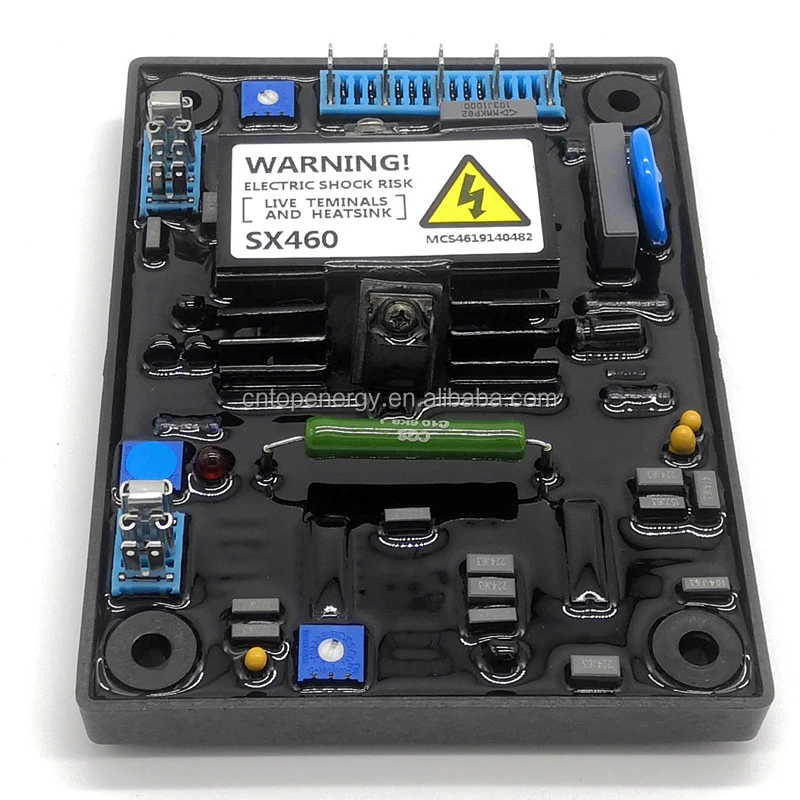

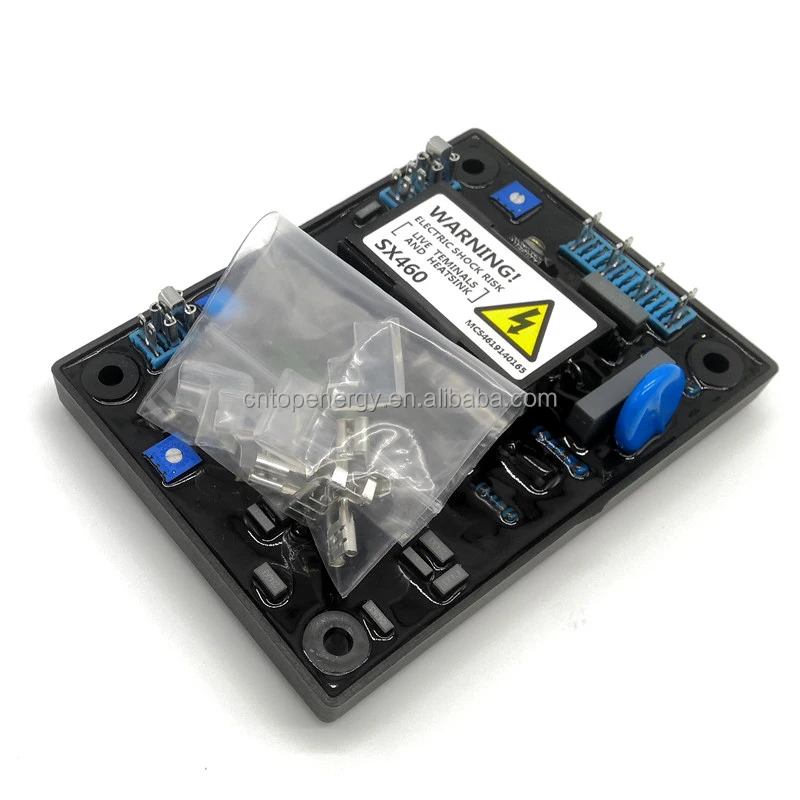

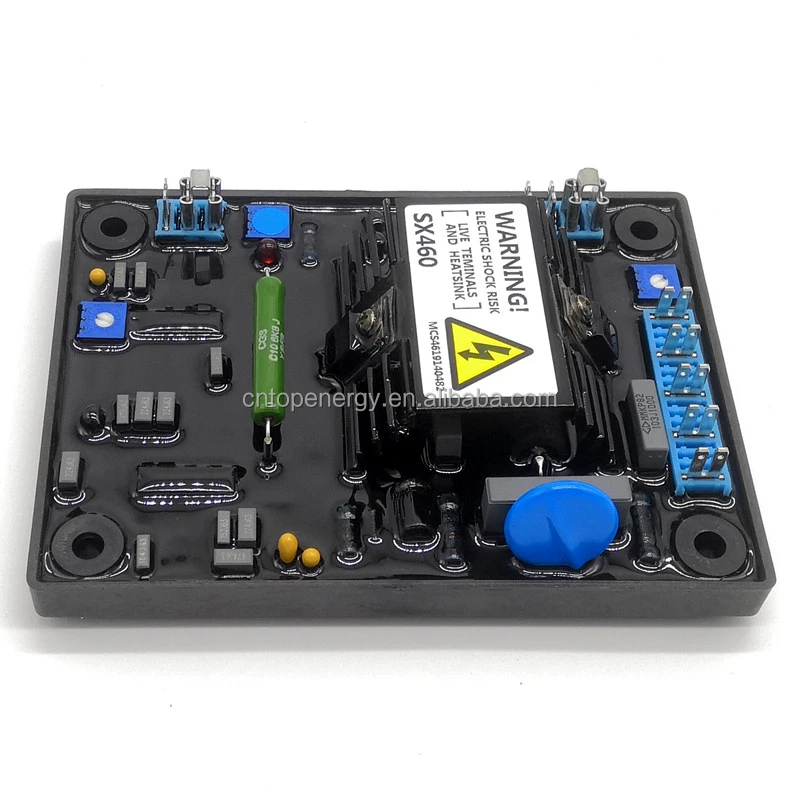

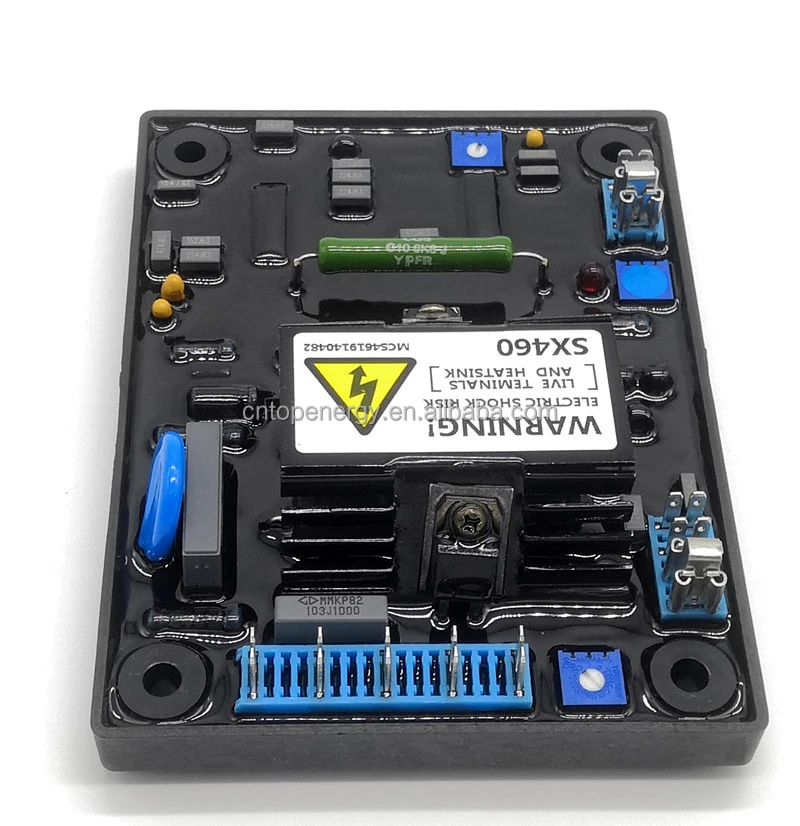

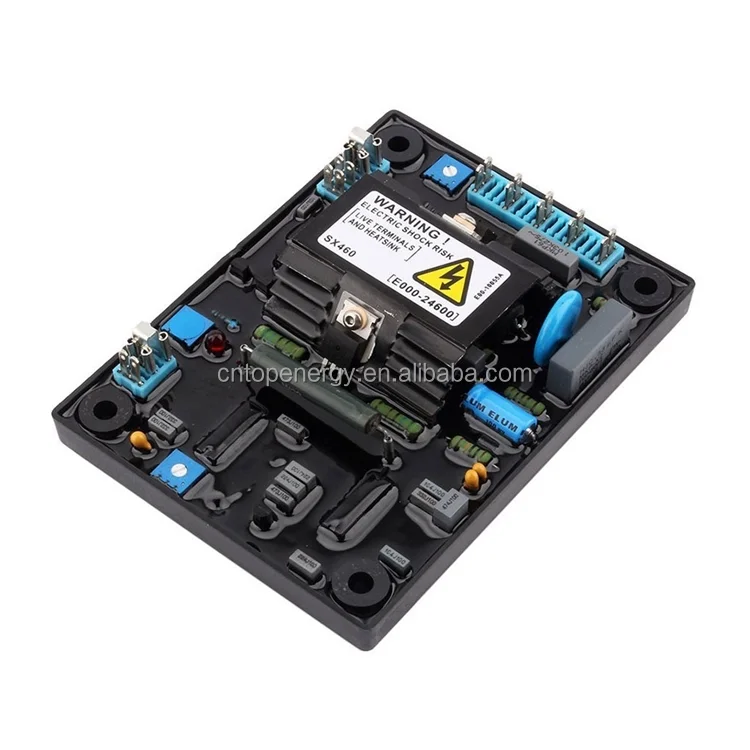

Generator AVR SX460 Automatic Voltage Regulator
SX460 is a half-wave phase-controlled thyristor type Automatic Regulator(avr) and forms parts of the excitation system for a brushless alternator.
In addition to regulating the alternator voltage, the voltage regulator circuitry includes under speed and sensing loss protection features. Excitation power is derived directly from the generator terminals. Positive voltage build up from residual levels is ensured by the use of efficient semiconductors in the power circuitry of the AVR. The automatic regulator AVR is linked with the main stator windings and the exciter field windings to provide closed loop control of the output voltage with load regulation of +/-1.0%.
In addition to being powered from the main stator, sx460 also derives a sample voltage from the output windings for voltage control purposes. In response to this sample voltage, the AVR controls the power fed to the exciter field, and hence the main field, to maintain the machine output voltage within the specified limits, compensating for load, speed, temperature and power factor of the alternator.
In addition to regulating the alternator voltage, the voltage regulator circuitry includes under speed and sensing loss protection features. Excitation power is derived directly from the generator terminals. Positive voltage build up from residual levels is ensured by the use of efficient semiconductors in the power circuitry of the AVR. The automatic regulator AVR is linked with the main stator windings and the exciter field windings to provide closed loop control of the output voltage with load regulation of +/-1.0%.
In addition to being powered from the main stator, sx460 also derives a sample voltage from the output windings for voltage control purposes. In response to this sample voltage, the AVR controls the power fed to the exciter field, and hence the main field, to maintain the machine output voltage within the specified limits, compensating for load, speed, temperature and power factor of the alternator.
Item: | AVR SX460 for generator | ||||||
Brand: | IZDB | ||||||
Country of original: | CHINA | ||||||
Input voltage: | Jumper selectable 95-132V ac or 190-264V ac | ||||||
Frequency: | 50-60 Hz nominal | ||||||
Output voltage: | max 90V dc at 207V | ||||||
Input current: | continuous 4 A dc ,Intermittent 6 A for 10 secs | ||||||
Resistance: | 15 ohms minimum | ||||||
Regulation: | +/-1.0% | ||||||
