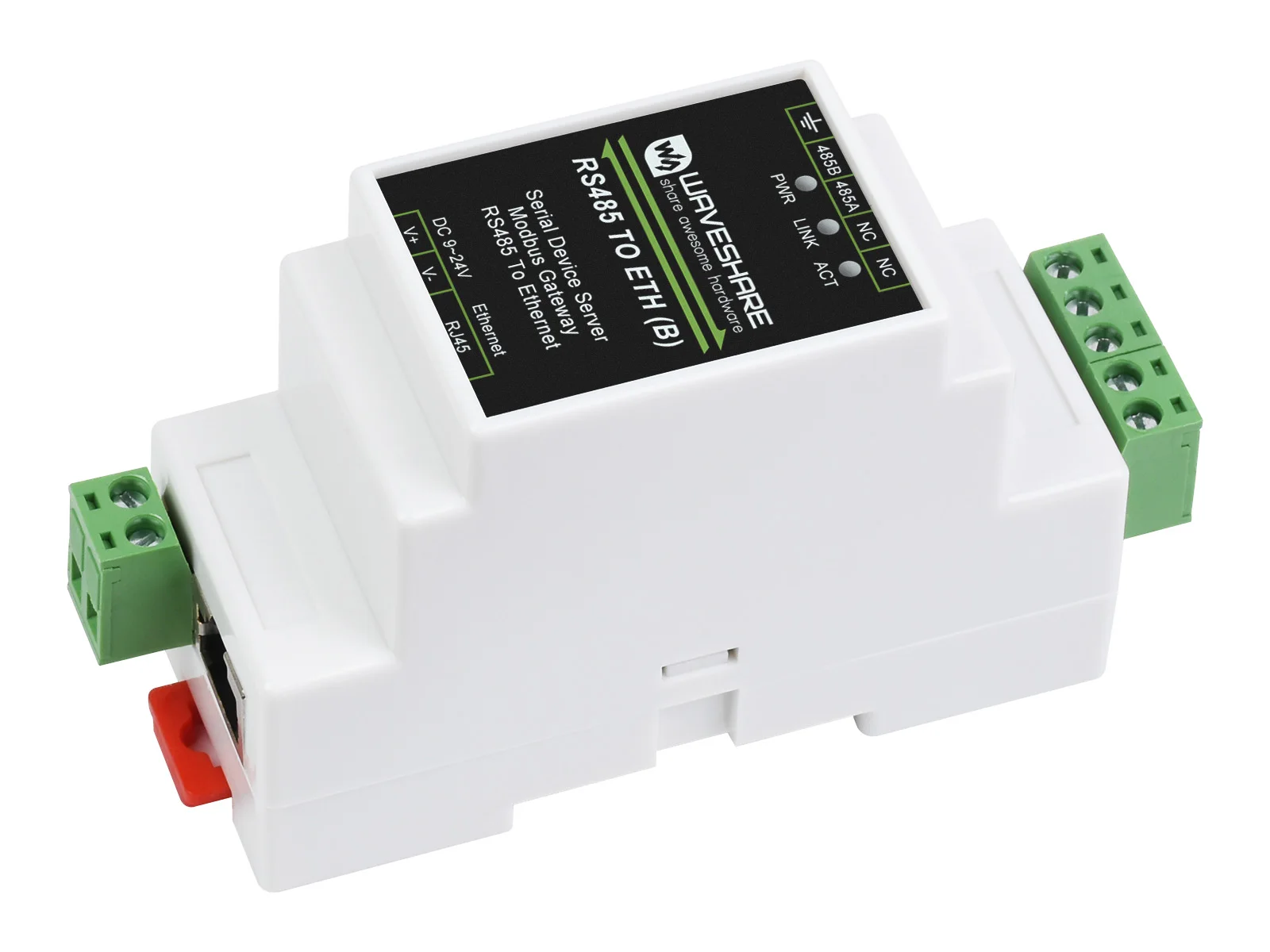

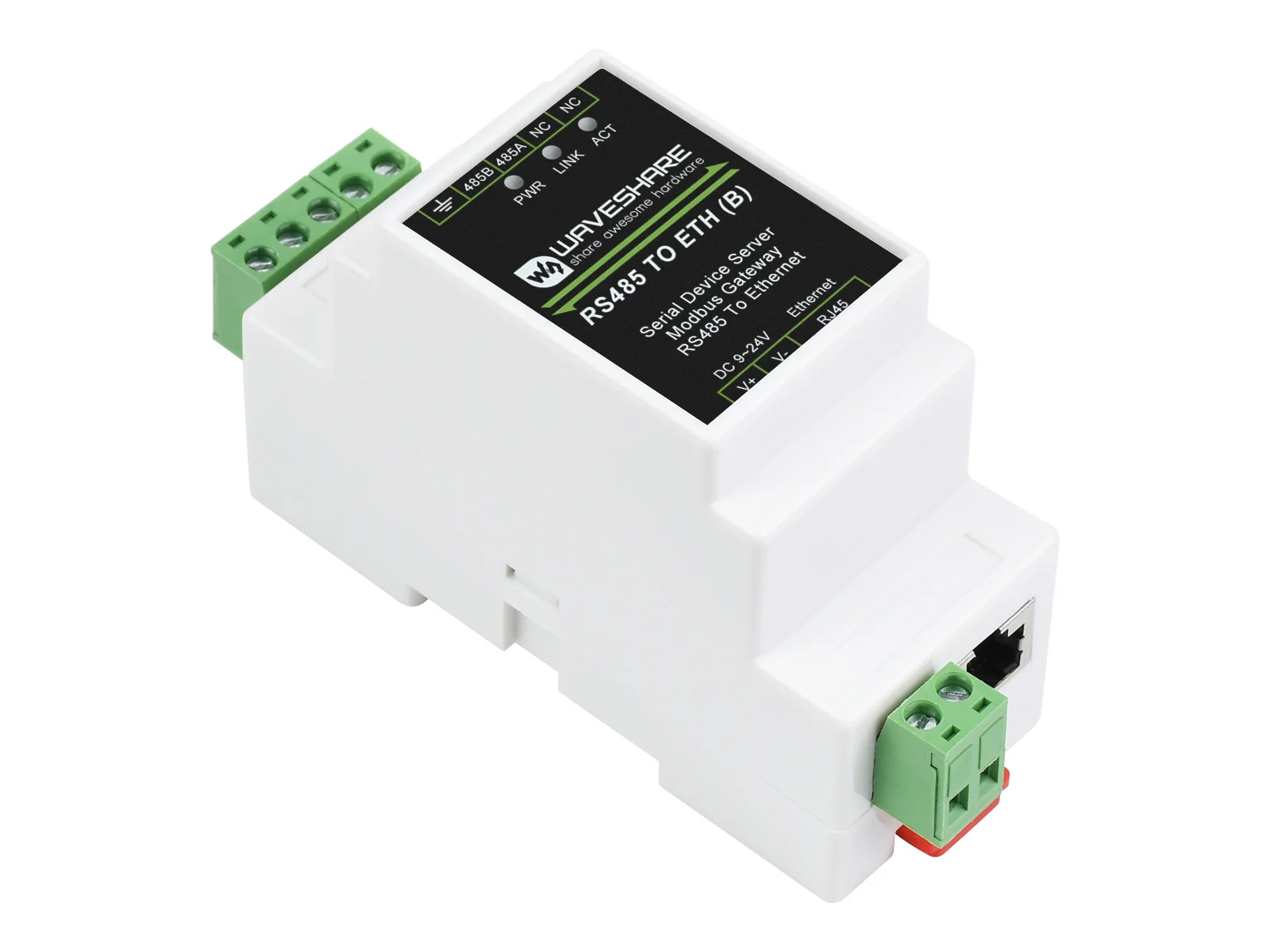

Промышленный последовательный сервер Waveshare, поддержка рельсового крепления RS485 к Ethernet RJ45, TCP/IP к последовательному
- Category: Development Systems, and IoT Products >>>
- Supplier: Shenzhen Guika Technology Co. Ltd.
Share on (1600383312944):
Product Overview
Description

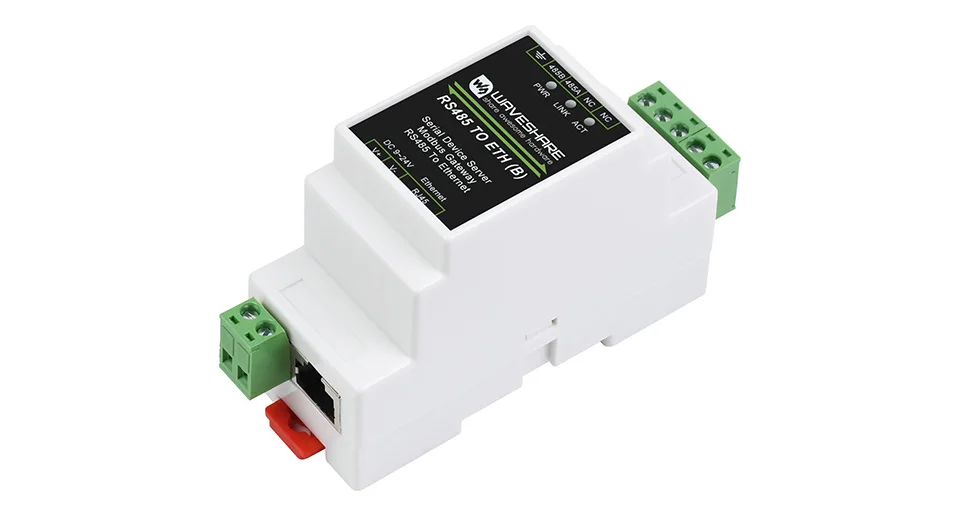

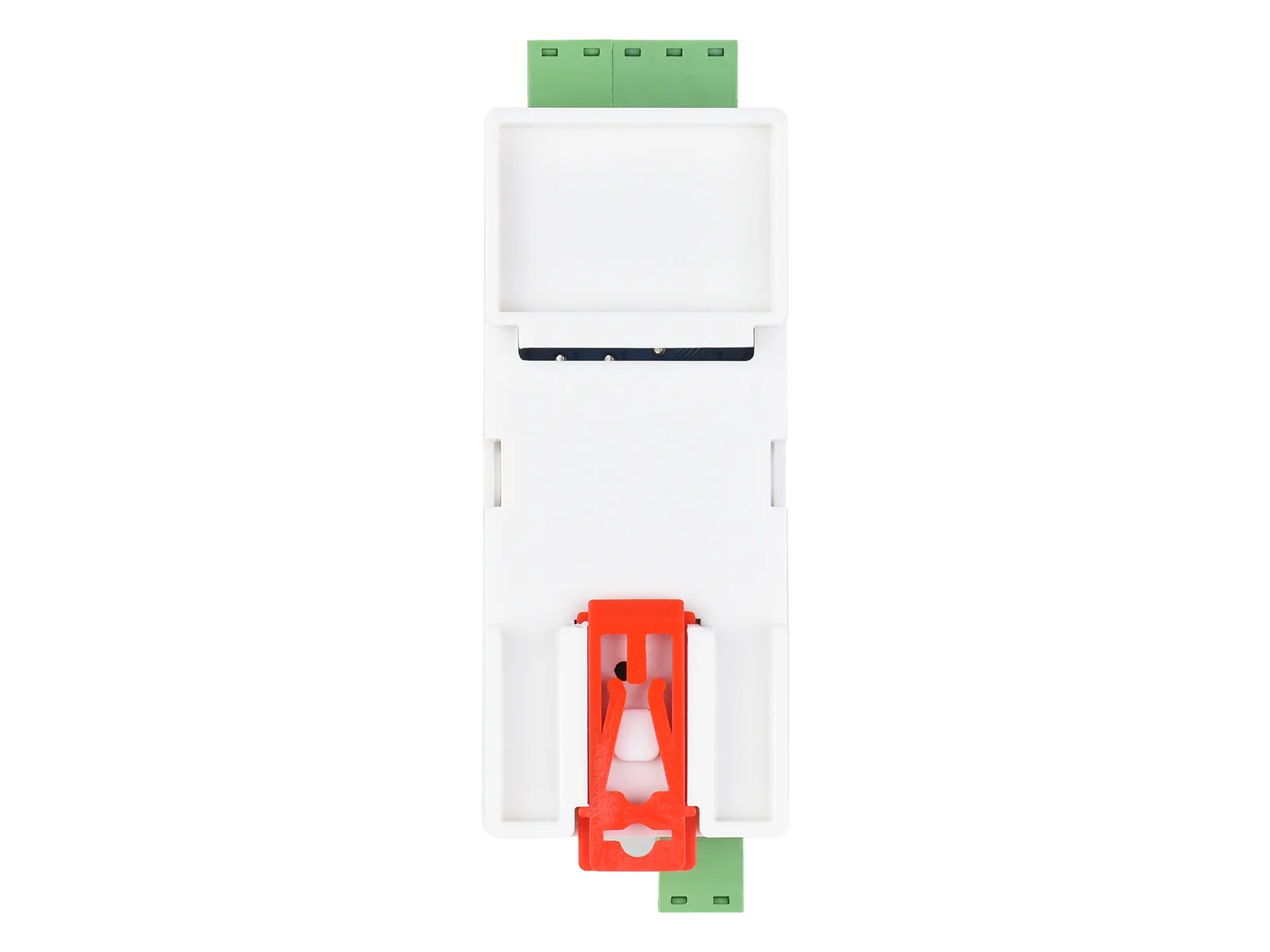

Industrial Serial Server, RS485 To RJ45 Ethernet, TCP/IP To Serial, Rail-Mount Support
Features At A Glance

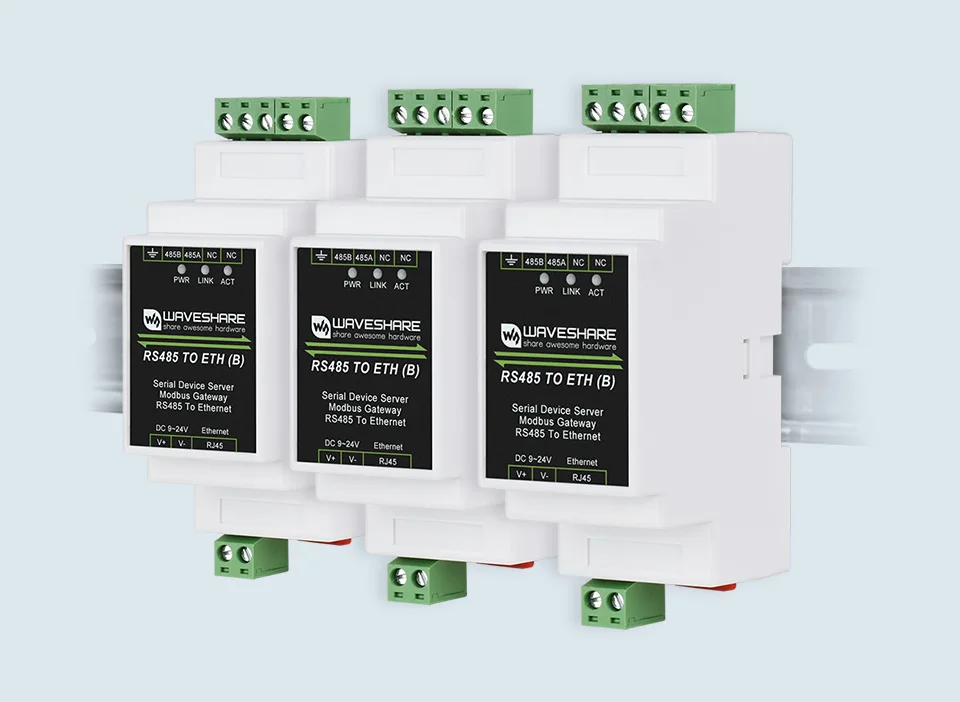

This is a RS485 device data acquisitor / IoT gateway designed for industrial environment. It combines multi functions in one, including serial server, Modbus gateway, MQTT gateway, RS485 to JSON, etc. The module features RS485 and Ethernet ports, uses screw terminals for power input, supports 9~24V wide range power supply. Rail-mount flame-retardant case design, small in size, easy to install. It is suitable for applications like data acquisition, IoT gateway, safety & security IoT, and intelligent instrument monitoring...
Specifications
| OUTLINE | |
|---|---|
| Communication interface | RS485, screw terminal, supports 32x slave devices |
| Power supply | 9 ~ 24V DC, screw terminal |
| Dimensions | L × W × H: 87 × 36 × 59 mm |
| COMMUNICATION | |
| Ethernet | 10 / 100M auto-negotiation RJ45 connector, 2 KV surge protection |
| Serial port | RS485 × 1: RXD, TXD, GND |
| SERIAL SPECIFICATION | |
| Baudrate | 300 ~ 115200 bps |
| Parity bit | none, odd, even, mark, space |
| Data bit | 5 ~ 9 bits |
| Flow control | N/A |
| SOFTWARE | |
| Protocol | ETHERNET, IP, TCP, UDP, HTTP, ARP, ICMP, DHCP, DNS |

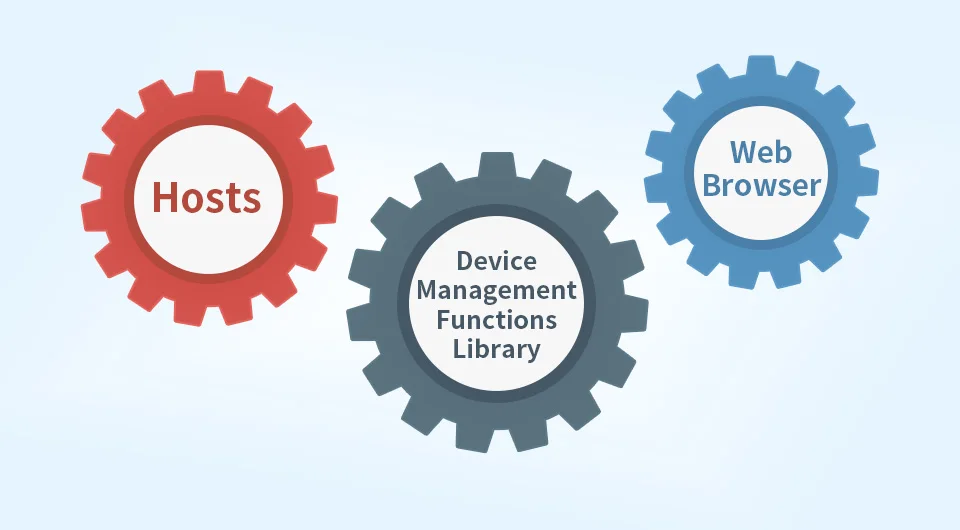

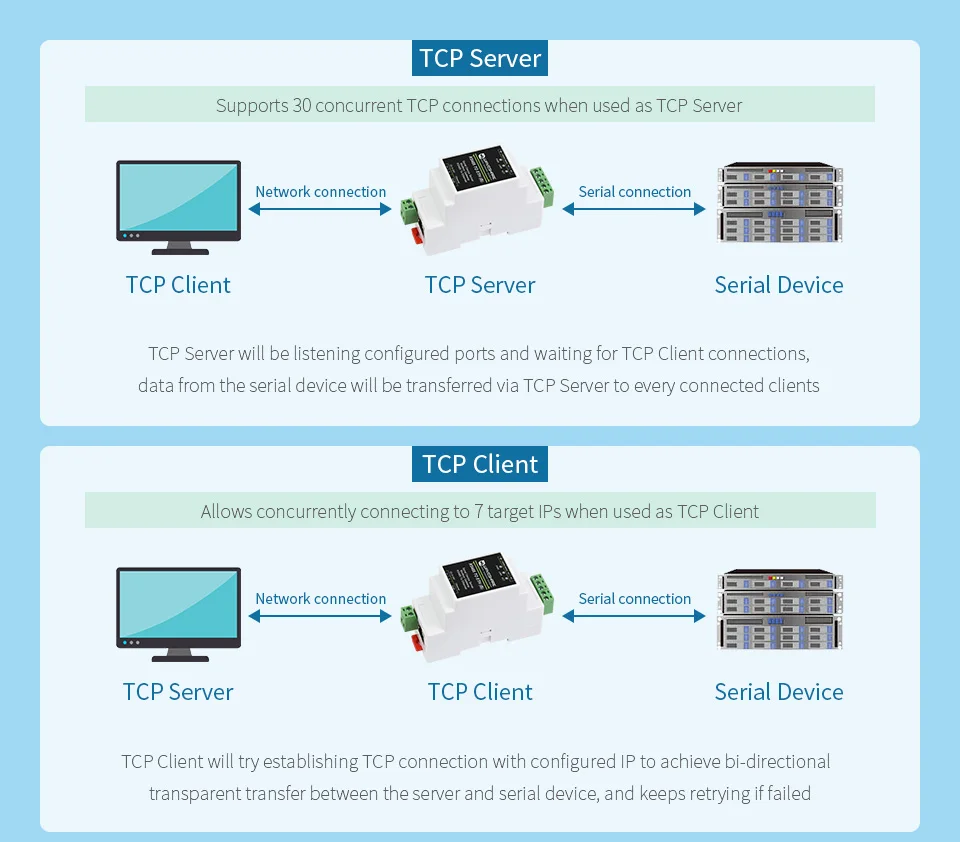

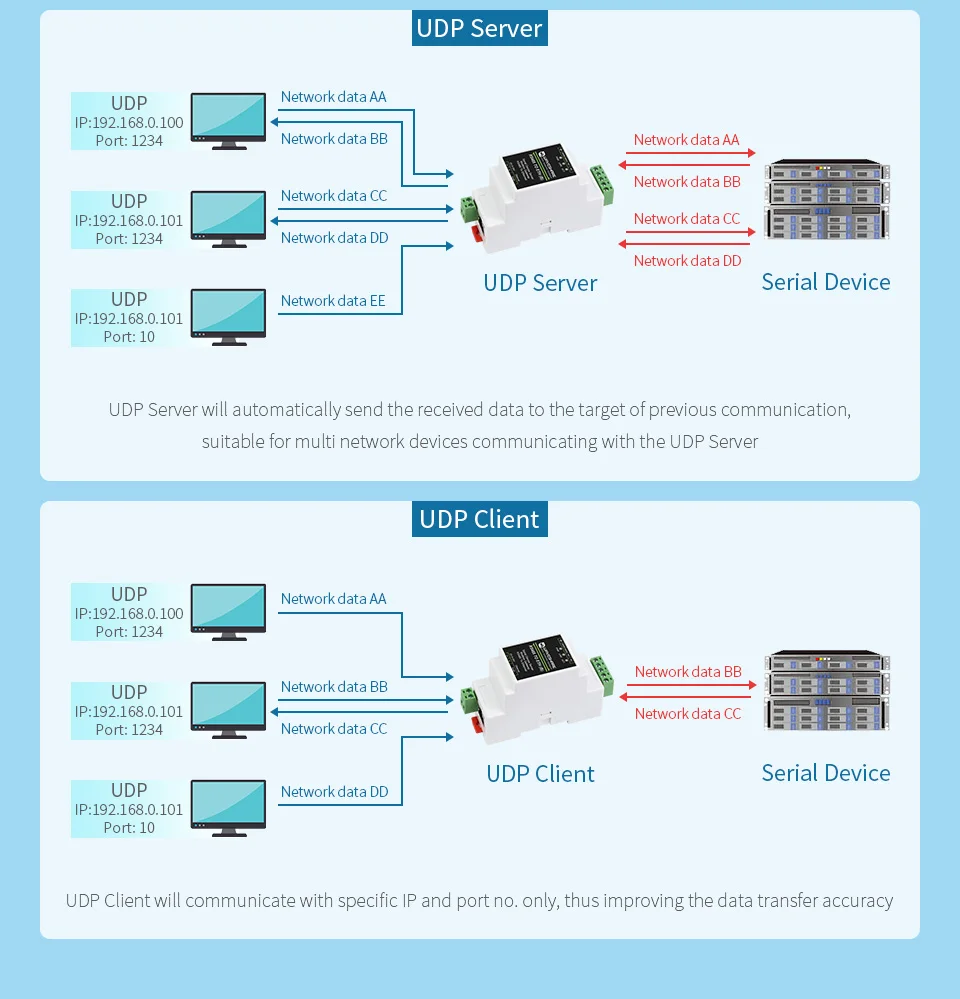

| Configuration | host, web browser, device management functions library |
| Communication method | TCP/IP direct communication, VCOM |
| Operating mode | TCP server, TCP client (coexisting with TCP server), UDP, UDP multicast |
| ENVIRONMENT REQUIREMENT | |
| Operating temperature | -40℃ ~ 85℃ |
| Storage temperature | -45℃ ~ 165℃ |
| Humidity range | 5% ~ 95% relative humidity |

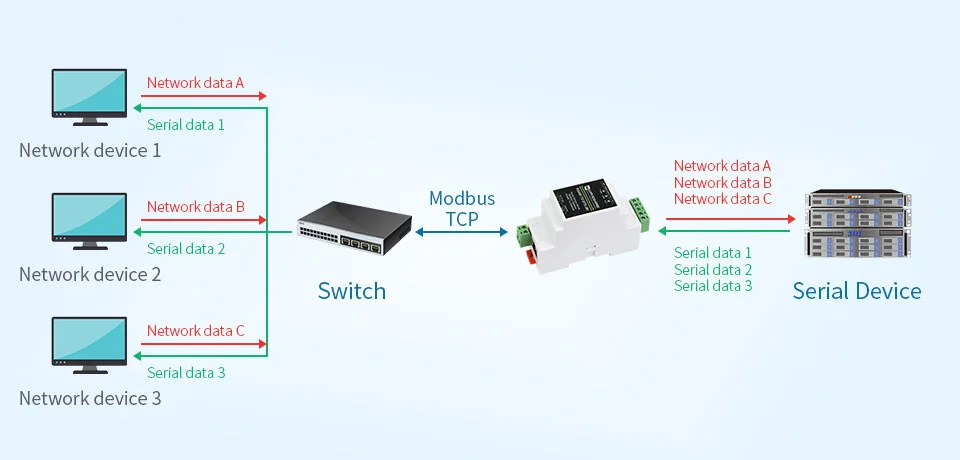

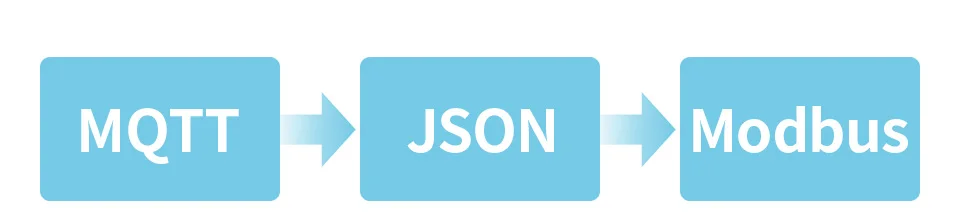

MQTT/JSON To Modbus
More Flexible Conversion Between Different Protocols
When used as MQTT gateway, the devices can upload serial data to MQTT server by MQTT protocol through transparent transmission, supported servers including Baidu Cloud MQTT, Alibaba Cloud MQTT, China Mobile OneNet, etc. The acquired Modbus RTU or non-standard serial data can be parsed into JSON format and packaged into MQTTdata packet for uploading.
When used as JSON data acquisition gateway, the devices can be connected to data acquisition instruments through RS485 connection, then acquire data automatically, convert the data into JSON format, and finally post it to server. The acquired data supports Modbus RTU 645 instrument 97 version, 645 instrument 07 version, as well as sorts of non-standard RS485 protocols. The uploaded data format can be configured via host, and the JSON upload protocol can be MQTT protocol, HTTP POST protocol, HTTP GET protocol, and so on.

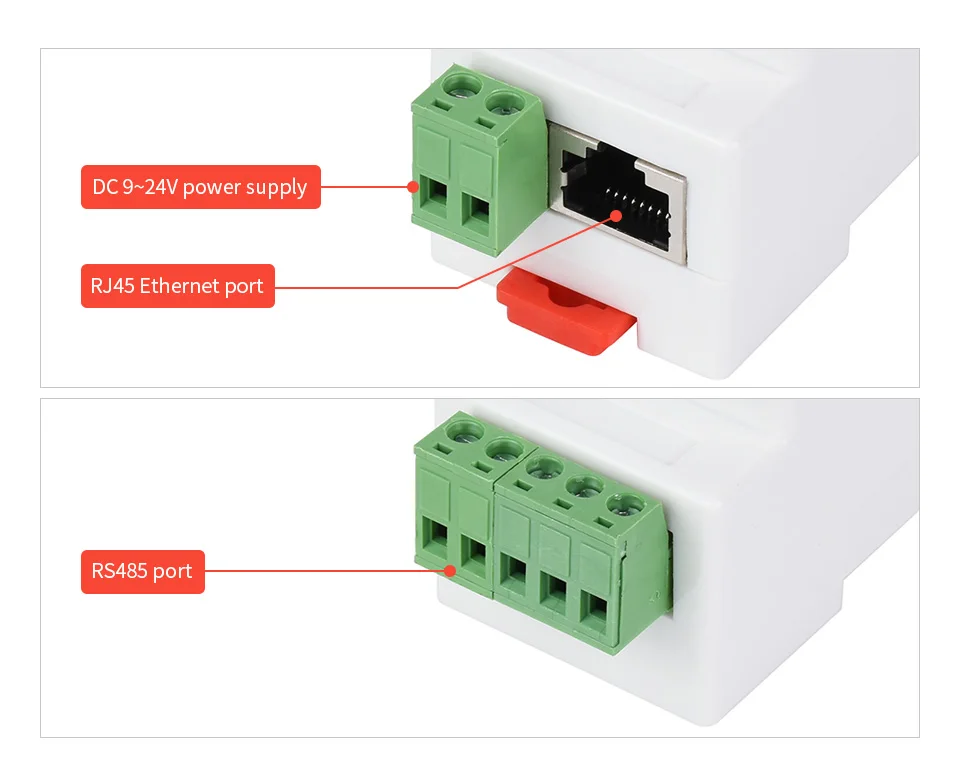

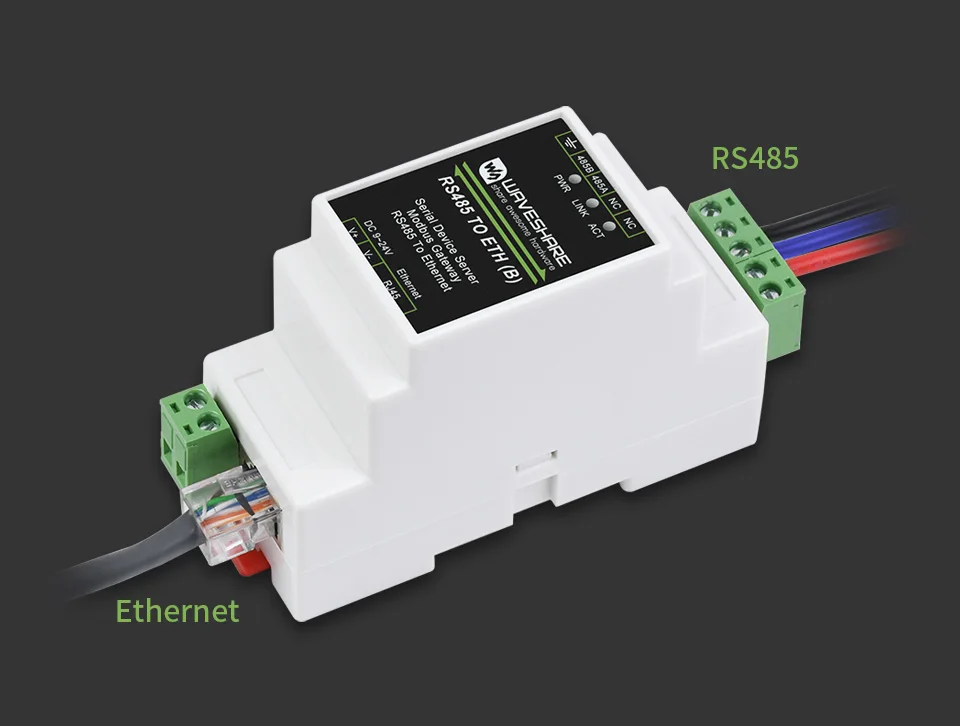

Interface Introduction

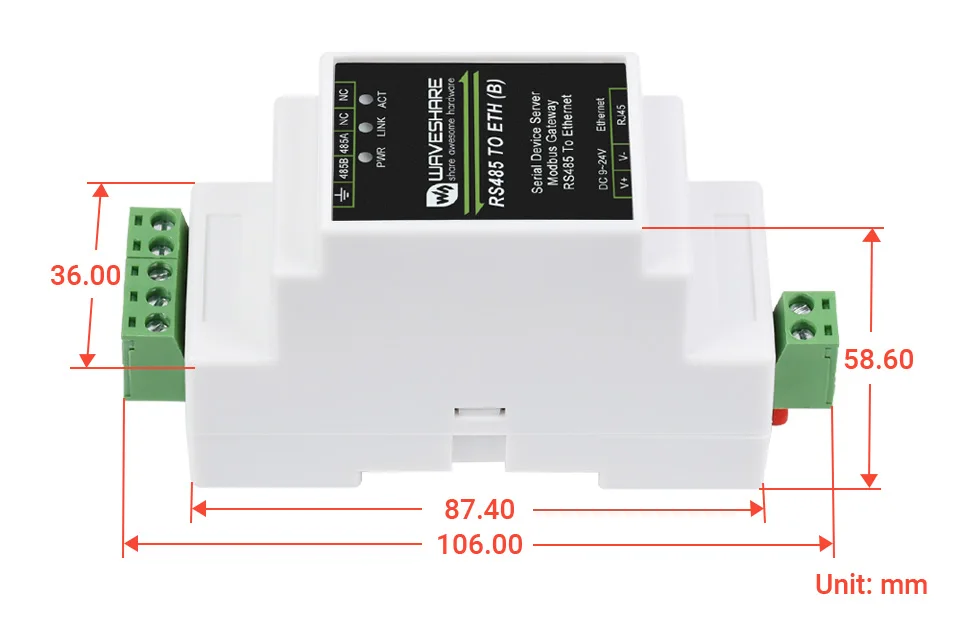

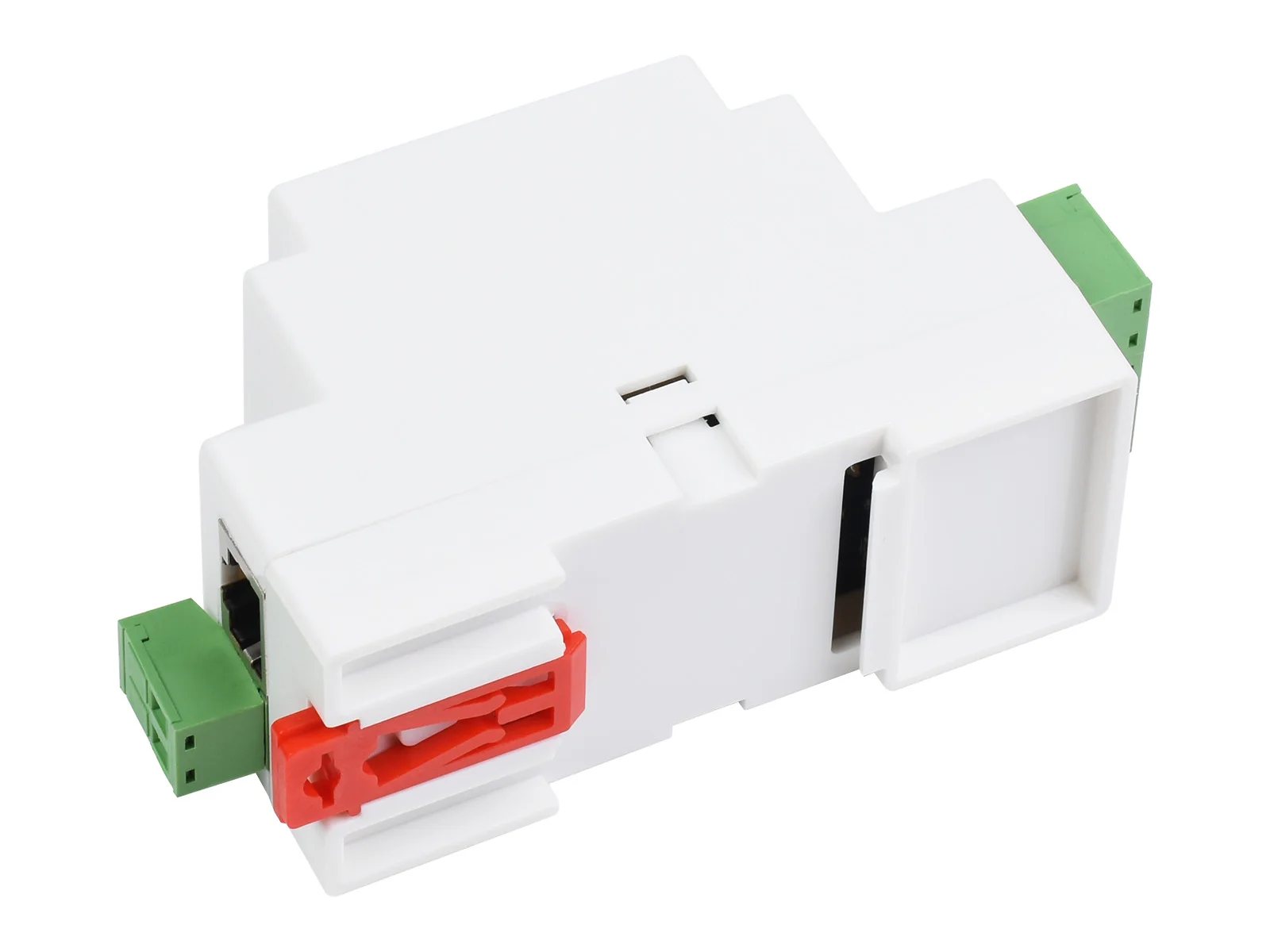

Outline Dimensions
Selection Guide
| UART TO ETH | RS485 TO ETH | RS485 TO ETH (B) | RS232/485 TO ETH | 2-CH-UART-TO-ETH | |
|---|---|---|---|---|---|
| Processor | Cortex-M0 | Cortex-M4 (up to 120MHz frequency) | CH9121 | ||
| ETHERNET | |||||
| Type | RJ45 (10/100Mbps auto-negotiation) | ||||
| UART | |||||
| Type | UART | RS485 | RS232+RS485 (allows concurrent operation) | UART | |
| Baudrate | 600bps~460.8Kbps | 600bps~230.4Kbps | 300bps ~ 115.2Kbps | 600bps~230.4Kbps | 300bps~921.6Kbps |
| Hardware flow | NOT supported | supported | NOT supported | ||
| Data bit | 5, 6, 7, 8 | ||||
| Stop bit | 1, 2 | ||||
| Parity bit | None, Even, Odd, Space, Mark | ||||
| INTERFACE PROTECTION | |||||
| Power supply | reverse-proof, ESD protection, anti-surge | ||||
| Ethernet | 1.5KV electromagnetic isolation | ||||
| RS485 | - | 2KV ESD protection, 2.2KΩ pull up/down registers | 2KV anti-surge | 2KV ESD protection, 2.2KΩ pull up/down registers | - |
| Other | - | - | - | lightningproof, over-current protection | - |
| OPERATING MODE | |||||
| Type | TCP Server, TCP Client, UDP Server, UDP Client, etc. | ||||
| TCP Server | customizable 1~16 Clients | supports 30 Clients | supports 2-ch Socket, 8 Clients per ch | customizable 1~16 Clients | |
| MISC | |||||

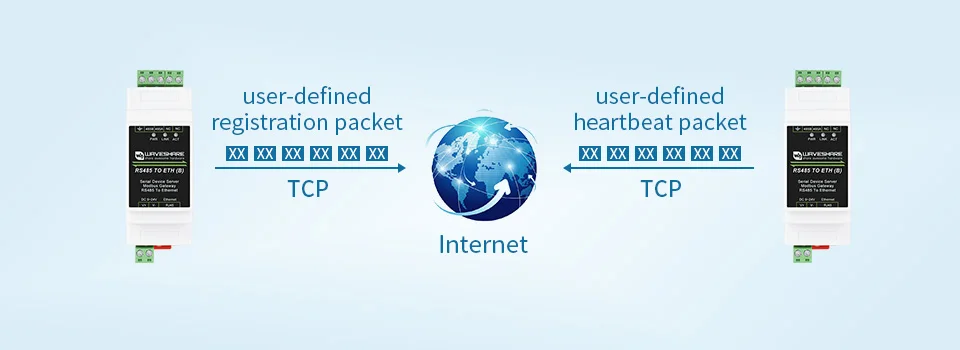

| Features | customized heartbeat packets, customized registration packets, customized webpage, RFC2217-like protocol, KeepAlive, timeout auto reboot, short connection, firmware upgrade via network | KeepAlive, firmware upgrade via network | |||
| - | - | Modbus gateway, MQTT/JSON to Modbus | Modbus gateway, Websocket (webpage to serial) | - | |
| Configuration | Built-in webpage, Host computer config software, Serial commands | Host computer config software, Serial commands | |||
| Power supply | 3.3V/5V | 5~7V | 9~24V | 5~36V | 3.3V/5V |
| Operating current | 150mA@5V | 110mA@5V | TBD | 86.5mA@5V | 140mA@5V |
| Operating temp. | -25~75℃ | -40~85℃ | |||
| Storage temp. | -40~105℃ | -55℃~125℃ | |||
PACKAGE CONTENT
Weight: 0.077 kg
