Shanghai Dongfeng 350kw 400kw 450kva diesel generators super silent top China brand OEM factory price

Shanghai Dongfeng 350kw 400kw 450kva diesel generators super silent top China brand OEM factory price

Category: Diesel Generators >>>
Supplier: Vlais,Inc.

Price:$15,600.00 - $17,800.00

Price in USD:Details

Quantity:

Product Overview

Description

VLAIS generator is committed to researching, manufacturing and installing first-class professional high-performance generator sets.We have a modern assembly workshop for the production of generator sets, using high-quality raw materials, first-classaccessories and with the most professional technicians to strictly control the production process.It can also be customized according to customers’ needs. Our products have passed I S O 9 0 0 1 : 2 0 0 0 international quality management system certification, German TVU certification and SGS testing, and have UL\\ CCC\\ CE\\ TLC\\ GS and other international certificates.We are committed to researching, manufacturing and installing first-class professional high-performance generator sets.We have a modern assembly workshop for the production of generator sets, using high-quality raw materials, first-classaccessories and with the most professional technicians to strictly control the production process.It can also be customized according to customers’ needs. Our products have passed I S O 9 0 0 1 : 2 0 0 0 international quality management system certification, German TVU certification and SGS testing, and have UL\\ CCC\\ CE\\ TLC\\ GS and other international certificates.

360kw/450kva Shanghai Dongfeng Engine Generator
Rated Power	360 kw/ 450 kva	Cylinder number	6
Max. Power	396 kw/ 495 kva	BoreStroke (mmmm)	135*165
Engine Model	SYG142TAD42	Displacement (L)	14.16
Alternator Model	VL-544C	Compression Ratio	15.55:01
Controller	Smartgen HGM6120	Fuel Consumption (g/kw.h)	196
Higher standard specifications
High water temperature protection	YES	Rated Voltage	110V/220V/380V/415V
Low oil pressure protection	YES	Rated Frequency	50/60HZ
High and low frequency protection	YES	Rated rotation speed	1500/1800 rpm
High and low voltage protection	YES	Power factor Cos%	0.8
Insulation class	H	Phase	Single/ Three
Protection class	IP23	Cooling method	Water-cooled
Electrical phase connection	3 phase 4 wire	Starting system	Electric starter
Excitation mode	AVR	Excitation method	Brushless

FEATURES

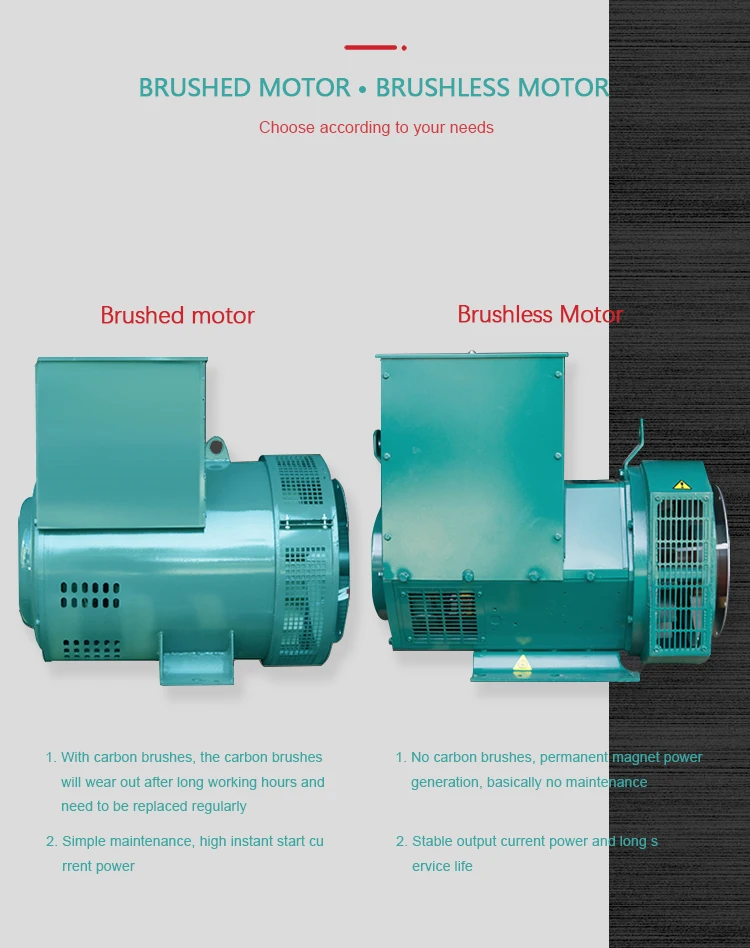

Equipped with electric starting form, 100% copper brushless motor, 3 phase 4 wire, 6 cylinders four strokes, water-cooled system direct injection power model

Weatherproof and super soundproof canopy with strong corrosion-proof

Equipped with belt driven cooling fan, fan safety shield, suitable for the environment, 50 ° C radiator tank

Equipped with Automatic Voltage Regulator, air switch,standard control panel

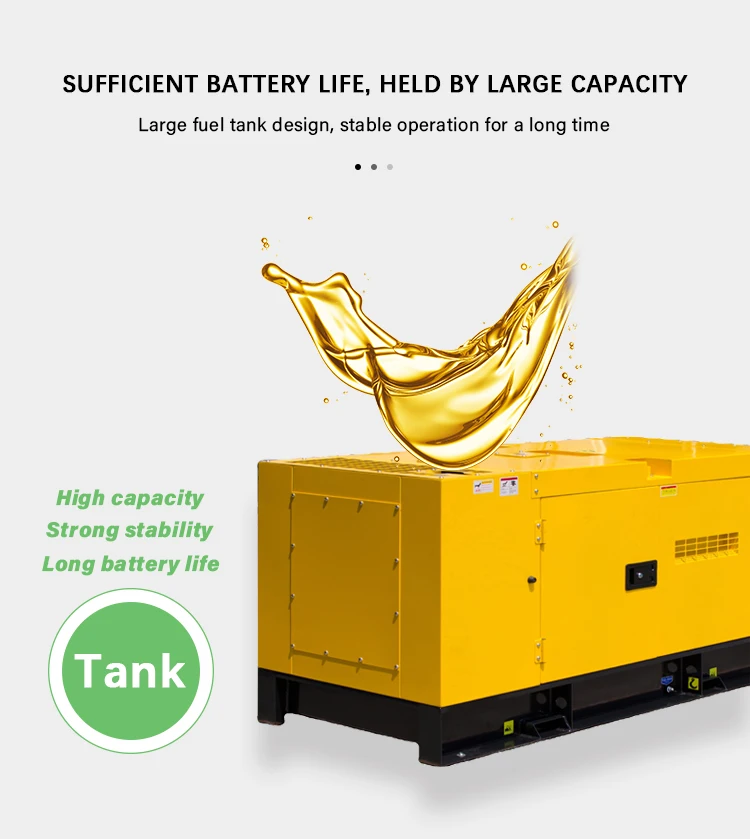

Equipped with 8 hours base fuel tank at full load

DC output 12V

Multi-way air intake and exhaust guarantee the power performance ofthe generator

Internal high performance rubber damper and flexible materials reduce vibration

180° revolvable and disassemble door for easy maintenance

Transparent viewing window make the control panel clear at a glance

Emergency stop button mounted on the canopy exterior for urgency

Acid pickling phosphate treatment, anti-rust,anti-corrosion, weatherproof and soundproof

All qualifiled diesel generators are subjected to a comprehensive performance test which includes 50%load,70%load,100% load,110% load and to check,verify that all control systems,alarm and shut-down protection

VLAIS generator features with high quality engine core, strong and stable output performance, lower fuel consumption, silently working condition,smart and automatic controller as operation. It is applied to all industrial and life such as hospital, school, hotel and production plant. Necessary and Fond. Have vlais have future !
