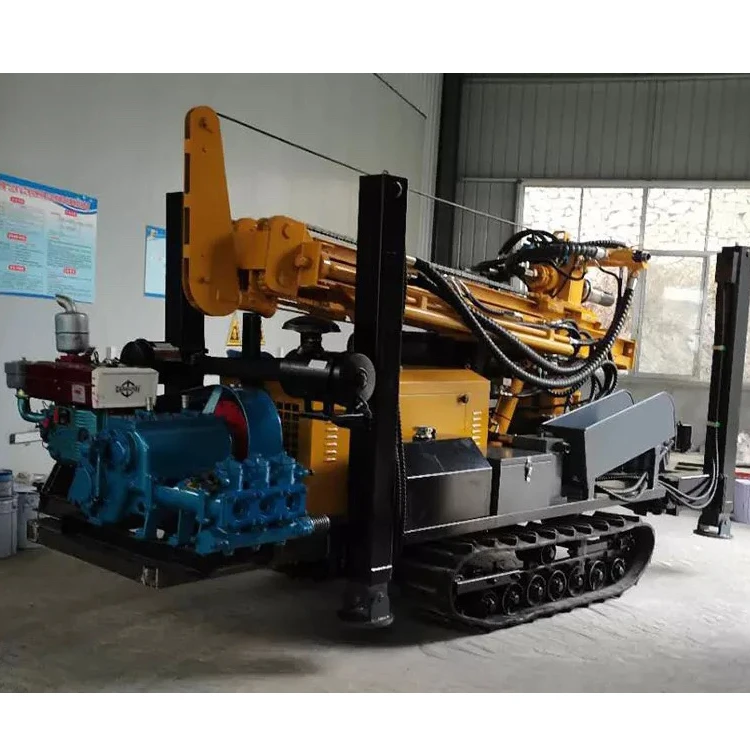

penumatic drilling mud drilling hydraulic DTH FYL200 water well drilling rig
- Category: >>>
- Supplier: North Star (Beijing) Machinery & Drilling Tools Co. Ltd.
Share on (1600383399343):
Product Overview
Description
To Customer
*Drilling Depth: 180m, 200m, 300m, 350m, 450m, 500m, 600m, 800m
*Drilling Diameter: 75mm-325mm;
*CE, ISO, TUV, BV Certificate;
*Working Site Instruction;
*Drilling Diameter: 75mm-325mm;
*CE, ISO, TUV, BV Certificate;
*Working Site Instruction;
Product Description
Specification | ||
The Weight (T) | 4.5 | |
The Hole Diameter (mm) | 140-254 | |
Drilling Depth (m) | 180 | |
One-time Advance Length (m) | 3.3 | |
Walking Speed (Km/h) | 2.5 | |
Climbing Angles (Max) | 30 | |
Equipped Capacitor (Kw) | 55 | |
Using Air Pressure (Mpa) | 1.7-2.5 | |
Air Consumption (m³/min) | 17-31 | |
Drill Pipe Diameter (mm) | 76mm 89mm | |
Drill Pipe Length (m) | 1.5 2.0 3.0 | |
Rig Lifting Force (T) | 12 | |
Rotary Speed (rpm) | 45-65 | |
Rotary Torque (N.m) | 3200-4600 | |
Dimensions (mm) | 3950x1630x2250 | |
