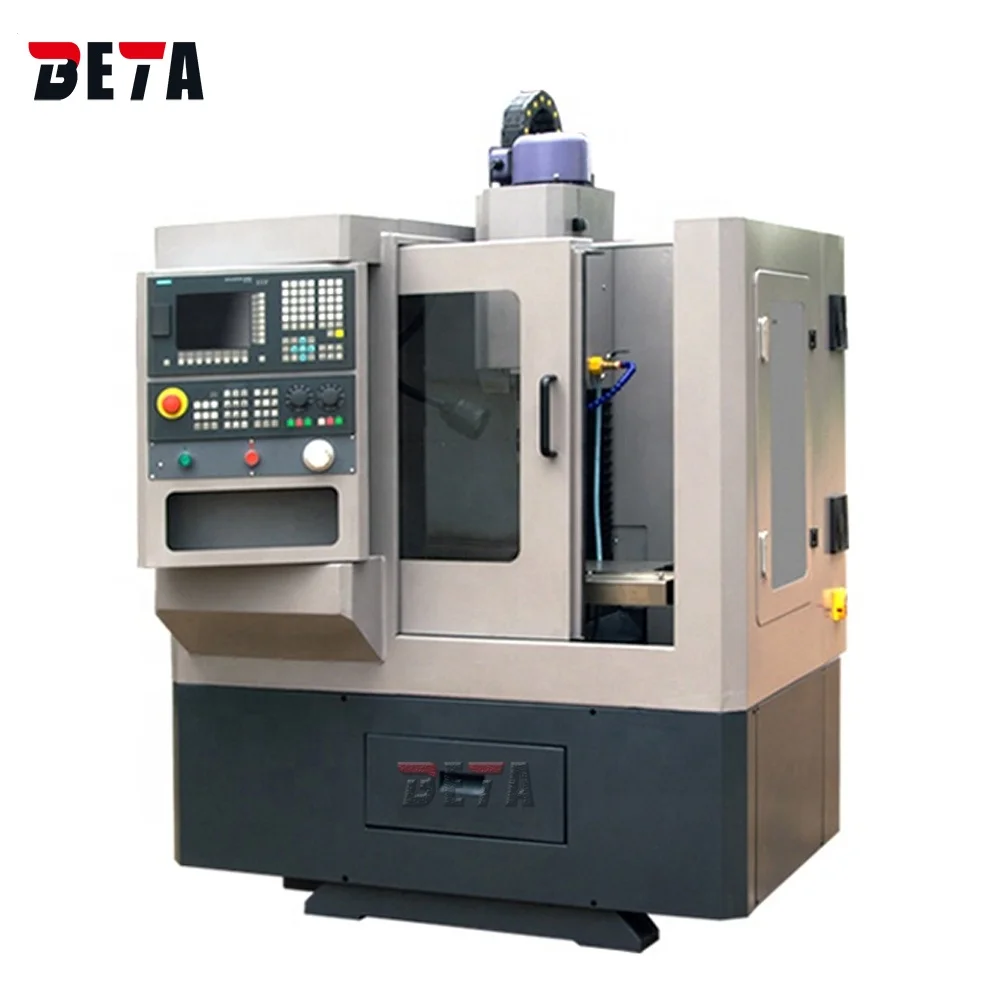

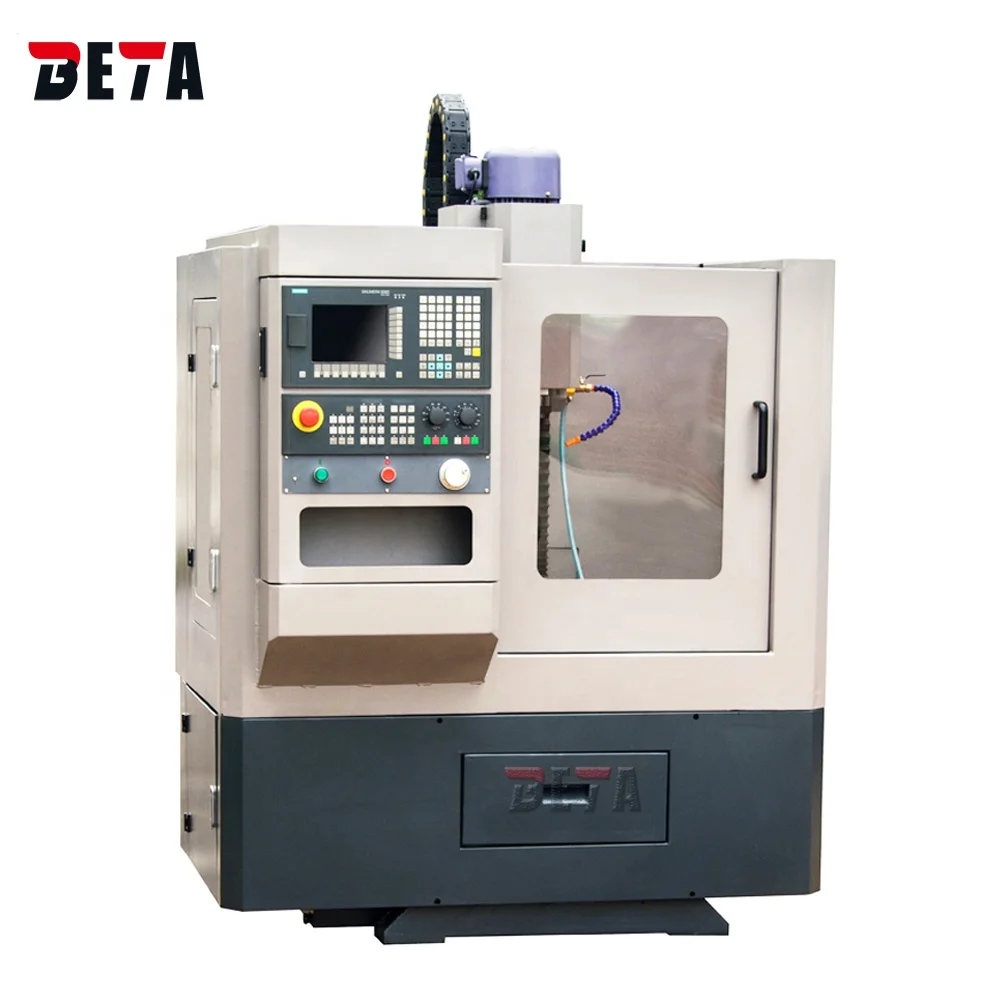

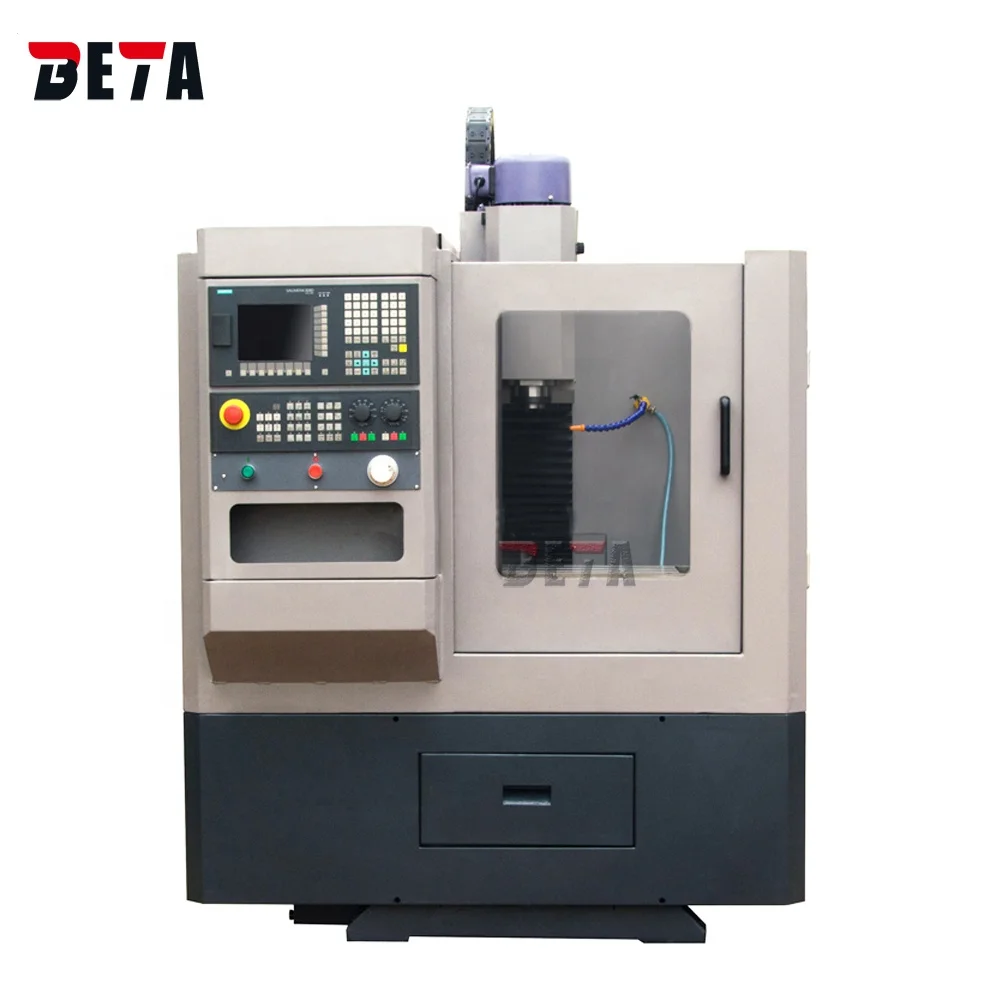

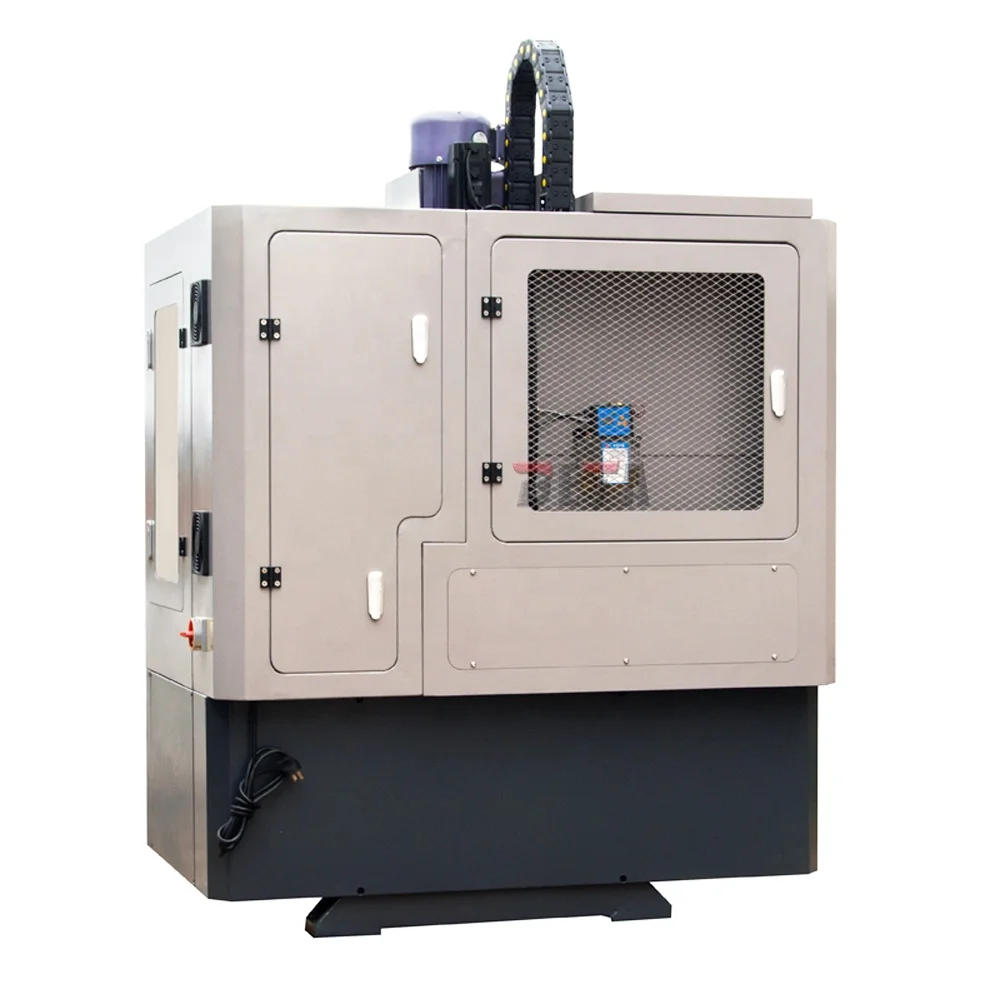

3 Axis Metal Processing GSK China Vertical Small Mini CNC Milling Machine XK7121 for sale
Product Parameters
Specification | XK7121 |
Table size | 660x210mm |
T slot (width*qty*space between) | 3x14x63 mm x pc x mm |
X/Y/Z axis travel | 400x220x350mm |
Distance between spindle nose and table | 45-375mm |
Distance between spindle center and column | 260mm |
Max.speed of the spindle | 6000rpm |
Positioning accuracy | 0.02mm |
Repeat posotioning accuracy | 0.01mm |
Spindle taper | BT30/R8 |
Main motor power | 2.2KW |
X/Y/Z feed motor power | 2.39/2.39/3.18 NM |
Rapid feeding speed X,Y,Z axis | 8 m/min |
feeding speed | 0-2400 mm/min |
Min.set unit | 0.001 mm |
Over dimensions | 1450x1240x1890mm |
N.W | 650kg |

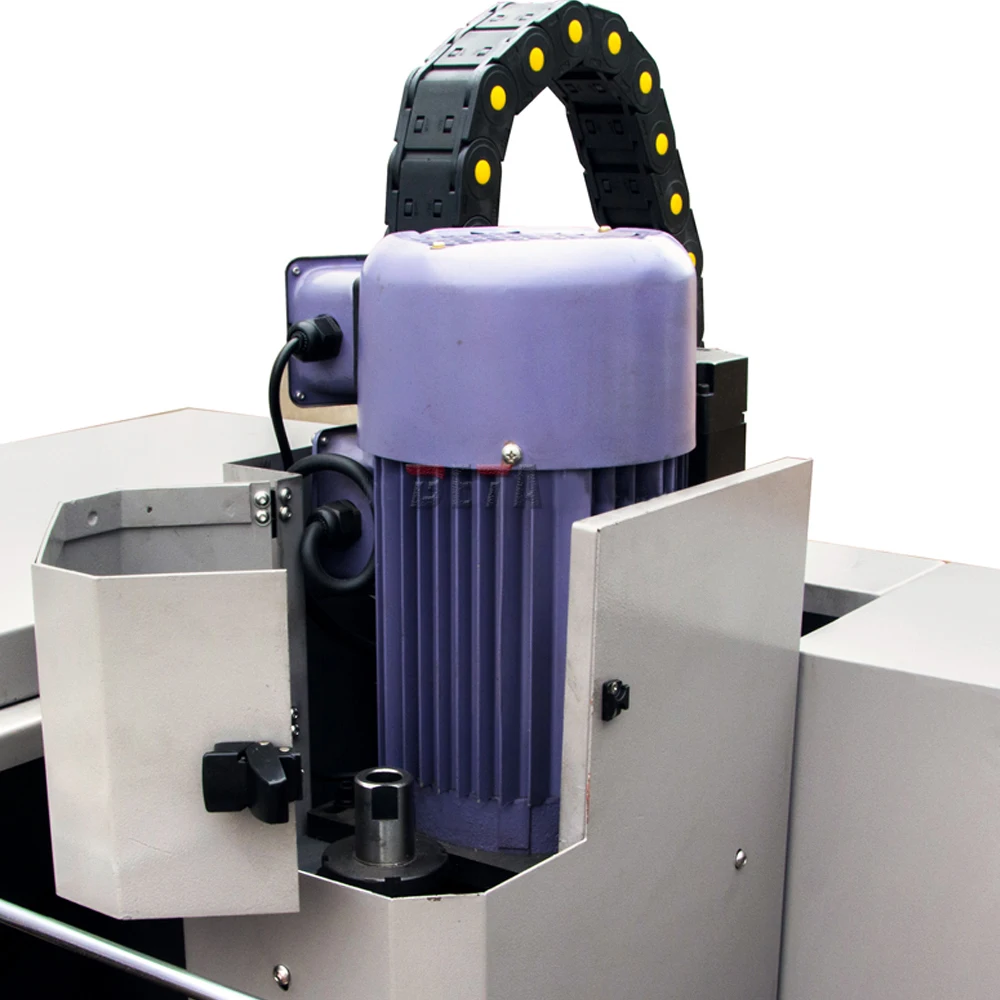

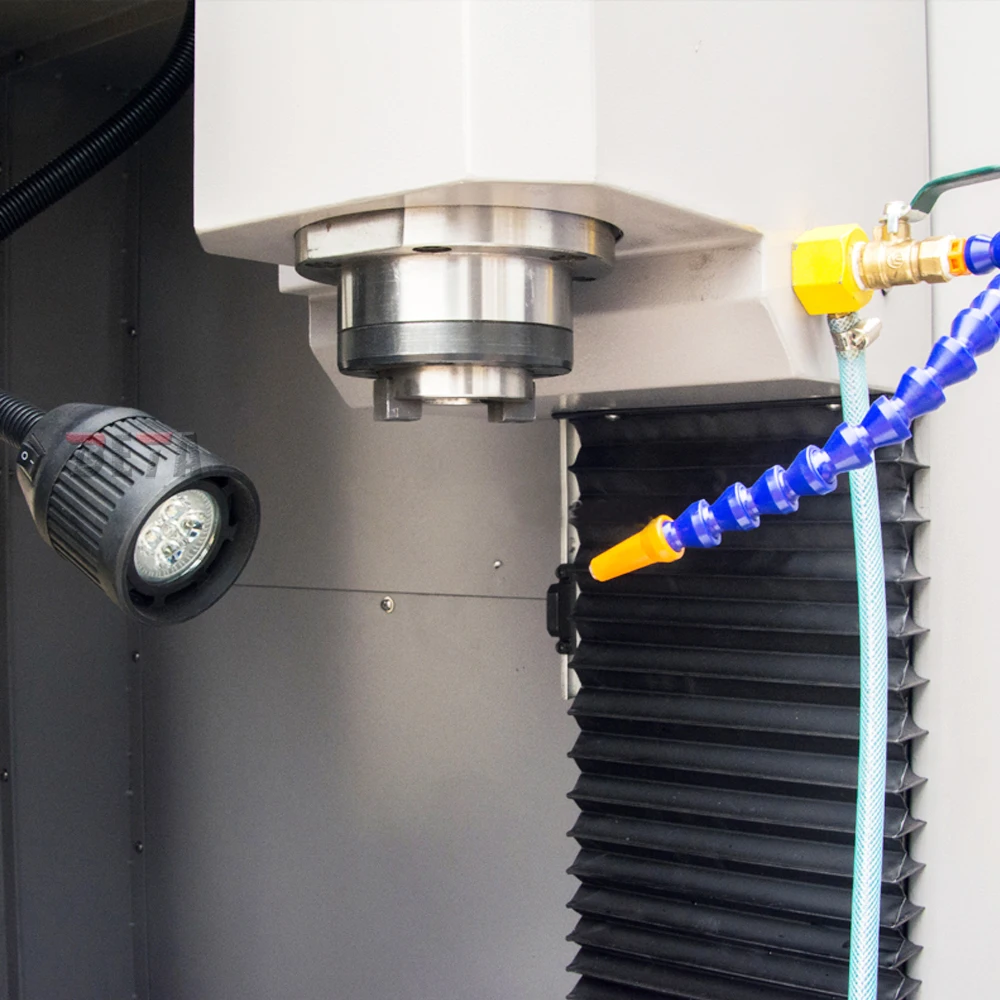

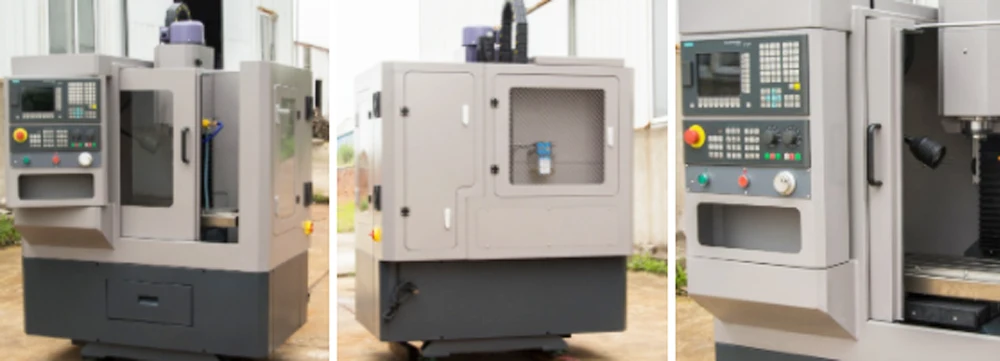

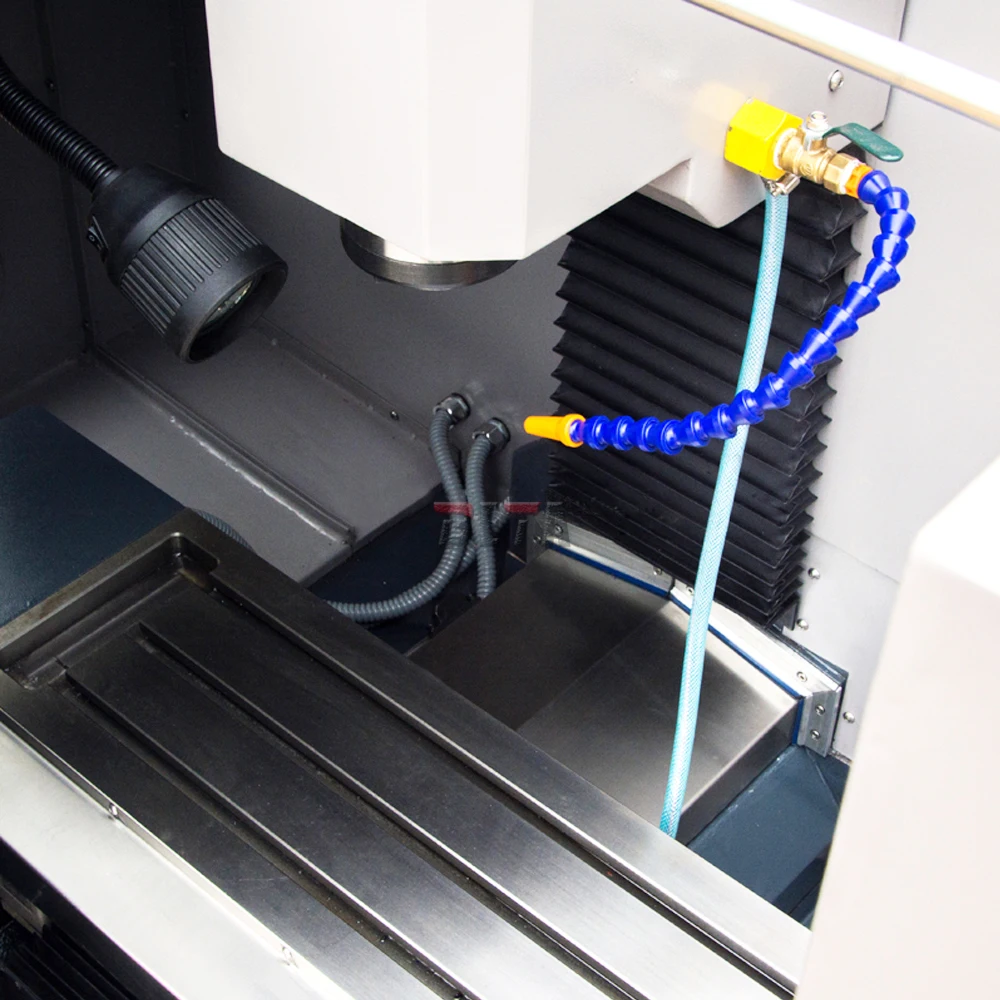

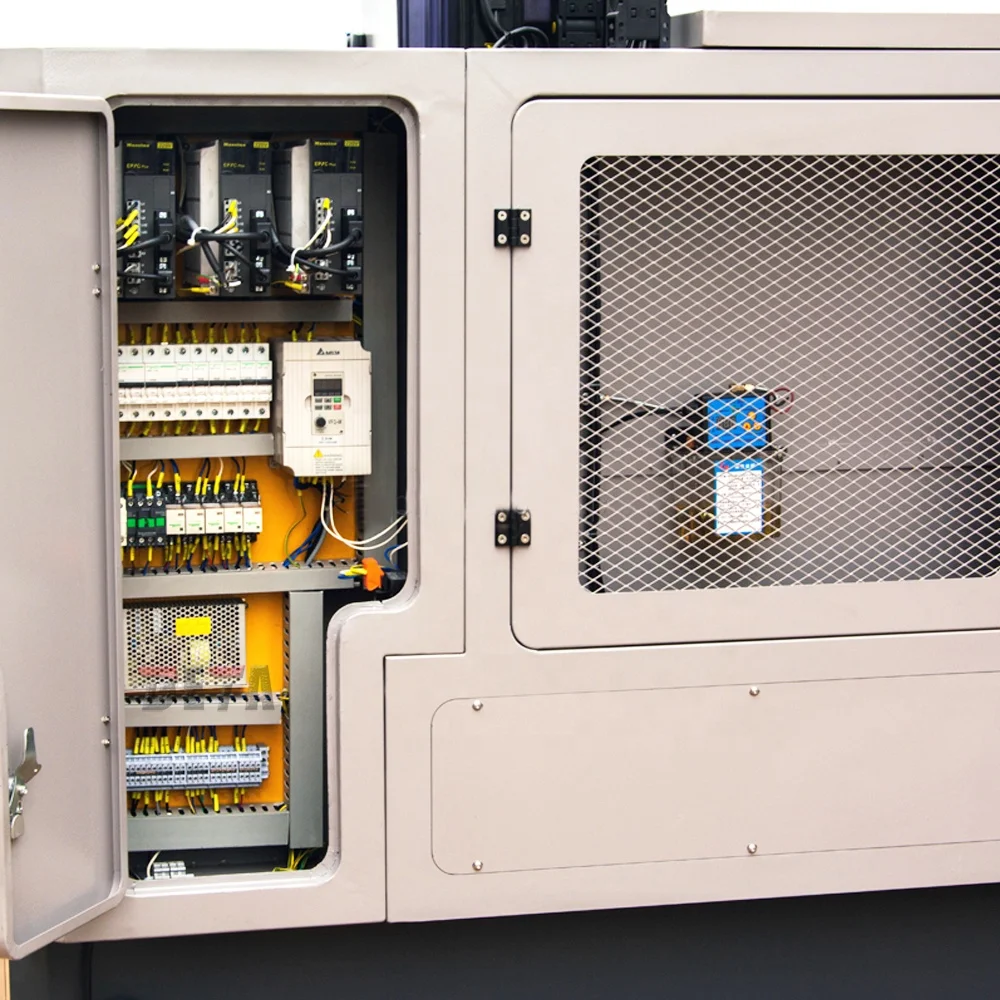

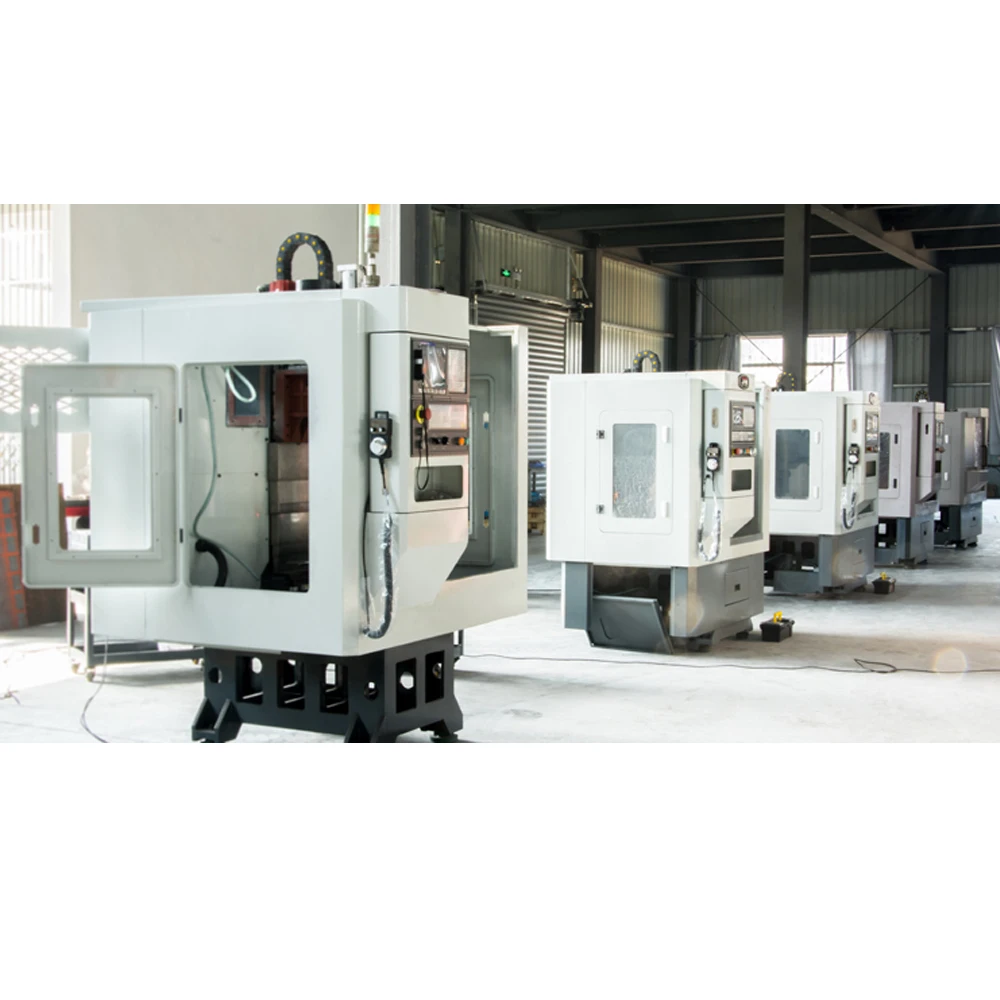

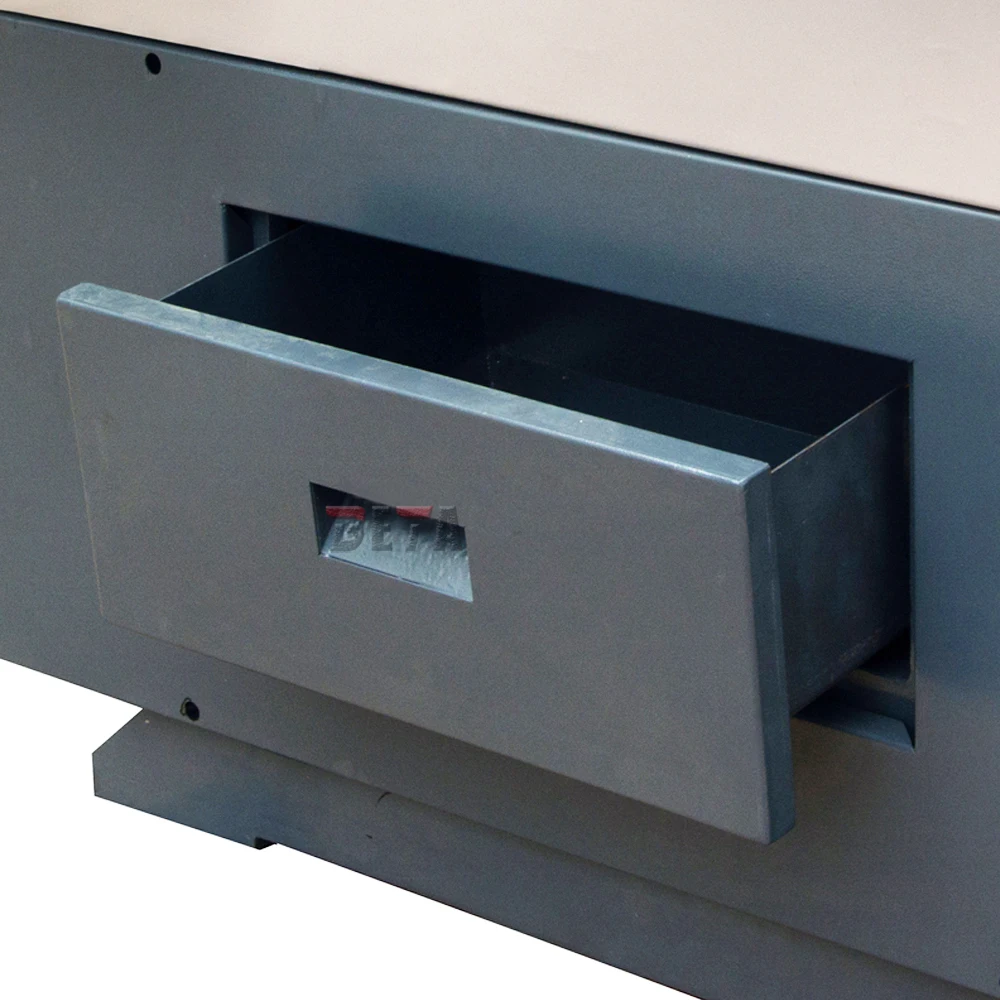

Details Images
