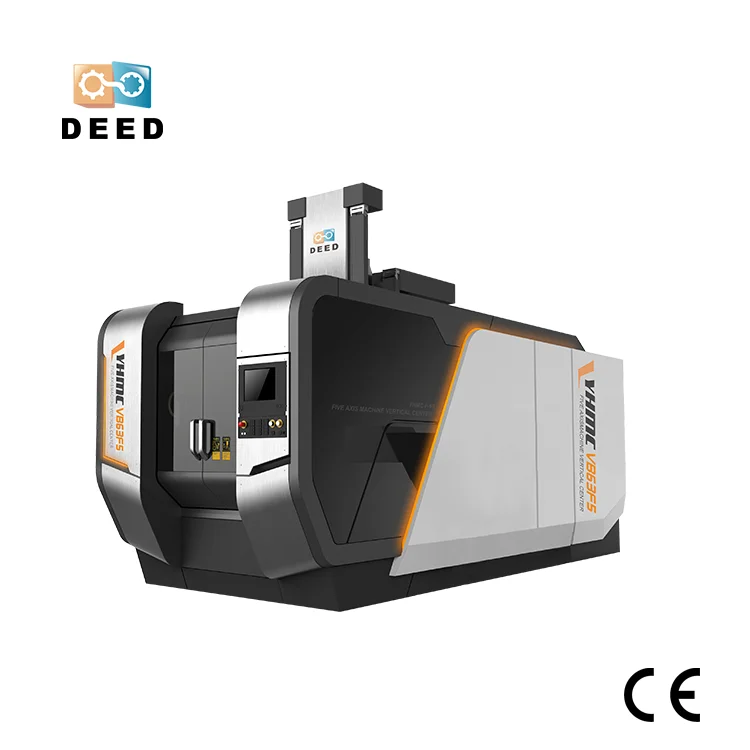

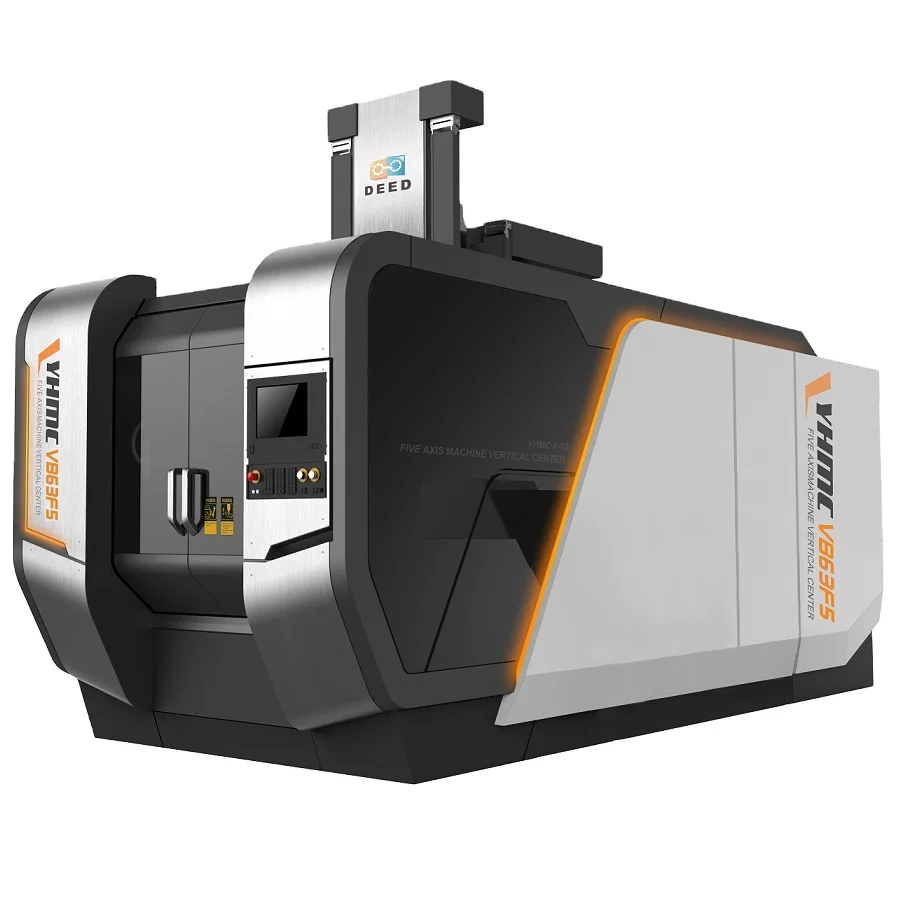

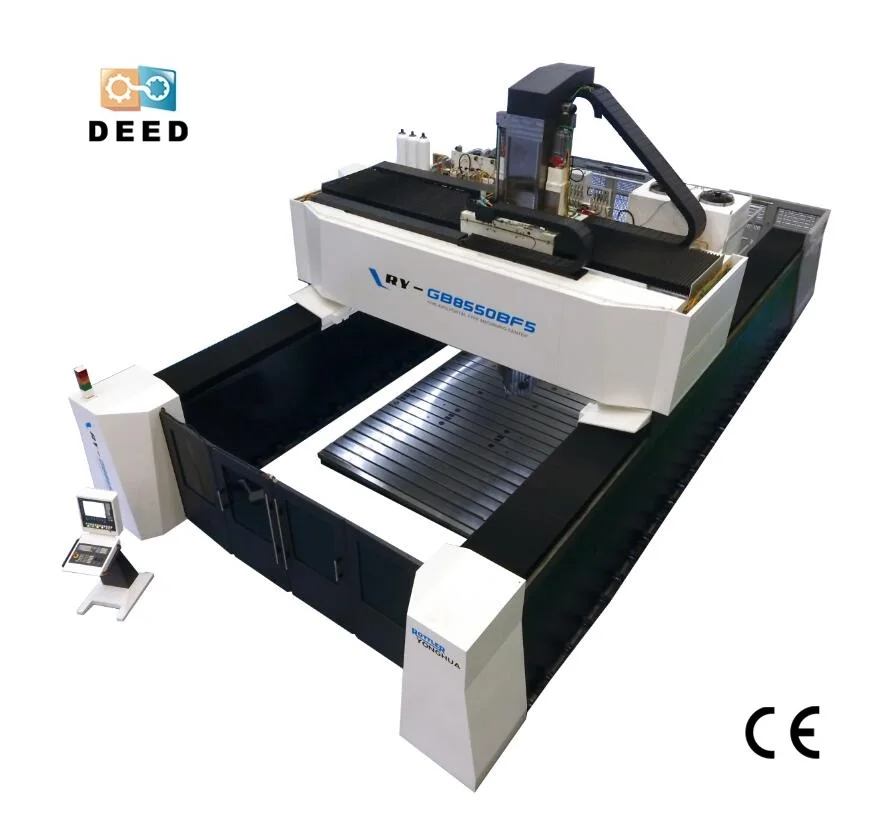

DEED VB RY Series Vertical Five axis Machining Center manufacturers

Product Overview

Description



Control System	SIMENS 840DSL
TRAVEL
X-axis travel	8500 mm
Y-axis travel	4000 mm
Z-axis travel	1500 mm
B-axis travel	-110°/+5°
C-axis travel	±185°
Z-axis travel	185°
SPINDLE
Drive type	Build-in
Spindle taper	HSK-A63
Max. Speed	12000 rpm
Spindle Power	56 kW
Spindle Torque	89 N.m
Vertical milling head	HSK-A100/6000 rpm/60 kW/1830 Nm
Right angle milling head	HSK-A100/4000 rpm/60 kW/1830 Nm
TABLE
Size	3500x9000 mm
T-Slot	36
Max load	5 T/m²
Rapid traverse X/Y/Z	28/28/20m/min
B/C	12/6 rpm
Others
Positioning X/Y/Z	0.03x0.02x0.015 mm
Repeatability  X/Y/Z	0.02x0.015x0.01 mm
Tool Magazine Capacity	ATC-60T
Power Capacity	100 kVA
STANDARD CONFIGURTION:
SIMENS 840DSL	Workpiece air cooling
Build-in Spindle	ATC 60T
Roller Linear guideway for 3 axes	Spindle water chiller
Ball screw/Rack and pinion	Nitrogen balancing
Ball screw bearing for spindle	Manual Pulse Generator
Spindle taper air blow	Working lamp
Spindle air curtain dust-free	Tri-color Alarm light
Spindle ring spray	Mechanical & electrical manuals
Flexible cover	Air conditioner
Auto lubrication system	CE components
Workpiece water cooling	Linear scale for 3 axes
Fork swing head	Right angle milling head
Vertical milling head
OPTIONAL CONFIGURTION:
HEIDENHAIN	Chip conveyor and chip cart
Coolant through spindle-CTS	Column heightening
Workpiece measuring	Door interlock
Tool measuring
