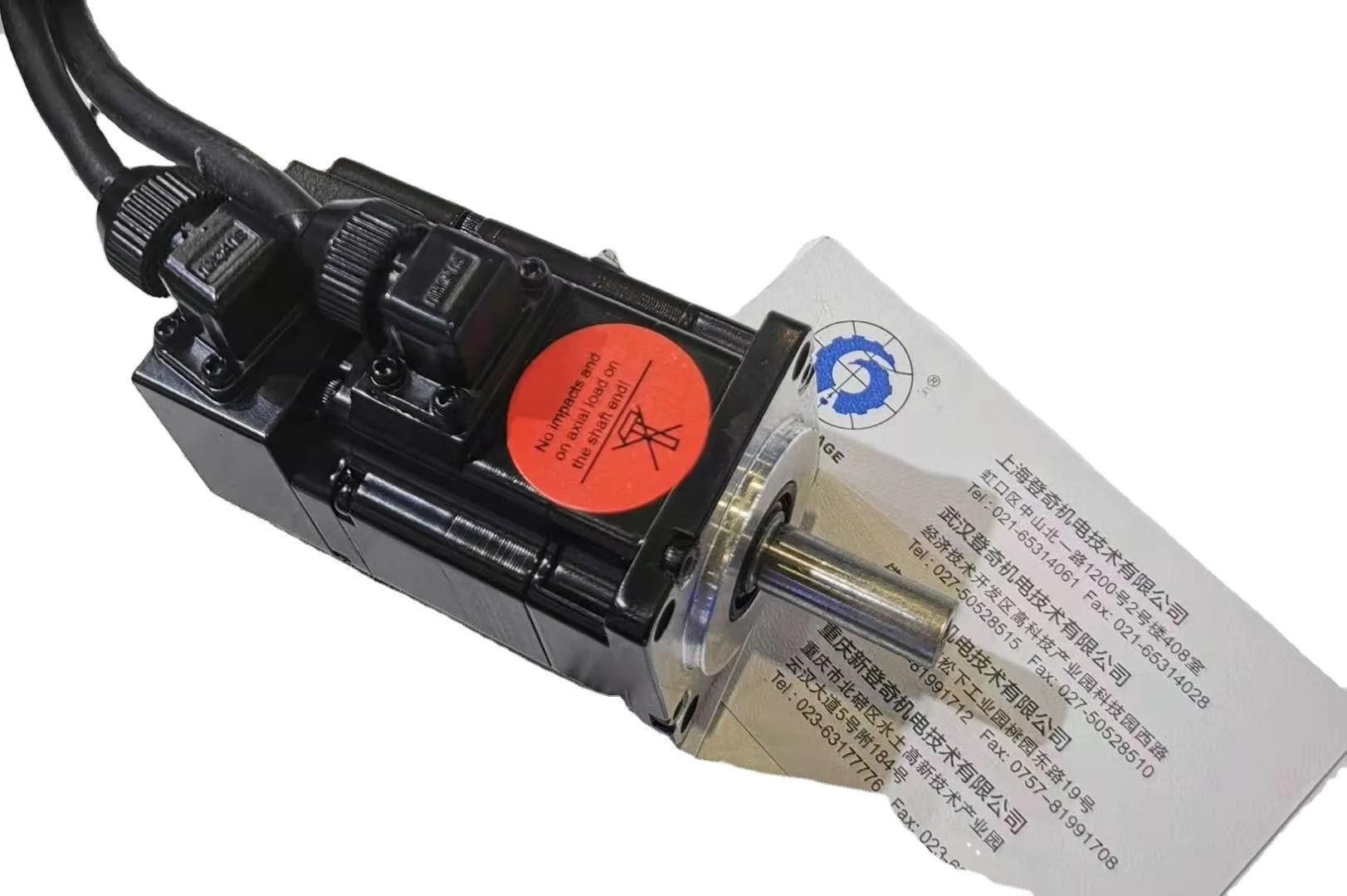

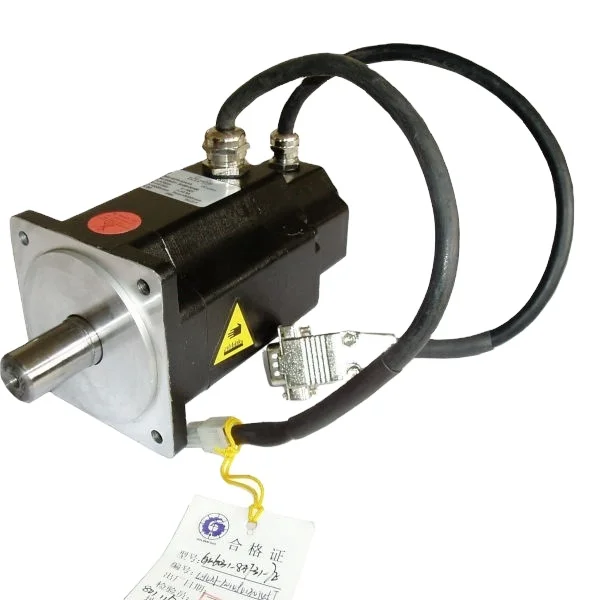

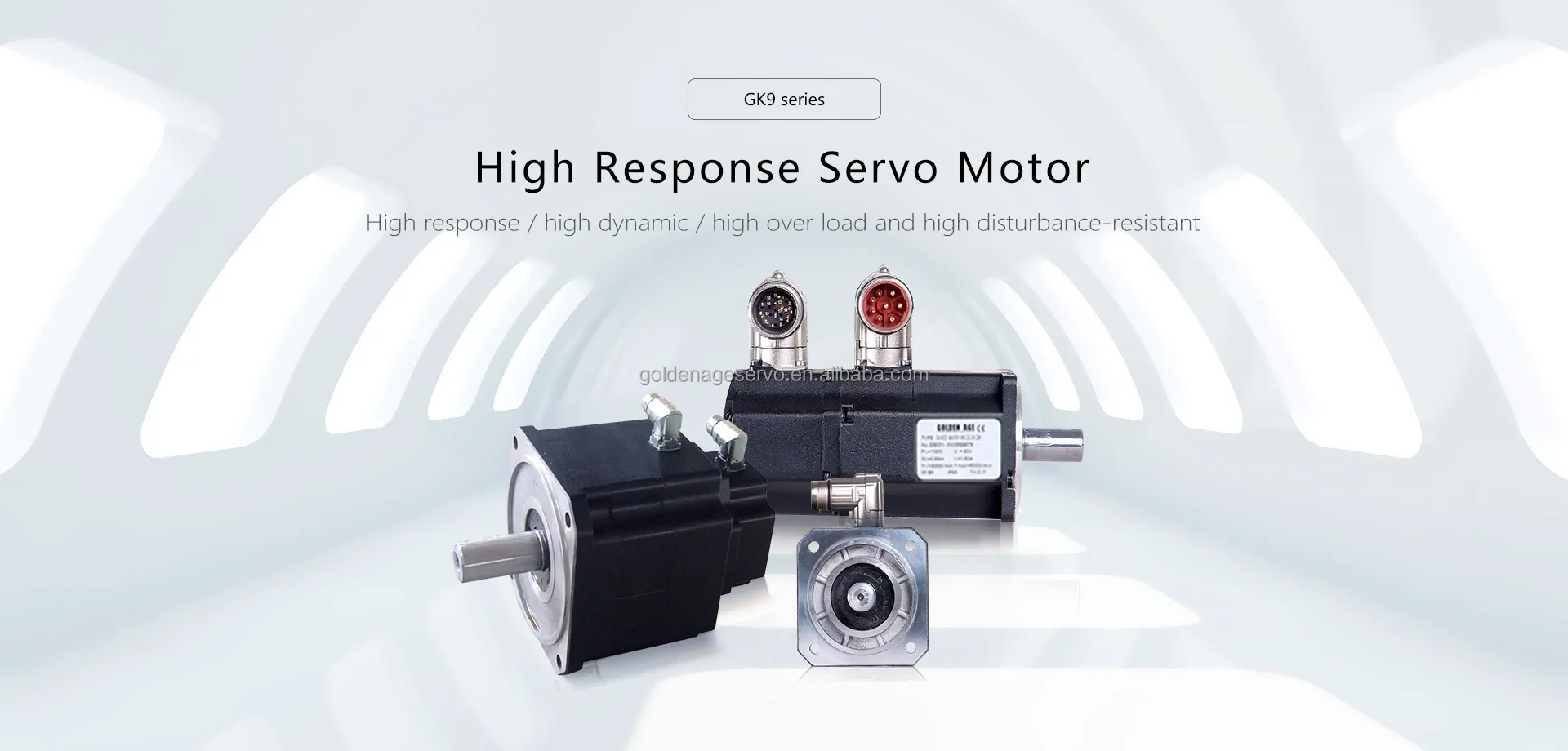

GOLDEN AGE PMSM motor CNC motor 1kw 3.2Nm 4.5A 3000rpm cnc kit motor

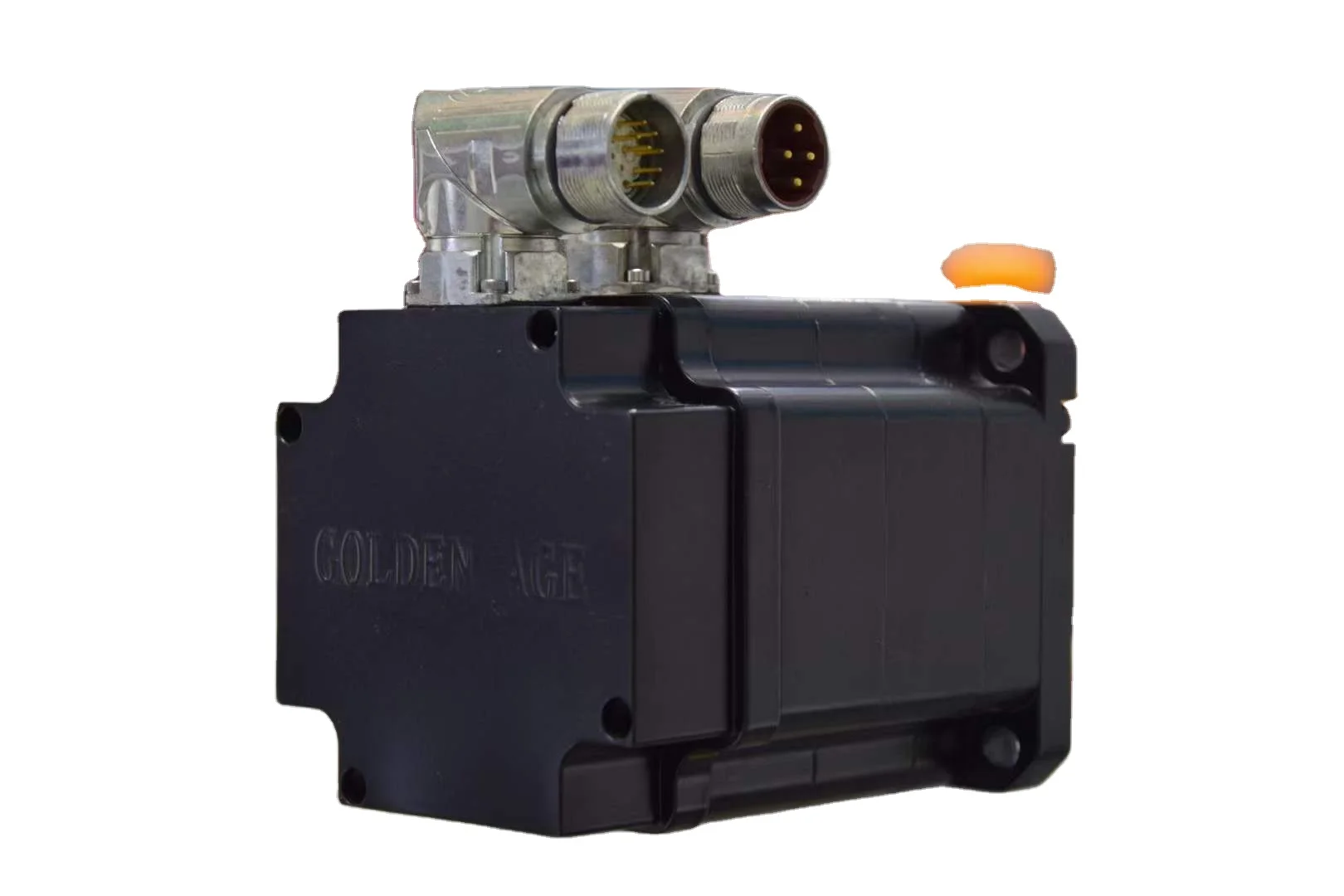

GK9 high power density high response permanent magnet servo motor is made by drawing the extensive application experience of GK6 and GK8 series in the market with an optimization design of high density magnetism gathering, adopting high density ferromagnetic material density structure with direct heat conduction of stator insulation system, full circle and no cogging torque. It aims at meeting high-speed, high-precision, high-response, and high-density requirements in in robots, CNC machine tools, automation system fields, and becoming the benchmark of international leading servo motor products. The product has high material quality, low torque ripple (0.8%/0.3%), high interchangeability, large investment and rigorous process.

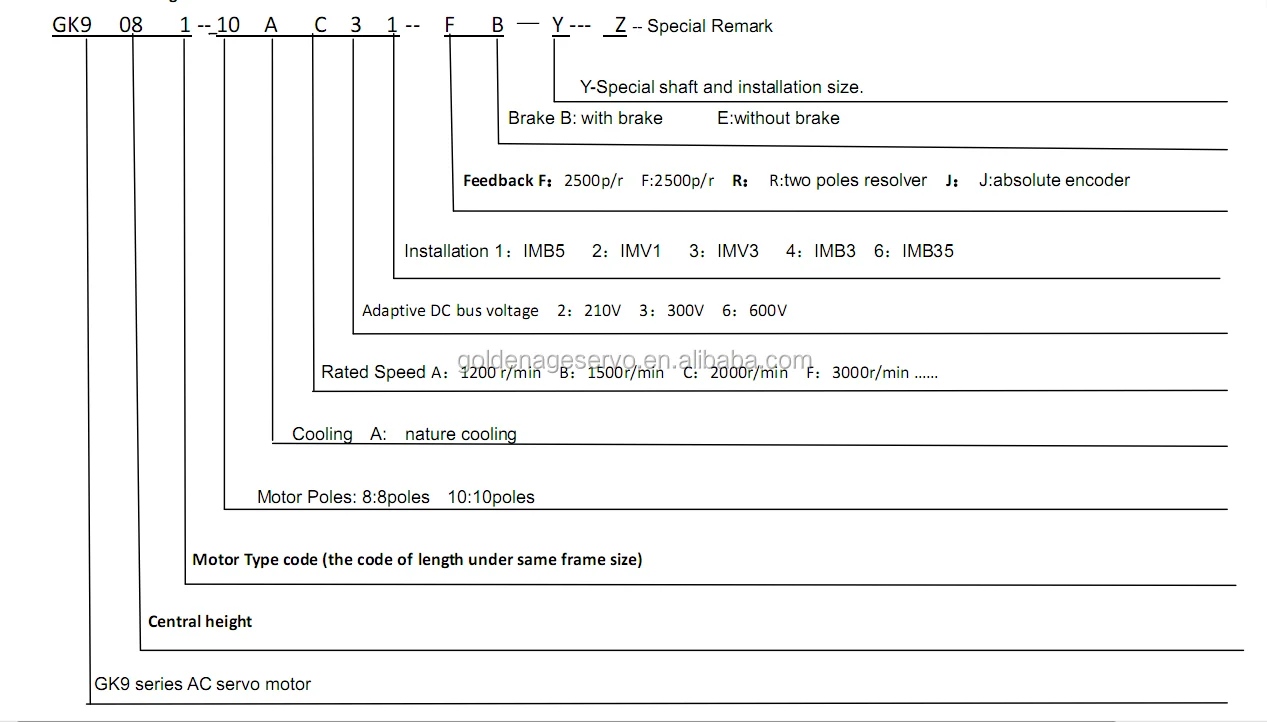

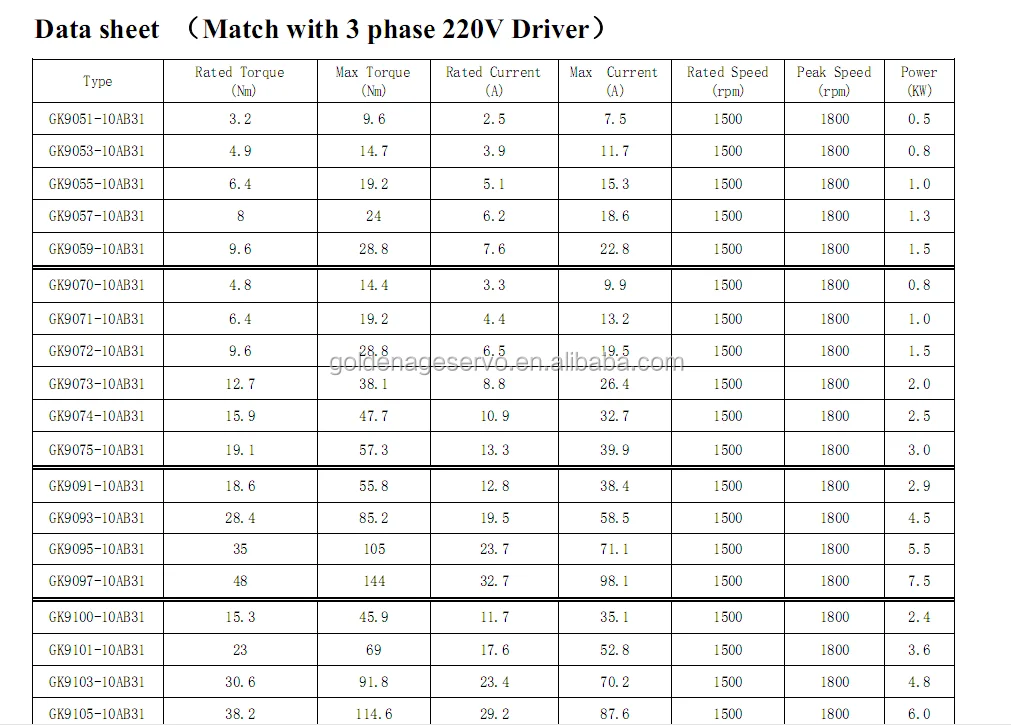

Type Definition

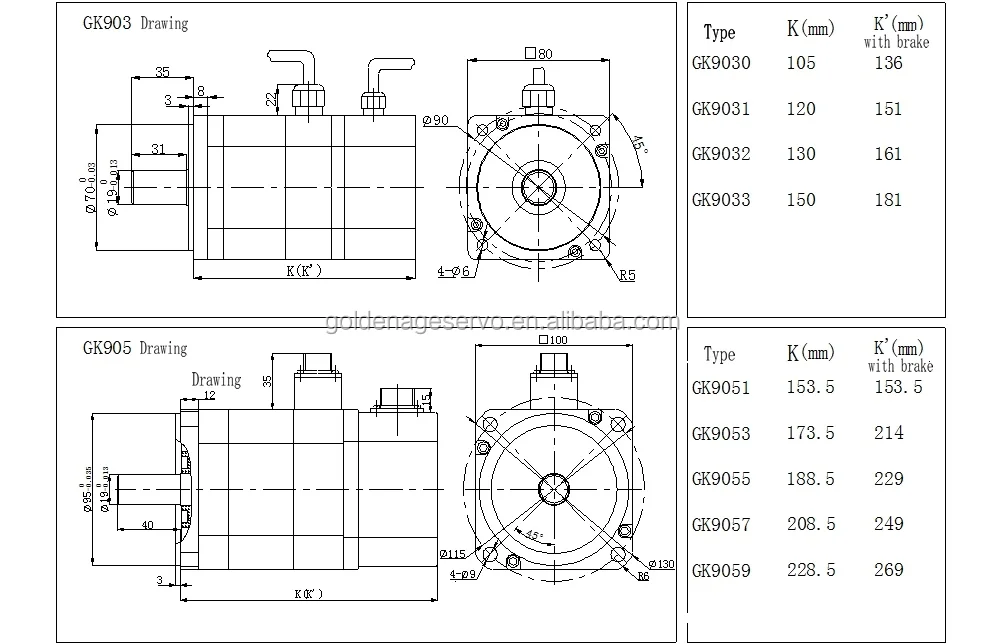

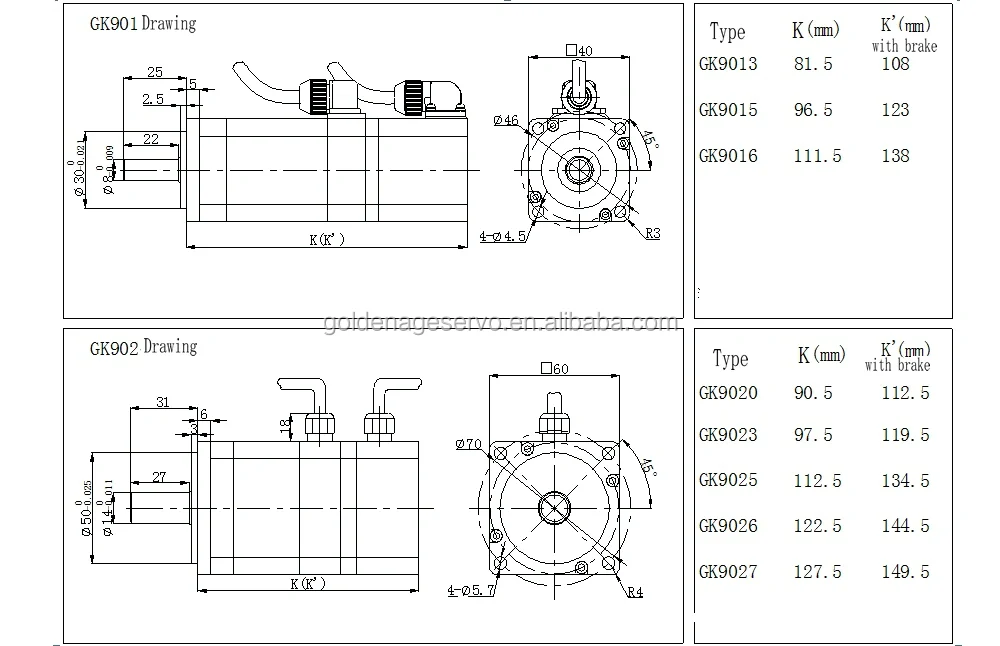

      GK9  outline drawing

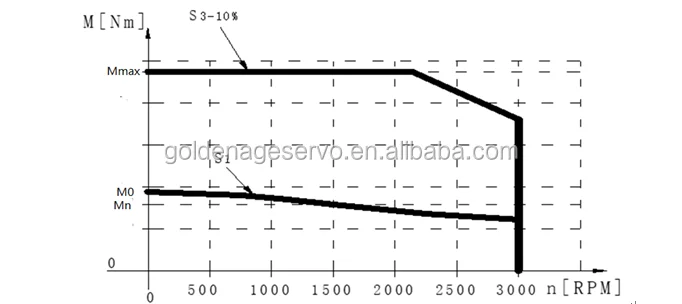

     Torque-speed curve

Founded in 2001 and started in Shanghai, Golden Age factories in Wuhan, Foshan and Chongqing, is backed by an ISO9001-certified design and manufacturing facility. Golden Age opened India office in 2015, it has constituted a net of developing, manufacturing, sales and services for custom design permanent magnet servo motor all over the world.

Golden Age focuses on technology improvement of servo motor, builds an innovation system with intelligent property rights, holds more 50 patents.

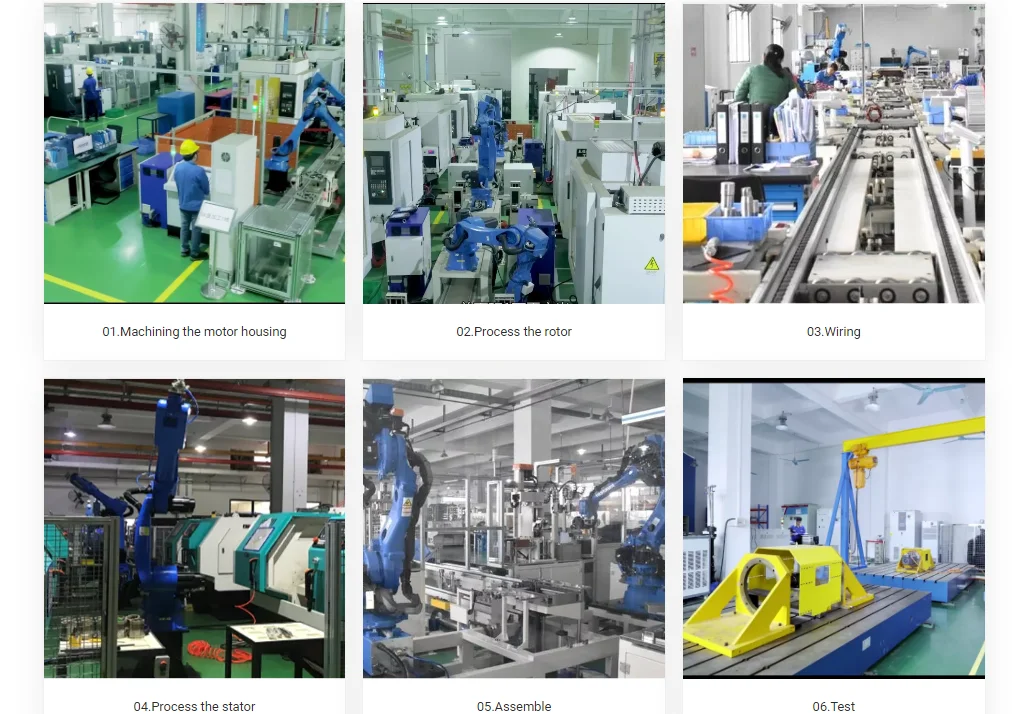

With more than 50 professional technicians on developing and researching, and a team of experienced skilled workers, more than 500 numbers of specific machine tool and test instruments, gives an annual output capacity over 1millon shafts of servo motors with variety types.

Golden Age products line including five series including GK6,GM7,GZ6, GE1 and TZ, sixteen categories, more than 50 flange sizes and over 6800 types.

GK6 series AC permanent magnet servo motor, torque range from 0.1Nm to 5000Nm;

GZ6 series AC permanent magnet servo motor, torque range from 2Nm to 1,000,000Nm;

GM7 series servo variable frequency (spindle) motor, power range from 2.2KW to 250KW.

GE1 series IPM AC servo motor, power range from 0.5KW to 300KW.

TZ series IPM servo motor for electric vehicles, power range 7.5KW-300KW

There are more than 300,000 shafts of Golden Age servo motors applied in variety of application, such as machine tool, robot, electric vehicle, plastic machinery, metallurgy, dye machine, package machine, wind power and other application in motion control field and automotive device. These motors are good reputed by customer for their good quality, excellent performance and fast-response service.

With the Golden Age spirit of "Strict in all demands, race against time, ” Golden Age will take the idea of “Create value for customer” into action. We follow the principle of “Technology is the first” to make Golden Age products become the first level in the market and make Golden Age become a first class enterprise.
