Factory Price Tunnel Transport Winches Mining Explosion Proof Dispatching Winch Electric Lifting Winches
- Category: >>>
- Supplier: Shandong Weixin Import & Export Co. Ltd.
Share on (1600384149642):
Product Overview
Description
Products Description
Introduction of Factory Price Tunnel Transport Winches Mining Explosion-Proof Dispatching Winch Electric Lifting Winches
JYB series transport winches are explosion-proof type winch,mainly used for underground mining or other auxiliary handing work in underground mines or other roadways with inclination angle less than 30 degrees.This transport winch is strictly forbidden to be used for lifting and manning, and spread off switch and brake at the same time!zmwm02
Product Paramenters
Parameter of Factory Price Tunnel Transport Winches Mining Explosion-Proof Dispatching Winch Electric Lifting Winches
Item | JYB-40*1.25 | JYB-50*1.4 | JYB-60*1.25 | ||
Wire Rope Size(m) | 650 | 650 | 650 | ||
Wire Rope Dia.(m) | Φ22 | Φ24 | Φ26 | ||
First layer Wire rope static tension(KN) | 4 | 50 | 60 | ||
First layer Wire rope speed(m/s) | 1.25 | 1.4 | 1.25 | ||
Drum size(mm) | Φ580*600 | Φ610*600 | Φ720*800 | ||
Motor | Model | YBK2-280M-6 | YBK2-280S-4 | YBK2-315M-6 | |
Power(kw) | 55 | 75 | 90 | ||
Voltage(V) | 380/660 660/1140 | 380/660 660/1140 | 380/660 660/1140 | ||
Rotating speed(r/min) | 980 | 980 | 980 | ||
Explosion electric hydraulic pusher | BYT-180/12 | BYT-180/12 | BYT-180/12 | ||
Subsidiary Electrical equipment | Explosion magnetic starter | QBZ-120N/660(380) | QBZ-120N/660(380) | QBZ-200N/660(380) | |
Explosion control button | LA81-3A | LA81-3A | LA81-3A | ||
Wright(including motor)(kg) | 4620 | 4620 | 4620 | ||
Dimension(L*W*H)(mm) | 2520*2280*2150 | 2520*2280*2150 | 2665*2523*2150 | ||
Details Images

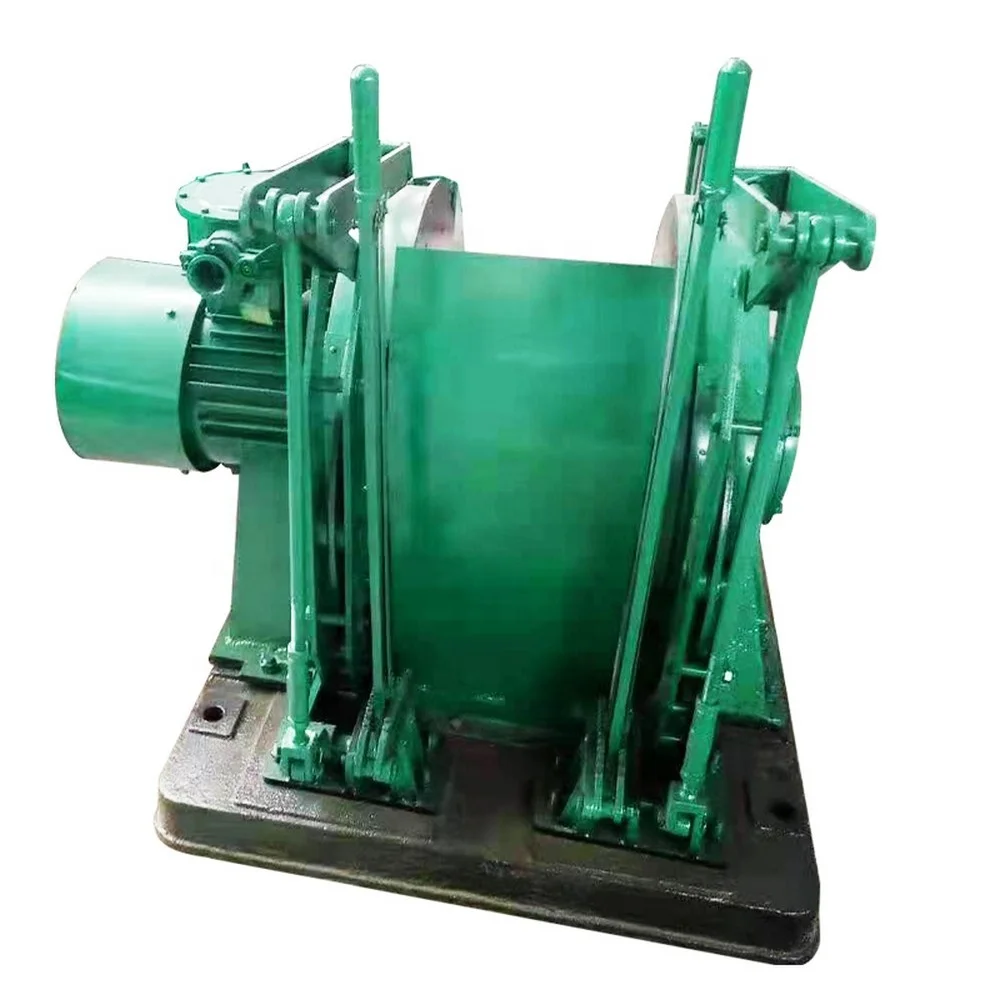

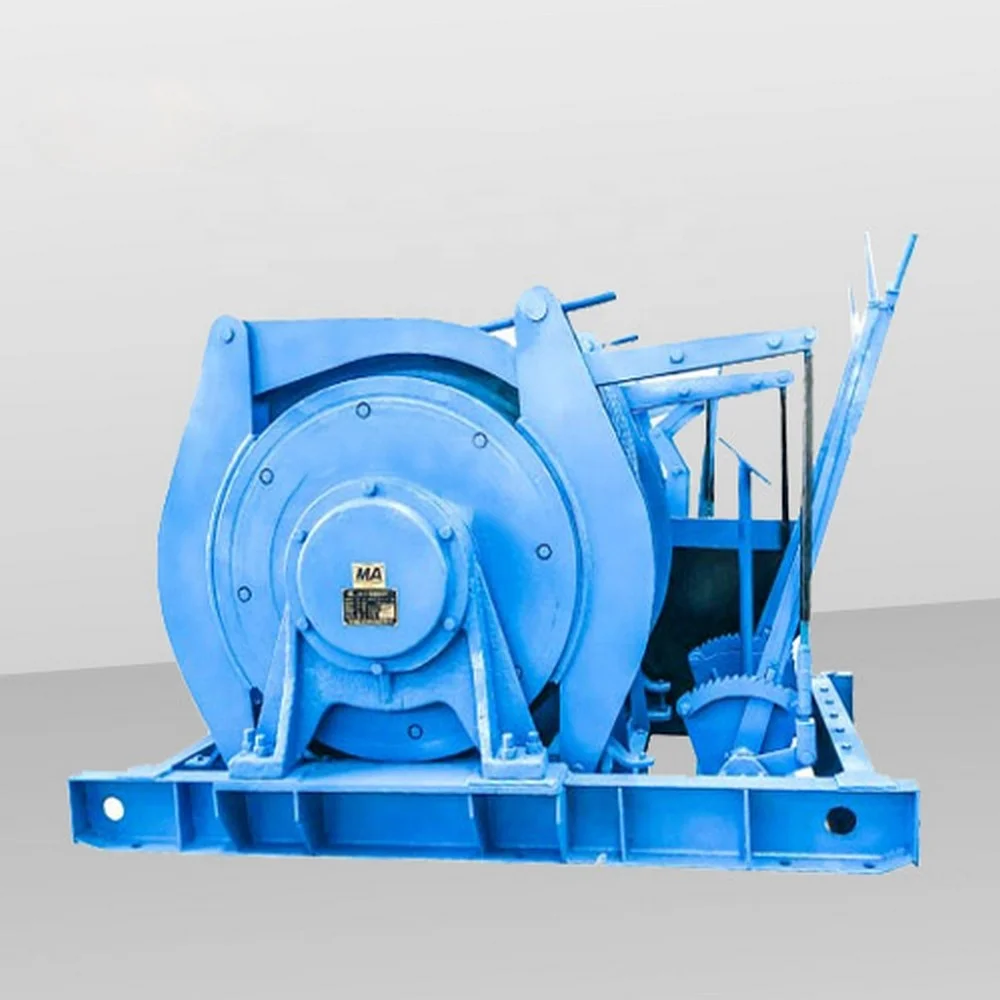

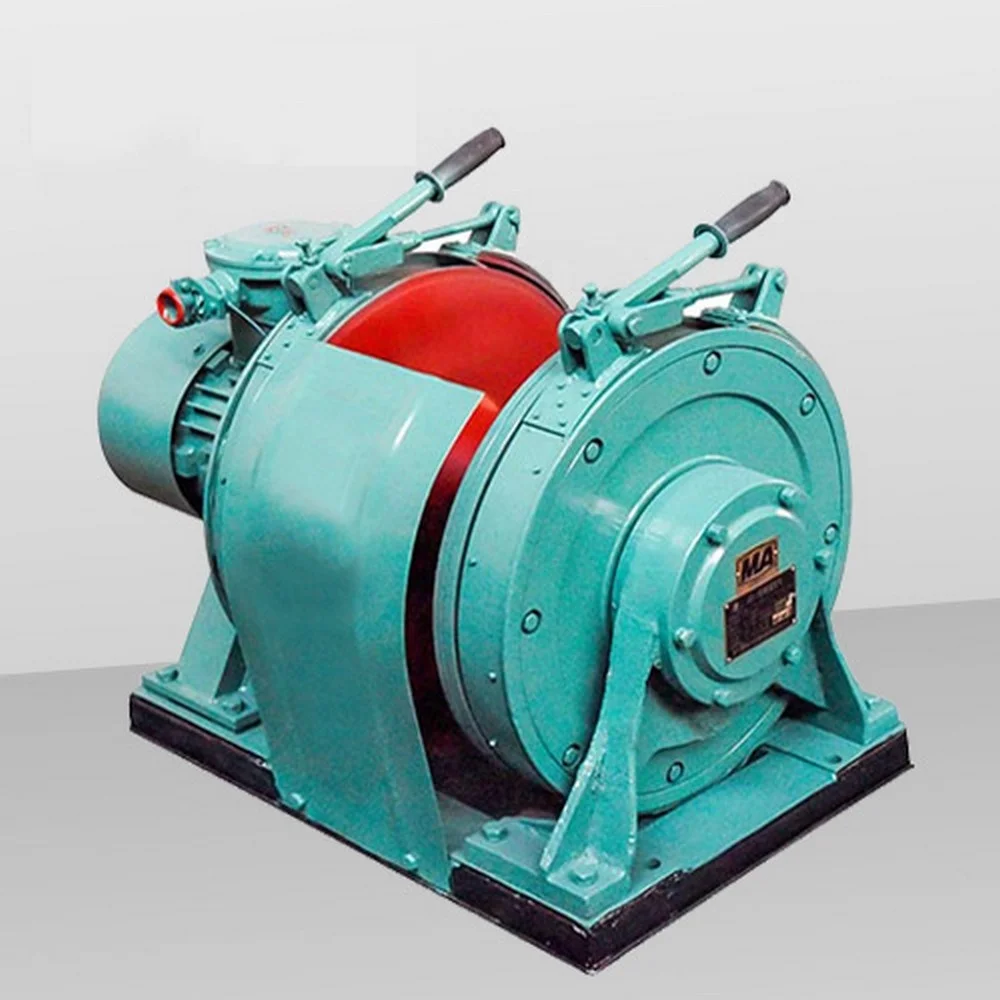

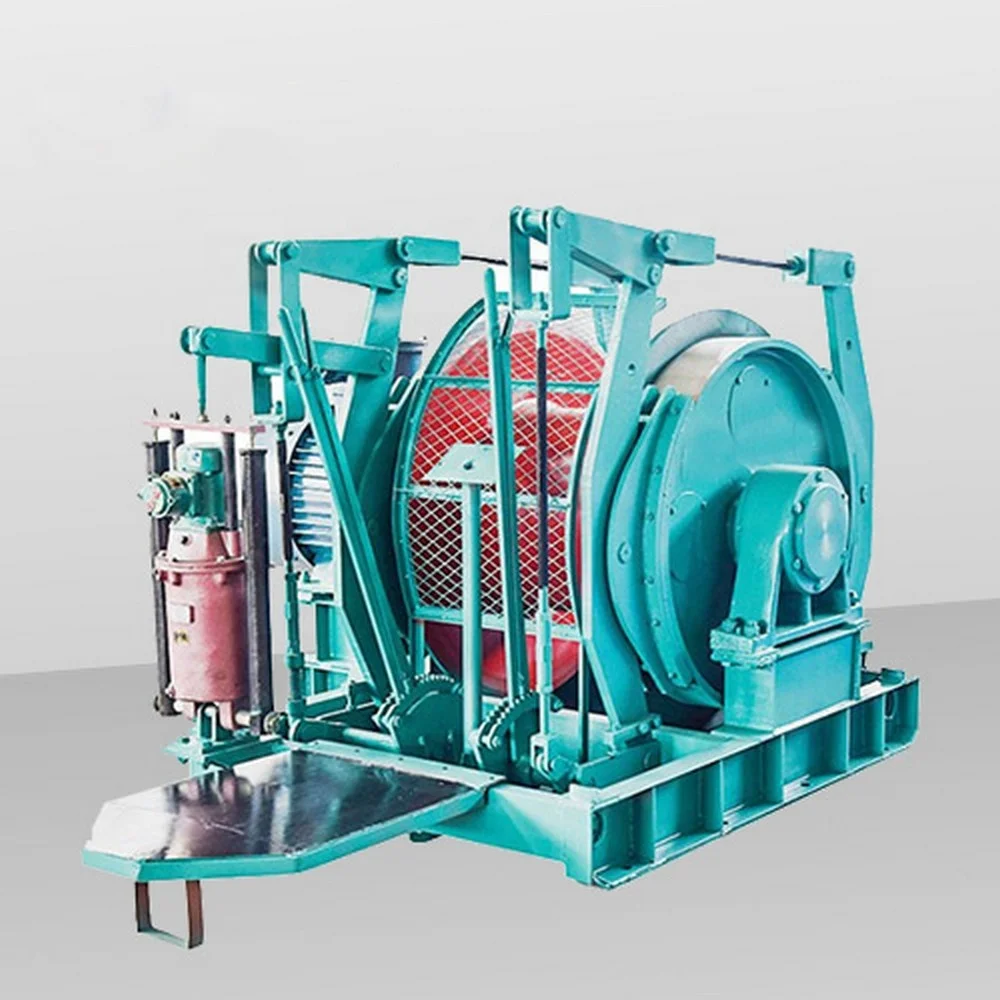

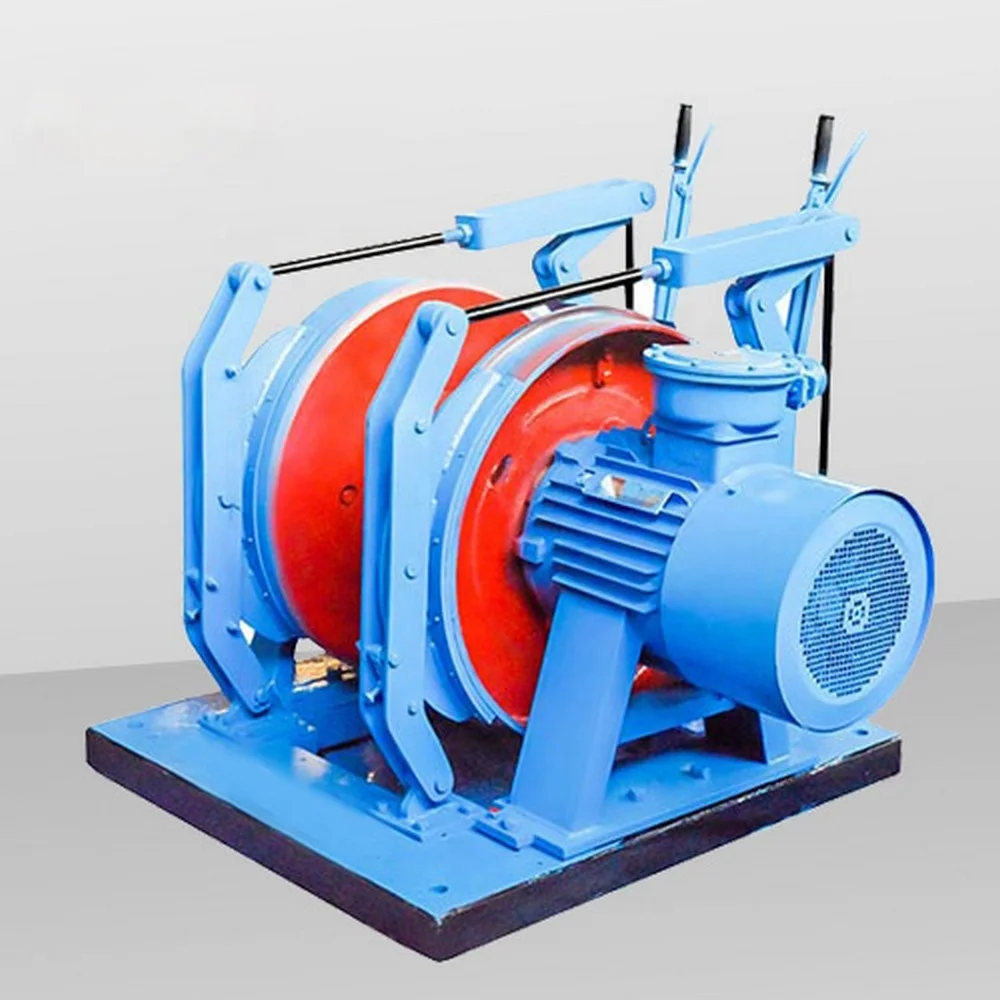

Photos of Factory Price Tunnel Transport Winches Mining Explosion-Proof Dispatching Winch Electric Lifting Winches
