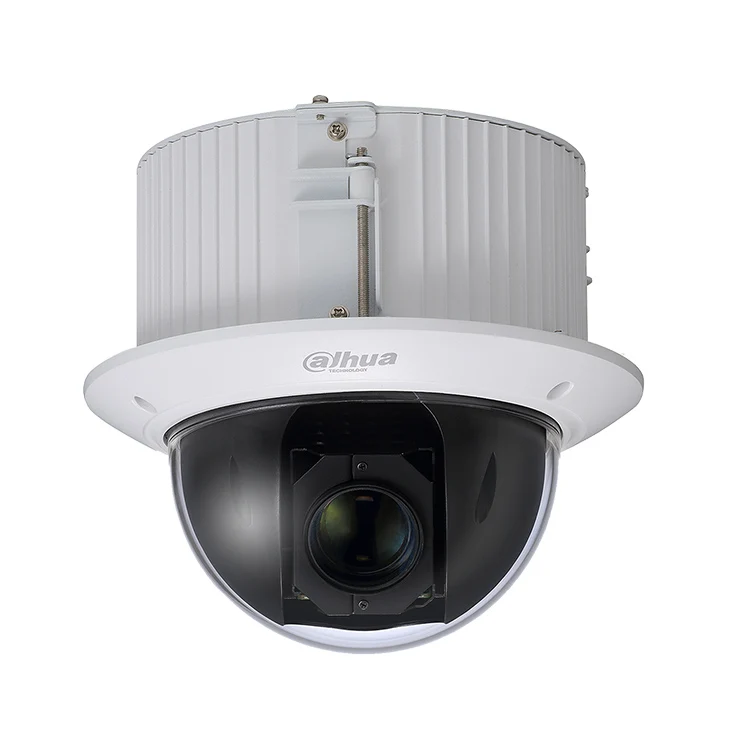

Dahua HDCVI PTZ Camera SD52C430I HC 4MP 30x Zoom HD CVI PTZ Camera
- Category: >>>
- Supplier: Beijing Sinlay Technology Limited
Share on (1600384202159):
Product Overview
Description
Dahua HDCVI PTZ Camera SD52C430I-HC 4MP 30x Zoom HD CVI PTZ Camera
Products Description
SD52C430I-HC
4MP 30x PTZ HDCVI Camera
> 1/3” 4Megapixel CMOS
> Powerful 30x optical zoom
> 120dB true WDR, 3D DNR
> Max. 25/30fps@4M/1080P, 25/30/50/60fps@720P
> IK10
4MP 30x PTZ HDCVI Camera
> 1/3” 4Megapixel CMOS
> Powerful 30x optical zoom
> 120dB true WDR, 3D DNR
> Max. 25/30fps@4M/1080P, 25/30/50/60fps@720P
> IK10
Product Paramenters
Camera | ||
Image Sensor | 1/3” CMOS | |
Effective Pixels | 2592(H) x 1520(V), 4 Megapixels | |
Scanning System | Progressive | |
Electronic Shutter Speed | PAL: 1/3s~1/30,000s | |
NTSC: 1/4s~1/30,000s | ||
Minimum Illumination | Color: 0.05Lux@F1.6; B/W: 0.005Lux@F1.6 | |
S/N Ratio | More than 55dB | |
IR Distance | N/A | |
IR On/Off Control | N/A | |
IR LEDs | N/A | |
Lens | ||
Focal Length | 4.5mm~135mm | |
Max. Aperture | F1.6 ~ F4.4 | |
Angle of View | H: 60° ~ 2.2° | |
Optical Zoom | 30x | |
Focus Control | Auto/Manual | |
Close Focus Distance | 100mm~ 1000mm | |
DORI Distance | ||
Note: The DORI distance is a “general proximity” of distance which makes it easy to pinpoint the right camera for your needs. The DORI distance is calculated based on sensor specification and lab test result according to EN 62676-4 which defines the criteria for Detect, Observe, Recognize and Identify respectively. | ||
Detect | Observe | |
2700m(8858ft) | 1080m(3543ft) | |
PTZ | ||
Pan/Tilt Range | Pan: 0° ~ 360° endless; Tilt: 0° ~ 90°,auto flip 180° | |
Manual Control Speed | Pan: 0.1° ~350° /s; Tilt: 0.1° ~250° /s | |
Preset Speed | Pan: 500° /s; Tilt: 500° /s | |
Presets | 300 | |
PTZ Mode | 5 Pattern, 8 Tour, Auto Pan ,Auto Scan | |
Speed Setup | Human-oriented focal Length/ speed adaptation | |
Power up Action | Auto restore to previous PTZ and lens status after power failure | |
Idle Motion | Activate Preset/ Scan/ Tour/ Pattern if there is no command in the specified period | |
Protocol | DH-SD, Pelco-P/D (Auto recognition) | |
Video | ||
Resolution | 4M(2592x1520) / 1080P(1920×1080) / 720P(1280×720) | |
Frame Rate | 25/30fps@4M/1080P, 25/30/50/60fps@720P | |
Video Output | 1-channel BNC high definition video output/ CVBS standard definition video output (switchable) | |
Day/Night | Auto(ICR) / Color / B/W | |
OSD Menu | Support | |
Backlight Compensation | BLC / HLC / WDR (120dB) | |
White Balance | Auto,ATW,Indoor,Outdoor,Manual | |
Gain Control | Auto / Manual | |
Noise Reduction | Ultra DNR (2D/3D) | |
Defog | Support | |
Digital Zoom | 16x | |
Flip | 180° | |
Privacy Masking | Up to 24 areas | |
Certifications | ||
Certifications | CE: EN55032/EN55024/EN50130-4 | |
FCC: Part15 subpartB,ANSI C63.4- 2014 | ||
UL: UL60950-1+CAN/CSA C22.2,No.60950-1 | ||
Interface | ||
Video Interface | 1 | |
Audio Interface | 1 channel in | |
RS485 | 1 | |
Alarm I/O | 2/1 | |
Electrical | ||
Power Supply | AC24V/1.5A(±10%) | |
Power Consumption | 13W | |
Environmental | ||
Operating Conditions | -30°C ~ 60°C (-22°F ~ +140°F) / Less than 95% RH | |
Ingress Protection | N/A | |
Vandal Resistance | IK10 | |
Construction | ||
Casing | Metal | |
Dimensions | Φ198(mm) x 177(mm) | |
Net Weight | 2.2kg(4.85lb) | |
Gross Weight | 3.7kg(8.16lb) | |
Company Profile
\tBejing Sinlay technology limited is a young ,creative and energetic company located in beijing.with a strong focus on service and providing innovative,high quality and competitively priced products including Hikvision/dahua CCTV Camera,IP Video solutions and so on.
Our products are sold far to Europe, America, Southeast Asia and other countries and regions. High quality, good price, on time delivery and sincere service are our value and promises to our customers. As an enterprise integrating manufacture and sales, we have confidence to launch more competitive products to cope with severe competition. Sinlay is your sincere partner!
FAQ
01
How to confirm whether the product is Dahua and Hikvision genuine English version?
You can download software in the official website of Dahua and Hik vision,only Dahua and Hik vision genuine product is compatible with the software.And we promise all of our products are Dahua and Hik vision genuine products.
02
When will you ship my order？
Ordinary,once we get confirmation for payment,we will ship order within 1-2 days.
03
Can I install the IP camera by myself?
Of course,the camera is flexible installated.And there is a user manual within box,you can contact us in need.
04
How is your after-sale service?
Three engineers work more than five years we will respond your technical support within 24 hours.
05
Do you support drop shipping?
Yes,your drop shipping is aviable.
06
How about warranty?
Two years warranty.
