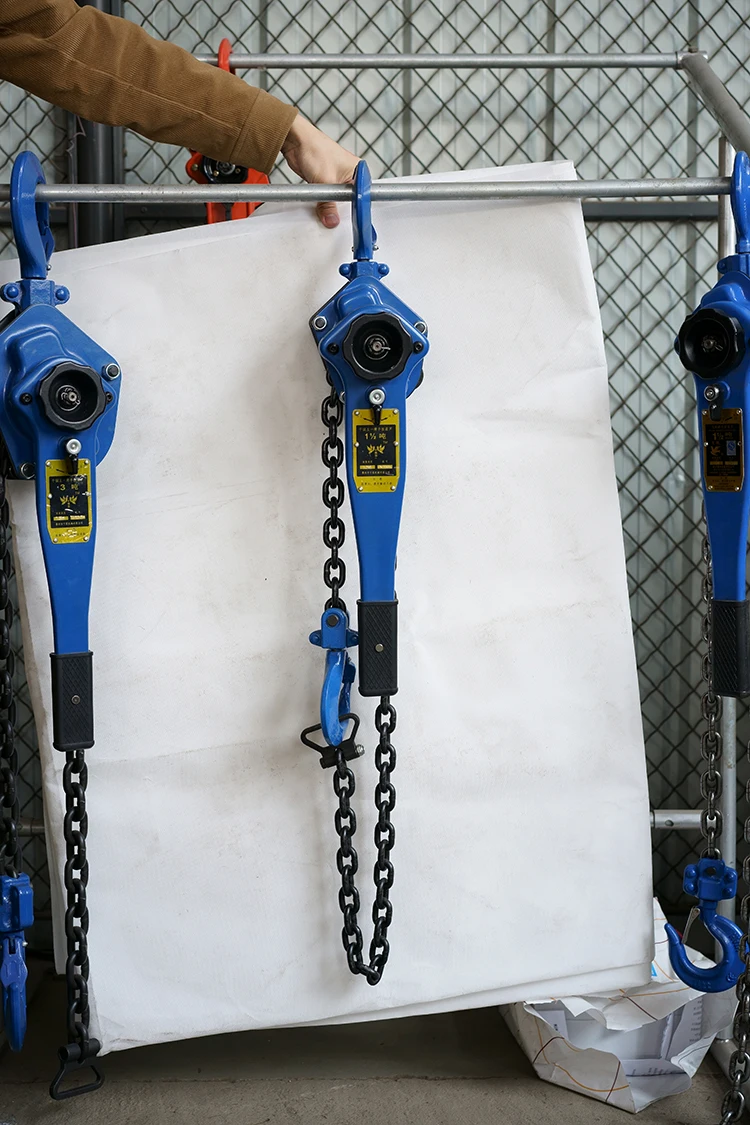

High Quality Mini Lever Hand Chain Hoist Chain Block Hoist Single Chain
High Quality Mini Lever Hand Chain Hoist Chain Block Hoist Single Chain
High Quality Mini Lever Hand Chain Hoist Chain Block Hoist Single Chain
High Quality Mini Lever Hand Chain Hoist Chain Block Hoist Single Chain
High Quality Mini Lever Hand Chain Hoist Chain Block Hoist Single Chain
High Quality Mini Lever Hand Chain Hoist Chain Block Hoist Single Chain
High Quality Mini Lever Hand Chain Hoist Chain Block Hoist Single Chain

High Quality Mini Lever Hand Chain Hoist Chain Block Hoist Single Chain

Share on (1600384285079):


Price:

Quantity:


Product Overview

Description


Product Description
\t
Model
\t
CH-A-0.5
\t
CH-A-1
\t
CH-A-1.5
\t
CH-A-2D
\t
CH-A-2
\t
CH-A-3
\t
CH-A-5
\t
Capacity(t)
\t
0.5
\t
1
\t
1.5
\t
2
\t
2
\t
3
\t
5
\t
Standard lift(m)
\t
2.5
\t
2.5
\t
2.5
\t
3
\t
2.5
\t
3
\t
3
\t
Running test load(t)
\t
0.75
\t
1.5
\t
2.25
\t
3
\t
3
\t
4.5
\t
6.25
\t
Headroom (drawn close up)H min.(mm)
\t
258
\t
274
\t
347
\t
347
\t
396
\t
486
\t
616
\t
Effort required to lift max. load(N)
\t
221
\t
304
\t
343
\t
450
\t
314
\t
343
\t
382
\t
No. of columns of load chain(mm)
\t
1
\t
1
\t
1
\t
1
\t
2
\t
2
\t
2
\t
Diameter of load chain(mm)
\t
6
\t
6
\t
8
\t
8
\t
6
\t
8
\t
10
\t

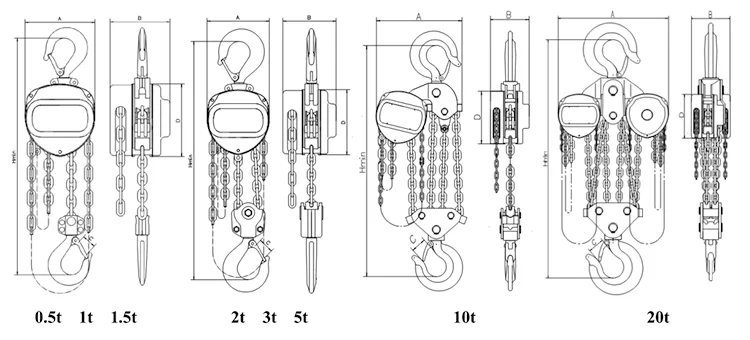

Dimensions(mm)
\t
A
\t
125
\t
147
\t
183
\t
183
\t
147
\t
183
\t
215
\t
B
\t
111
\t
126
\t
141
\t
141
\t
126
\t
141
\t
163
\t
C
\t
24
\t
28
\t
34
\t
34
\t
34
\t
38
\t
48
\t
D
\t
134
\t
154
\t
192
\t
192
\t
154
\t
192
\t
224
\t
Net Weight(kg)
\t
8
\t
10
\t
16
\t
17
\t
14
\t
24
\t
36
\t
Gross Weight(kg)
\t
10
\t
13
\t
20
\t
21
\t
17
\t
28
\t
45
\t
Packing measurements(L*W*H)(cm)
\t

28*21*17
\t

30*24*18
\t

34*29*20
\t

34*29*20
\t

33*28*19
\t

38*33*20
\t

45*39*24
\t
Ectra weight per meter of extra lift (kg)
\t
1.7
\t
1.7
\t
2.3
\t
2.3
\t
2.5
\t
3.7
\t
5.3
