Product Overview

Description



Products Description

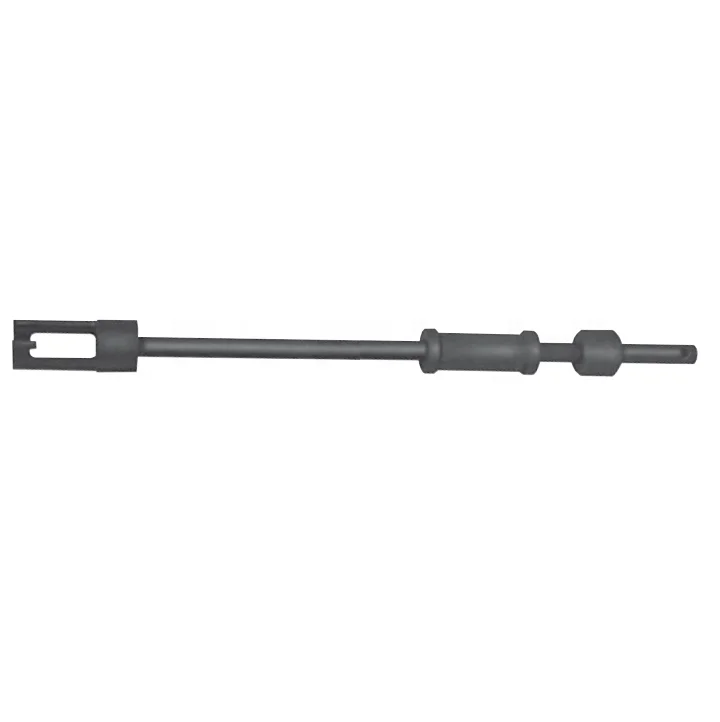

Drill pipe FLOAT VALVE Puller


The Model F Float Valve Puller makes easy work of removing stuck or tight float valves from the sub or drill collar , Simply engage the special catch into the bottom of the float valve ,rotate 90 , and then simply slide the bumper into the stop and the
float valve is removed.

The Model G Valve Puller is dual-purpose tool. In addition to removing tight or stuck float valves from subs or drill collars, it assists in removing and installing the seal-retaining ring when changing out the valve seal.



Model F Drill Pipe Float Valve Puller

Valve Pullers for all Styles of
Model F Drill Pipe Float Valves
Float Valve Model : F / FA / FC
Weight : 12kgs



Model G Drill Pipe Float Valve Puller

Valve Pullers for all Styles of
Model G Drill Pipe Float Valves
Float Valve Model : G, GA, GC, GCA
Weight : 12kgs

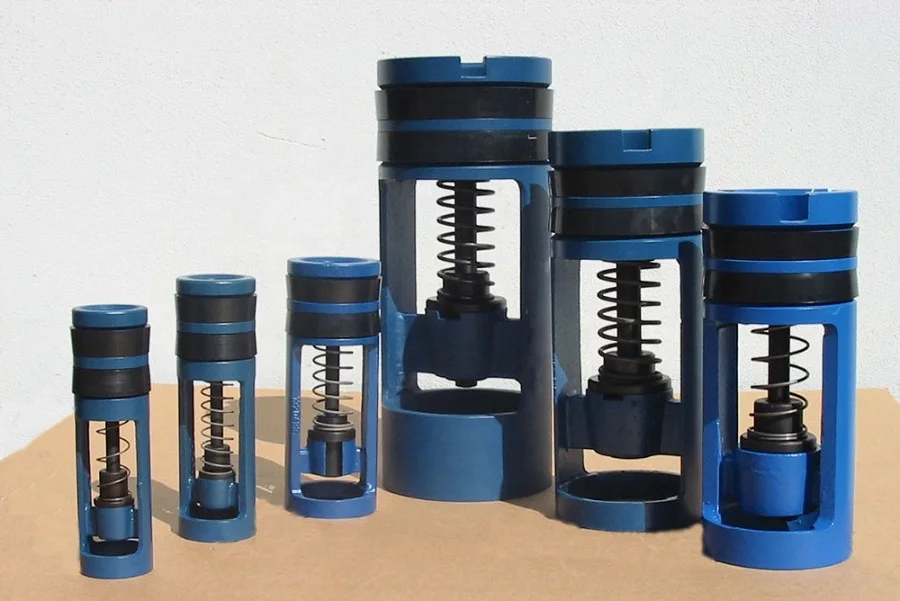

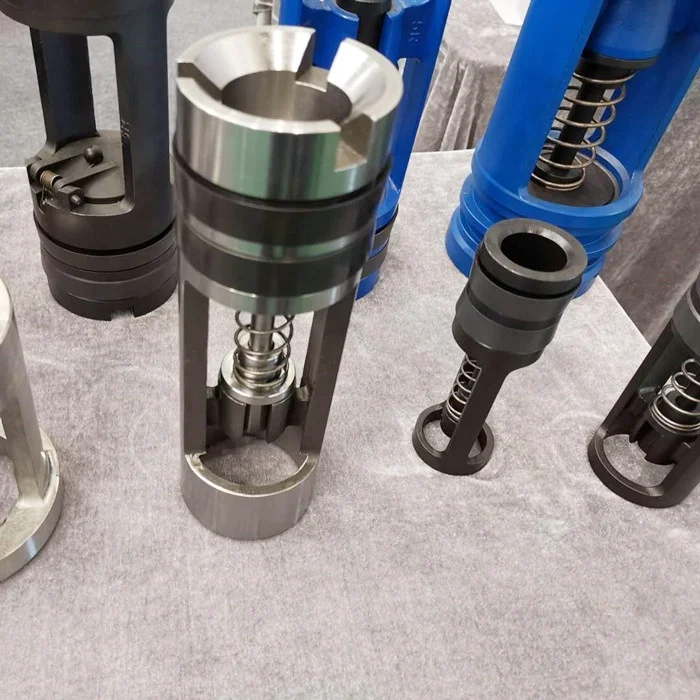

Float valve type F&G


The float valve prevents drilling fluids, cuttings and metal debris from flowing back up the drill string. When correctly installed on the drill string these valves provide added blowout prevention.The float valve can be used anywhere from top to bottom of the drill string. It's most common location is in the BHA (bottom hole assembly) which includes the bit, and can include a bit sub, near bit stabilizer, other stabilizers, float sub, cross-over sub, mud motor (top sub), drill collar, and the drill pipe. Multiple float valves can be used in one string, although double stacking is not recommended because of possible damage to the float valve in high pressure situations. Instead, separate the valves in different tool joints.

Drill Pipe (DP) Float valves are available for standard service, H2S – 300°F service (HNBR/HSN) and H2S – 400°F service (Viton.)

Model F, FA:1R, 1F2R, 2F3R, 3F, 3½ IF, 4R, 4F, 5R, 5F6R, and 6F
Model G,GA, GC:1F2R, 2F3R, 3F, 3½ IF, 4R, 4F, 5R and 5F6R

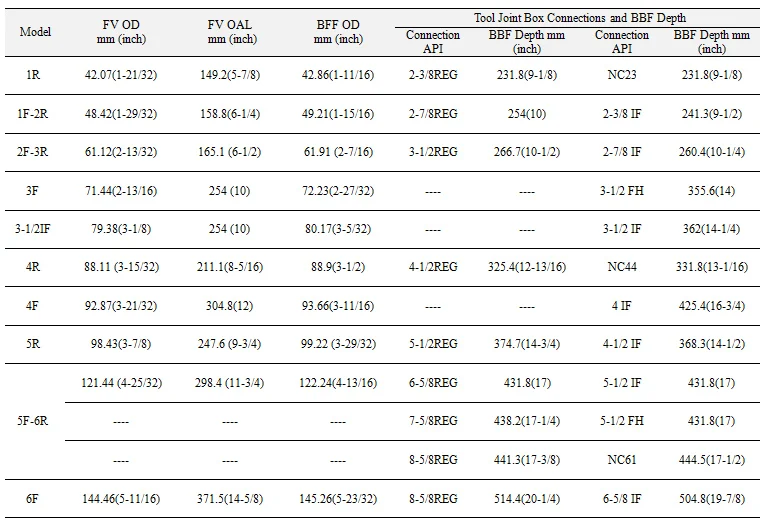

Product Paramenters




Relevant products








Company Profile

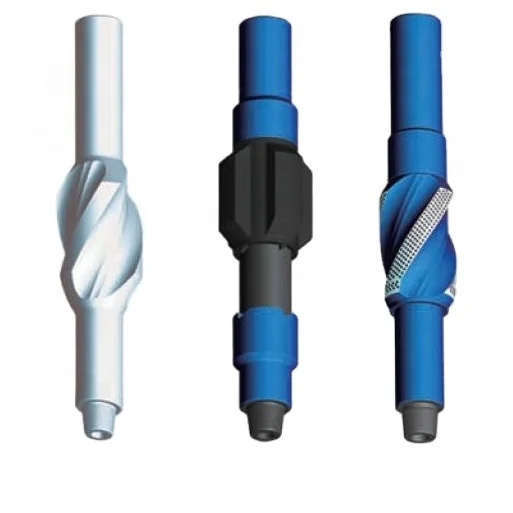

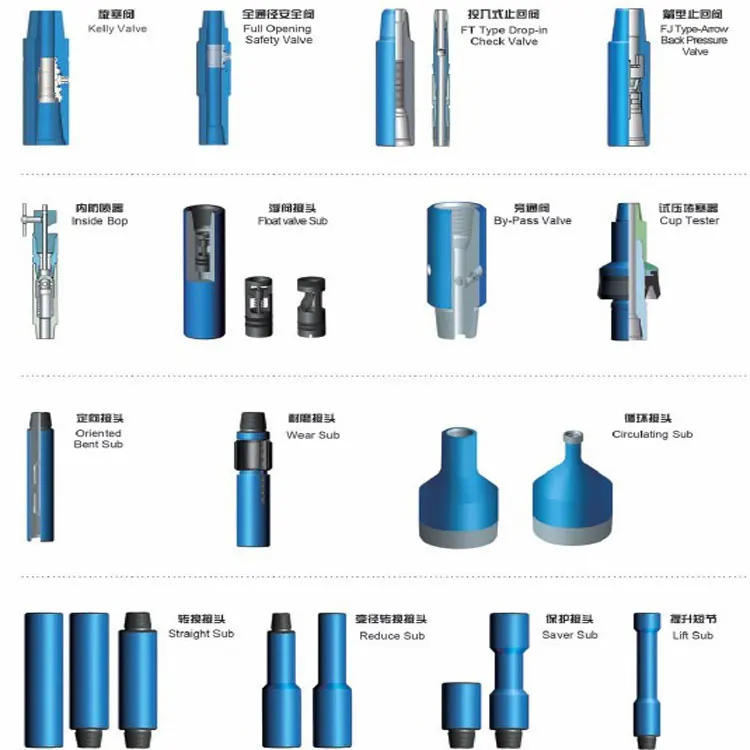

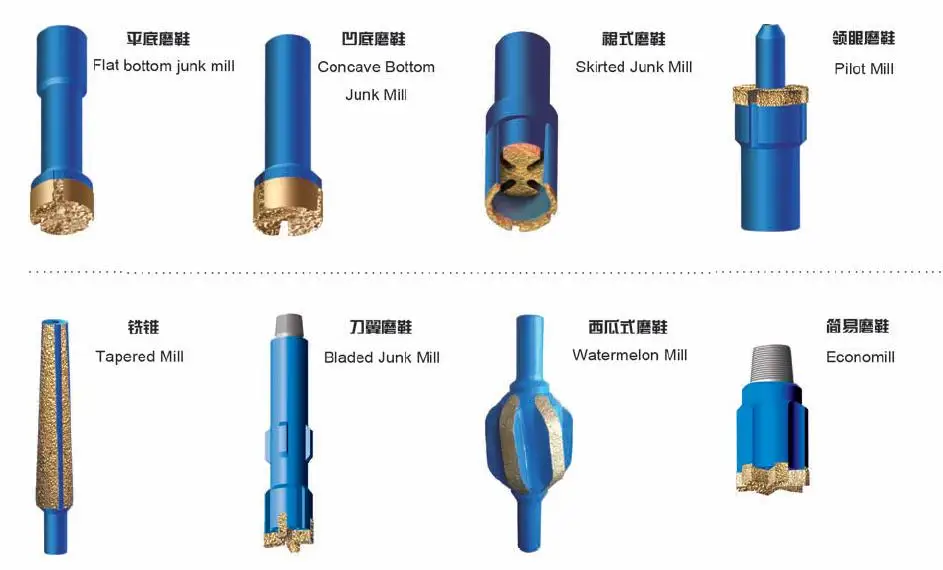

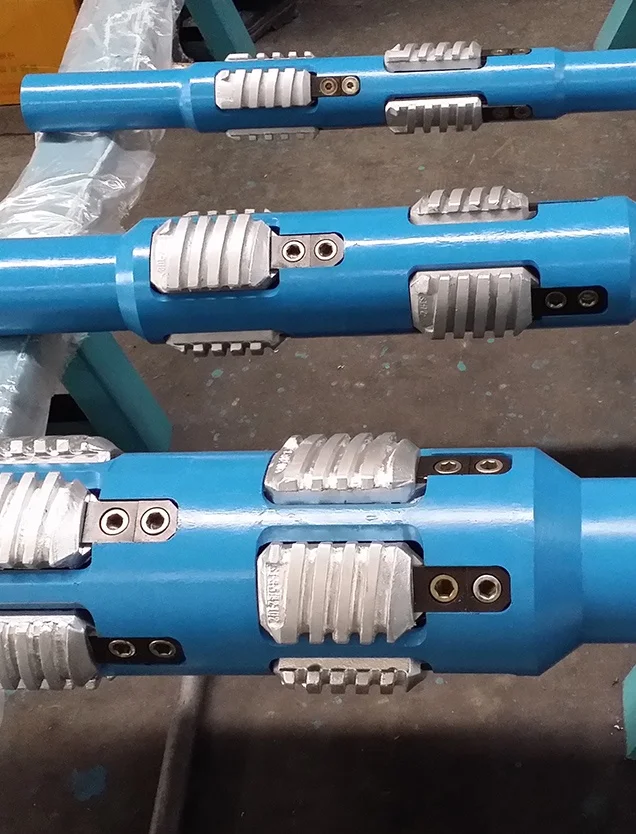

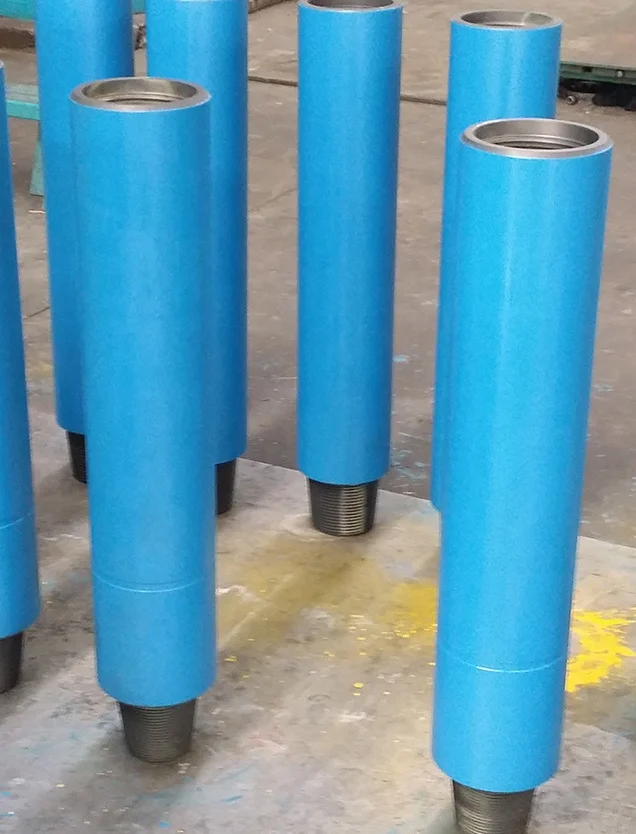

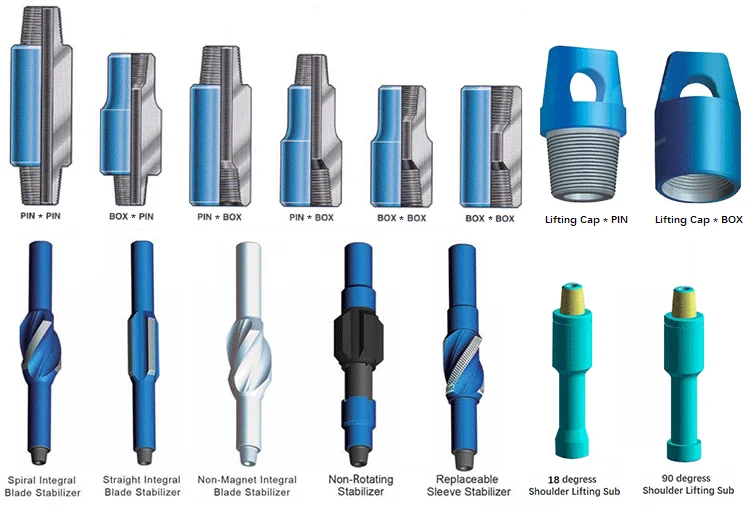

We specialize in supplying all kinds of drilling stabilizers, roller reamer, non-magnetic drilling stabilizers, hole opener,series of drilling jars (mechanical drilling jar, hydraulic drilling jars, double acting drilling jar, fishing jars ( bumper sub, surface jar, jar intensifier), fishing tools (fishing overshot, fishing spear, junk basket, fishing magnet, ditch magnet, junk sub, taper tap, die collar, internal hook, external hook) , mechanical hydraulic internal external cutters, all kinds of junk mills (flat bottom junk mill, concave bottom junk mill, skirted junk mill, pilot mill, tapered mill, bladed junk mill, watermelon mill, econo mill), wash over tools, core tools, drill bits, casing scraper, key seat wiper, Kelly valve, full opening safety valve, drop-in check valve, arrow back pressure valve, inside bop, float valve sub, by-pass valve, cup tester, oriented bent sub, wear sub, circulating sub, reduce sub, lifting sub, saver sub, impression block, safety joint, casing drill rig package.
