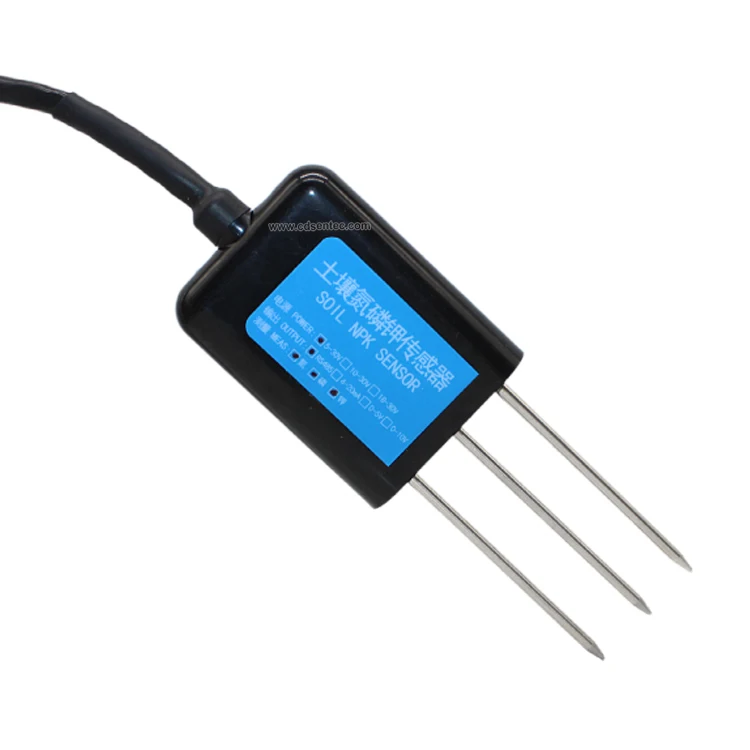

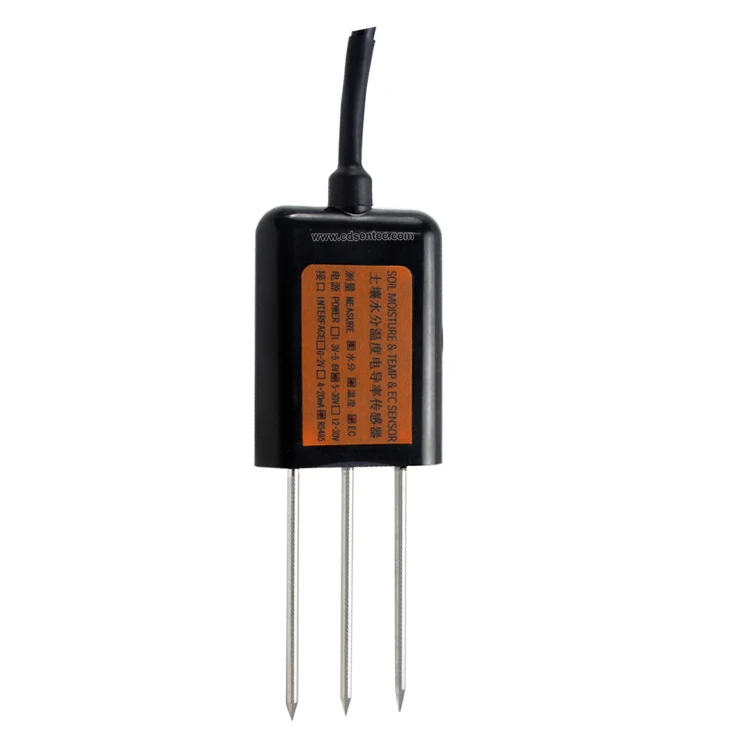

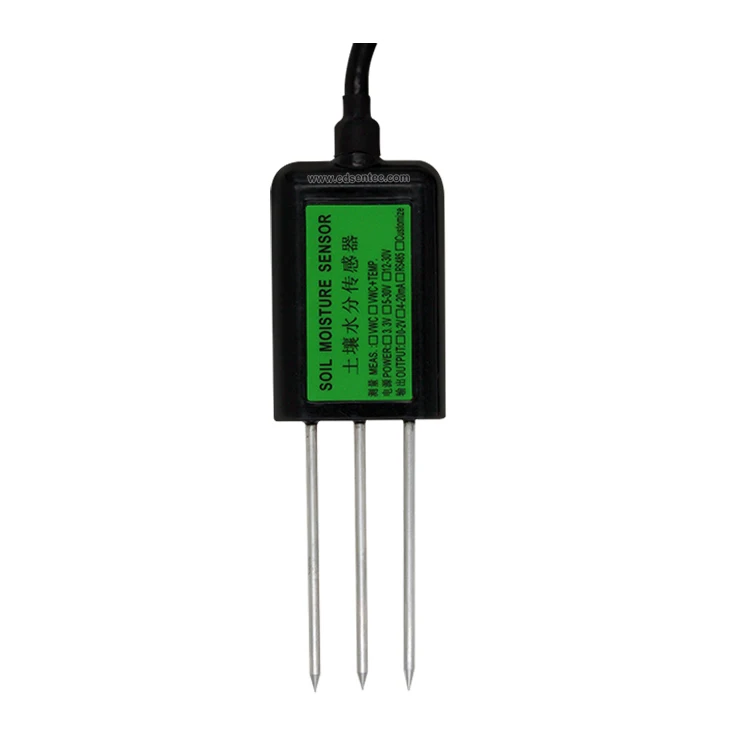

SENTEC SEM225 RS485 4 20mA Soil Temperature Humidity EC Sensors Soil Moisture Conductivity Meter with 5 Pin Soil Tester
- Category: >>>
- Supplier: Chengdu Sentec Technology Co. Ltd.
Share on (1600384363389):
Product Overview
Description

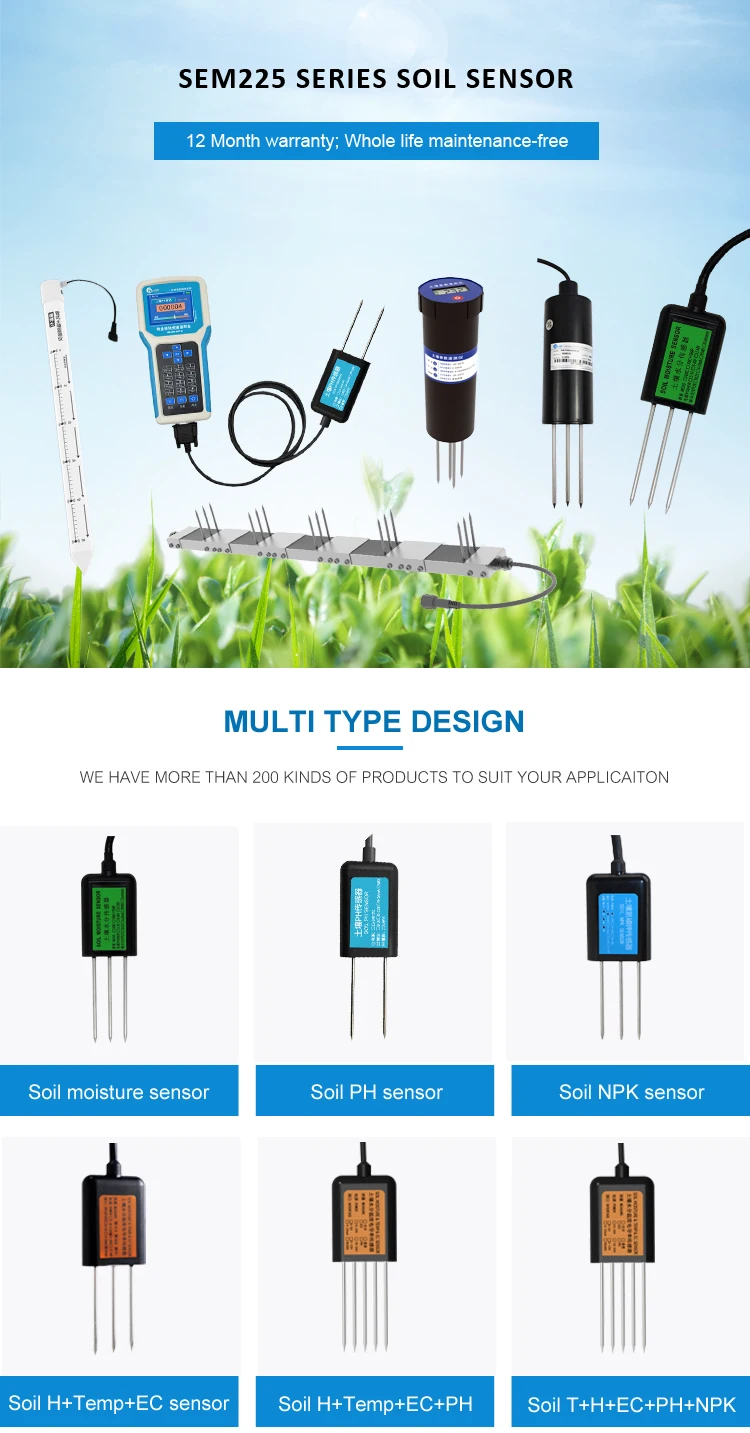

SEM225 series soil sensor is a high-precision and sensitive sensor for online measuring soil humidity / soil temperature / soil conductivity(EC) / soil PH / soil NPK. Compared with the original high-precision sensor of Germany and calibrated by the actual drying and weighing method of soil, it has high precision, fast response and stable output. Agricultural sensor series products are widely used in agricultural greenhouses, flower cultivation, pasture grassland and other occasions.
Soil humidity/temperature | H:0%-100% / T: -40℃~+80℃ |
Soil EC | 0-10000us/cm |
Soil PH | 3~9PH |
Soil NPK | 0~1999mg/kg |
Accuracy | H:±3%(5%~95%,25℃), T: ±0.5℃（25℃), EC: 10us/cm, PH: ±0.3PH, NPK: ±2%F.S |
Analog ouput | 4~20mA/0~5V/0~10V |

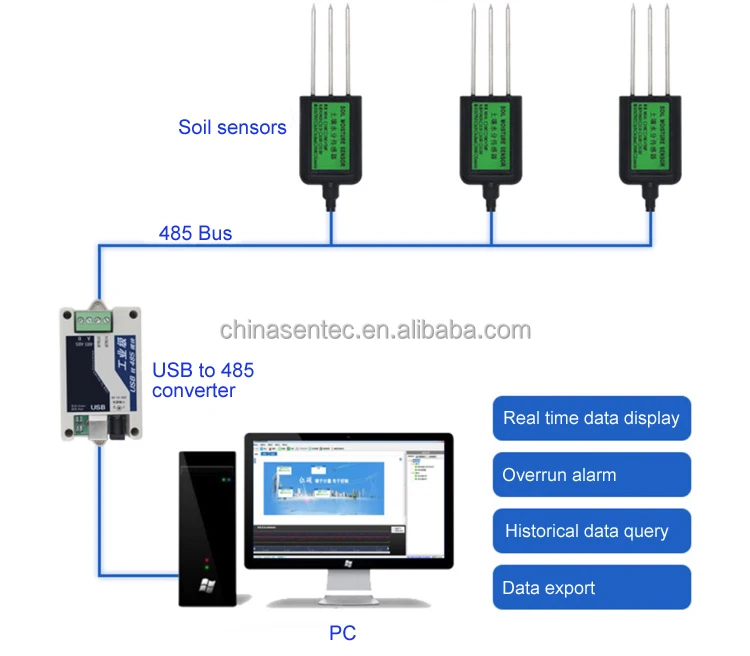

Digital output | RS485 |

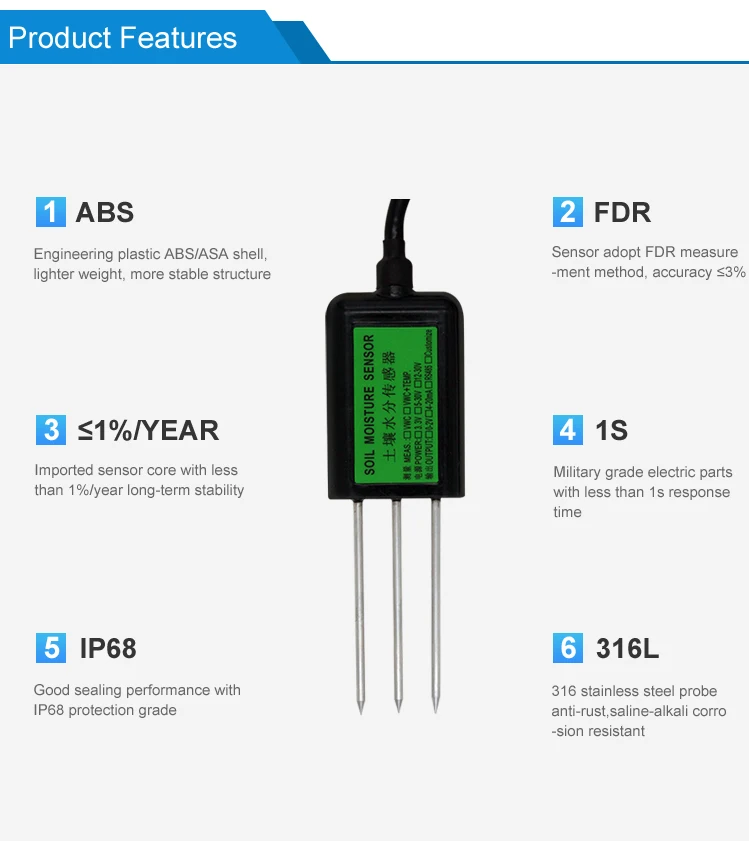

Protection level | IP68 |
Power suppy | 12~30VDC |
Maximum power consumption | 1.2 W |
Response time | ≤1s |
Working environment | -40℃- +80℃, 0 - 100% (soil temperature&humidity+soil EC), 0 ~+55℃, 5%-95% (soil PH), 5 ~ +45℃, 5%-95% (soil NPK) |
Long-term stability | ≤1%/year (soil temperature&humidity+soil EC), ≤5%/year (soil PH+NPK) |
Protection level | IP68 |

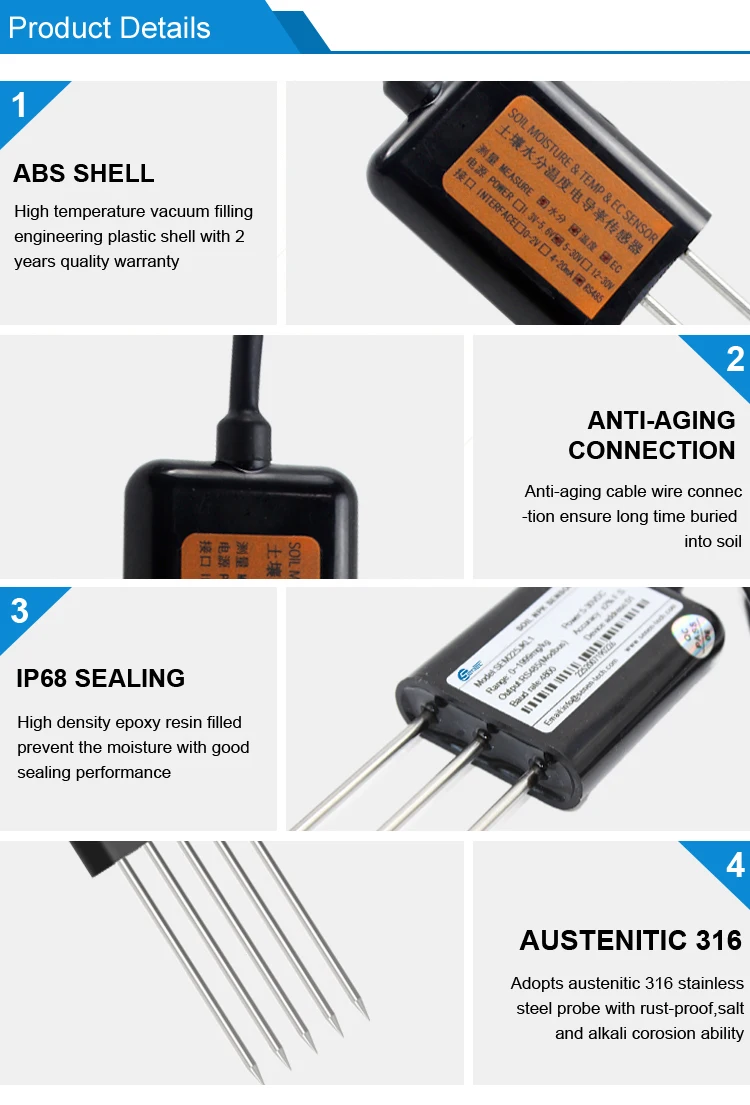

Sealing material | epoxy resin (black flame retardant) |

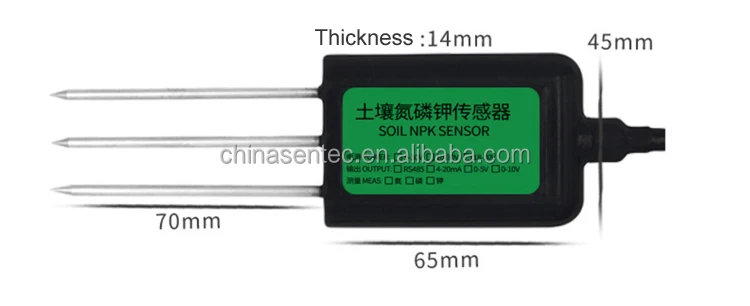

Probe length | 70mm |
Probe diameter | 3mm |

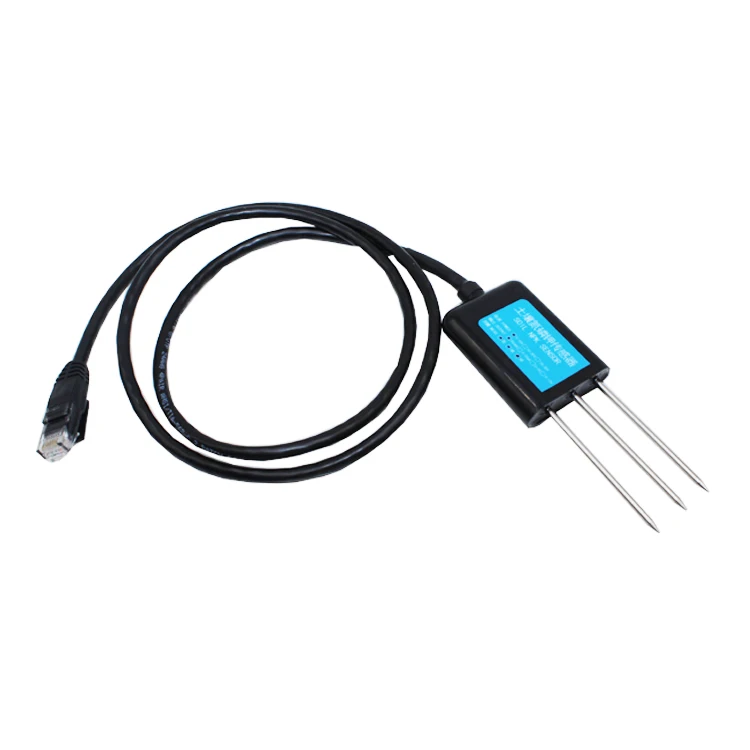

Cablle length | 2m(default) / customized |
1. Could I have prices of your products?
Welcome. Pls feel free to send us an email here. You will get our reply in 24 hours
wind speed sensor
Welcome. Pls feel free to send us an email here. You will get our reply in 24 hours
wind speed sensor
2. Can we print our logo/website/company name on products?
Yes, please advise the size and Pantone Code of the logo.
wind speed sensor
3. What's the lead time for regular order?
3~7 days for order quantity lower than 500pc; For more quantity, usually 15 days.
wind speed sensor
Yes, please advise the size and Pantone Code of the logo.
wind speed sensor
3. What's the lead time for regular order?
3~7 days for order quantity lower than 500pc; For more quantity, usually 15 days.
wind speed sensor
4. Can I get a discount?
Yes, for the order quantity more than 50 pcs, please contact us to get the best price.
wind speed sensor
5. What is your MOQ?
The MOQ of most of our products is 1 PCS. You can also contact us to get a lower low MOQ.
Yes, for the order quantity more than 50 pcs, please contact us to get the best price.
wind speed sensor
5. What is your MOQ?
The MOQ of most of our products is 1 PCS. You can also contact us to get a lower low MOQ.
wind speed sensor
