Calcium carbonate production line uesd kaolin mica Barite bentonite gypsum limestone micro powder grinding mill (1600384506725)

Share on:


Price:$60,000.00 - $85,000.00
Price in USD:Details

Quantity:


Product Overview

Description



Product Overview

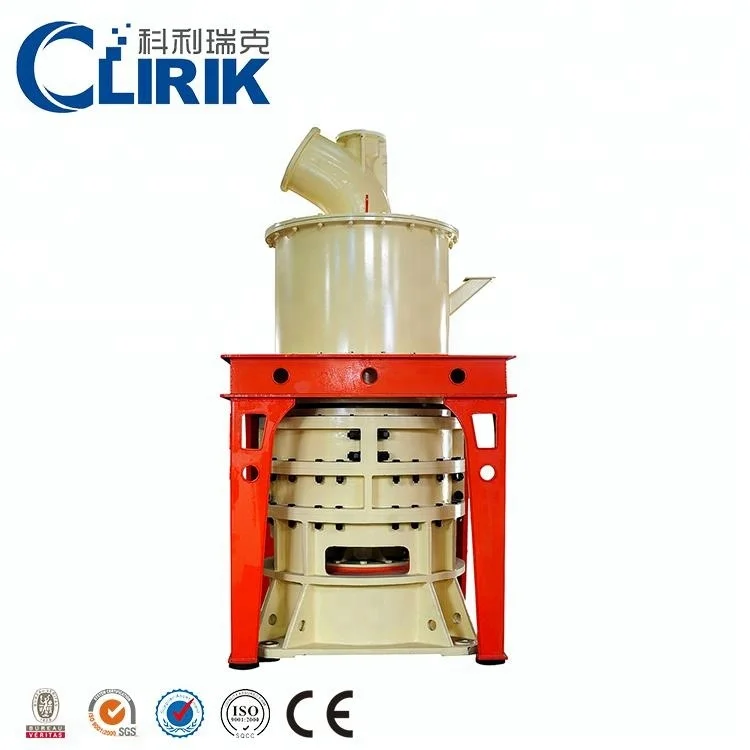

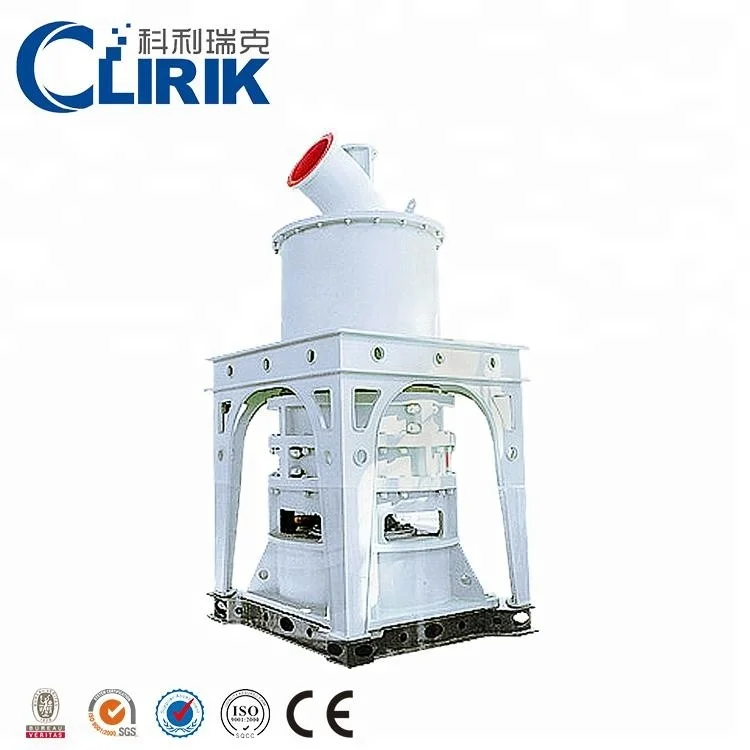

HGM Mill Industrial Grinding Machine Stone Grinder For Minerals And Ores
Name: HGM minerals powder grinding machine

Model: HGM series

Brand: Clirik

Powder Fineness Process Ability: 325-3000 mesh

Capacity: according to your demand about powder fineness, the finial capacity can be adjusted between 0.5-45 t/h

Use Range: can be used in more than 150 kinds of stone materials powder grinding, such as: calcite, calcium carbonate, dolomite,gypsum, carbon black, gypsum, kaolin, marble and so on

Application: mining, chemiscal, transport and many other different areas





PRODUCT SPECIFICATIONS


Parameter 1



Model

HGM80

HGM90L

HGM100L-II HGM100P

HGM125L

HGM168L
Ring Diameter
(mm)
800
900
1000
1250
1680
Ring Number
(PCS)
3
3
4
4
4
Roller Number
(PCS)
18-21
24-29
28-36
30-40
30-44
Main Shaft Speed
(r. p. min)
230-240
200-220
180-200
135-155
120-130
Input Size
(mm)
≤20
≤20
≤20
≤20
≤20
Finished Size
(um/mesh)
74-5
(200-2500)
74-5
(200-2500)
74-5
(200-2500)
100-8
(150-2000)
100-9
(150-1500)
Capacity
(t/h)
0.5-5.5
0.8-6.5
1.2-10
1.2-11
2.5-20
5-45
Outlet Size L*W*H
(m)
15.1*4.2*7.3
18.4*3.9*7.8
22.7*3.6*8.5
27.3*4.2*9.9
31.7*7.7*12.6
Note:The capacity is based on the domesitlc CaCO3 Powder factory's feedbackNote:The capacity is based on the domesitlc CaCO3 Powder factory's feedback


Parameter 2


Unit KW
HGM80
HGM90L
HGM100L-II HGM100P
HGM125L
HGM168L

Main Unit
75
2*45
132-150
185-200
315

Classifier
18.5
18.5-30
30-37
75
132

Blower
45
55
75
2*45-2*55
2*75-2*90

Crusher
18.5
18.5
18.5
45
75

Bucket Elevator
3
3
4
4
7.5

BeltConveyor Feeder
1.5
1.5
1.5
1.5
2.2

Discharging Valve
2*0.75
1.1
1.1
1.5
2*1.5

Air compressor
11
15
22
37

55
Note:For the data with prefix such ad "2xx",which means there are two same motors configured for one item

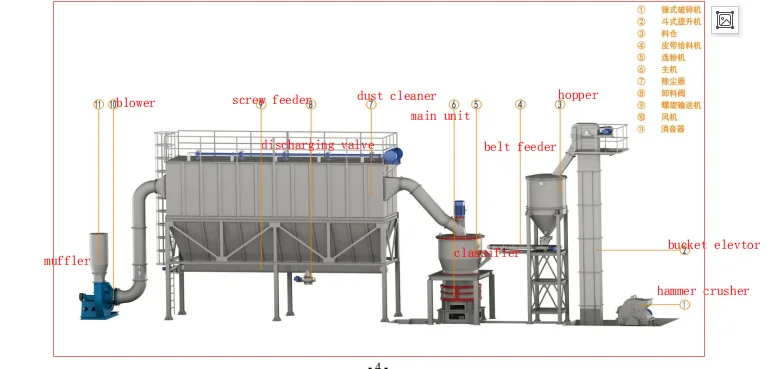

Working Principle




1. When the grinding mill is at work, the main bearing and each dial are driven by electro-motor of main equipment through
reducer, and all the grinding rollers are rolling in the ring channels driving by dial through plunger.

2. The materials are driven to the edge of the turn plate by the centrifugal force and fall down into the grinding chambers where the materials are repeatedly pressed, crushed and grinded by the rollers.

3. Then the materials fall into multiple layers and to be crushed and ground continuously to micro powder.

4. The high-pressure air blower constantly inhales air within the grinding mill and, in turn, the airflow with crushed materials
are brought to the classifier whose high-speed impeller will screen the airflow.

5.The unqualified particle size will fall and return to the mill for being reground while the qualified particle size mixed with
air will go into the cyclone powder collector. Most of the qualified powders will fall and exit from the discharging valve at the bottom; a small proportion of the fine powders, with airflow, moves to the dust cleaner, and clings to the surface of the filter bags.

6. At the same time, the fine powders clinging to the surface fall down by the sudden vibration of the filter bags, which is
caused by the instantly ejected high-pressure gas controlled by the pulse valve. The materials from the above two lots are sent by
the conveyor at the bottom to get finished powders packed.

7. In addition, filtered clean air will be emitted from the air outlet of muffler in the end.





Our Advantages


1. High Efficiency
Under the same finished final size and the same motor power, the capacity of micro powder grinding mill is twice as much as jet
mill, mixing grinder and ball mill, and energy consumption decreased 30%.


2. High Safety and Reliability
As no rolling bearings or screws in grinding cavity, there are no problems caused by bolts shedding or rapid wear of bearings and seal components.
3. Spare Parts available
The ring and roller are forged by special material with high utilization.Under the same grinding material and finish special size, the lifecycle of spare parts is about one year, which is 2-3 times longer than impact mill or turbo mill. Furthermore, the lifetime can reach 2-5 years for grinding calcite carbonate.


4. High Fineness, Flexible Adjustment
The final fineness of the grinding materials can be adjusted between 325 meshes and 2500 mesh (47-5 micron), and the product fineness can reach D97 ≤5μm.


Other Products offered


Ultrafine Vertical Roller Mill
Finished Size: 600-4500(mesh)Capacity: 3-20(t/h)
Pass rate: D50 2 micron

High Pressure Suspension Grinding Mill
Finished Size: 50-450(mesh)
Capacity: 1-28(t/h)
Pass rate: D90 30 micron

Coating Machine
Used to stone powder modification machine


Company Profile


SHANGHAI CLIRIK MACHINERY CO., LTD located in Pudong New district of Shanghai china as a professional enterprise, which is specializing in research, manufacture and sales of all kinds of mining equipment.
So far, we have established a whole production chain, the products cover micro powder grinding mill, high pressure grinding mill, Europe an version coarse grinding mill, hammer crusher, jaw crusher, screw conveyor, bucket elevator and so on.
Specially we independently developed HGM micro powder grinding mill, which are not only renowned in domestic market, but also have been sold widely in Eastern Europe, Middle East, Africa, South Asia, Southeast Asia, Oceania, and America, etc.




What can we do for you ?




Pre-sale service:
1.Clirik provides a variety of mining equipment for you to choose from.

2.Clirik will recommend suitable production lines and grinding equipment to you according to your site.

3.Clirik customizes the logo and color of the grinding equipment according to your company image.

4.Clirik provides third party inspection to ensure the quality of your grinding equipment.

After-sales service:
1. Clirik provides you with online installation and use videos.

2. Clirik will provide you with technicians to install and debug the grinding equipment.

3. Clirik trains you the technicians who use and maintain the grinding equipment.

4. Clirik provides you with a one-year warranty and lifetime service for the grinding equipment.


Our Certificate




Our Exhibition




Customer Case


Project in Thailand
Project in India
Project in Russia


FAQ


In order to recommend suitable design for you, please kindly tell me:

* What is the maximum feed size of your raw material? like 10-20mm

* What are output sizes you want? like 50-325 mesh

* What is per hour capacity you want? like 1-3PTH
