Китайский производитель, печатная плата, режущая печатная плата, резак для печатной платы, V режущая машина, v режущая печатная плата для линии сборки светодиодной печатной платы
- Category: >>>
- Supplier: Shenzhen Macex Industry Co. Ltd.
Share on (1600384564709):
Product Overview
Description
Product Description

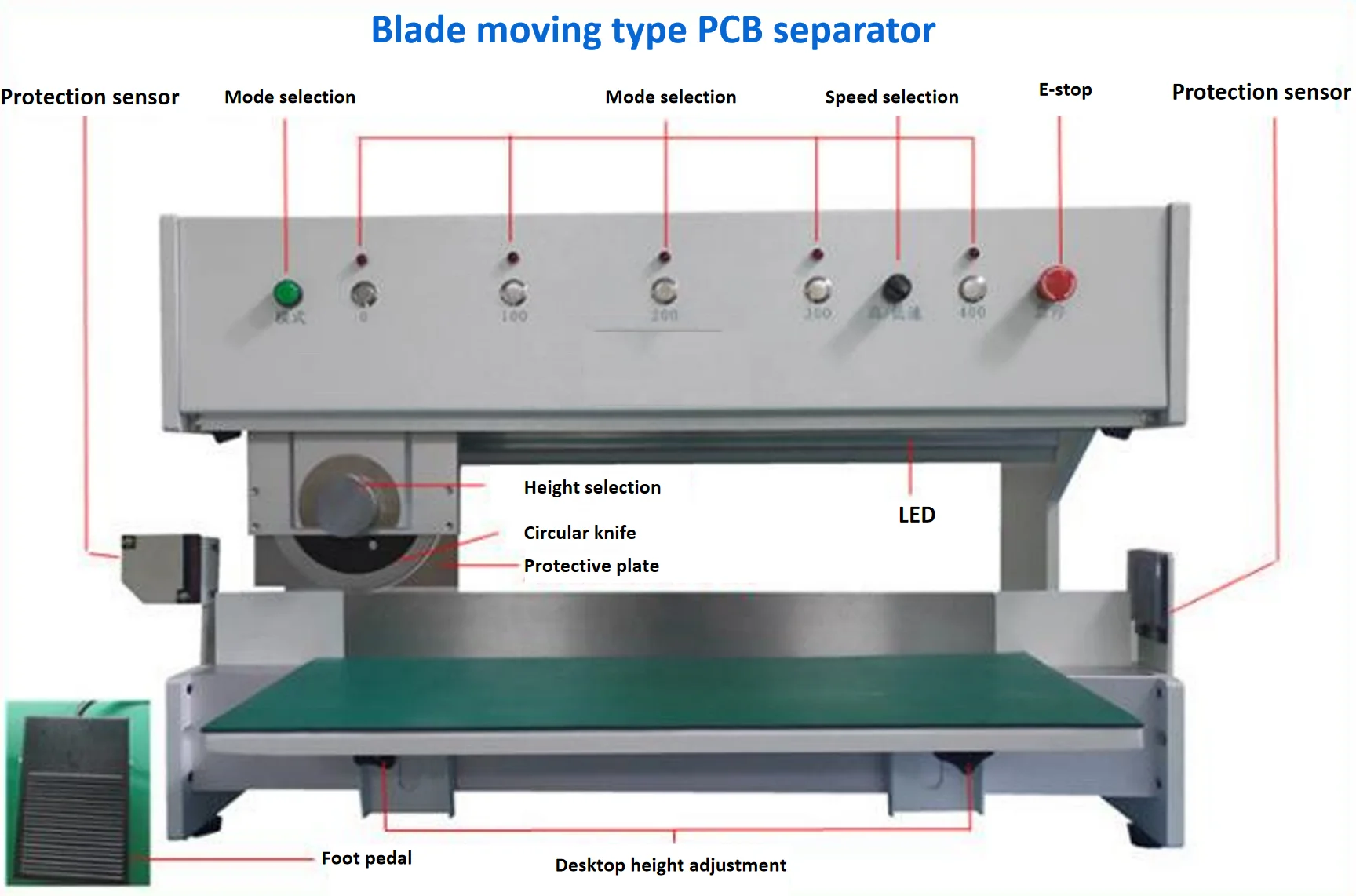

Blade moving type PCB separator

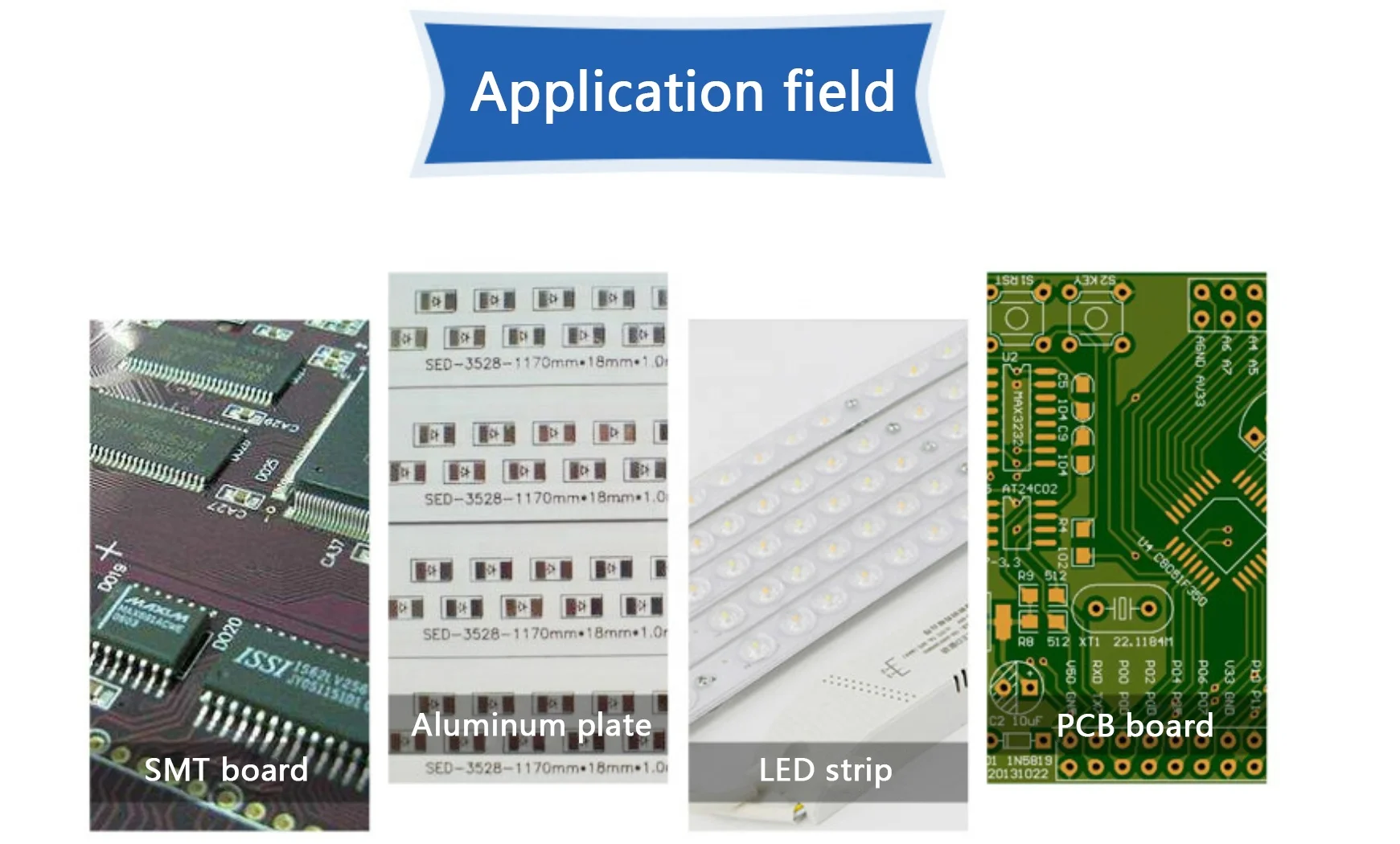

Range of application:
SMT, Smart wearable, instrumentation, tablet, automotive electronics, new energy, medical equipment, communications, white goods, LED lighting, etc
Features and Advantages:
1.PCBA does not move during the cutting process, and the circular knife slides.to ensure that the electronic components of the substrate are not damaged due to movement
2.The sliding speed and cutting stroke of circular knife can be adjusted flexibly according to the actual use
3.According to the depth of V groove and tool loss, the distance between the upper round knife and the lower straight knife can be accurately adjusted
4.Stepper motor drive, power can be self-locking, to achieve fine cutting positioning
5.Infrared light screen switch safety protection to ensure safe operation of the machine
6.The upper and lower blades are made of high speed steel imported from Japan to improve the service life and cutting effect of the blades
SMT, Smart wearable, instrumentation, tablet, automotive electronics, new energy, medical equipment, communications, white goods, LED lighting, etc
Features and Advantages:
1.PCBA does not move during the cutting process, and the circular knife slides.to ensure that the electronic components of the substrate are not damaged due to movement
2.The sliding speed and cutting stroke of circular knife can be adjusted flexibly according to the actual use
3.According to the depth of V groove and tool loss, the distance between the upper round knife and the lower straight knife can be accurately adjusted
4.Stepper motor drive, power can be self-locking, to achieve fine cutting positioning
5.Infrared light screen switch safety protection to ensure safe operation of the machine
6.The upper and lower blades are made of high speed steel imported from Japan to improve the service life and cutting effect of the blades
Specification
equipment model | ZDF-450 |
overall dimension(L/W/H) | 680× 530×450 (MM) |
input voltage | AC 220 V /5 0-60 HZ |
equipment power | 60 W |
equipment weight | 46 KG |
Maximum board length | 450 MM |
Plate thickness | 0.6-3.5 (MM) |
maximum height of V-slot edge device | 50 MM |
minimum distance between V slot and components Type of panel | 0.5 MM |
item | value |
Place of Origin | China |
Guangdong | |
Brand Name | MACEX |
Condition | New |
Weight (KG) | 50 |
Video outgoing-inspection | Provided |
Machinery Test Report | Provided |
Marketing Type | New Product 2021 |
Warranty of core components | 1 Year |
Core Components | PLC, Engine, Gearbox, Motor, Pump |
Applicable Industries | Hotels, Garment Shops, Building Material Shops, Manufacturing Plant, Restaurant, Printing Shops, Construction works , Energy & Mining, Advertising Company |
Showroom Location | Egypt, Canada, Turkey, United Kingdom, United States, Germany, India, Russia, Thailand, Malaysia |
FAQ
1. who are we?
We are based in Guangdong, China, start from 2021,sell to Eastern Europe(20.00%),South America(20.00%),North America(20.00%),Western Europe(20.00%),Southeast Asia(15.00%),South Asia(3.00%),Africa(2.00%). There are total about 1-4 people in our office.
2. how can we guarantee quality?
Always a pre-production sample before mass production;
Always final Inspection before shipment;
3.what can you buy from us?
battery tester,battery welder,battery aging machine,soldering robot,screw driving robot
4. why should you buy from us not from other suppliers?
Macex, combined from Machine expert also Machine export, Shenzhen Macex Industry Co.,ltd, started in industrial field since 2000, developed with high speed developing of china.
5. what services can we provide?
Accepted Delivery Terms: FOB,CFR,EXW,CPT,DDP；
Accepted Payment Currency:USD,EUR,CAD;
Accepted Payment Type: T/T,Credit Card,PayPal,Western Union;
Language Spoken:English,Chinese
We are based in Guangdong, China, start from 2021,sell to Eastern Europe(20.00%),South America(20.00%),North America(20.00%),Western Europe(20.00%),Southeast Asia(15.00%),South Asia(3.00%),Africa(2.00%). There are total about 1-4 people in our office.
2. how can we guarantee quality?
Always a pre-production sample before mass production;
Always final Inspection before shipment;
3.what can you buy from us?
battery tester,battery welder,battery aging machine,soldering robot,screw driving robot
4. why should you buy from us not from other suppliers?
Macex, combined from Machine expert also Machine export, Shenzhen Macex Industry Co.,ltd, started in industrial field since 2000, developed with high speed developing of china.
5. what services can we provide?
Accepted Delivery Terms: FOB,CFR,EXW,CPT,DDP；
Accepted Payment Currency:USD,EUR,CAD;
Accepted Payment Type: T/T,Credit Card,PayPal,Western Union;
Language Spoken:English,Chinese
