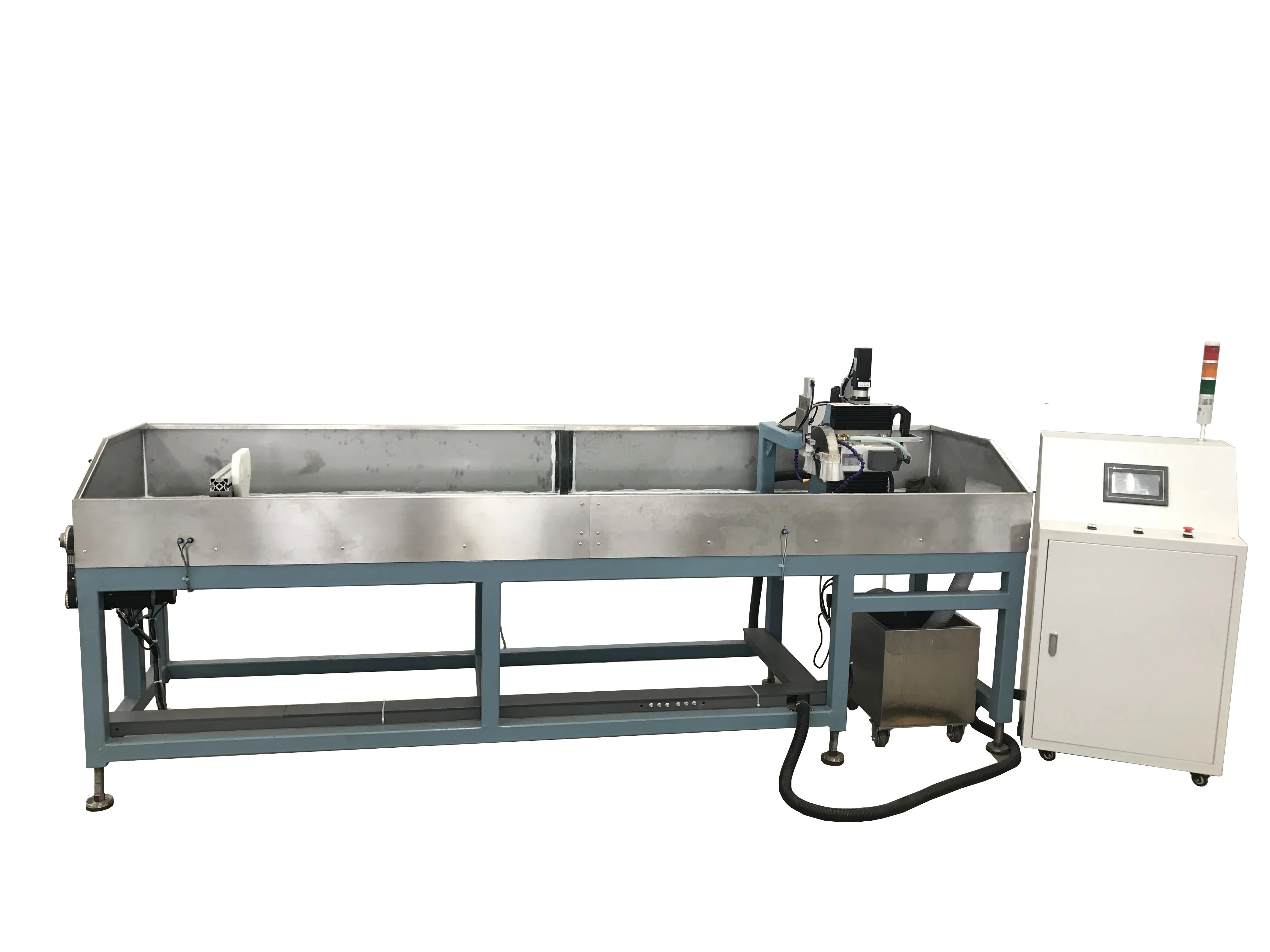

Rotary quartz tube cutting machine
- Category: >>>
- Supplier: Anhui Ruilong Glass Machinery Co. Ltd.
Share on (1600384574385):
Product Overview
Description
Product Description
Specification
The raw material is hollow glass tube or glass rod
The maximum length range of raw material is 1500MM
Raw material diameter range Φ20MM- A 200MM
(To change the specification, some components need to be manually adjusted. If necessary, the specification and model of the
cutting piece should be replaced.)
Saw blade speed 0-9000r /MIN(variable frequency regulation)
The length of the product after cutting is ≥30MM
Machining accuracy ≤ 0.8mm (Φ 20mm-N 200MM)
Machining efficiency ≤2 min (according to Φ200MM diameter cut one knife estimate, not counting loading and unloading and
adjustment time)
The thickness of slices is standard with 1.2mm resin material
Manually adjust the system parameters (cutting head speed/head lifting displacement/rubber wheel speed/end baffle walking
distance, etc.),
Empty run to ensure that the components back the normal work after the zero state - processing raw materials by artificial or the
buyer to provide mechanical loading equipment into the initial location - cutting artificial recognition baffle diameter - will
end to resist equipment - into cutting mode - the man-machine dialogue interface can be divided into manual/automatic mode - touch
screen operation, one key
Bars start to rotate, the speed is adjustable -- cutting motor action, cutting saw blade rotation, the head assembly overall
downward pressure (downward pressure action is a piecewise speed, the later stage of the demander to test the threshold of each
section of falling speed, so as to reduce the crack,
The possibility of center indentation and exterior protrusion -- the cooling water system starts internal circulation at the same
time of cutting -- the cutting action completes the overall return to zero of the machine head -- manual blanking, manual
detection and identification of waste materials.
The maximum length range of raw material is 1500MM
Raw material diameter range Φ20MM- A 200MM
(To change the specification, some components need to be manually adjusted. If necessary, the specification and model of the
cutting piece should be replaced.)
Saw blade speed 0-9000r /MIN(variable frequency regulation)
The length of the product after cutting is ≥30MM
Machining accuracy ≤ 0.8mm (Φ 20mm-N 200MM)
Machining efficiency ≤2 min (according to Φ200MM diameter cut one knife estimate, not counting loading and unloading and
adjustment time)
The thickness of slices is standard with 1.2mm resin material
Manually adjust the system parameters (cutting head speed/head lifting displacement/rubber wheel speed/end baffle walking
distance, etc.),
Empty run to ensure that the components back the normal work after the zero state - processing raw materials by artificial or the
buyer to provide mechanical loading equipment into the initial location - cutting artificial recognition baffle diameter - will
end to resist equipment - into cutting mode - the man-machine dialogue interface can be divided into manual/automatic mode - touch
screen operation, one key
Bars start to rotate, the speed is adjustable -- cutting motor action, cutting saw blade rotation, the head assembly overall
downward pressure (downward pressure action is a piecewise speed, the later stage of the demander to test the threshold of each
section of falling speed, so as to reduce the crack,
The possibility of center indentation and exterior protrusion -- the cooling water system starts internal circulation at the same
time of cutting -- the cutting action completes the overall return to zero of the machine head -- manual blanking, manual
detection and identification of waste materials.
item | value |
Applicable Industries | Hotels, Garment Shops, Building Material Shops, Manufacturing Plant, Machinery Repair Shops, Food & Beverage Factory, Farms, Restaurant, Home Use, Retail, Food Shop, Printing Shops, Construction works , Energy & Mining, Food & Beverage Shops |
Showroom Location | None |
Condition | New |
Machine Type | glass quartz tube and rod cutting machine |
Production Capacity | 1 pcs / 1 minute |
Place of Origin | China |
Power | 3kw |
Weight | 650kg |
Warranty | 1 Year |
Key Selling Points | Easy to Operate |
Glass Thickness | customized |
Machinery Test Report | Provided |
Video outgoing-inspection | Provided |
Marketing Type | Ordinary Product |
Warranty of core components | 1 Year |
Core Components | Motor |
Lead Time | 25 days |
diameter | 20-200mm |
length | can customized |
Company Profile
Anhui Ruilong glass machinery co.,ltd
Anhui Ruilong glass machinery co.,ltd focus on intelligent glass machinery and relevant automatic machinery . we are also one of the comprehensive new enterprises that provide the research and development、production、sale 、 technology service and After-sale maintenance and other services .The company covers an area of 40000㎡, total investment more than 200 million yuan（31 million dollar）, existing staff 80 people.
So far Ruilong has been won the recognition award in Anhui province industrial design competition ,Bengbu city first sets of major technical equipment certification enterprise specialization, arts and new certification enterprises, Bengbu city Internet and information fusion development demonstration and many kinds of honorary certificate .
Our company research and development design 、production and sales of main products are: loading and uploading for all kinds of glass machine, CNC glass cutting machine 、Semi-automatic glass cutting machine, double or single sides glass grinding machine, various types of ultra-thin glass cutting machine and grinding machine, normal ,convex 、ultra-thin glass cleaning machine, glass rod、brick、tube、 bottle and optical material cutting machine, glass transmission table, glass drilling machine, Top level intelligent cold glass processing line and all kinds of non-standard automation equipment and etc .

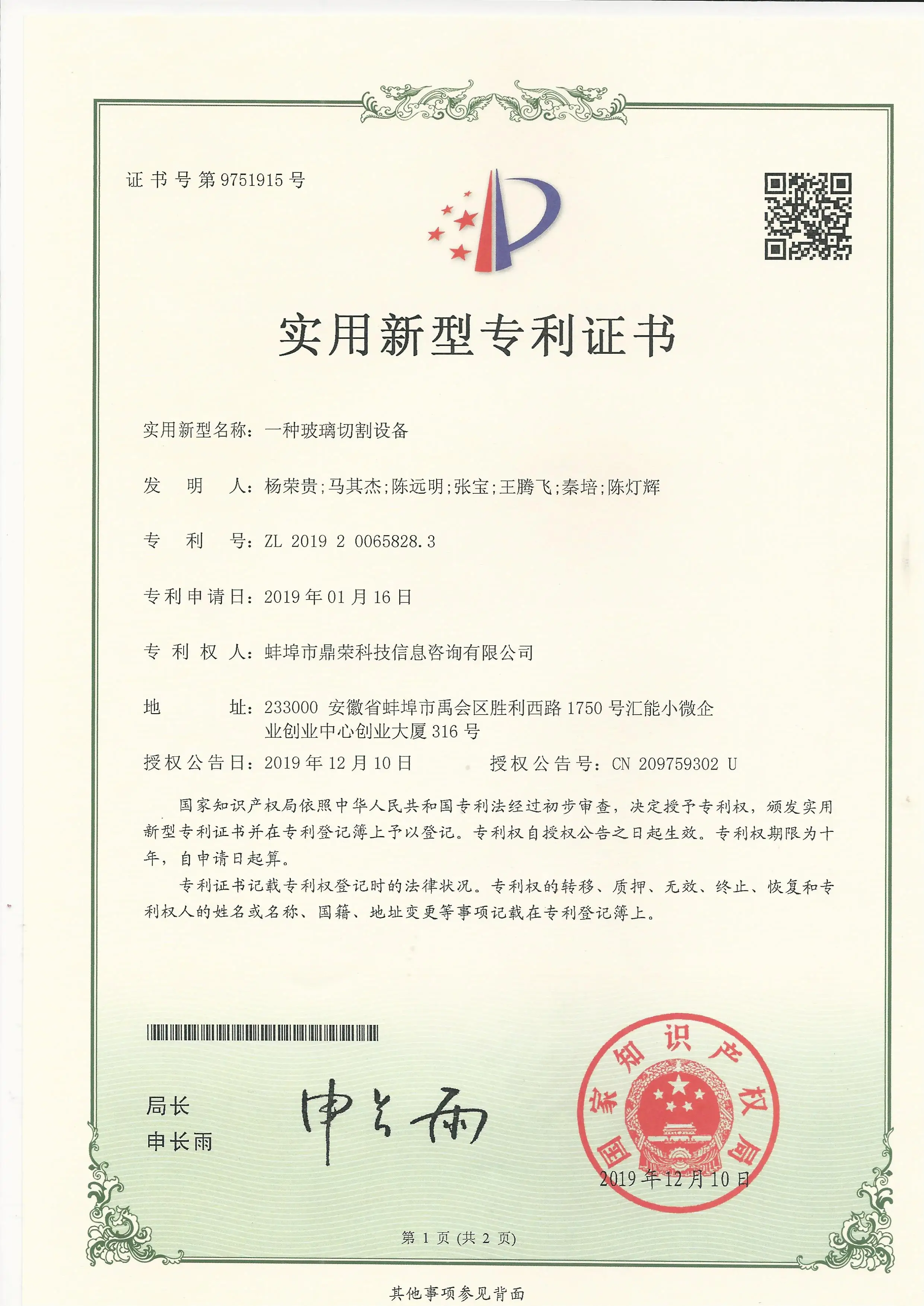

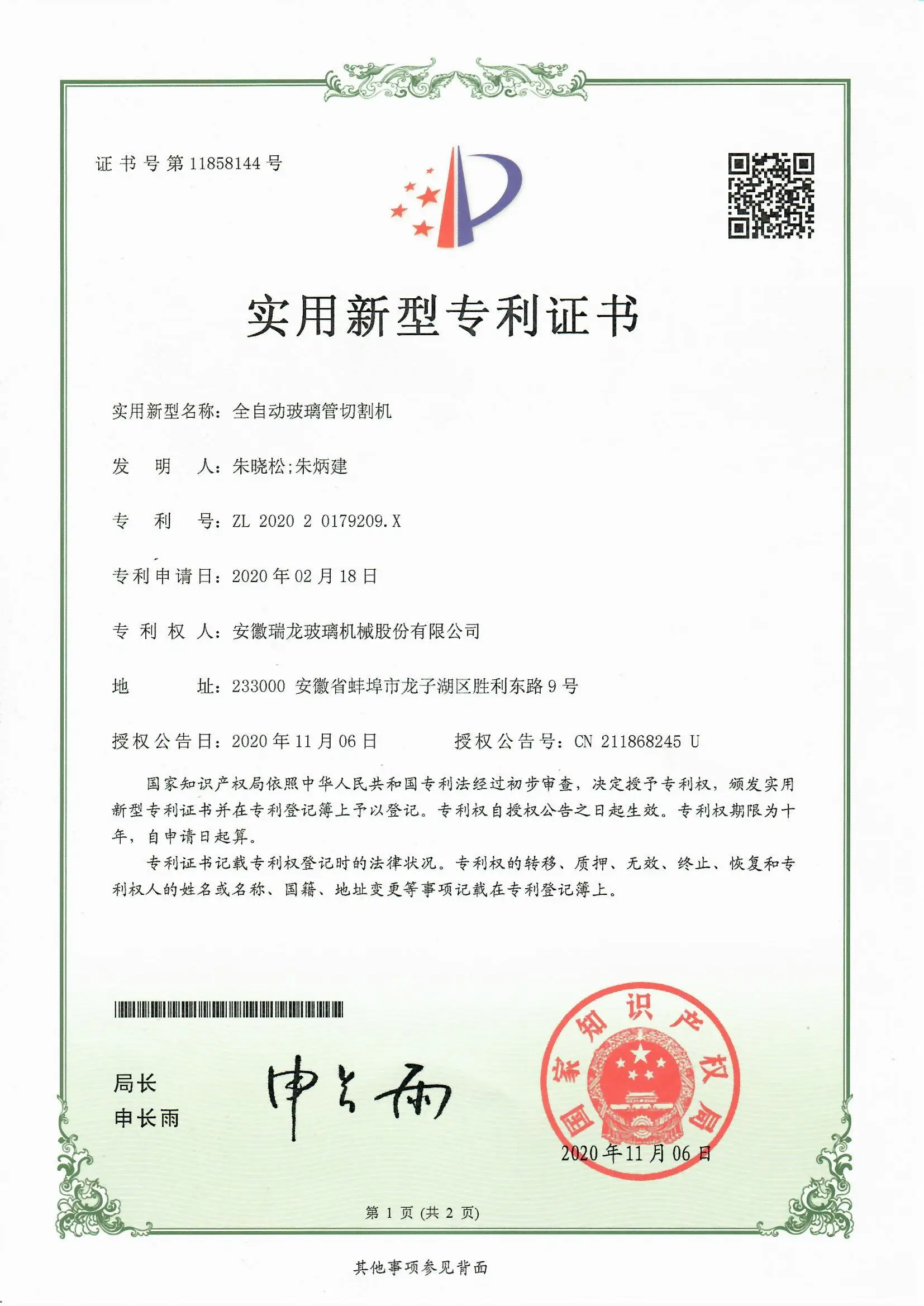

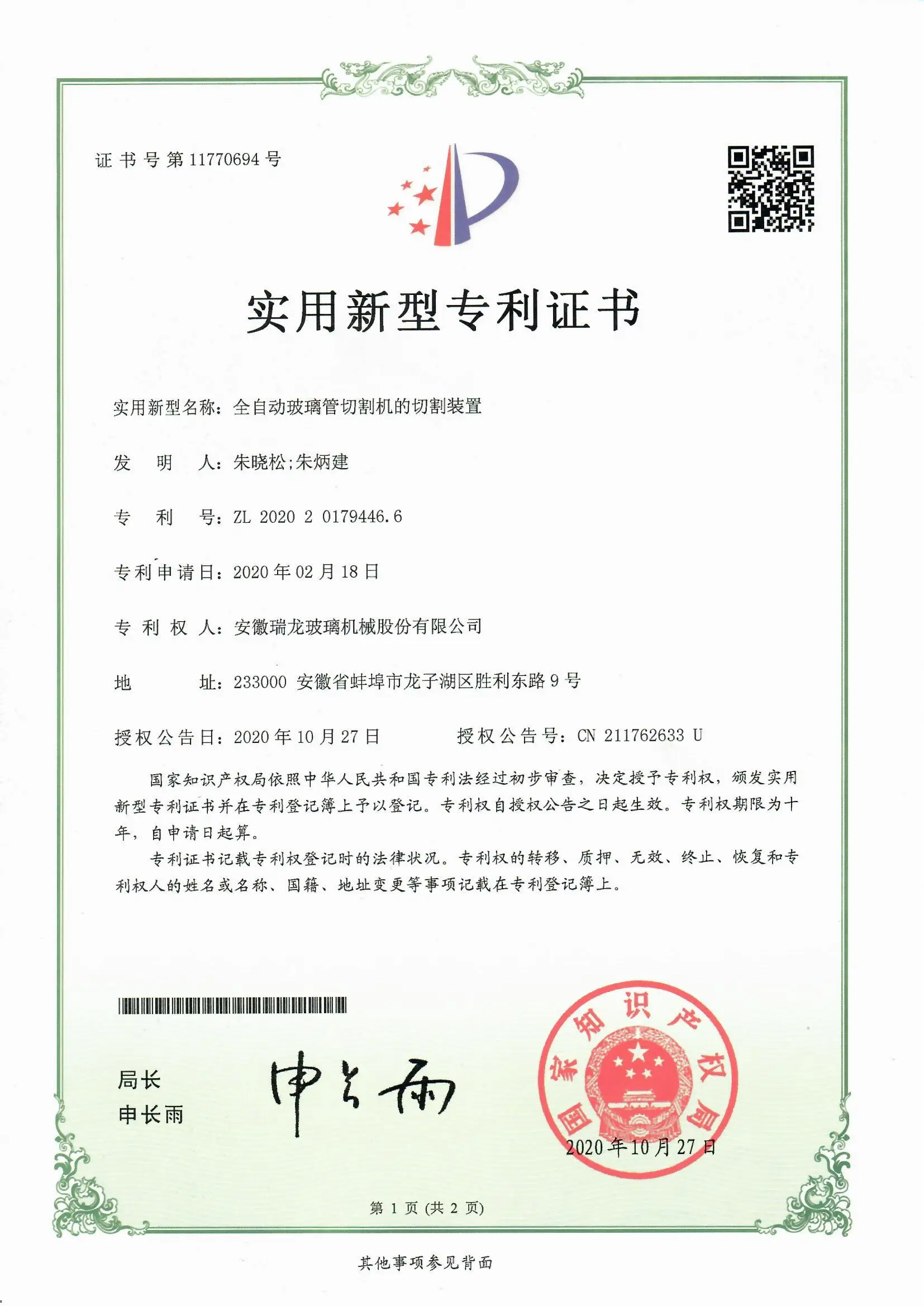

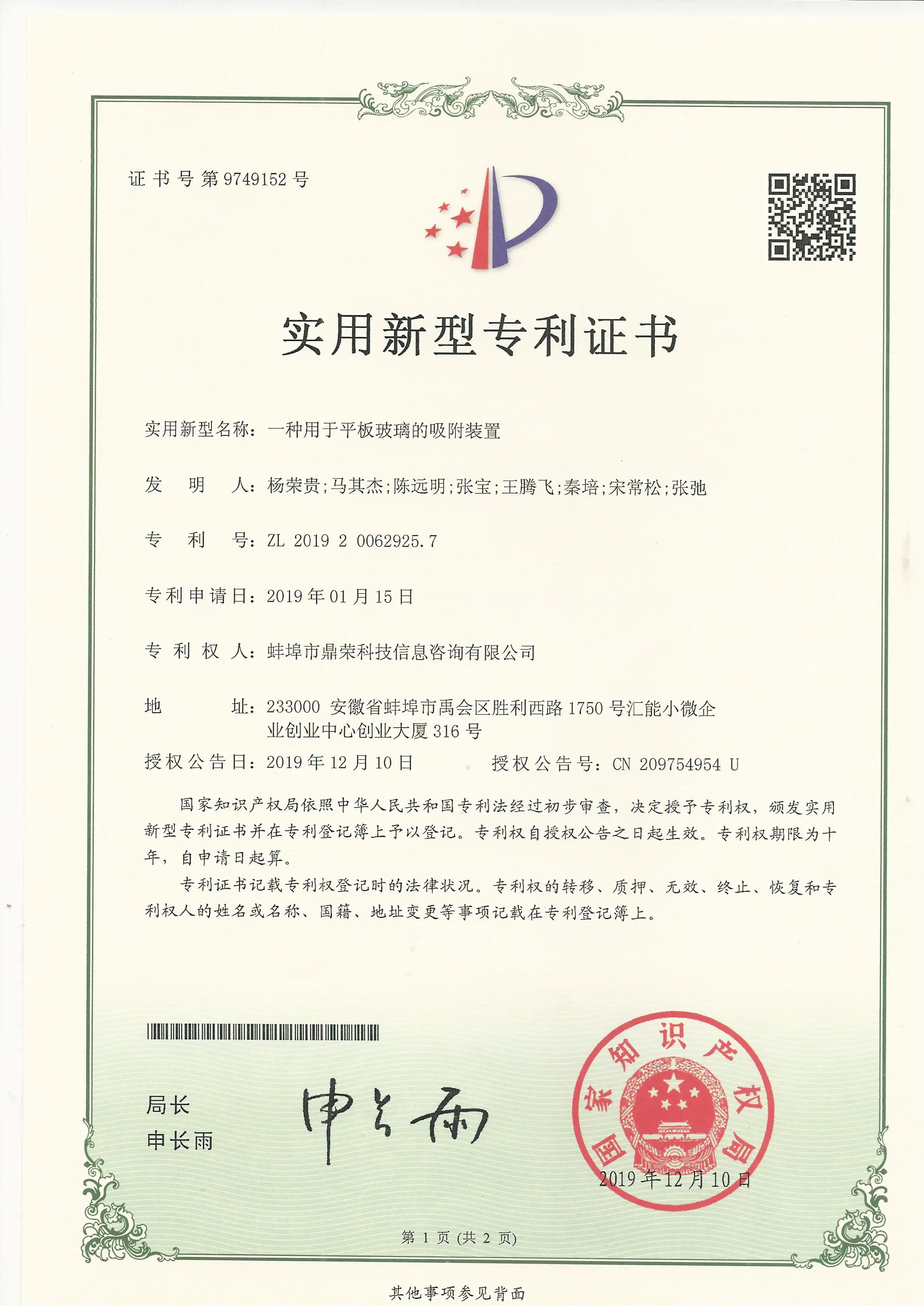

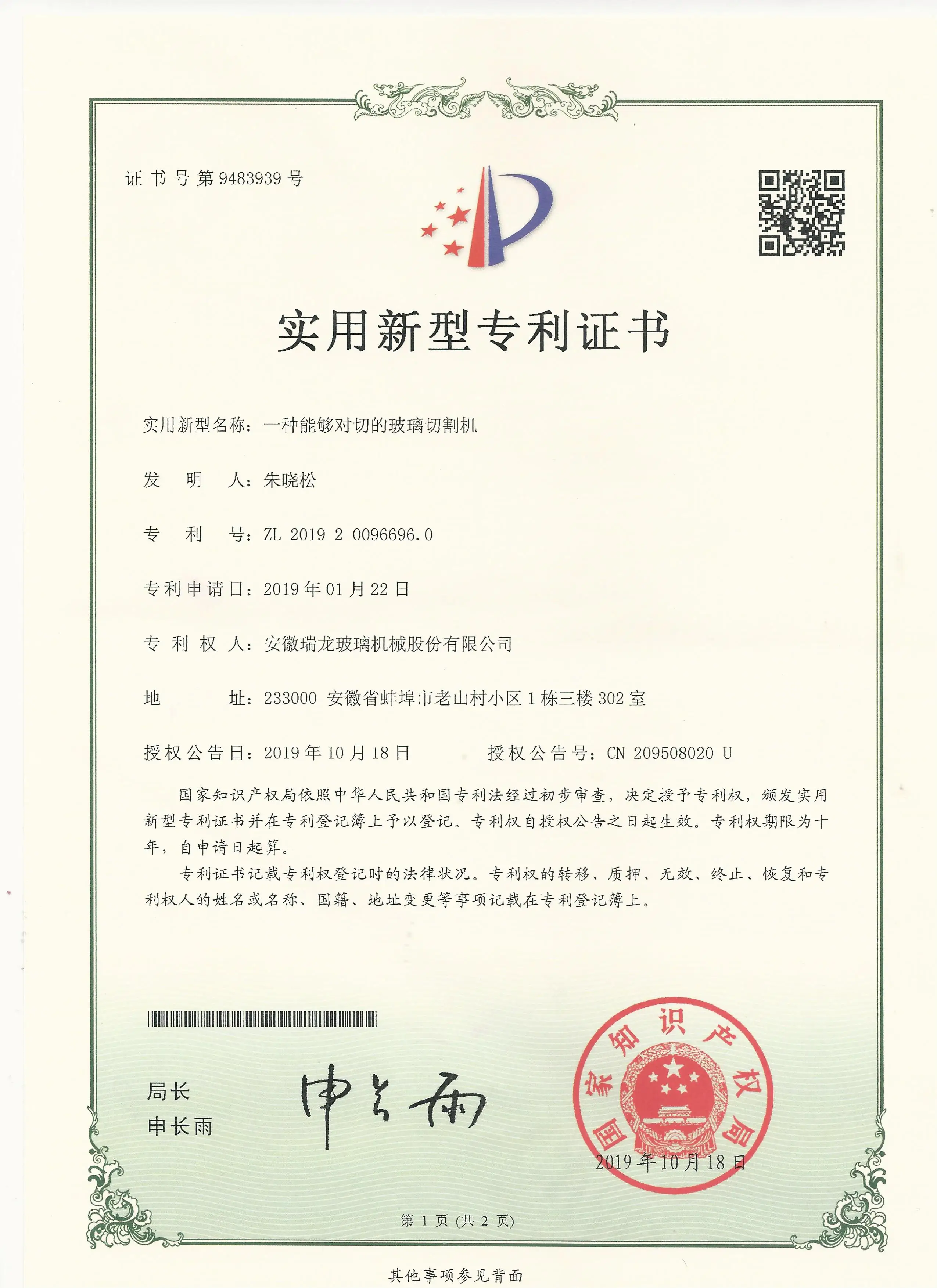

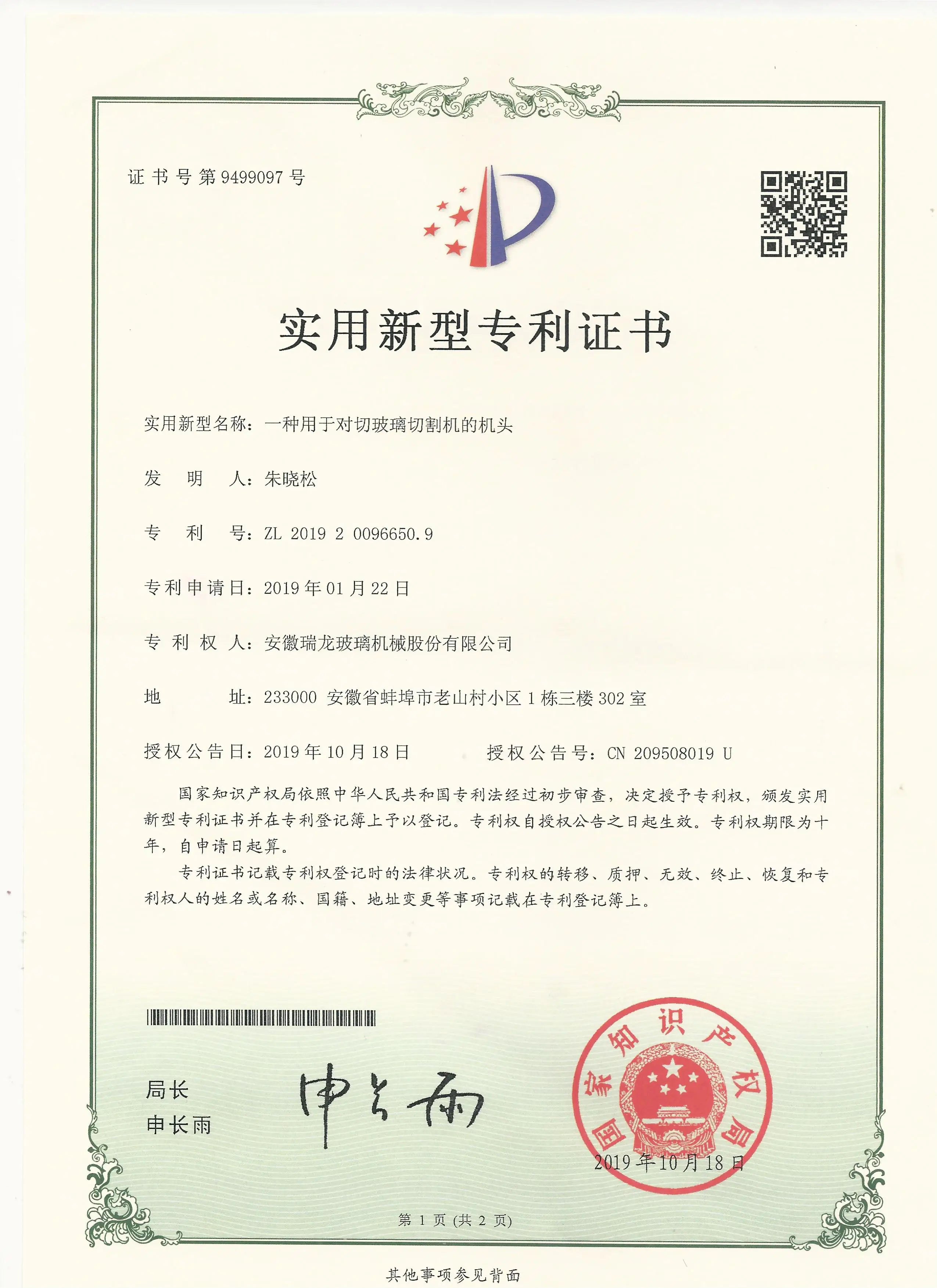

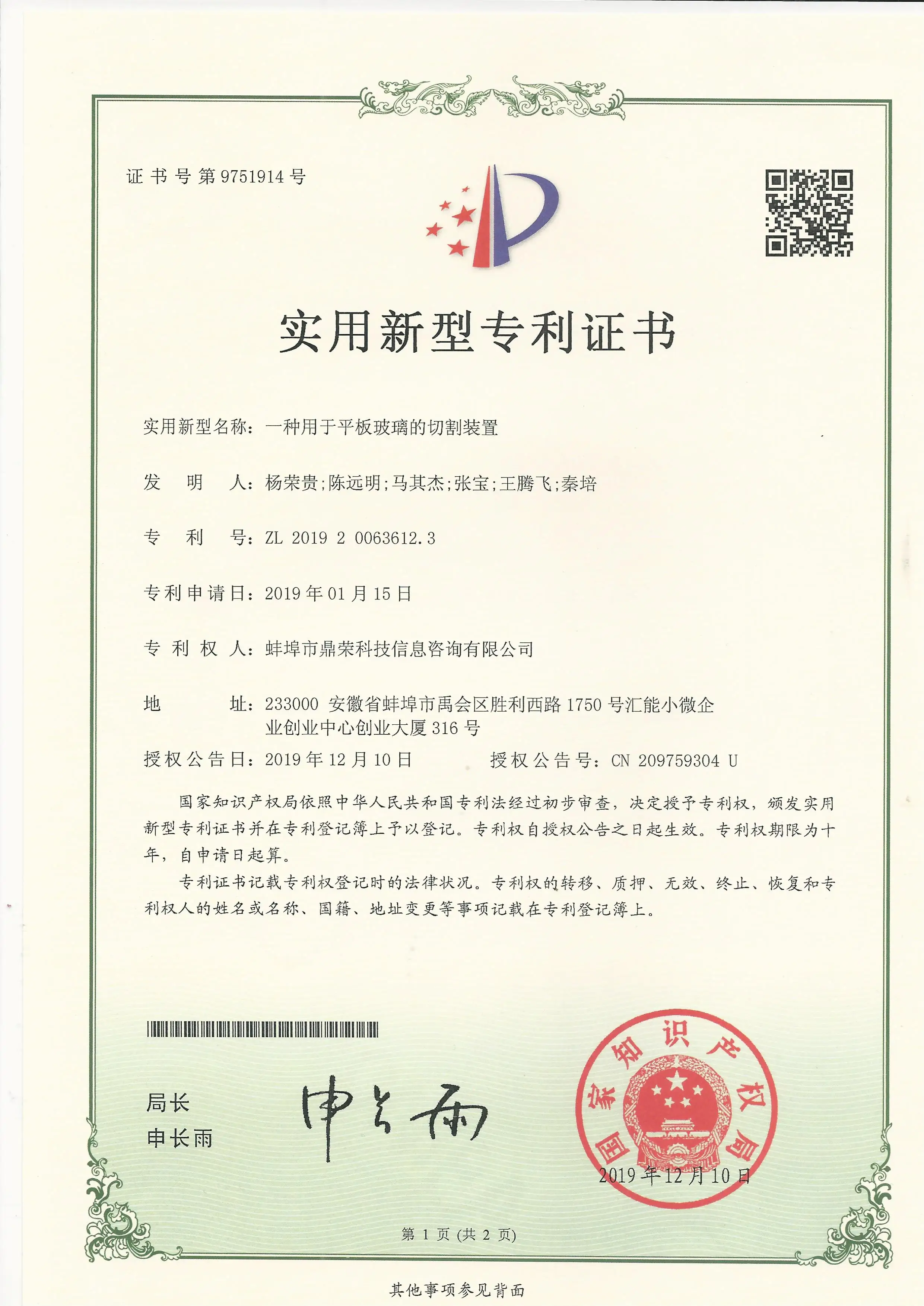

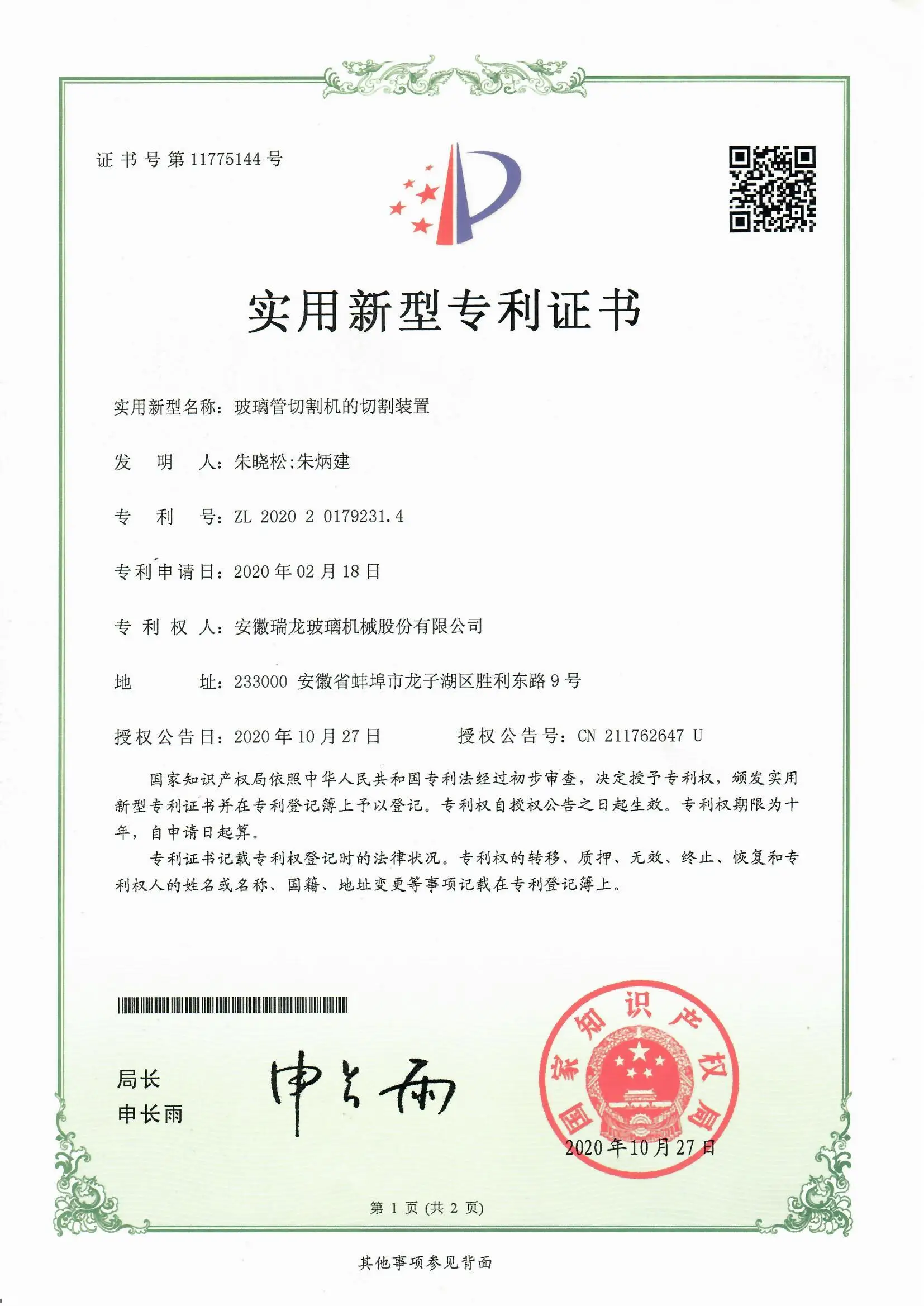

Patent

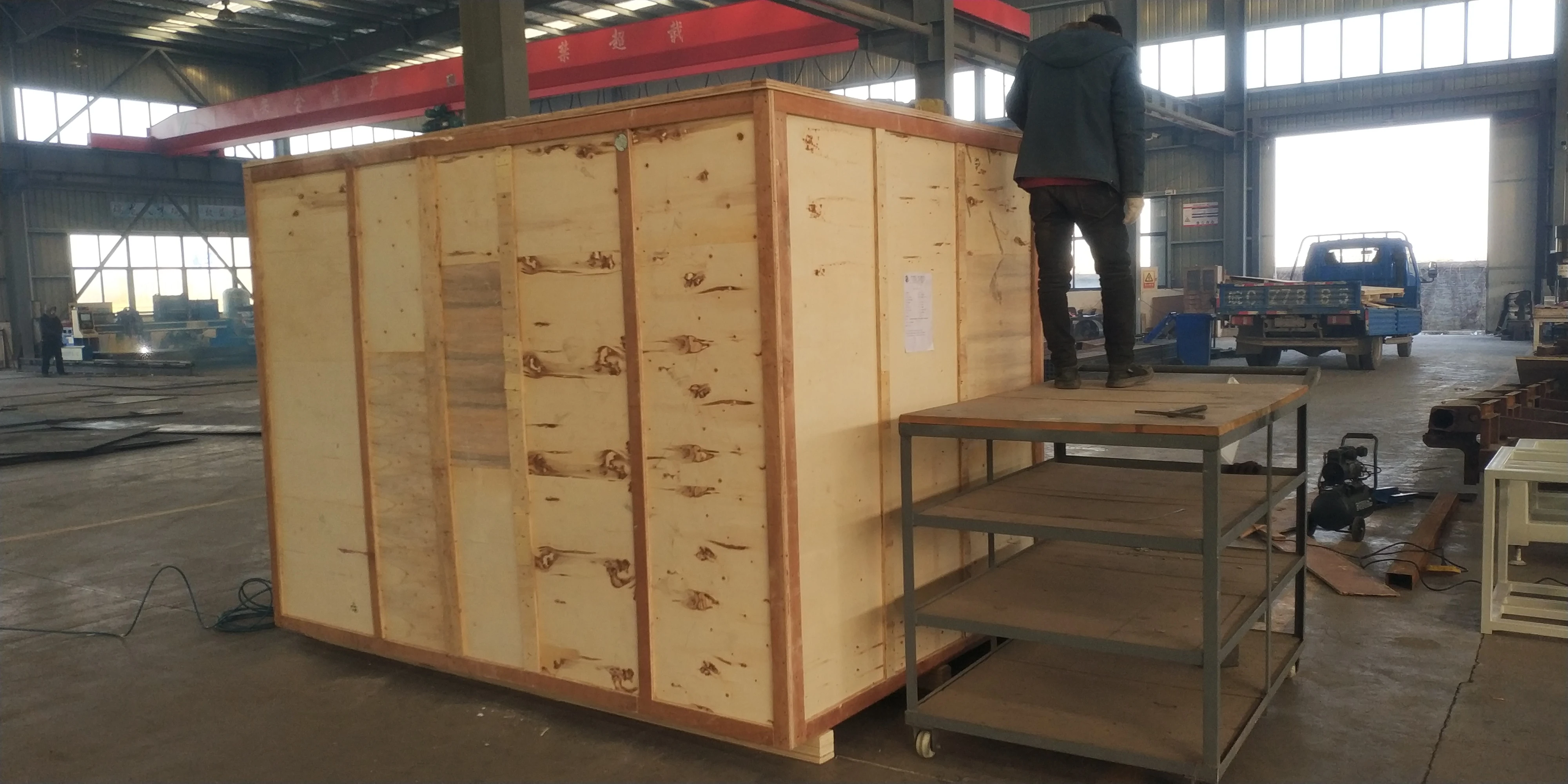

Product packaging
