Price:$1,558.00 - $1,658.00

Quantity:


Product Overview

Description



HVLS Ceiling Fan with permanent magnet synchronous motor for commercial areas

Diameters :3 m,3.7 m,4.3 m,5 m,6.1 m,6.7 m,7.3 m
Power:0.37 kw,0.75 kw,1.1 kw,1.5 kw




Specification


Model
HDS-3.0
HDS-3.7
HDS-4.3
HDS-5.0
HDS-6.1
HDS-6.7
HDS-7.3
HDS-6.7
HDS-7.3
Diameter
3m
3.7m
4.3m
5m
6.1m
6.7m
7.3m
6.7m
7.3m
Power
0.37kw
0.37kw
0.75kw
0.75kw
1.1kw
1.1kw
1.1kw
1.5kw
1.5kw
Diameter(ft)
10
12
14
16
20
22
24
22
24
Voltage
220v/380v
220v/380v
Frequency
50Hz/60Hz
50Hz/60Hz
Air Volume
4000m³/min
5000m³/min
7000m³/min
10000m³/min
11500m³/min
12000m³/min
13000m³/min
14000m³/min
15000m³/min
Speed
≤120rpm
≤100rpm
≤90rpm
≤80rpm
≤65rpm
≤60rpm
≤55rpm
≤65rpm
≤55rpm
Blades
5pcs
5pcs
5pcs
5pcs
6pcs
6pcs
6pcs
6pcs
6pcs
Blades width
180mm
180mm
180mm
180mm
180mm
180mm
180mm
200mm
200mm
Noise
38dB
38dB
Weight
35kg
38kg
46kg
49kg
103kg
107kg
111kg
118kg
122kg
Coverage size
8-12m
9-14m
12-18m
12-20m
20-25m
20-28m
20-28m
20-35m
20-35m
Effective Area
150㎡
230㎡
256㎡
300㎡
600㎡
650㎡
700㎡
750㎡
850㎡
Coverage Area
250㎡
380㎡
450㎡
500㎡
1000㎡
1300㎡
1500㎡
1600㎡
1700㎡
Above ground
4-5m
4-5m
4-6m
5-6.5m
8-10m
7-12m
6-9m
8-14m
7-12m
Protection class
IP66
IP66
IP66
IP66
IP66
IP66
IP66
IP66
IP66

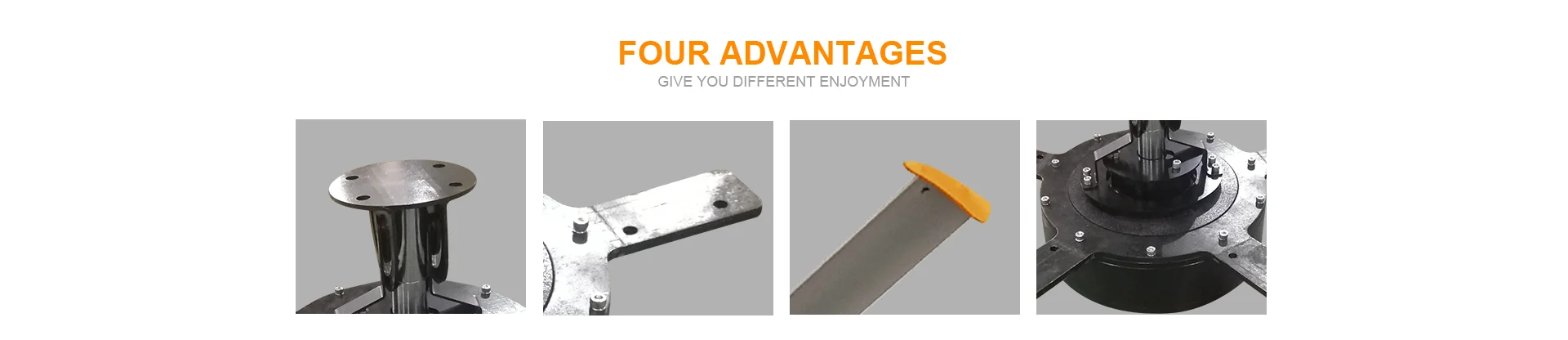

Detailed introduction

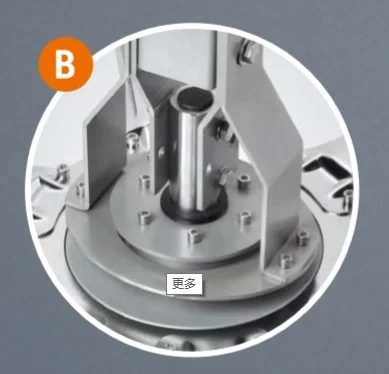

Direct Drive Motor System
The new self-developed external rotor motor with large torque and permanent magnet synchronization replaces the traditional
motor+gearbox reducer, achieving a high degree of integration and improving reliability and transmission efficiency.
Aluminium alloy material is adopted in many parts to realize the lightweight design.

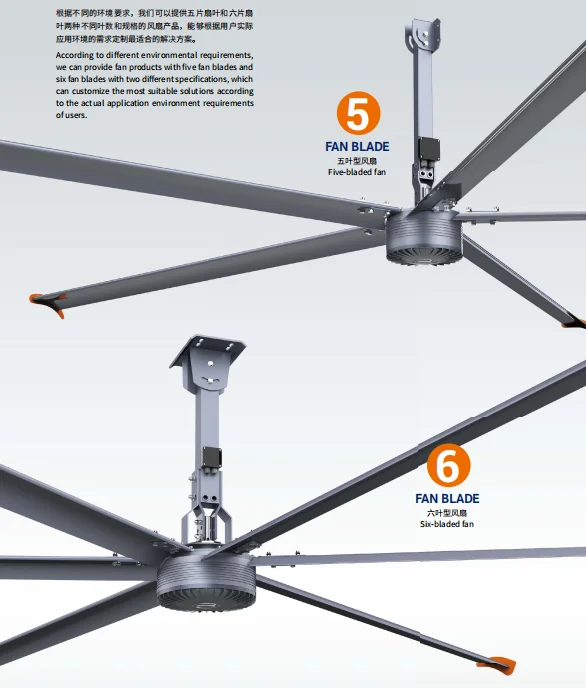

Fan Blade
It is made of aluminium and magnesium alloy extruded and stretched, and has the advantages of high strength, good toughness,
lightweight, long life and safe operation. The fan blade surface is treated with T5+ bright surface oxidation treatment, which
enhances the corrosion and oxidation resistance of the fan blade and can cope with special environmental operations.
Energy saving tail.

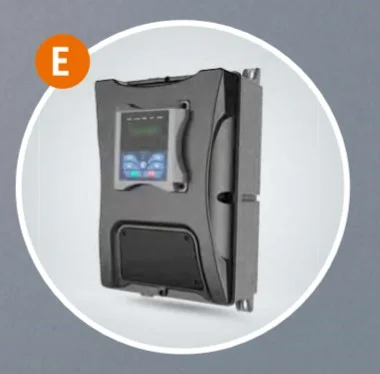

Smart control system
The control system adopts the closed design of IP66, which is dustproof, waterproof, moisture-proof and can withstand high temperature indoor and outdoor harsh environment.
The system is no position vector control,anti-electromagnetic interference, anti-radiation, small size, lightweight, beautiful appearance.
The system function is simple, 4 buttons easy to operation( start, stop, speed up, slow down).

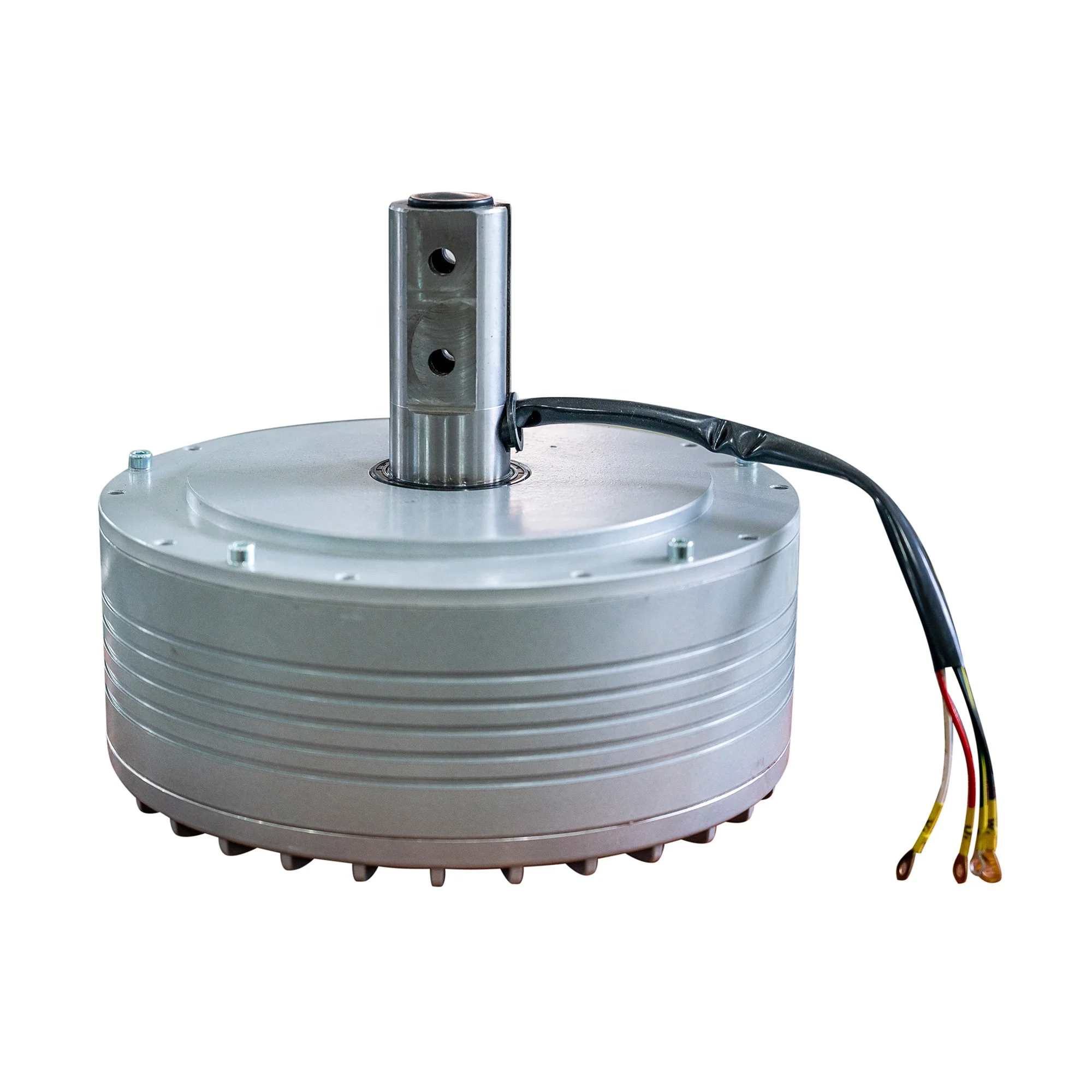

Permanent magnet synchronous motor
Power:0.37kw,0.75kw,1.1kw and 1.5kw

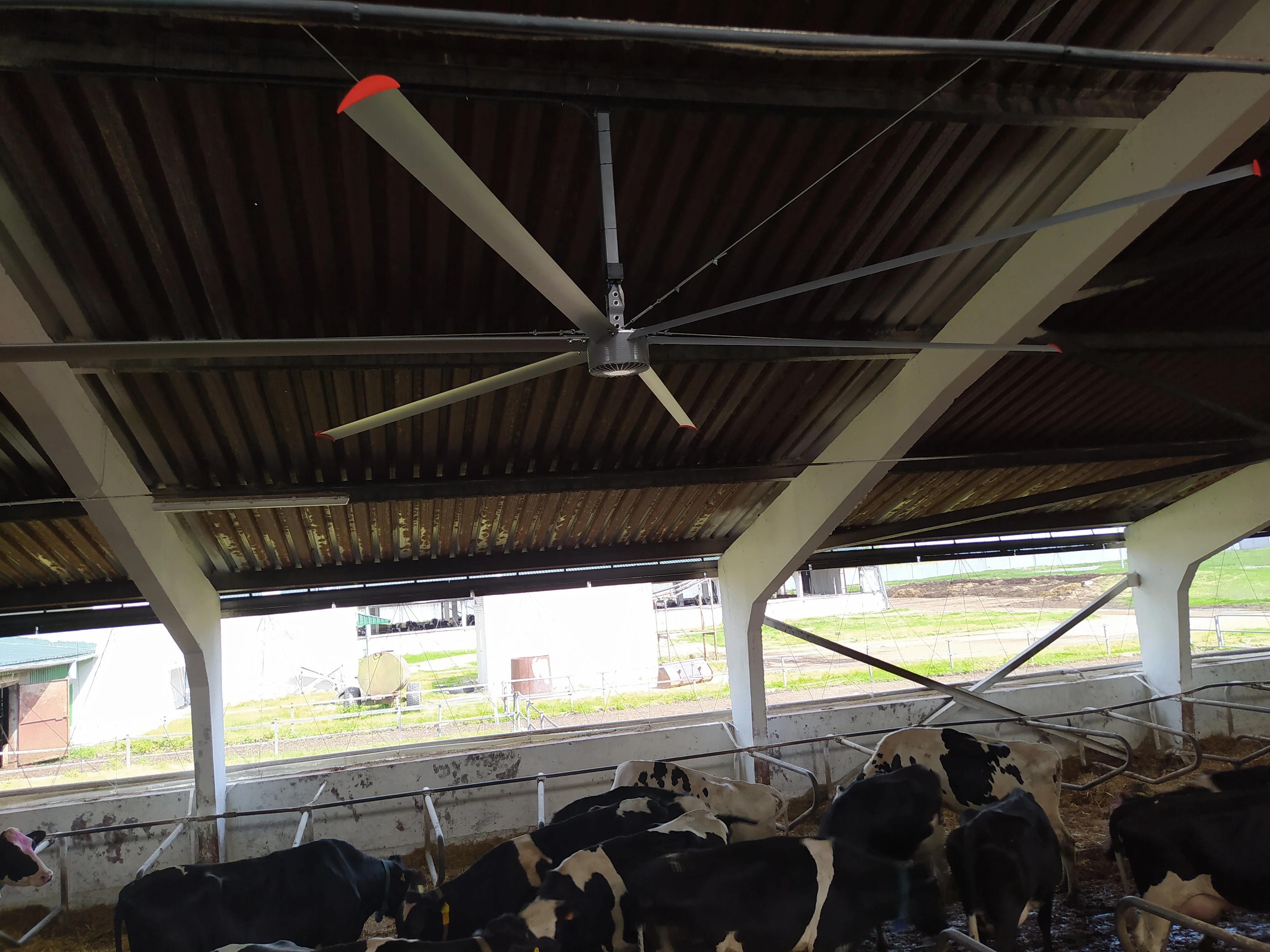

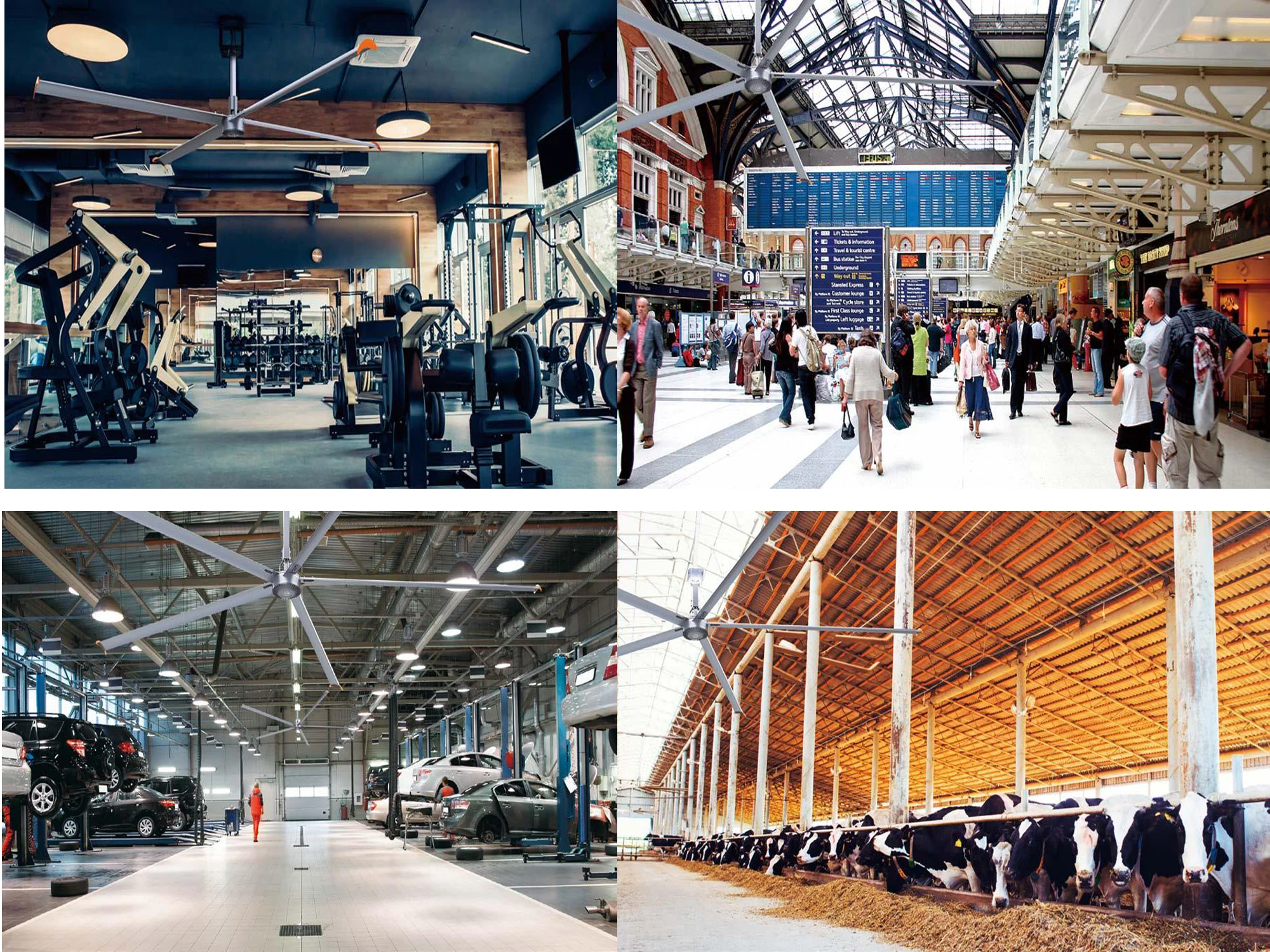

Application




Packing & Delivery




Packing way:One set of ceiling fan is packed by two plywood case,one is for blades, the other is for motor,controller and installation spare parts


Company Introduction
Fujian Huada Electric Co. Ltd.,Founded in 1998, locates in Fu'an, Fujian-the city of small and medium electrical machines. Covering 20,000 square meters and population is over 200 workers. Having R&D,production, sales and after-sales departments.we are a modern enterprise. Well-equipped with production lines and testing machines of motor and fans,we're advanced in manufacturing and management in our area. Besides,our R&D team is very strong. We cooperate with academic institutions and have many intellectual properties. Mostly, we can customize all kinds of special fans for customers.

Fujian Huada Electric Co. Ltd.,is a famous manufacturer for fans and high temperature motors in China.Have passed the ISO9001:2008 certification,CE cert.,CCC cert. and so on.We have Three Invention patents, eleven utility-model patents and TWO design patents.Was name"Technology Enterprise of Fujian province" in 2003.All of our products sell all over the world with good reputation and reliability.On 2009,"GKF" series was selected a standard products by China administration of tobacco.

Meanwhile,we are also engaged in f HVLS Fans with permanent magnet synchronous motor.Our product range: 3 m,3.7 m,4.3 m,5 m,6.1 m,6.7 m and 7.3 m .
