Product Overview

Description

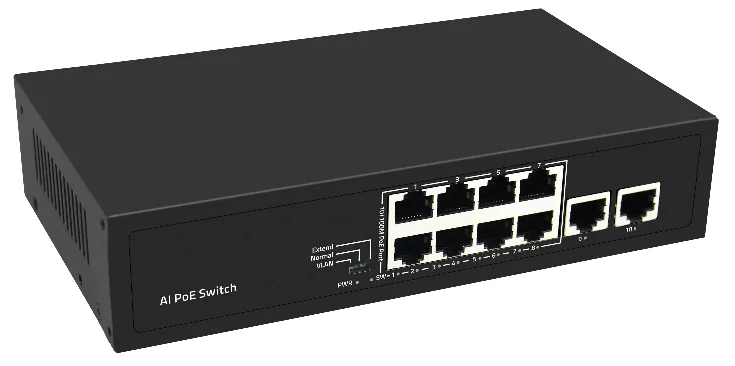

Full Gigabit 10/100/1000M 8 port PoE switch with 2 SFP gigabit slots for CCTV industry


(Model number: FJ900-AF-82GN)


Product features:


.


8*10/100/1000M Gigabit POE ports + 2* 10/100/100M Gigabit Ethernet Uplink ports;


Comply with IEEE 802.3, IEEE 802.3u, IEEE802.3af/at standards;


Ethernet port supports 10/100M adaptive and POE functions;


Flow control mode: full-duplex adopts IEEE 802.3x standard, half-duplex adopts Back pressure standard;


Support port auto flip (Auto MDI/MDIX);


Automatically supplied to adaptive devices;


Panel indicator monitoring status and help failure analysis;


Support for VLAN mode, OFF mode and Extend mode;


Support Watchdog Function;


Lightning Protection Surge: General Mode 6KV, Differential Mode 4KV, ESD 8KV.








Specification:












































































Product Name



8 Port POE Switch 10/100/1000M Smart Ethernet Switch for CCTV IP Camera



Product Model



FJ900-AF-82GN



Port Description



8*10/100/1000M POE ports + 2* 10/100/1000M Ethernet Uplink ports



PoE Power Supply



mid-span: 4/5, 7/8 data line pair(default); end-span: 1/2,3/6 spare line pair (can be customized)



Network Medium



1000BASE-TX: 5Cat and more UTP (≤100 meters)



Thermal Protection



>100°C



Performance



Working Rate:10/100/1000Mbps



Network port protection: meet with IEC61000-4-2(ESD)



MTBF: 100,000 hours



PoE Standards



IEEE 802.3af/at



LEDs Indicator



PoE working status



Power



Total power: 240W



PoE port power: 15.4W af standard, 30W at standard







Dimensions/Weight



 200mm*118mm*44mm






Working Environment



Operating Temperature: -20°~ 55°C , Storage Temperature: -20°~ 75°C



Working Humidity: 10%~90%, non-condensing


Storage Humidity: 10%~95%, non-condensing



Warranty



CE mark, commercial, FCC Part 15 Class B, RoHS



1 year warranty

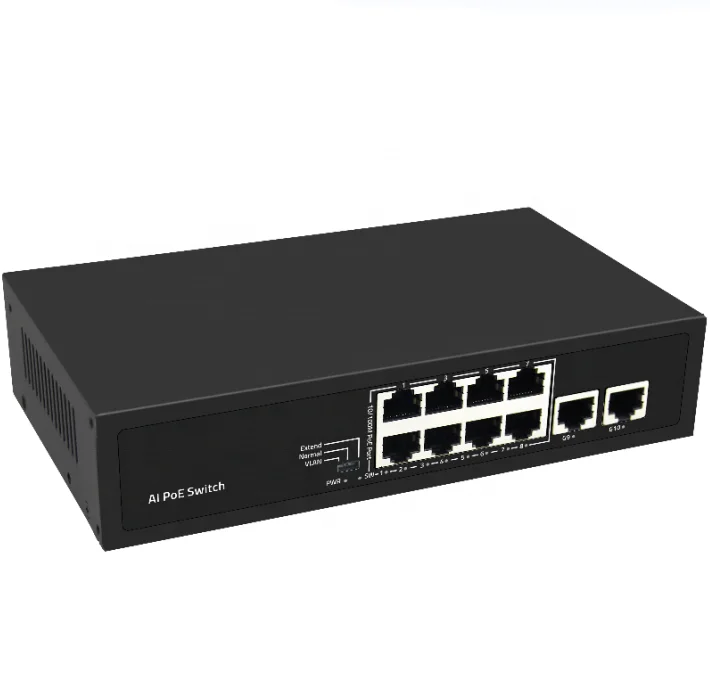

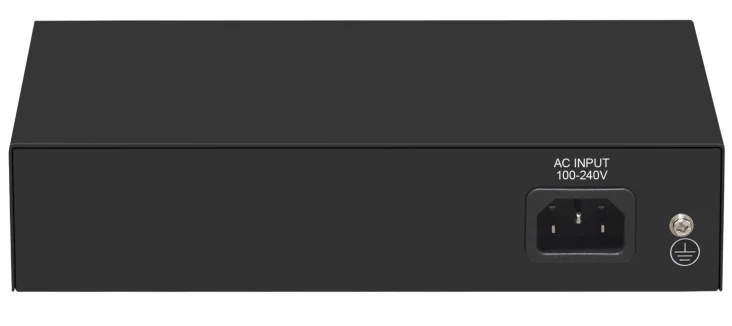

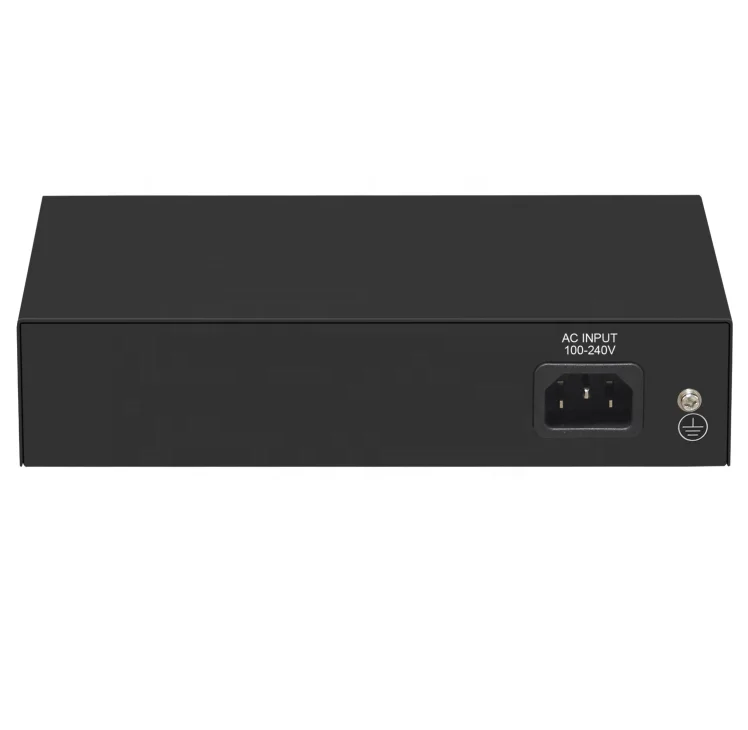

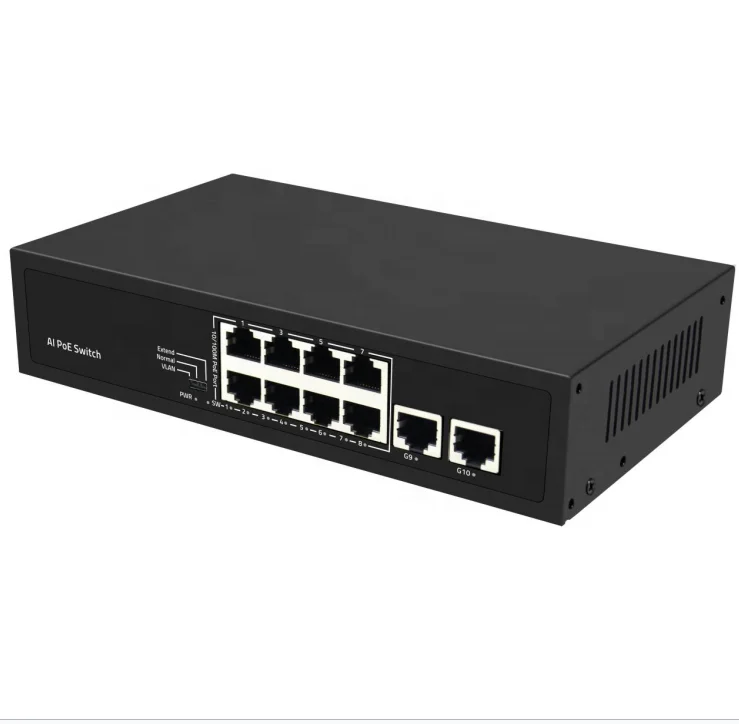

Product pictures:

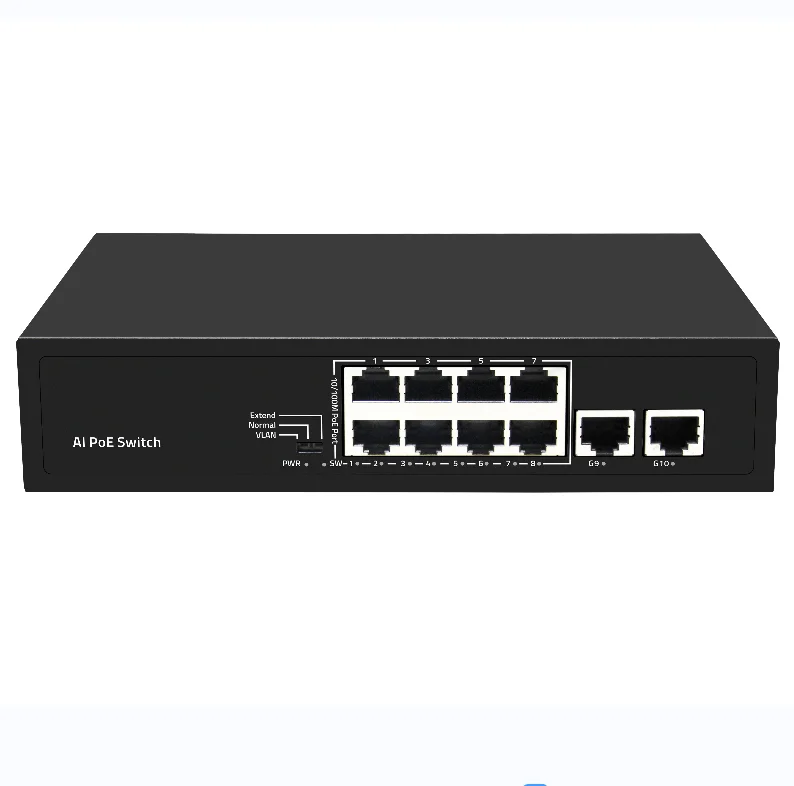

POE switch 01.png

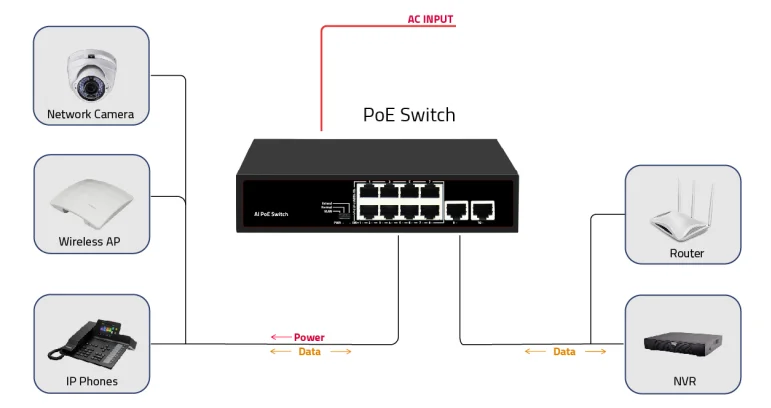

Application diagram:





Certification







Company Information


company introduction_





Workshop


workshop





Packaging & Shipping


2020-11-26_162724





FAQ


1. When can I get your offer?


We usually quote within 24 hours after we get your inquiry . If you are urgent to get the price, please calls us or send email that we can handle your inquiry in priority.





2. How can I get a sample to check your quality?


After product confirmation,  If you need the  sample, we can prepare to send the sample to you on 3-5days. The sample will arrived to you around 4-6 days by express.





3. Can you do the design for us?


Yes. We have a professional engineer having rich experience in cable design and development. Just let us know your ideas and we will help to carry out your ideas into perfect products. It does not matter if you do not have someone to complete files. Send us the SPEC., and we will send you product drawing for confirmation.





4. What about the lead time for mass production?


Honestly, it depends on the order quantity. The lead time of MOQ is about 4-6 days. Generally speaking, all the goods can be reached your address within 2 weeks.





5. Can you accept OEM order?


Welcome to send your specified product design and package design to us for your order. We can accept to print your logo and design the package according to your specific requirement.





6. How is your product quality?


We always put emphasis on the quality of our product. Our product are 100% tested and inspected before shipment. We assure 1 year warranty for all our products.
