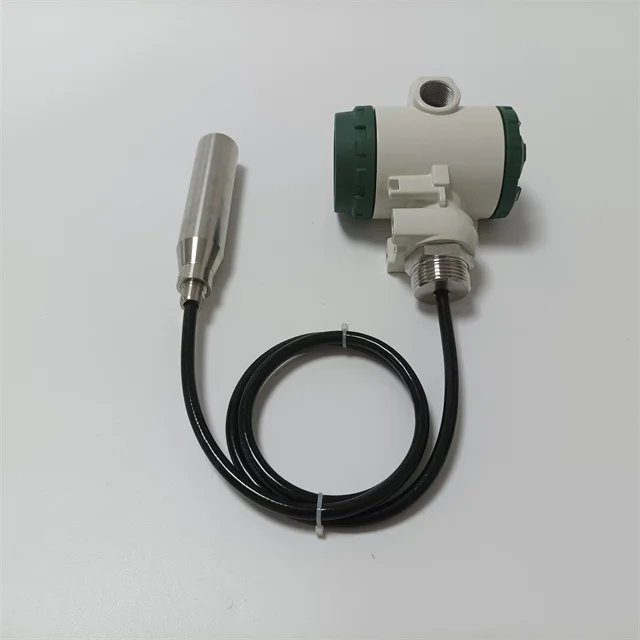

NEW arrival 10% discount NICON hammer type output RS485 diffused silicon 4 20mA pressure sensor
- Category: >>>
- Supplier: ZHENGZHOU NICON TECH CO. LTD
Share on (1600384662802):
Product Overview
Description

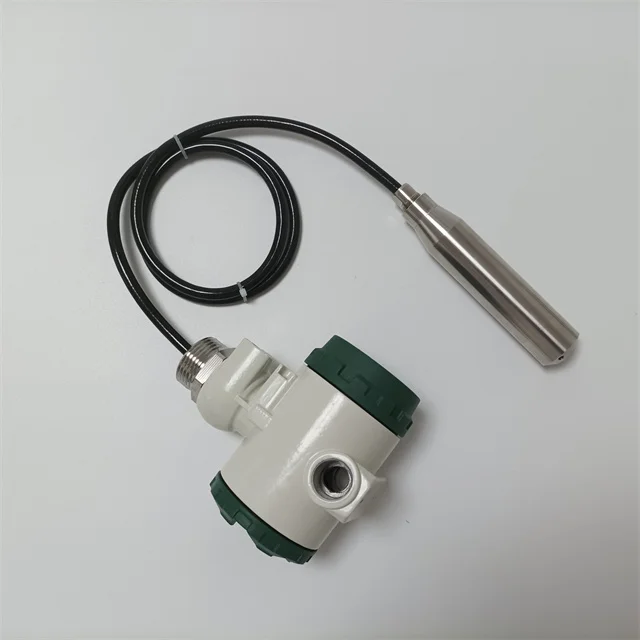

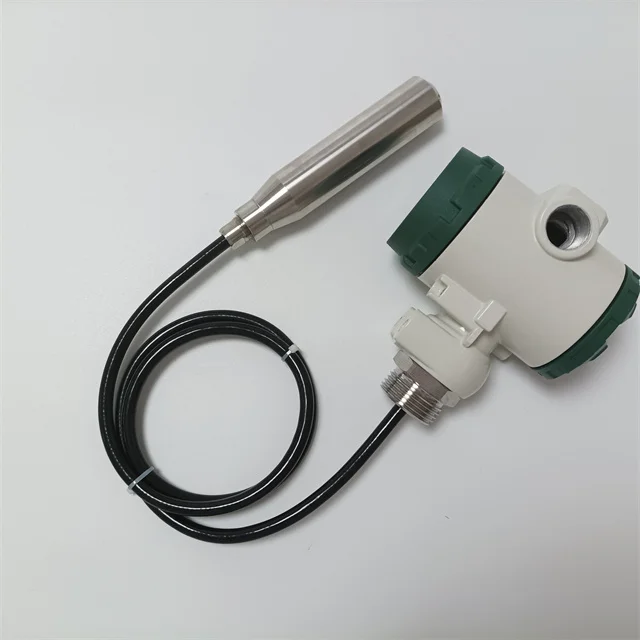

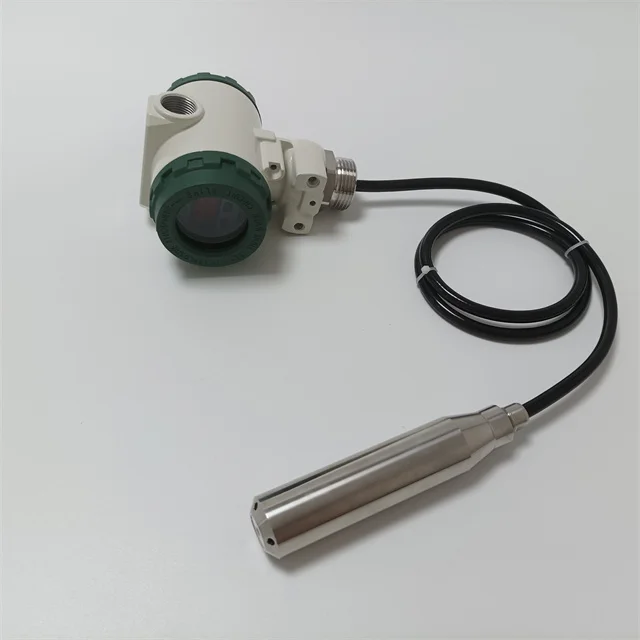

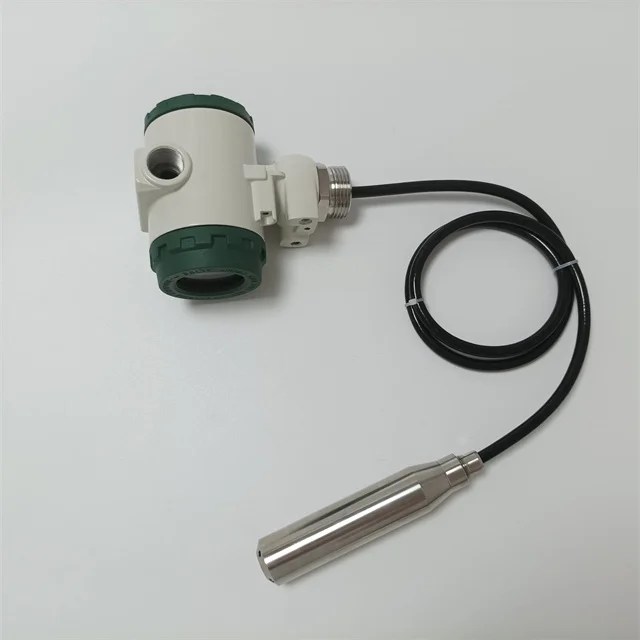

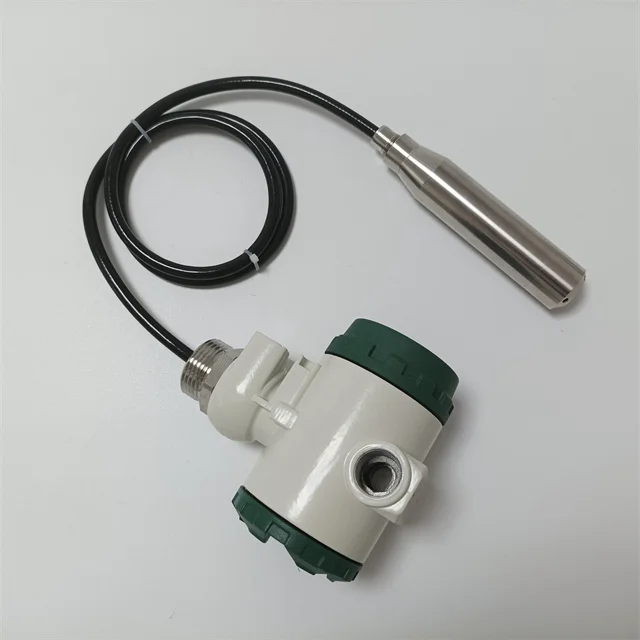

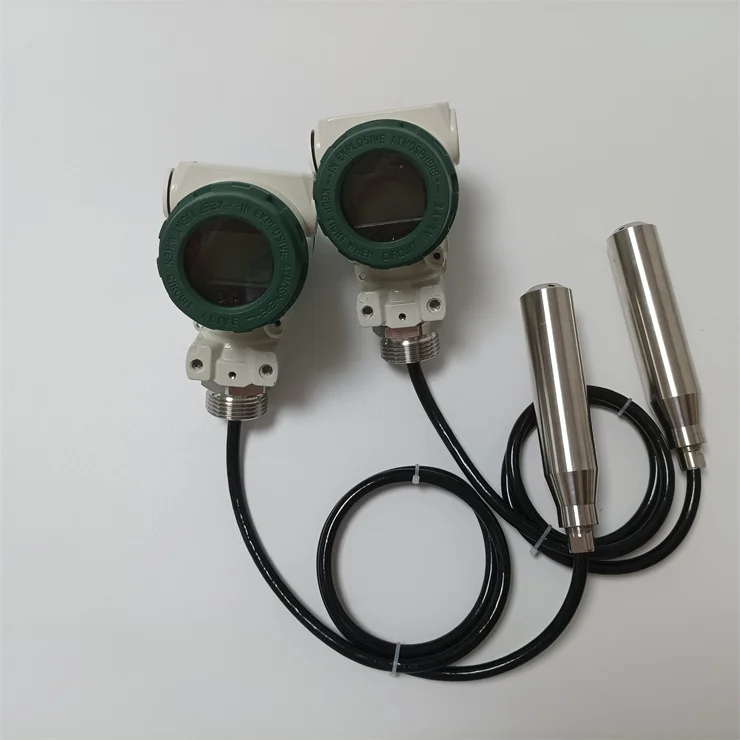

NICON hammer type output RS485 diffused silicon 4-20mA pressure sensor
Product Description
Industrial pressure/level transmitter
1. The 2088 type pressure transmitter adopts diffused silicon core as the sensitive element, and selects intelligent digital
circuit, the overall performance is stable and reliable, and it can carry out long-distance output. Easy to install, suitable for
gas, liquid and steam pressure measurement and control.
2.2088 Smart Pressure Transmitter is used in liquid and gas measurement, and the humidity limit is 0-100% relative humidity.
Performance specifications (zero reference calibration range, reference conditions, silicone oil filled liquid, 316L stainless
steel isolation diaphragm).
3. The design of the 2088 intelligent pressure transmitter ensures that the transmitter can still work safely even if the sensor
diaphragm is damaged or malfunctions. The electronic circuit side (chamber) has two levels of sealing and process isolation, and
the third level of sealing realizes isolation from the field wiring terminals and the conduit entry. The design and location of
the process seal make the transmitter housing pressure resistant and prevent process impurities from entering through the conduit
from the terminal side.
1. The 2088 type pressure transmitter adopts diffused silicon core as the sensitive element, and selects intelligent digital
circuit, the overall performance is stable and reliable, and it can carry out long-distance output. Easy to install, suitable for
gas, liquid and steam pressure measurement and control.
2.2088 Smart Pressure Transmitter is used in liquid and gas measurement, and the humidity limit is 0-100% relative humidity.
Performance specifications (zero reference calibration range, reference conditions, silicone oil filled liquid, 316L stainless
steel isolation diaphragm).
3. The design of the 2088 intelligent pressure transmitter ensures that the transmitter can still work safely even if the sensor
diaphragm is damaged or malfunctions. The electronic circuit side (chamber) has two levels of sealing and process isolation, and
the third level of sealing realizes isolation from the field wiring terminals and the conduit entry. The design and location of
the process seal make the transmitter housing pressure resistant and prevent process impurities from entering through the conduit
from the terminal side.
Specification
Model | NIC-2088-FG |
Range | -100KPa~0~ 1 00MPa |
Connection method | DN25,DN50(customized) |
Output | 4-20mA,0-10VDC, 0-5VDC |
Daiphragm | 316L, HC, tantalum, Monel, tetrafluoroethylene |
Power | 12~ 36VDC |
Ambient temperature | -30~ 80°C |
Relative humidity | 0~ 90% |
Medium temperature | -30~ 80°C |
Overload | 150% |
Pressure form | gauge pressure, absolute pressure, negative pressure |
Accuracy level | 0.1%, 0.25%, 0.5% |
Long-term stability | +0.2%/year |
Characteristics
1.2088 pressure transmitter has high accuracy and good stability
2.2088 pressure transmitter has wide range coverage
3.The 2088 pressure transmitter has no moving parts, high reliability and long service life
4.2088 pressure transmitter is not affected by the mass of the measured medium
5.2088 pressure transmitter can choose stainless steel shell, protection grade IP67
2.2088 pressure transmitter has wide range coverage
3.The 2088 pressure transmitter has no moving parts, high reliability and long service life
4.2088 pressure transmitter is not affected by the mass of the measured medium
5.2088 pressure transmitter can choose stainless steel shell, protection grade IP67

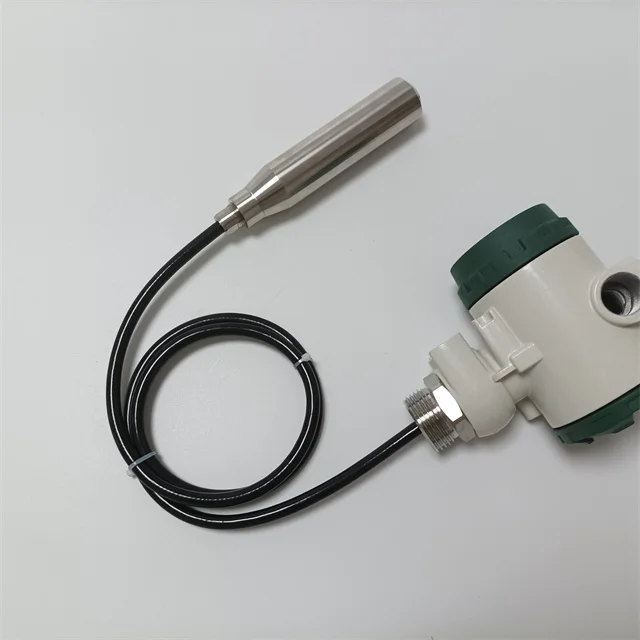

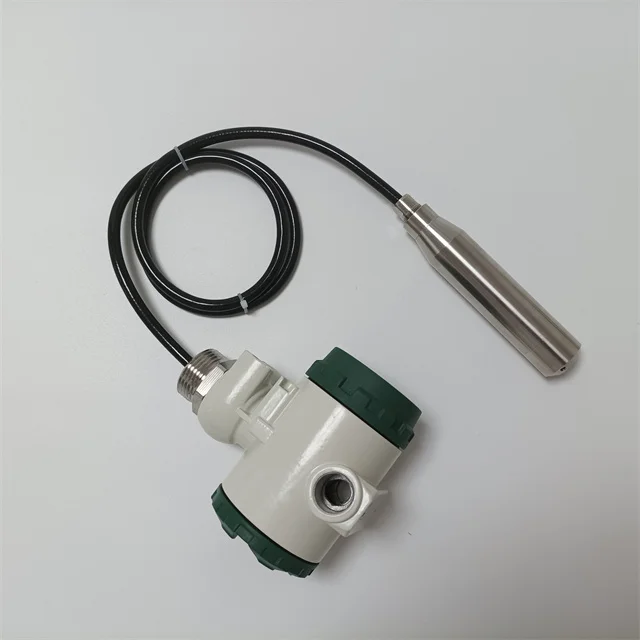

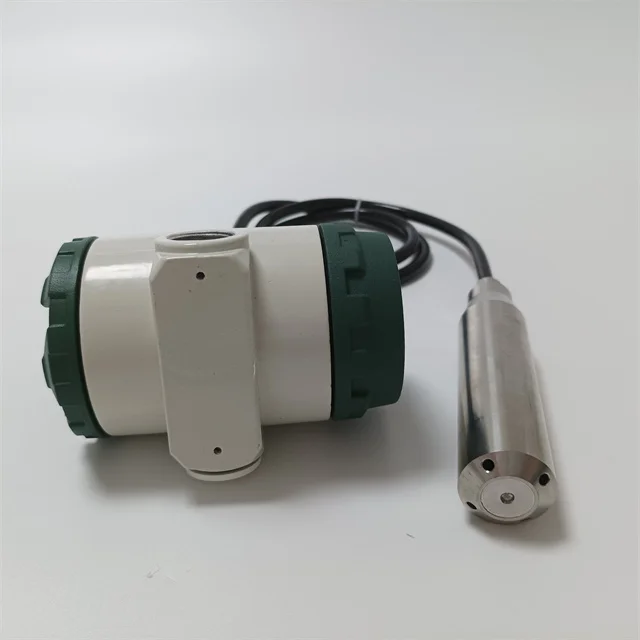

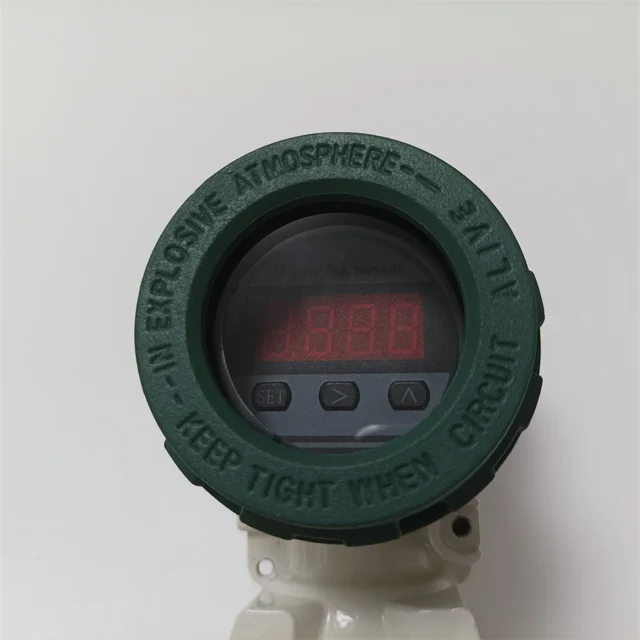

Details Images
Recommend Products
Inventory show

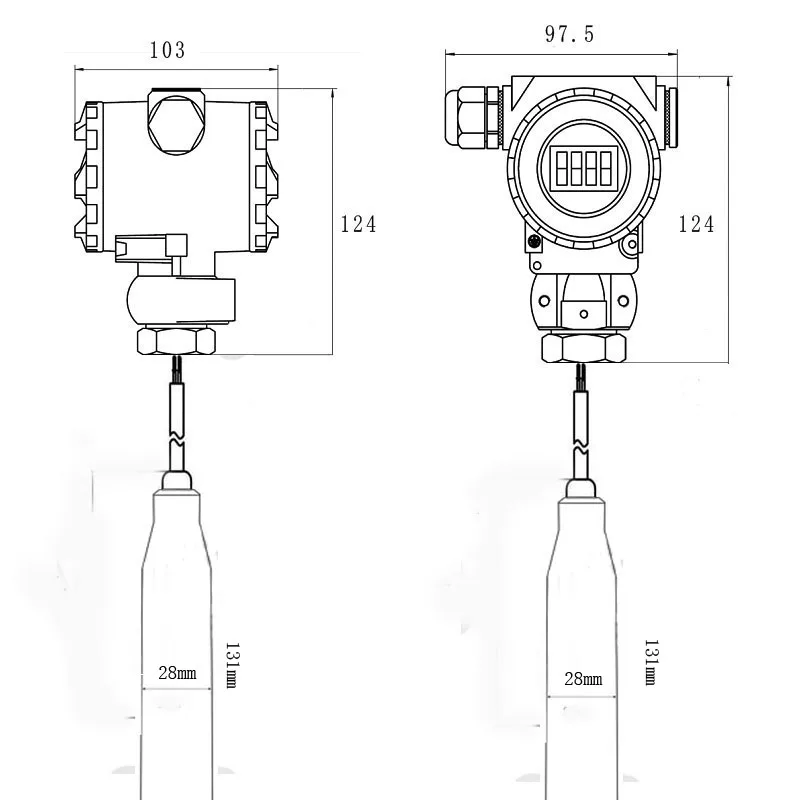

Design Drawing
Application
Company Profile
FAQ
1. How long will you reply me?
Normally in 1 hours, no more than 12 hours.
2. How can I get the quotation?
Please provide specification and application including sensing element, pressure range, thread connection, pressure type, medium, electronic connection, shell material etc. More details, more accurate quotation and earlier response.
3. Can I get sample?
Contact with our staff online directly and they would check stock for you.
4. Can I visit your factory?
You are warmly welcomed, our factory is located at Zhengzhou city, Henan province, China.
5. Can we use our logo on the products?
Yes, we provide OEM/ODM service.
6. How long is your warranty period?
Warranty period from the date of acceptance of 12 months.
7. What is your terms of payment?
We could accept T/T, L/C, Western union, PayPal, Credit Assurance via Alibaba.
Normally in 1 hours, no more than 12 hours.
2. How can I get the quotation?
Please provide specification and application including sensing element, pressure range, thread connection, pressure type, medium, electronic connection, shell material etc. More details, more accurate quotation and earlier response.
3. Can I get sample?
Contact with our staff online directly and they would check stock for you.
4. Can I visit your factory?
You are warmly welcomed, our factory is located at Zhengzhou city, Henan province, China.
5. Can we use our logo on the products?
Yes, we provide OEM/ODM service.
6. How long is your warranty period?
Warranty period from the date of acceptance of 12 months.
7. What is your terms of payment?
We could accept T/T, L/C, Western union, PayPal, Credit Assurance via Alibaba.
8.How many days we can deliver?
In general, 2-3 days if sample order. 7-10 days if less than 100 pcs.
In general, 2-3 days if sample order. 7-10 days if less than 100 pcs.
