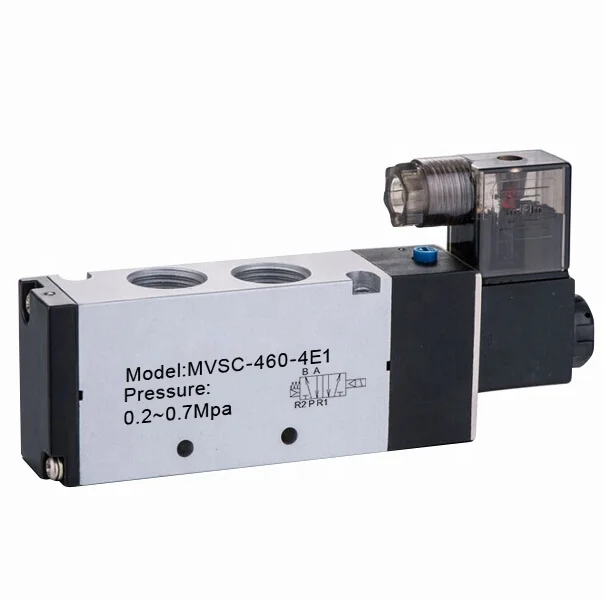

MVSC460 Series Solenoid Valve

Product Overview

Description

Model	MVSC-460-3E1	MVSC-460-4E1, E2	MVSC-460-4E2C.P.R
Way Number	3	5
Valve Type	2 Position	2 Position	3 Position
Joint Pipe Bore Size	G1/2
Operating Fluid	Air
Working-Pressure Range	2~7kgf/cm2		3~7kgf/cm2
Max. Pressure Resistance	10.5kgf/cm2
Effective Section Area	50mm2		30mm2
Answer Time	50ms
Around Temperature	5-50°C
Orientation Voltage	AC110V, 220V (50/60) Hz, DC24V
Power Consumption	AC=6/4.9VA DC=2.5W
Allowed Pressure Range	±10%
Insulation Class	F Class



Q1. Is the sample order acceptable?

A: Yes, of course.



Q2. What is your MOQ?

A: 1 PCS.



Q3. What is the delivery time?

A: It is about 3-7 days after we receive the payment.



Q4. How to make the payment?

A: We accept T/T, Paypal, Ali Trade Assurance.



Q5. Do you have products in stock?

A: Yes, some stock can be shipped out within 3 days.



Q6. Do you test all your goods before delivery?

A: Yes, all products are fully inspected before delivery.



Q7. What is the warranty?

A: Our warranty is one year. After you receive the goods, if you find defect products, just take pics or videos to send us. We will re-make it for re-fund them to customers once we confirm it is our responsibilities.
