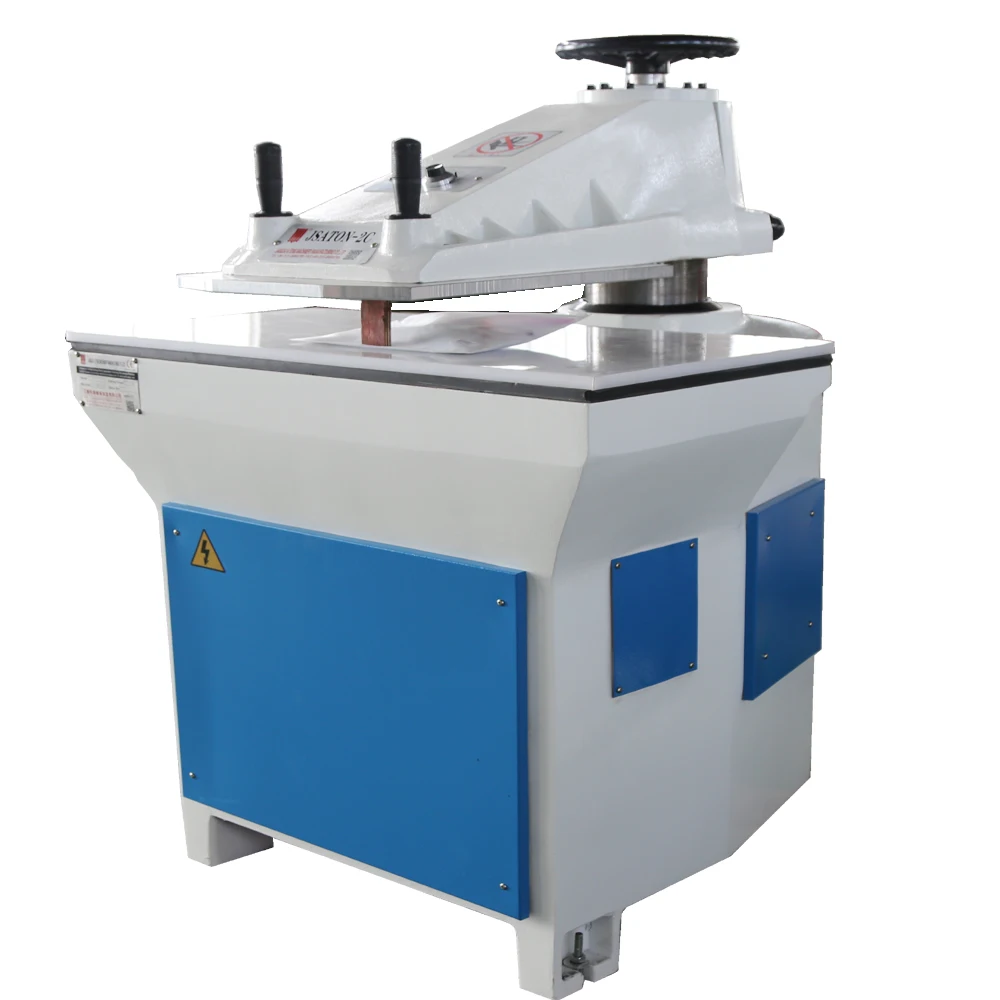

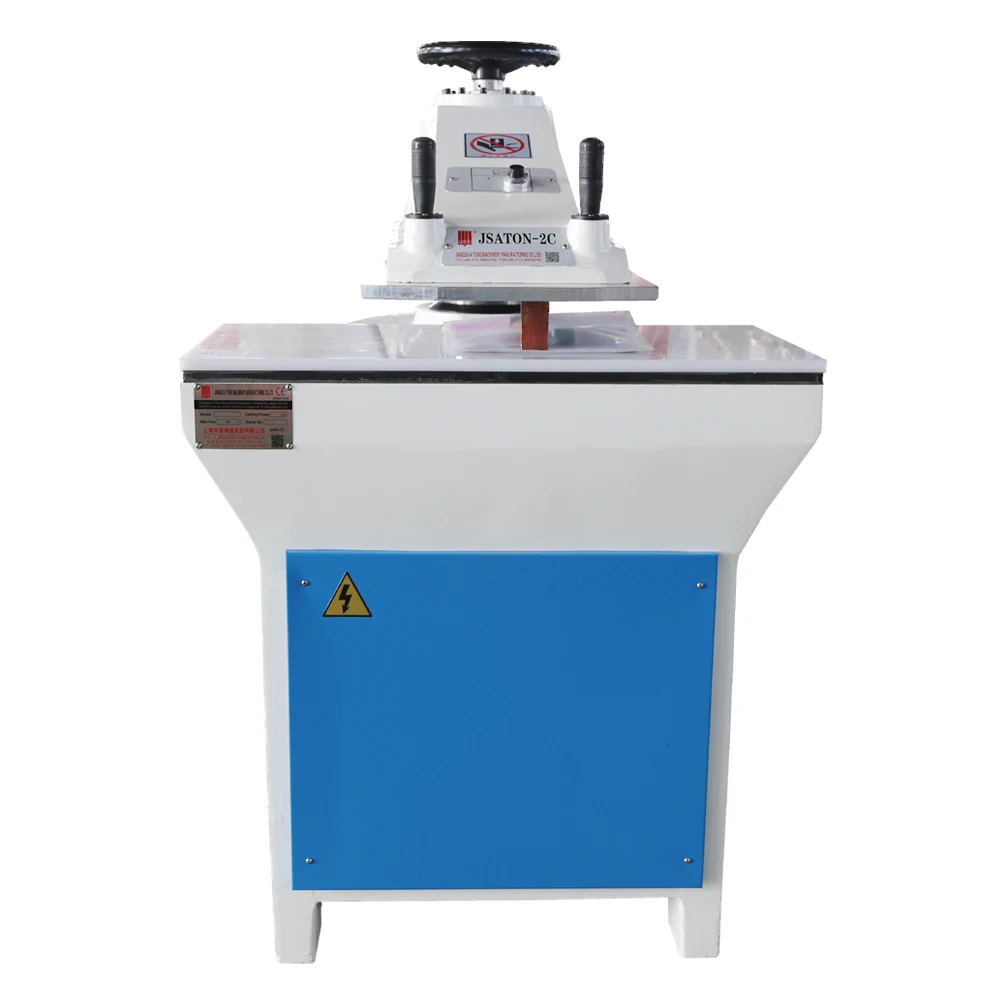

hydraulic leather clicker press machine
- Category: Shoe Making Machines >>>
- Supplier: Jiangsu Atong Machinery Manufacturing Co. Ltd.
Share on (1600384862384):
Product Overview
Description
Before start order, please contact me and send me pictures of your cutting samples.
Attention:
I would be grateful if you could tell me the destination sea port, i will check if we can offer the shipping service for you.
Product Description
Technical specification
Model number | JSAT-2C/12 | JSAT-2C/20 | JSAT-2C/25 |
Max scissor force | 120KN | 200KN | 250KN |
Swing arm width | 330*450mm | 350*550mm | 450*550mm |
Stroke adjustment | 5-55mm | 5-75mm | 5-75mm |
Scissor speed | 0.10m/s | 0.10m/s | 0.10m/s |
open daylight | 60-140mm | 65-150mm | |
upper and lower table | 900*400mm | 1000*500mm | |
Motor power | 1.1KW | 1.5KW | |
Company Information
factory fair show
FAQ
1)What's warranty of machine?
12 months Warranty
Life-long maintenance service for machine
2)What's your after-sales service?
Engineer available to serve machines overseas;
Email and calling service in working hour.
3)Can we test the our material by your machine free?
Yes, please contact us to send your materials.
4)How to confirm how much ton pressure is fine?
Always 1m knife line need about 5 ton pressure.
please send your drawing or product photo, we can help you confirm.
