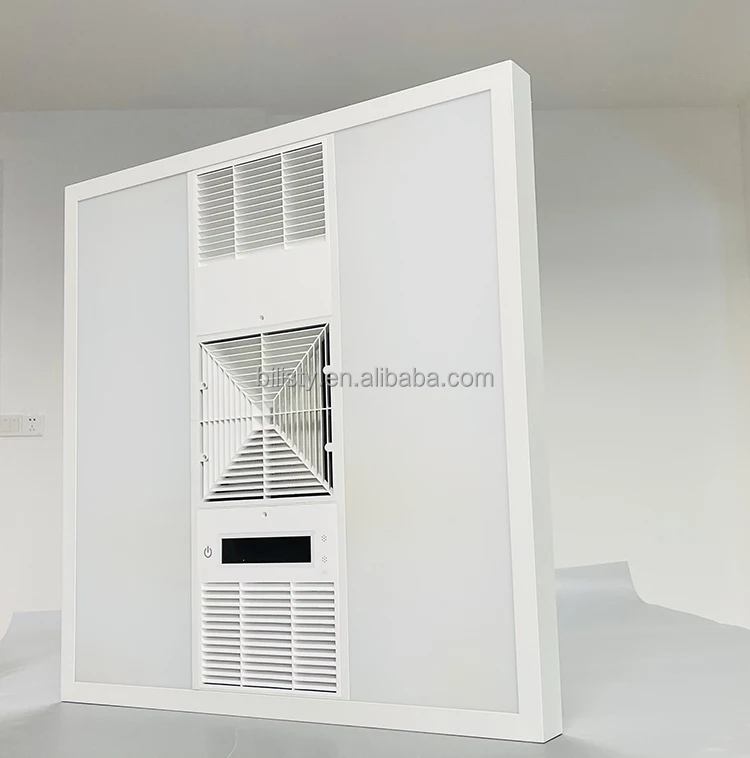

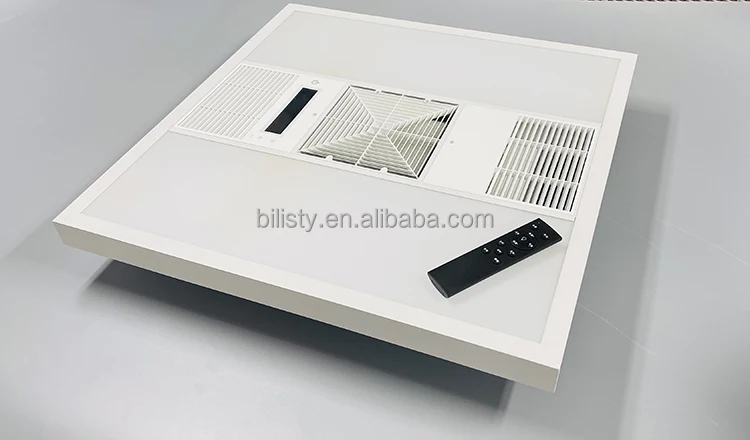

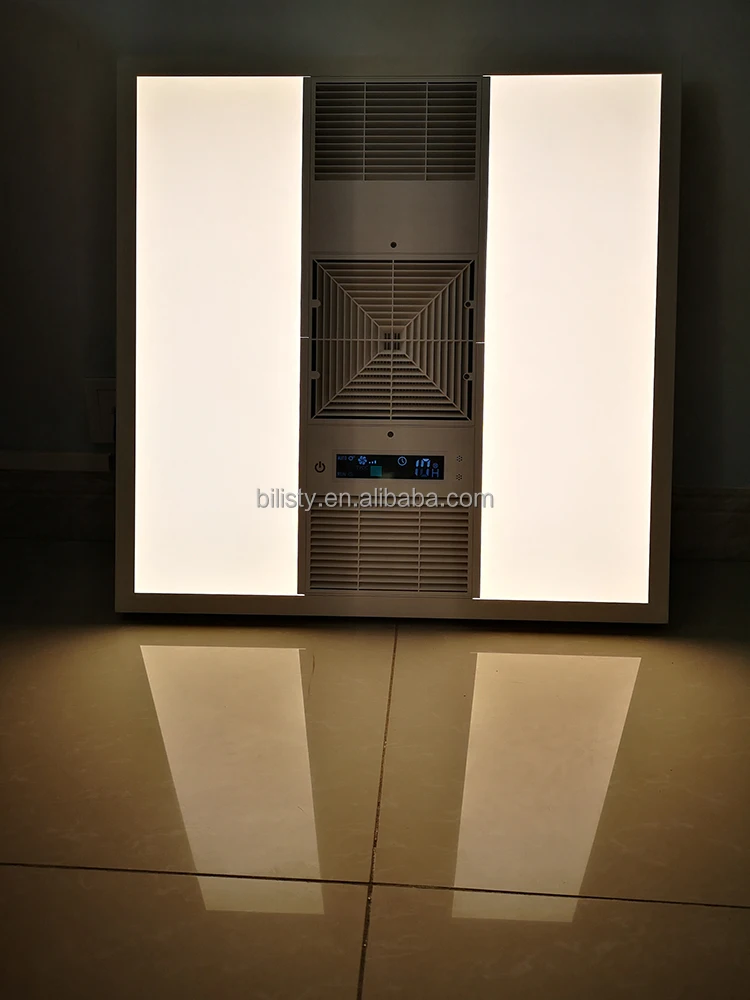

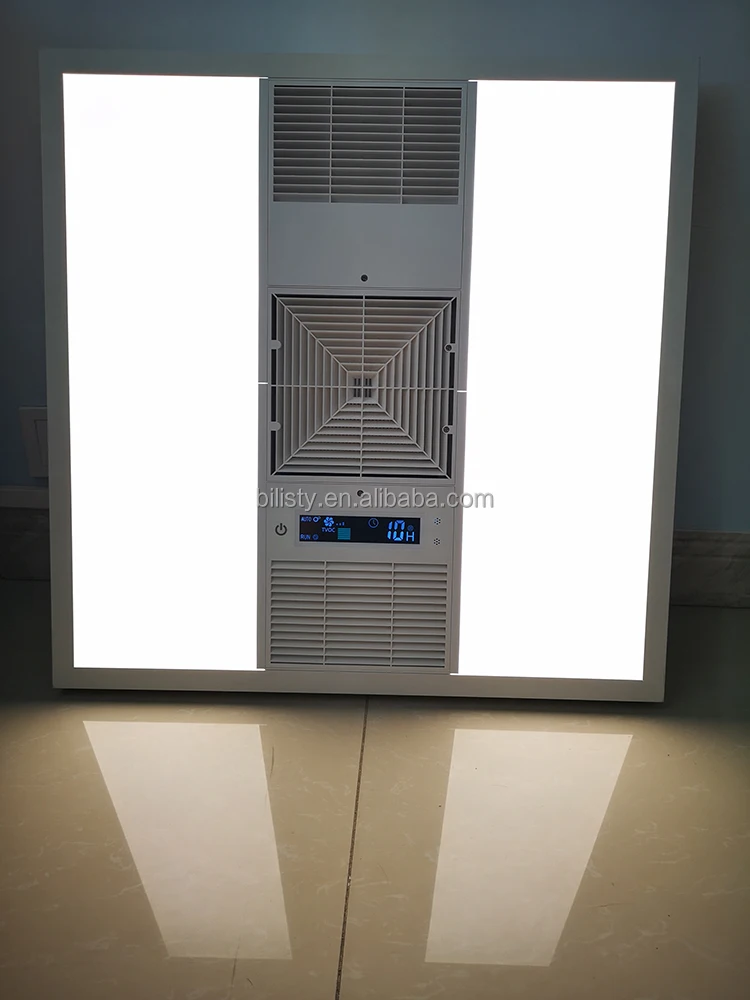

uvc sterilization light 595*595 UGR<16 LED panel light by Infrared remote control sterile led light

Product Overview

Description



Anti Virus LED panel light Germicidal lamp

1.Basic product information:

1:Killing function: it has the functions of sterilization, purification, antifouling and deodorization;

2:Working mode: it has three modes: automatic, manual and sleep;

3:Control mode: switch, mode, brightness, wind speed, timing and other functions are realized           through infrared remote control operation;

4:Timing function: it can be set arbitrarily for 1-12 hours;

5:LED lighting: seven levels of brightness adjustment, color temperature 2700K~5700K, 10 levels     of color matching temperature, no stroboscopic design;

6:Product size: 595 * 595mm, which is consistent with the size of conventional panel lamp and can be directly replaced 1:1.





 2:Electrical parameters:

Input parameter	AC100-240V
Total power	60W
UV lamp wattage	15W
Fan wattage	9W
Light wattage	36W
Tinting temperature	YES
diming control mode	Infrared remote controller
Executive standard	CE:EN60598-1/EN60950-1/EN55015:2013/EN61000-3-2/ EN61000-3-3/EN61547:2009/EN62471 RoHS 2.0

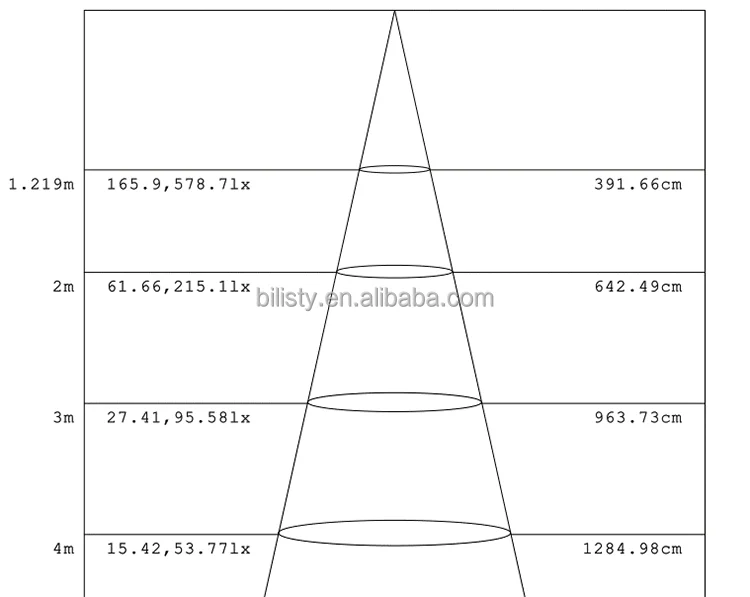

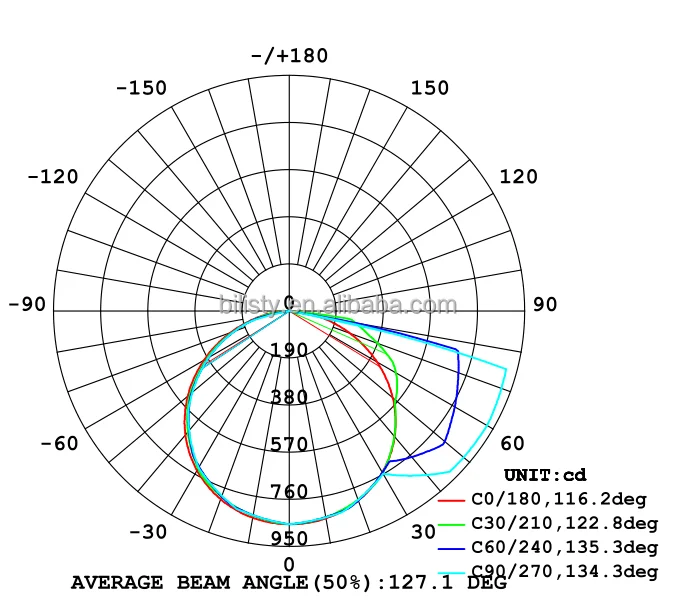

 3:Light distribution curve



 4:Description of disinfection and sterilization performance

1:Air purification function: it has effects on formaldehyde, benzene, ammonia, sulfur dioxide, carbon monoxide, nitrogen oxides, etc.Harmful organic matter plays a role in purification

 2:Bactericidal function: it has bactericidal effect on Escherichia coli and Staphylococcus aureus.        While sterilizing, it can also decompose harmful compounds released from dead bacteria.

3:Deodorization function: it has deodorization effect on cigarette odor, toilet odor, garbage odor, animal odor, etc.

 4:Antifouling function: prevent oil stain, dust, etc. It also has the effect of preventing mold, water rust, yellow alkali and rust of toilet and discoloration of painted surface in bathroom.

5:Purification function: it has the purification function of water pollution and organic harmful substances in water, and the surface has super hydrophilicity, anti fog, easy to wash and easy to dry.

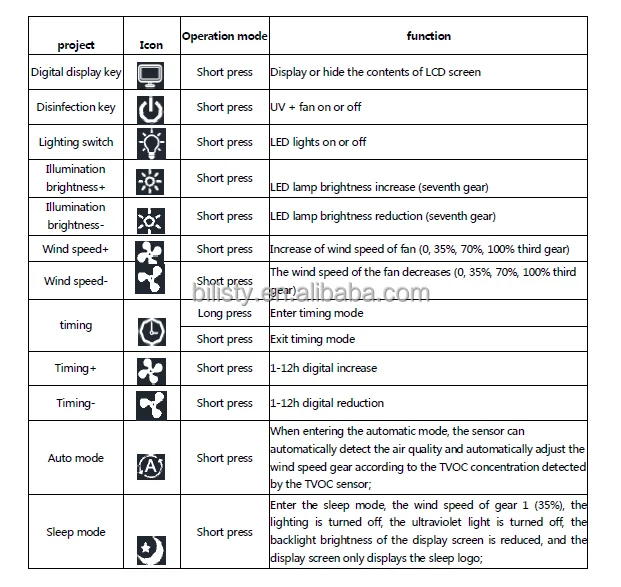

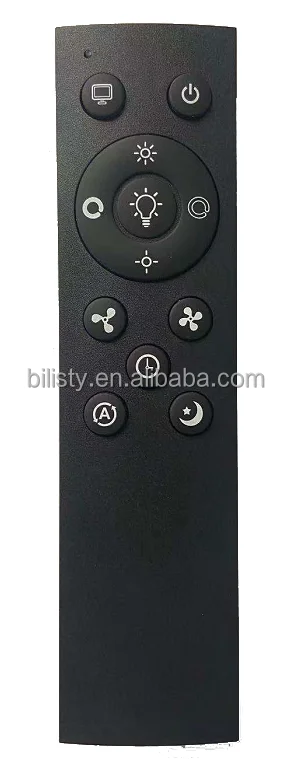

5:Remote control key function description

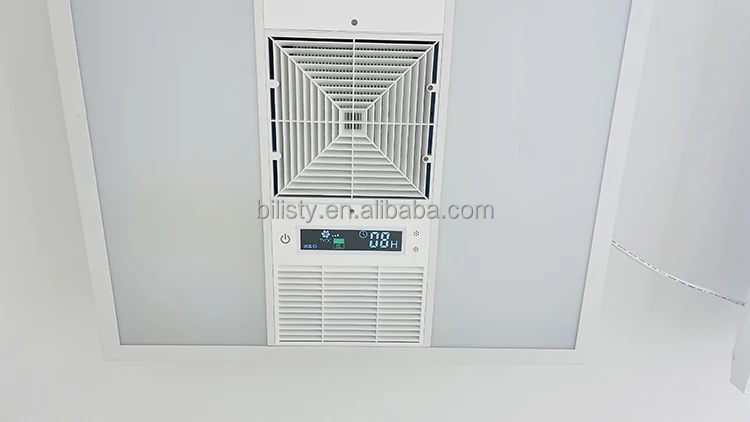

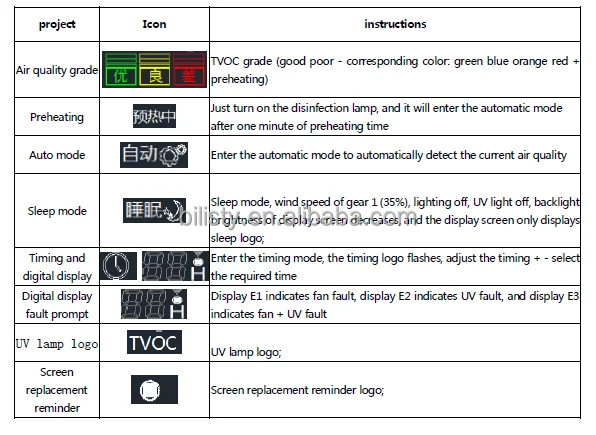

6:LCD screen function description

7:Dimension

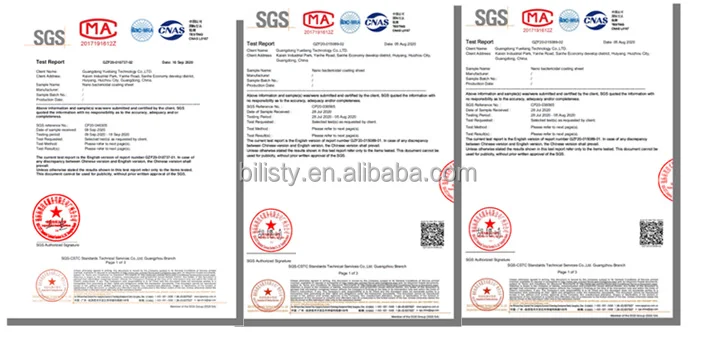

8:Sterilization data

Sterilization type	Killing rate
H1N1	>99.9%
Escherichia coli	99.99%
klebsiella pneumoniae	>99.9%
Staphylococcus albus	86.7%
Air natural bacteria	79.1%



9:Optical parameters

LED type	LED model	CRI	Luminous flux / radiant flux	WLP	CCT	working temperature
white	2835 0.5W	≥80	3000lm±10%	NA	5700K	-20℃-45℃
warm	2835 0.5W	≥80	3000lm±10%	NA	2700K	Working humidity
UV	3535UVA	NA	675-800mW	360-370nm	NA	0%-85%

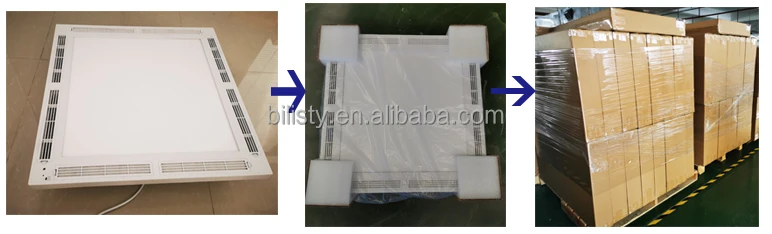

10:Packaging parameters

material	Package size(mm)	Number of packages	Net weight / PCS	Gross weight / PCS	Net weight / CTN	Gross weight / CTN
K=K++	725*205*725	2pcs/CTN	5KG	6KG	10KG	12KG

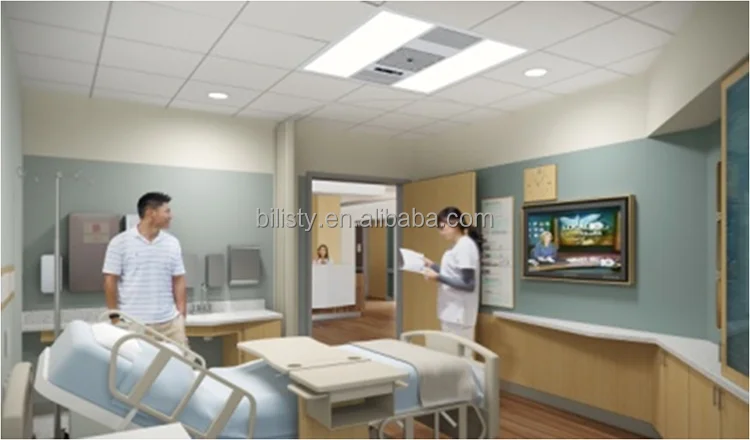

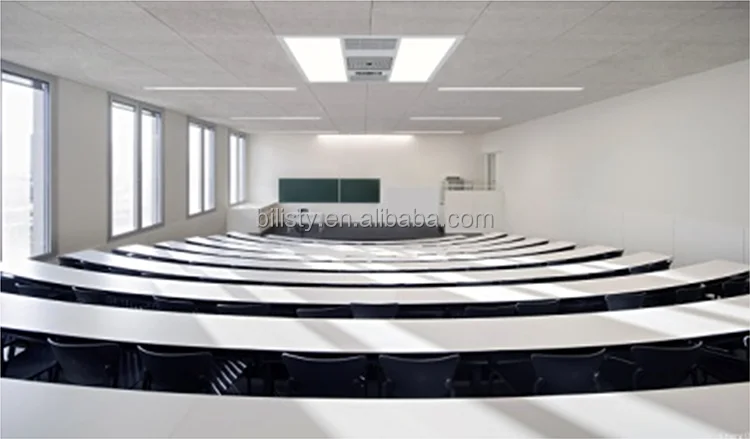

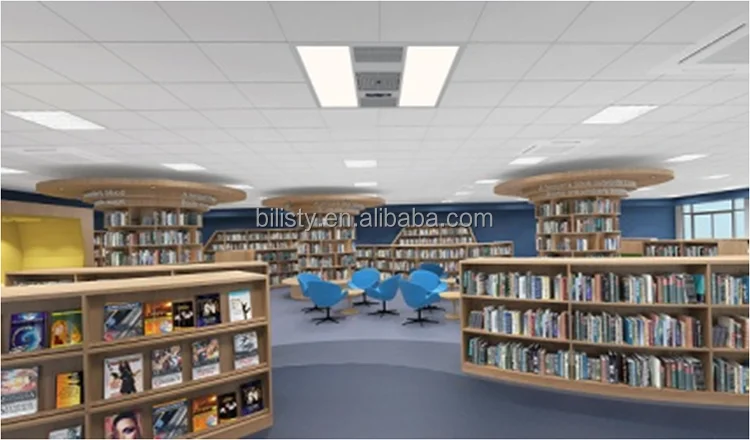

 11:Application scenario
