Product Overview



Automatic Sublimation Polyester Material Fabric Printing Equipment Direct Digital Printer On Fabric


Product Description





Product model


InkFa 6017






Roller diameter

16.5''/ 420mm

23.6''/ 600mm

31.5''/ 800mm

Operation power




Packing size




Gross weight




Transfer speed




Transfer width

63''/ 1600mm


3 phase 220V/380V

Transfer speed

Adjustable speed, 150-280m/h

Heating type

Oil heating



Time range

0-999 Sec
 Working table 3m

Operate method

Three putting,two receiving


With pressure strengthen system

Transfer model

Both use for Roll to roll and sheet textile

Other available width

2600mm, 3200mm; Custom size by your special order


1.High-end composite steel roller with Teflon surface coated,Uniform drum temperature and lower energy consumption;

2.Equipped with adjustable pneumatic pressure system, adjust the pressure according to different transfer materials, the transfer speed is faster, the color is more gorgeous;

3.Self-developed equipment control system, using high-end electrical components, high-precision parts, equipment transfer more stable;

4.The blanket is separated automatically and the high-precision silicone pressure balance bar is used to adjust the pressure between the blanket and the roller to effectively reduce the tension of the blanket and extend the service life of the blanket;

5.Adopt scientific design, three putting and two rewinding(three putting: putting fabric,transfer paper, and protection paper; two rewinding; rewinding fabric and protection paper) ,equipment operation is more convenient,labor saving; Double layer oil drum,100% full heating oil,the surface temperature is ±1-2ºC; .jpg


Product Detail

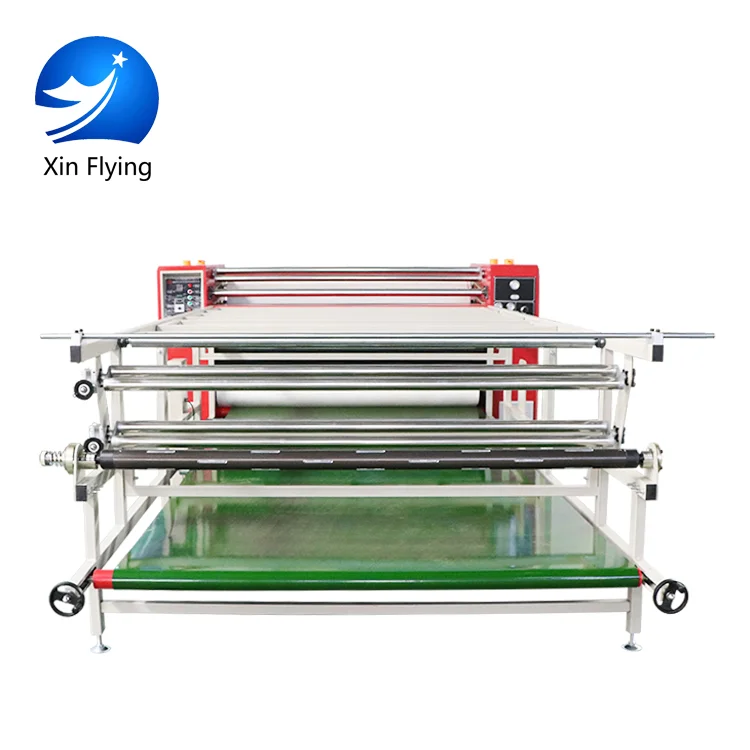

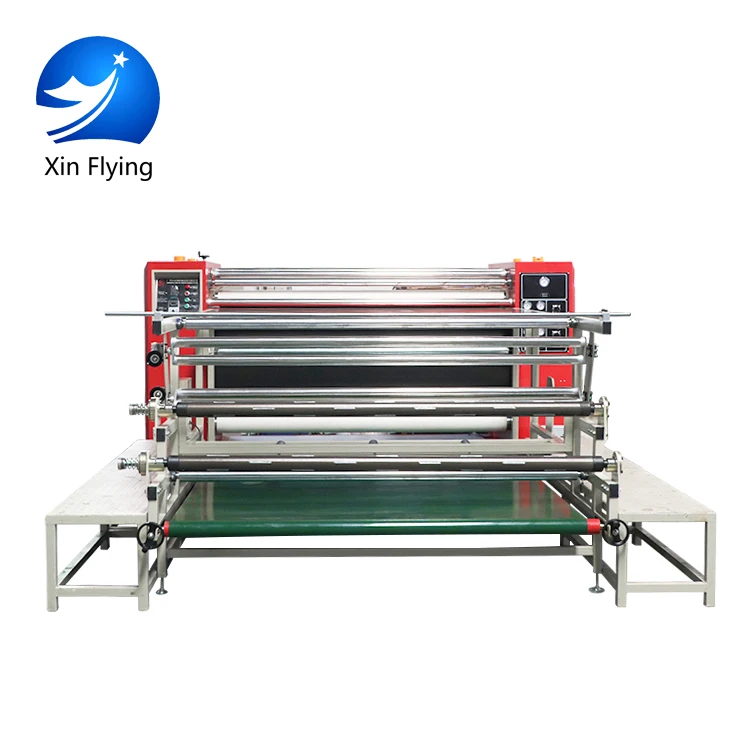

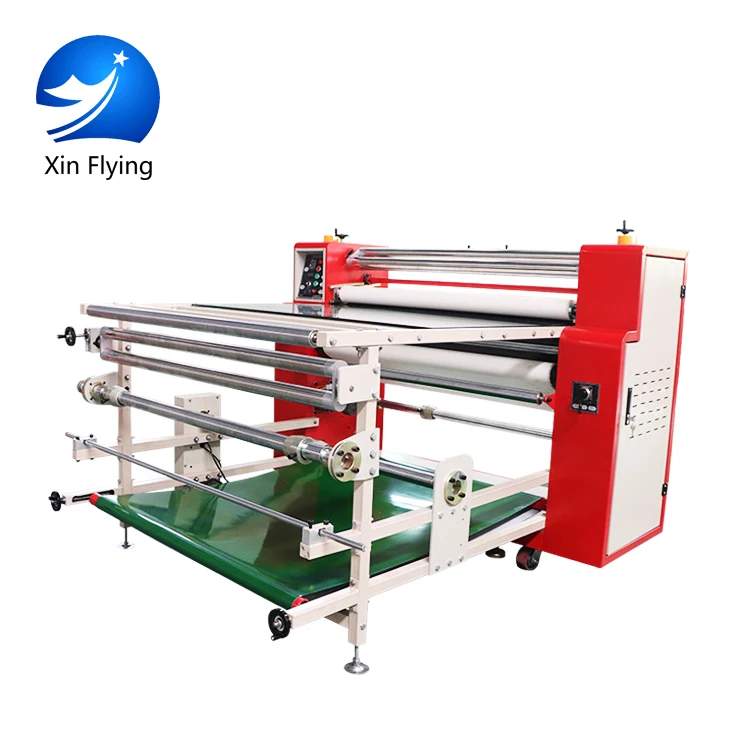

Roller heat transfer machine details



1. Protect paper controller which is adjsuting collecting speed.

2. External pressure system independent switch, pressure control button, easy to operate

3. Emergency stop device. If there is an emergency, press the emergency stop device,  the machine will stop immediately, safety is higher.

4. The cylinder pressurizing device is that the cloth and the blanket are closely attached to the roller, and the blanket is not easy to be deflected.

5.Carbon brush type collector ring, which can work continuously for 24 hours, stable current transmission and high safety

6.Adopting DuPont full aramid blanket, the blanket is resistant to high temperature, not easy to deform, the surface is smooth, and the fabric transfer has no color difference.


600 factory.jpg


It is suitable for sublimation transfer large  banners , flags,T-shirt,non-woven fabrics, apparel fabrics, towels, blankets, mouse pads and other products in the piece, especially the continuous transfer of the cloth.Capable of continuous printing speed, to meet the needs of large volume printing the customer.

600 applications.jpg


Packing and shipping


The machine is packed in PVC, and the machine is packed in iron cages to prevent it from being damaged by collision in transit. Iron shelf packaging is more stable.packing.jpg


Company Information



Guangzhou Xin Flying Digital Technology Co.,Ltd is a company with 8 years rich experience in digital printing industry area, we have a strong after sales team of 20 professional technicians. Also we have attened many famous international exibitions like SDPE & DPTC 2017 ScreenPrinting & Industrial Inkjet Printing Expo China 2017 DigitalTextile & Personal Tailor Clothing Expo 2017, TPF DIGITAL PRINTING Shanghai International Digital Industry Fair 2017 ect .


Our Services




1. What are the main products of your factory?

  • Printer: Mutoh printer, InkFa digital printer, A3 UV printer, large format printer,  DTG printer, directly to cotton fabric printer etc

  • Ink: Subliamtion ink, Eco-solvent ink, solvent ink, water-based ink, UV ink, pigment ink ect

  • Paper: 48g/70g/90g/100g sublimation paper, 100m/200m/roll; Width: 0.9m/1.22m/1.42m/1.6m/1.8m etc. The width can be customed if the oeder quantity more than 100 rolls paper

  • Print head: DX5, DX7, 5113, 4720, Rocoh G5 etc

2. What is the payment terms and delivery data?

  • Payment terms: We accept T/T transfer, Western Union, money gram and cash etc

  • Delivery date: If machine in stock, within 3-5 workdays after full payment is received. 7-10 workdays in purchase season.

  • Transportation: Machine should be shipping by sea or  land transportation; Small order will be sent by  DHL, FedEx, TNT, and UPS etc


3.What about the warranty of machine ?

  • We supply 1 year(12 months) free warranty for the machine within 1 year, if there is any problem of  printer, please directly contact us and we will offer technician service online. (Print head and consumable parts are not included.)

 4.Is your printer equipped with software? What is it?

  • The printer is equipped with original RIP software Maintop 6.0.

5. How you offer aftersales service oversea?

  • A. We have 3 experienced engineers and 2 technical online customer service to supply 15 hour online service. Any problems, we can solve them online via skype and WhatsApp.

  • B. Remote control service via the software team Viewer is provided for the customer to install the software and adjust the program.

  • C. Free training installation and maintenance of the printer will be provided to assist customers in factory China . If customer needs, we can send our engineers abroad to provide service such as machine setup and repairing.(Customer help to pay business trip expense for our engineer.)

6. If there is something spare paprts of printer need to replace, what can I do?

  • We supply all the spare parts for the printer. If any part is broken, we will fix it or send you new parts after users send back the broken ones. We will prepare the vulnerable parts for you before shipment, and advice customers order some spare parts package for long time maintenance and fast replacement.
