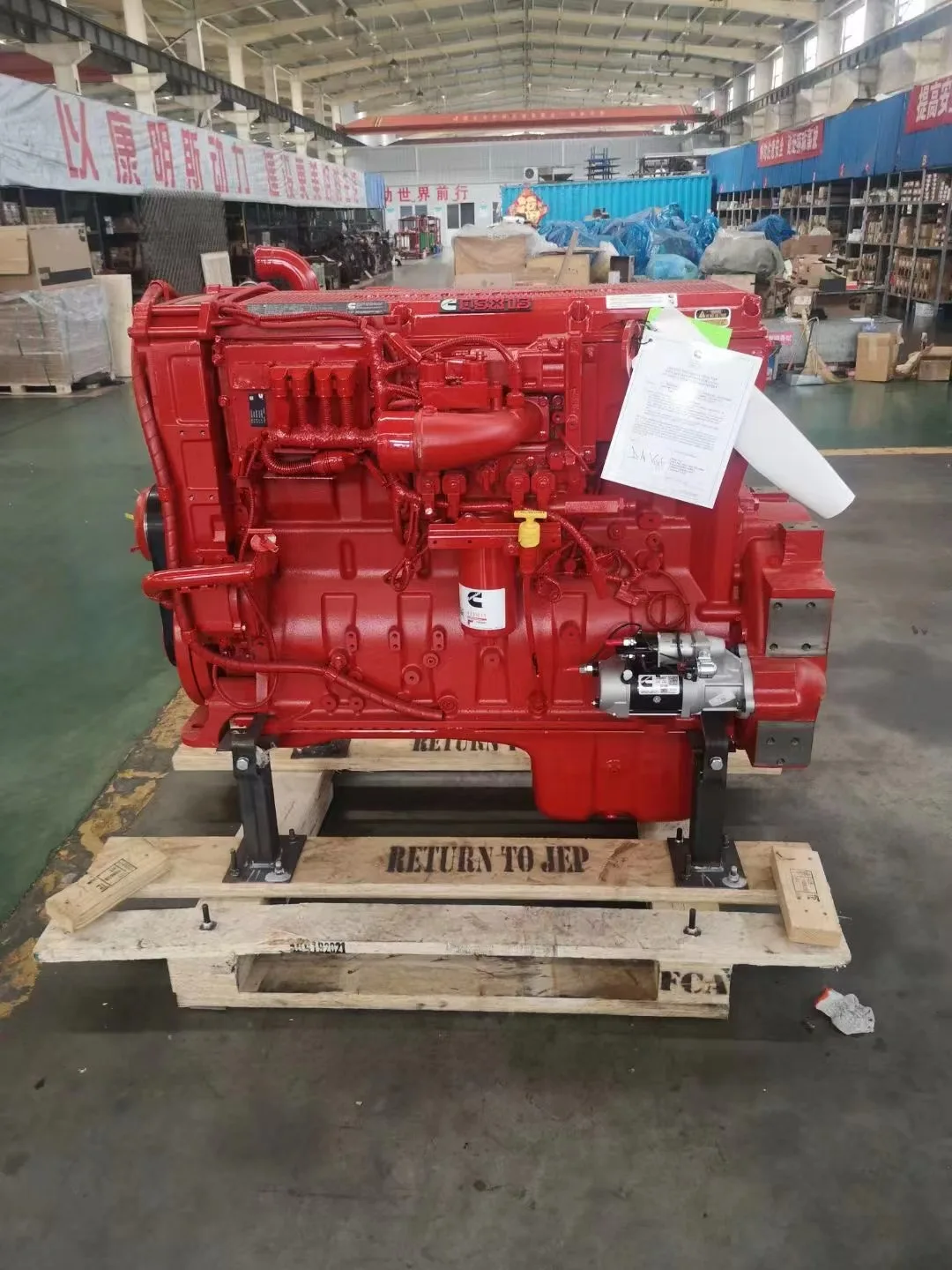

Complete Diesel Engine for Cumins QSX15
- Category: Machinery Engines >>>
- Supplier: Maxizm,Construction,Machinery,(Qingdao),Co.,Ltd.
Share on:
Product Overview
Description
Product Description
Product Features:
The diesel engine has the highest thermal efficiency (engine efficiency) of any practical internal or external combustion engine due to its very high expansion ratio and inherent lean burn which enables heat dissipation by the excess air. A small efficiency loss is also avoided compared to two-stroke non-direct-injection gasoline engines since unburned fuel is not present at valve overlap and therefore no fuel goes directly from the intake/injection to the exhaust. Low-speed diesel engines (as used in ships and other applications where overall engine weight is relatively unimportant) can have a thermal efficiency that exceeds 50%.
The diesel engine has the highest thermal efficiency (engine efficiency) of any practical internal or external combustion engine due to its very high expansion ratio and inherent lean burn which enables heat dissipation by the excess air. A small efficiency loss is also avoided compared to two-stroke non-direct-injection gasoline engines since unburned fuel is not present at valve overlap and therefore no fuel goes directly from the intake/injection to the exhaust. Low-speed diesel engines (as used in ships and other applications where overall engine weight is relatively unimportant) can have a thermal efficiency that exceeds 50%.
Specification:
Specifications For QSX 15 | ||||||
Engine Type | In-Line, 6-Cylinder | Fuel system | Rotary type Bosch pump/Direct injection | |||
Rated Speed | 1200RPM | |||||
Displacement | 15 L | Standard cooling system | 122 °F (50 °C) ambient radiator | |||
Prime Power | 356 kW | Length | To be confirmed | |||
Standby Power | 300 kW | Width | To be confirmed | |||
Bore and Stroke | 5.40 in x 6.65 in (137mm x 169mm) | Height | To be confirmed | |||
Aspiration | Turbocharged and Charge Air Cooled | Weight (wet) | 1403kg | |||
Fuel filter | Ventury combo Stratapore filter/Spin on | Air cleaner type | Heavy duty/Normal duty | |||
Battery capacity | 1000 amps minimum at ambient temperature of -18 °C to 0 °C (0 °F to 32 °F) | Lube oil filter type(s) | Spin-on, full flow | |||
