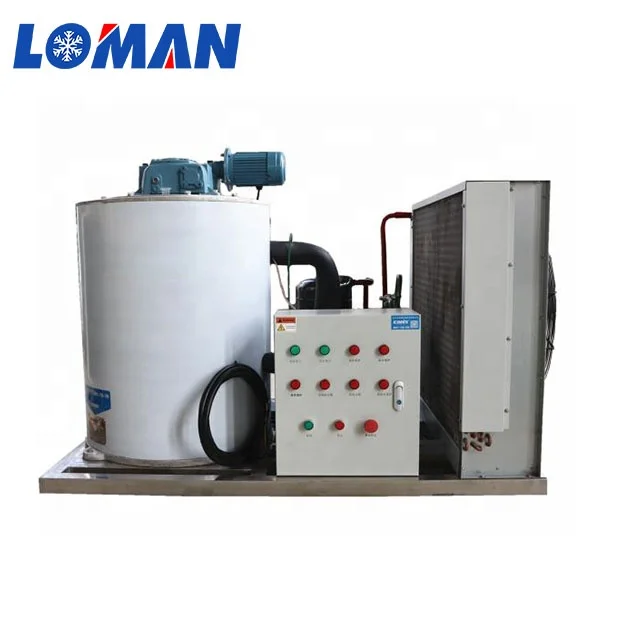

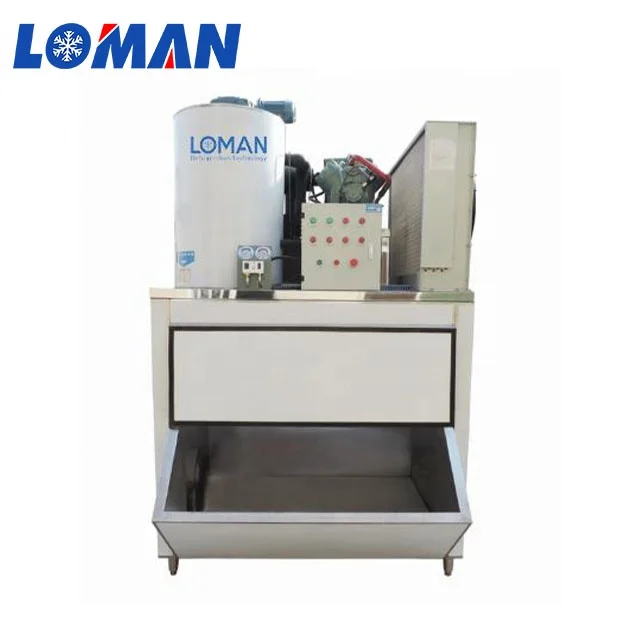

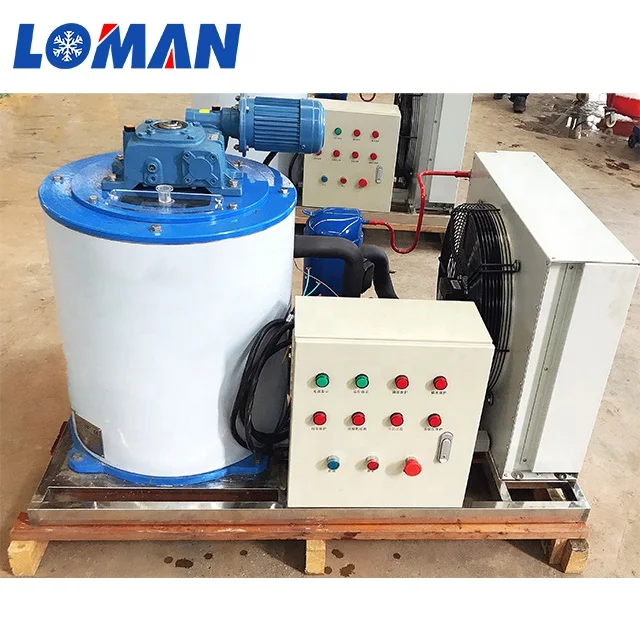

Loman Industrial snow Ice Making Machine With ice bin Freshwater 1 tons Flake Ice Maker Machine For Fish
- Category: >>>
- Supplier: Changzhou Loman Refrigeration Technology Co. Ltd.
Share on (1600385069396):
Product Overview
Description
Product Description
Details Images
Model | MIF15T-R2W | MIF20T-R2W | MIF25T-R2W | MIF30T-R2W | MIF40T-R2W |
Daily Output(Ton/24hrs) | 15t | 20t | 25t | 30t | 40t |
Cooling Capacity(kw) | 101.5 | 131.4 | 164.5 | 181 | 240 |
General Power(kw) | 54 | 64.5 | 81 | 90.1 | 120 |
Compressor Input(kw) | 45.6 | 55.9 | 70.6 | 78.8 | 96 |

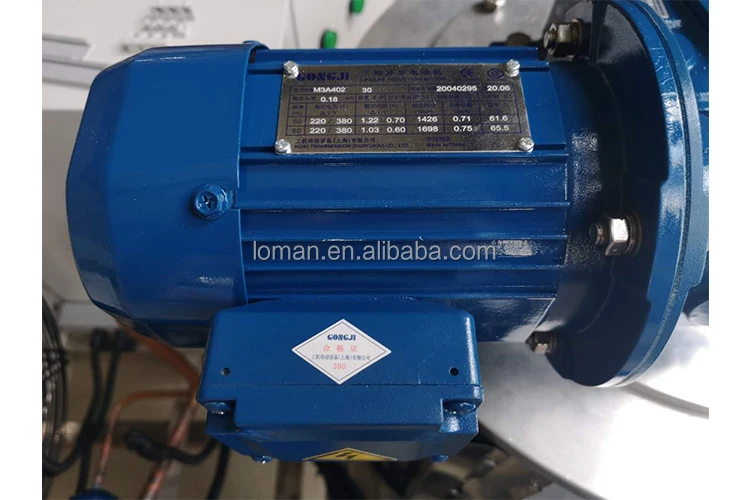

Reductor Power(kw) | 0.75 | 0.75 | 0.75 | 0.75 | 0.75 |
Cooling Mode | Water cooling | Water cooling | Water cooling | Water cooling | Water cooling |
Cooling Tower(m³/h) | 60 | 70 | 78 | 95 | 95 |
Water Inlet/Drain Pipe | 2*3/4'';1/2'' | 2*3/4'';1/2'' | 2*3/4'';1/2'' | 2*3/4'';1/2'' | 2*3/4'';1/2'' |
Weight(kg) | 3850kg | 4400kg | 4950kg | 5400kg | 5400kg |
Dimension(mm) | 2200*1900*2200 | 3500*2100*2200 | 3500*2100*2500 | 4000*2100*2620 | 4200*2100*3100 |
Note:
You can also choose the Air-cooled mode and Refrigerant R404A/R507A to meet your request. ALL the parameter will be changed subject to technical innovation without further novice.
600KG-3000KG
5ton-10ton
Chromium-carbon Steel
Stainless steel

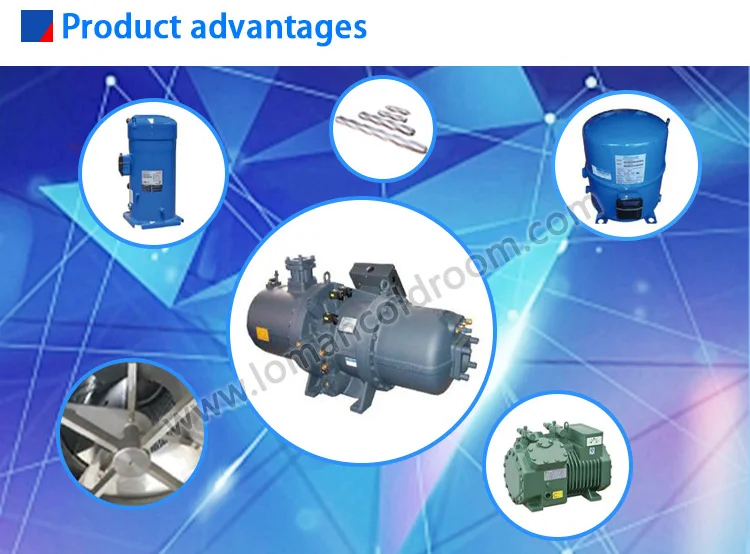

Product advantages
1. Advanced Configuration and Unfailing Performance
Danfoss,Maneurop,Hanbell , B i t z e r and more international brands of compressor can be selected according to the product specifications and customers requirements to ensure the refrigerating capacity matching and performance ability.EDEN,GREENHALGH and other well-known brands of condenser often be selected because of their good condensation effect and low failure rate, Our condenser fan use WEIGUANG,ZIEHL-ABEGG and EBM , not only its good heat dissipation effect,energy-efficient and low noise but also the fewer fan use.

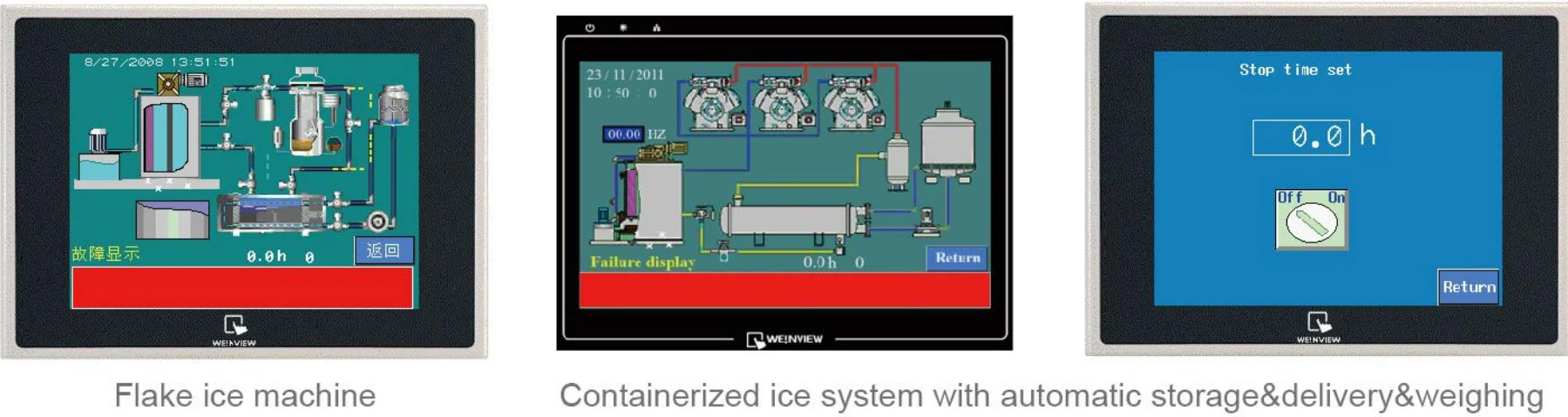

Feel free to set the start&stop time of the machine as you need,which will reduce your human&energy cost.
The red warning signal flicker if any failure occurred, and the relevant solution can be queried instantly.

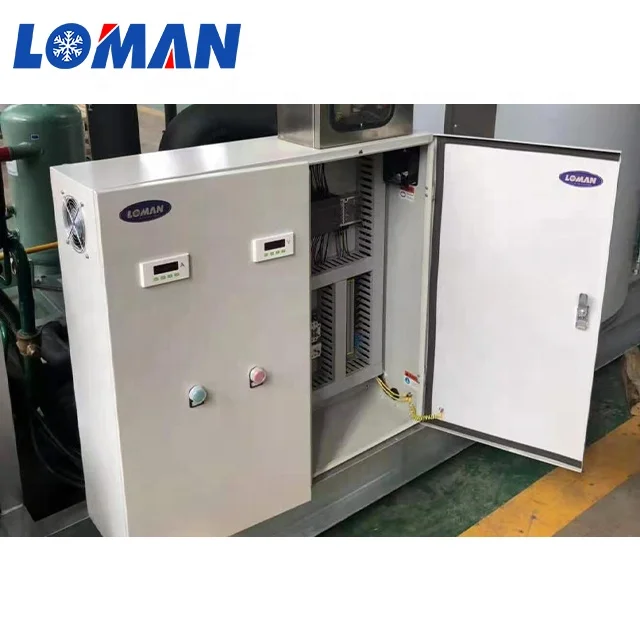

Running state play alive in the touch-screen.
Completely safety unit.
The Europe CE standard designing.

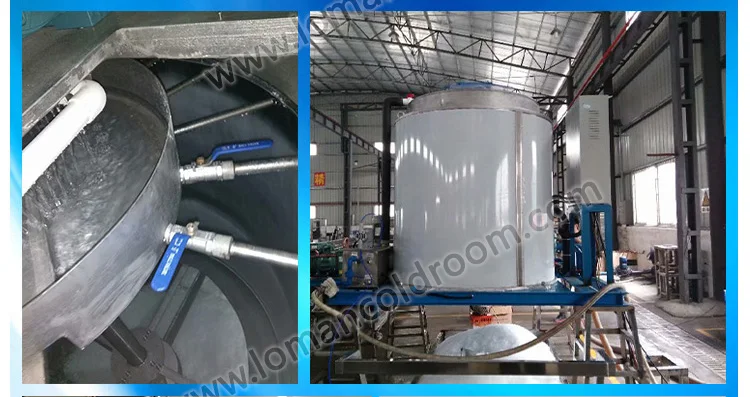

Adopting German technology,the evaporator is welded of low temp steel alloy 16MnR,whose thermal conductivity is close to Aluminum.This high quality evaporator has made our output 3-5％higher than our peer products for the same configulation.The evaporator is annealed and coated with hard chrome plating layer,which makes its life time as long as 10-13 years.The ice scraper and shalf are made of stainless steel 304.The ice scraper is a molded part instead of welded part.Its service life is extended and in the same time,the structure eliminate the possibility of wobbling,abrasion and corrosion that may be caused to the inner
freezing surface of the evaporator.
freezing surface of the evaporator.

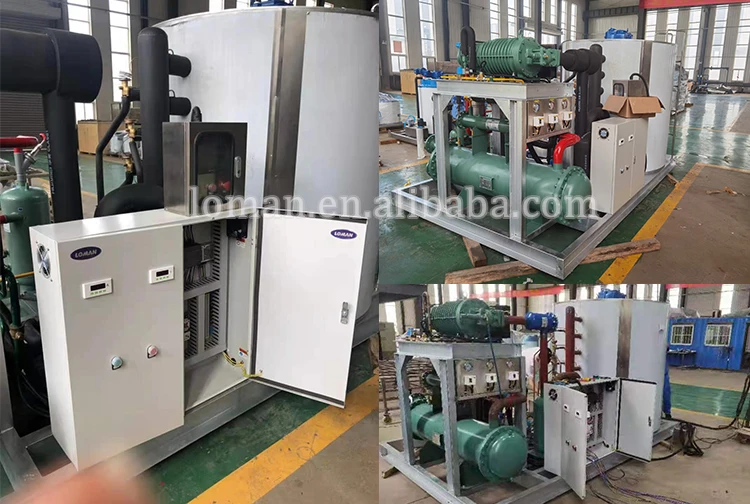

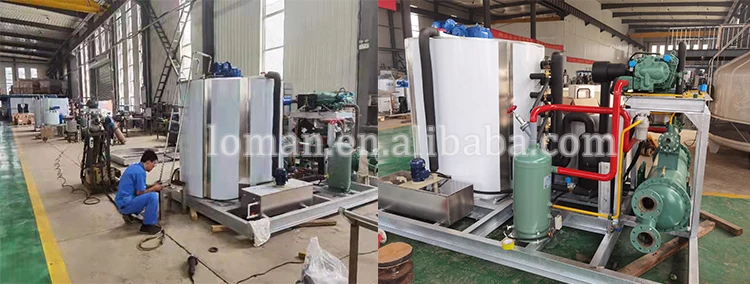

Production scene

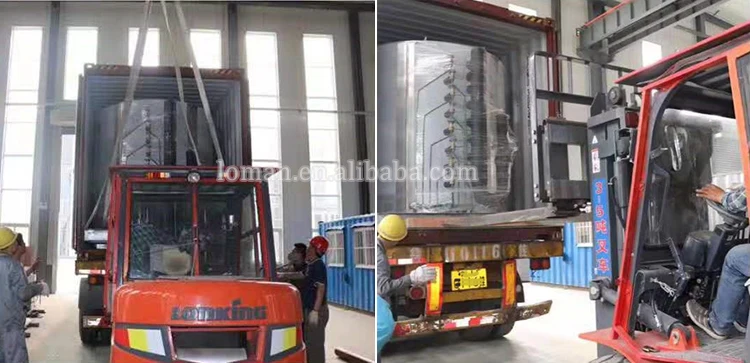

Packing&Shipping

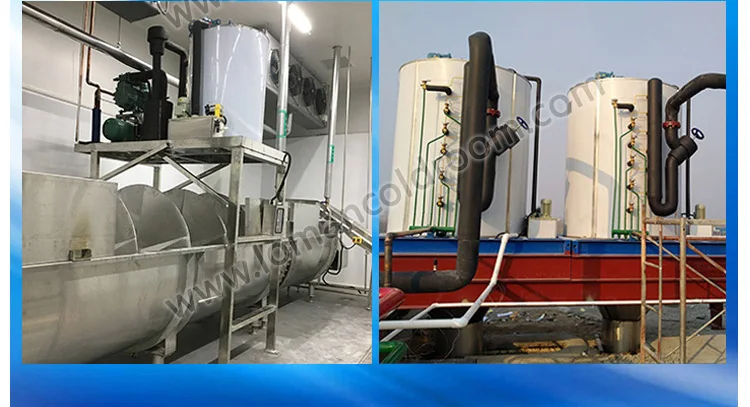

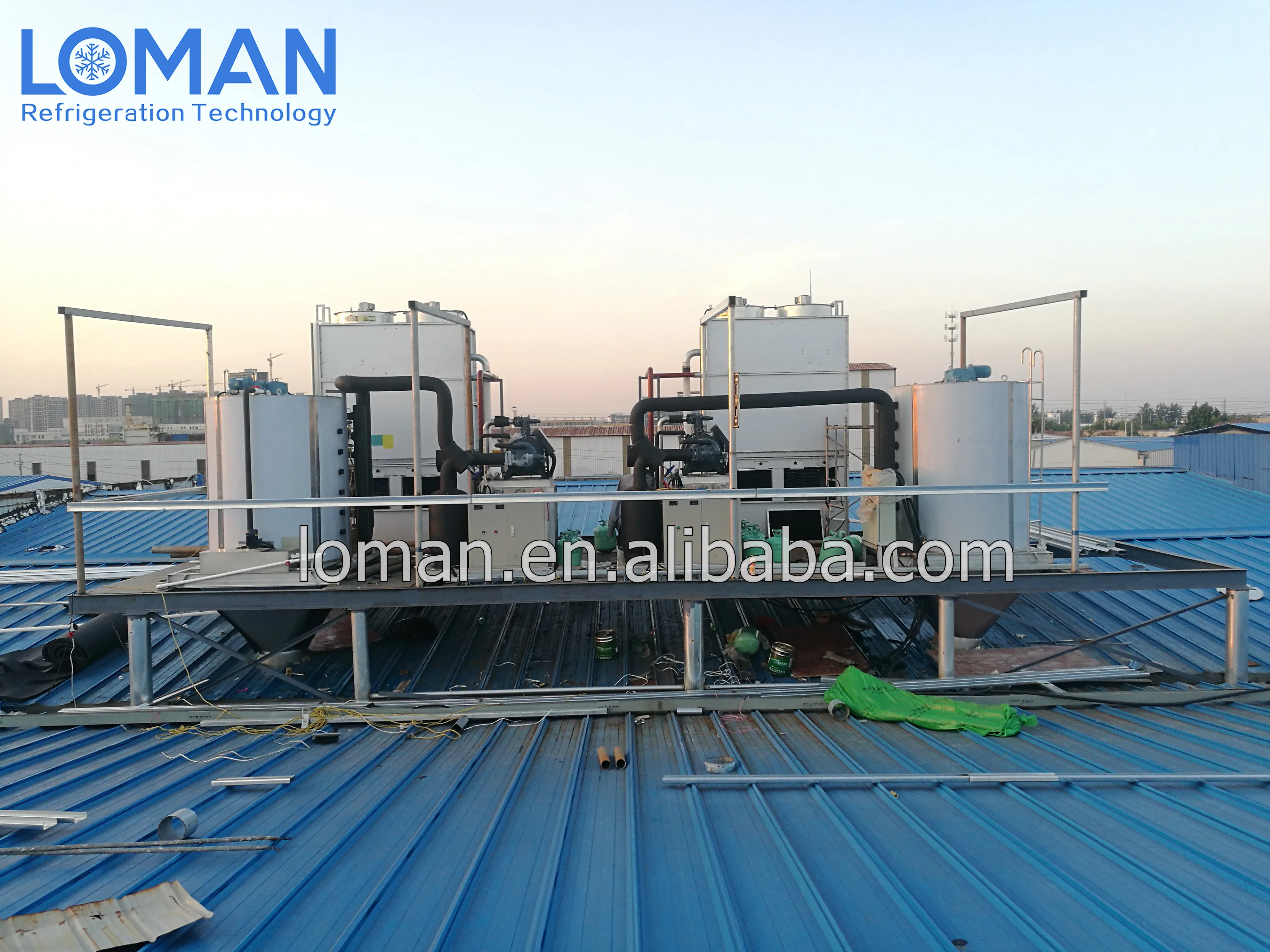

Customer Case
